Diodes Inc

Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(5404)

...

Part	Category	Description
Diodes Inc ZXSC100X8TAObsolete	Integrated Circuits (ICs)	SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8
Diodes Inc MBR1045Obsolete	Discrete Semiconductor Products	DIODE SCHOTTKY 45V 10A TO220AC
Diodes Inc BC847CQ-7-F	Discrete Semiconductor Products	TRANS GP BJT NPN 45V 0.1A 3-PIN SOT-23 T/R
Diodes Inc FL2500151	Crystals Oscillators Resonators	CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD
Diodes Inc FDD300004	Crystals Oscillators Resonators	XTAL OSC XO 133.0000MHZ CMOS SMD
Diodes Inc 1N4002G-T	Discrete Semiconductor Products	DIODE GEN PURP 100V 1A DO41
Diodes Inc MBRF20150CTLObsolete	Discrete Semiconductor Products	DIODE SCHOTTKY ITO220AB
Diodes Inc AP9101CAK-BUTRG1	Integrated Circuits (ICs)	NRND = NOT RECOMMENDED FOR NEW DESIGN
Diodes Inc RS1MWF-7	Discrete Semiconductor Products	1.1V@2A 240NS INDEPENDENT TYPE 1A 1KV SOD-123F FAST RECOVERY / HIGH EFFICIENCY DIODES ROHS
Diodes Inc 74LVC1G3157DW-7	Integrated Circuits (ICs)	ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES

Series	Category	# Parts	Status	Description

PI6CG18401Very Low Power 1.8V, 4-Output PCIe 4.0 Clock Generator with on-chip termination	Clock Generators, PLLs, Frequency Synthesizers	1	Obsolete	Very Low Power 1.8V, 4-Output PCIe 4.0 Clock Generator with on-chip termination
PI6CG330440A19-Output PCIe 5.0/6.0 Clock Generator With On-chip Termination	Integrated Circuits (ICs)	1	Active	The PI6CG330440A is a 19-output very low jitter clock generator. It takes a reference input to generate 25MHz and 100MHz outputs. The on-chip termination can save 80 external resistors and make layout easier. Individual OE pin for each output provides easier power management.
PI6CG33201	Clock Generators, PLLs, Frequency Synthesizers	1	Active
PI6CG33202CLow Power 2-Output PCIe 6.0/5.0 Clock Generator With On-Chip Termination to support Zout=85 Ohm	Clock/Timing	1	Active	The DIODES PI6CG33202C is a 2-output very low power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 8 external resistors and make layout easier. An additional buffered reference output is provided to serve as a low noise reference for other circuitry.

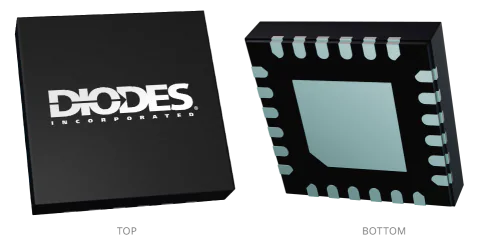

PI6CG332QPCIe 6.0/5.0/4.0 Clock Generator, 2-Output, AECQ-Grade 2	Clock Generators, PLLs, Frequency Synthesizers	1	Active	The PI6CG332Q is a 2-output very low power PCIe® Gen 1/Gen 2/Gen 3/Gen 4/Gen 5/Gen 6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 8 external resistors and make layout easier. An additional buffered reference output is provided to serve as a low noise reference for other circuitry.
PI6CG33402	Integrated Circuits (ICs)	1	Active
PI6CG33601	Clock/Timing	1	Active
PI6CG33801	Clock Generators, PLLs, Frequency Synthesizers	1	Active
PI6CG33802CLow Power 8-Output PCIe 6.0/5.0 Clock Generator With On-Chip Termination	Clock Generators, PLLs, Frequency Synthesizers	1	Active	The DIODES PI6CG33802C is an 8-output, very-low-power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator. It uses a 25MHz crystal or CMOS reference as an input to generate the 100MHz low-power differential HCSL outputs with on-chip terminations. The on-chip termination can save 32 external resistors and make layout easier. An additional buffered reference output is provided to serve as a low-noise reference for other circuitry.

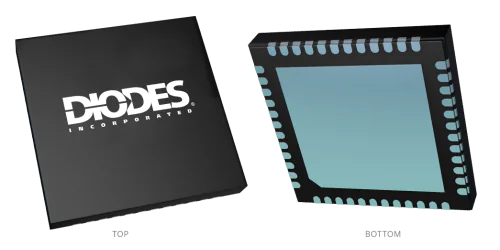

PI6CG338QPCIe 6.0/5.0/4.0 Clock Generator, 8-Output, AECQ-Grade 2	Clock/Timing	1	Active	The PI6CG338Q is an 8-output very low power PCIe® Gen 1/Gen 2/Gen 3/Gen 4/Gen 5/Gen 6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 32 external resistors and make layout easier. An additional buffered reference output is provided to serve as a low noise reference for other circuitry. It uses Diodes' proprietary PLL design to achieve very low jitter that meets PCIe Gen 1/Gen 2/Gen3 /Gen 4/Gen 5/Gen 6 requirements. It also provides various options such as different slew rate and amplitude through SMBUS so that users can configure the device easily to get the optimized performance for their individual boards. The device also supports selectable spread-spectrum options to reduce EMI for various applications.
