Analog Power Inc. is a power management semiconductor company founded in 2002, specializing in application-specific N-Channel and P-Channel MOSFETs with ultra-low on-resistance for demanding power applications.
Parts that are not part of a series
Company background and product focus
Analog Power Inc. was founded in 2002 with a singular focus on power management semiconductors. Headquartered in San Jose, California, with additional offices in Hong Kong and Taiwan, the company delivers application-specific power management solutions backed by deep industry expertise.
The company specializes in N-Channel and P-Channel MOSFETs featuring on-resistance as low as 1 milliohm, available in popular packages including DFN, SO-8, DPAK, and TO-220. Analog Power works with industry-leading manufacturing partners to ensure consistent quality and reliability across their product portfolio.
Key product categories include:
© 2026 Zenode. All rights reserved.
Product families from Analog Power Inc.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Analog Power Inc. that are not part of a series
| Part Information | Pricing (lowest) | Mounting Type | Rds On (Max) | FET Type | Vgs(th) (Max) | Drive Voltage (Min Rds On) | Drive Voltage (Max Rds On) | Package Name | Drain to Source Voltage (Vdss) | Power Dissipation (Max) | Current - Continuous Drain (Id) (Ta) | Vgs (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Technology | Package / Case | Input Capacitance (Ciss) (Max) | Gate Charge (Max) | Channel Count | Configuration | Configuration - Features | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Voltage - Forward (Vf) (Max) | Voltage - DC Reverse (Vr) (Max) | Current - Reverse Leakage | Current - Average Rectified (Io) | Reverse Recovery Time (trr) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

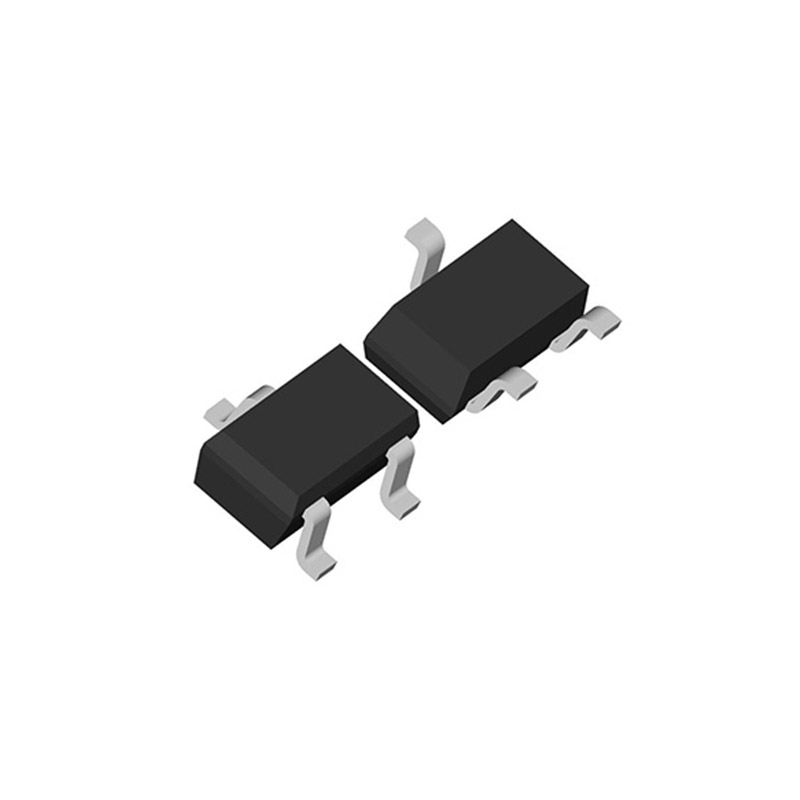

 Analog Power Inc. MOSFET N-CH 60V 0.6A SOT-23 | Sign in to see pricing | Surface Mount | 3 Ohm | N-Channel | 1 V | 10 V | 4.5 V | SOT-23 | 60 V | 1.3 W | 600 mA | 20 V | -55 °C | 150 °C | MOSFET (Metal Oxide) | SC-59, SOT-23-3, TO-236-3 | 474 pF | 4 nC | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Analog Power Inc. MOSFET N-CH 60V 0.6A SOT-23 | Sign in to see pricing | Surface Mount | 3 Ohm | N-Channel | 1 V | 10 V | 4.5 V | SOT-23 | 60 V | 1.3 W | 600 mA | 20 V | -55 °C | 150 °C | MOSFET (Metal Oxide) | SC-59, SOT-23-3, TO-236-3 | 474 pF | 4 nC | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Analog Power Inc. MOSFET 2N-CH 60V 0.7A SC70-6 | Sign in to see pricing | Surface Mount | — | — | — | — | — | SC-70-6 | — | — | — | — | — | — | MOSFET (Metal Oxide) | PowerPAK® SC-70-6 | — | — | 2 | N-Channel | Dual | — | — | — | — | — | — | — | — | — | — | — |
 Analog Power Inc. MOSFET N-CH 60V 1.4A SOT-23 | Sign in to see pricing | Surface Mount | — | N-Channel | — | — | — | — | — | — | — | — | — | — | MOSFET (Metal Oxide) | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

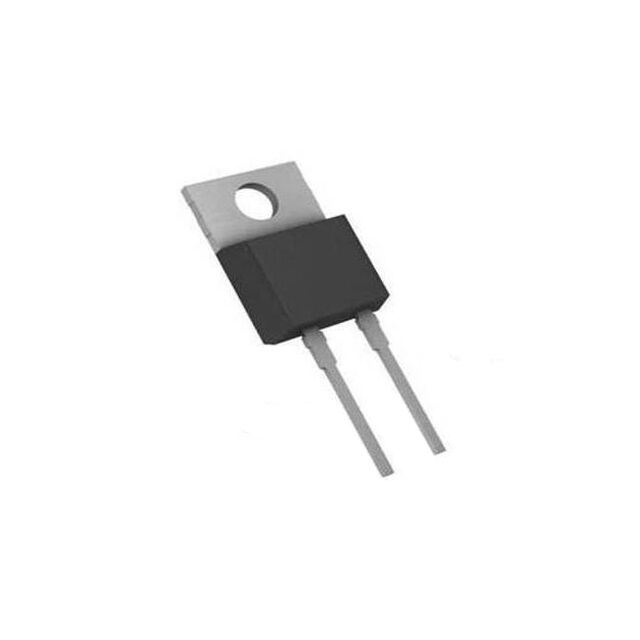

 Analog Power Inc. DIODE SIL CARB 650V 10A TO220F | Sign in to see pricing | Through Hole | — | — | — | — | — | TO-220F | — | — | — | — | — | — | SiC (Silicon Carbide) Schottky | TO-220-2 Full Pack | — | — | — | — | — | 500 mA | No Recovery Time | 500 mA, 500 mA | 1.8 V | 650 V | 2 µA | 10 A | 0 ns | 175 °C | -40 °C | 6.3 pF |

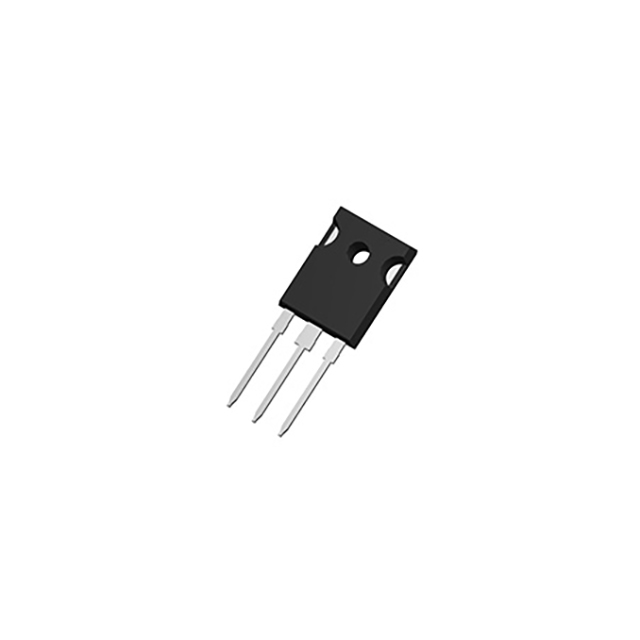

 Analog Power Inc. DIODE SIL SIC 1200V 9A TO247-3 | Sign in to see pricing | Through Hole | — | — | — | — | — | TO-247-3 | — | — | — | — | — | — | SiC (Silicon Carbide) Schottky | TO-247-3 | — | — | — | — | — | 500 mA | No Recovery Time | 500 mA, 500 mA | 1.8 V, 1.8 V | 1200 V | 2 µA | 9 A | 0 ns | 175 °C | -55 °C | 6.3 pF |

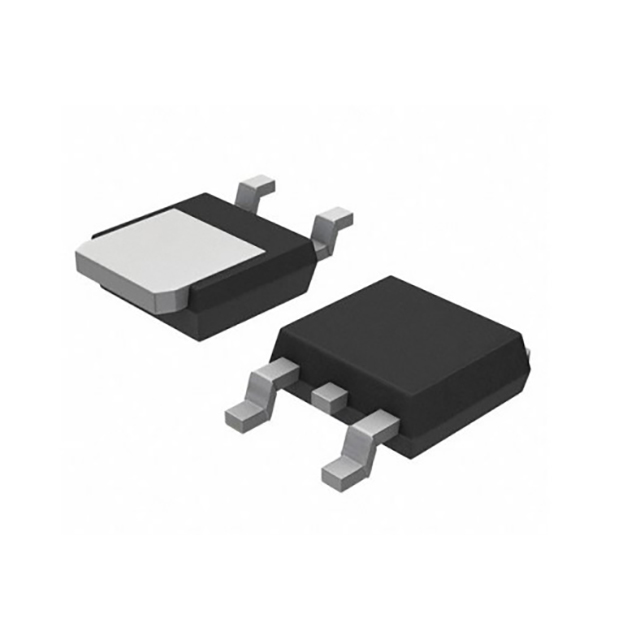

 Analog Power Inc. DIODE SIL SIC 1200V 33A TO252-2 | Sign in to see pricing | Surface Mount | — | — | — | — | — | TO-252-2 | — | — | — | — | — | — | SiC (Silicon Carbide) Schottky | DPAK (2 Leads + Tab), SC-63, TO-252-3 | — | — | — | — | — | 500 mA | No Recovery Time | 500 mA, 500 mA | 1.8 V | 1200 V | 2 µA | 33 A | 0 ns | 175 °C | -55 °C | 6.3 pF |
 Analog Power Inc. DIODE SIL SIC 1200V 31.5A TO247- | Sign in to see pricing | Through Hole | — | — | — | — | — | TO-247-2 | — | — | — | — | — | — | SiC (Silicon Carbide) Schottky | TO-247-2 | — | — | — | — | — | 500 mA | No Recovery Time | 500 mA, 500 mA | 1.8 V, 1.8 V | 1200 V | 2 µA | 31.5 A | 0 ns | 175 °C | -55 °C | 6.3 pF |
 Analog Power Inc. DIODE SIL SIC 1200V 54A TO247-2 | Sign in to see pricing | Through Hole | — | — | — | — | — | TO-247-2 | — | — | — | — | — | — | SiC (Silicon Carbide) Schottky | TO-247-2 | — | — | — | — | — | 500 mA | No Recovery Time | 500 mA, 500 mA | 1.85 V | 1200 V | 10 µA | 54 A | 0 ns | 175 °C | -55 °C | 12 pF |
 Analog Power Inc. DIODE SIL SIC 650V 37A TO220-2 | Sign in to see pricing | Through Hole | — | — | — | — | — | TO-220-2 | — | — | — | — | — | — | SiC (Silicon Carbide) Schottky | TO-220-2 | — | — | — | — | — | 500 mA | No Recovery Time | 500 mA, 500 mA | 1.8 V, 1.8 V | 650 V | 2 µA | 37 A | 0 ns | 175 °C | -55 °C | 6.3 pF |
