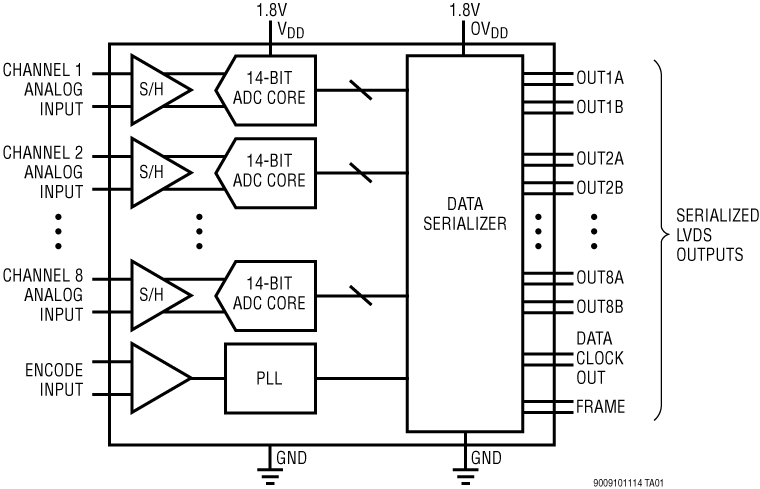

The LTM9011-14/LTM9010-14/LTM9009-14 are 8-channel, simultaneous sampling 14-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. AC performance includes 73.1dB SNR and 88dB spurious free dynamic range (SFDR). Low power consumption per channel reduces heat in high channel count applications. Integrated bypass capacitance and flow-through pinout reduces overall board space requirements.DC specs include ±1LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.2LSBRMS.The digital outputs are serial LVDS to minimize the number of data lines. Each channel outputs two bits at a time (2-lane mode). At lower sampling rates there is a one bit per channel option (1-lane mode).The ENC+and ENC–inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsCommunicationsCellular Base StationsSoftware Defined RadiosPortable Medical ImagingMultichannel Data AcquisitionNondestructive Testing

The LTM9011-14/LTM9010-14/LTM9009-14 are 8-channel, simultaneous sampling 14-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. AC performance includes 73.1dB SNR and 88dB spurious free dynamic range (SFDR). Low power consumption per channel reduces heat in high channel count applications. Integrated bypass capacitance and flow-through pinout reduces overall board space requirements.DC specs include ±1LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.2LSBRMS.The digital outputs are serial LVDS to minimize the number of data lines. Each channel outputs two bits at a time (2-lane mode). At lower sampling rates there is a one bit per channel option (1-lane mode).The ENC+and ENC–inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsCommunicationsCellular Base StationsSoftware Defined RadiosPortable Medical ImagingMultichannel Data AcquisitionNondestructive Testing

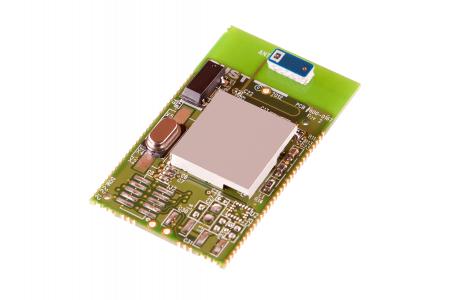

SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP™5901-WHM is the SmartMesh WirelessHART mote product in the Eterna®family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running Analog Devices' embedded SmartMesh WirelessHART networking software.The LTP5901-WHM includes an onboard chip antenna and comes with modular RF certifications. Also available are theLTC5800-WHMMote-on-Chip and theLTP5902-WHMmodule which includes an MMCX antenna connector.With Analog Devices' time-synchronized SmartMesh WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5901-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).Network FeaturesFeaturesBenefitTime Synchronized Channel Hopping Communications>99.999% network reliability in even the most challenging RF environments.Sub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to IEC62591 (WirelessHART).Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracy.Device FeaturesFeaturesBenefitIndustry-Leading Low Power Radio Technology4.5mA to Receive a Packet5.4mA to Transmit at 0dBm9.7mA to Transmit at 8dBmPre-engineered RFRF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.RF Modular CertificationsPre-certified in USA, Canada, EU, Japan, andmoreEnergy Harvesting SupportVery low power design enables motes to be powered by a wide variety of energy harvesters.ApplicationsLearn more about SmartMesh applications.

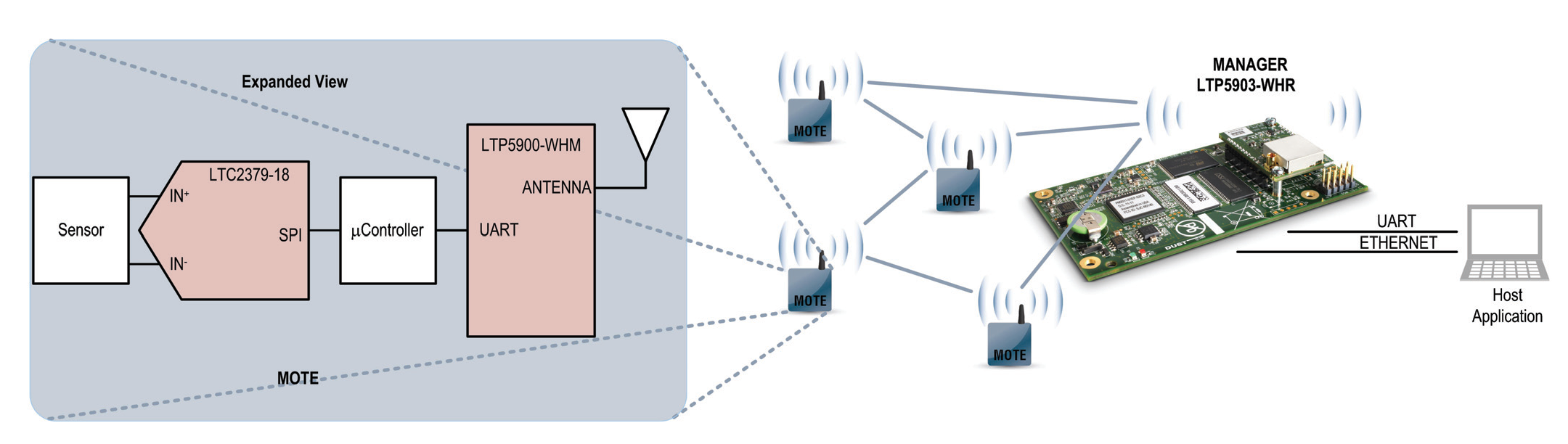

SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. Based on the WirelessHART (IEC62591) standard, the LTP5903-WHR runs SmartMesh WirelessHART network management software to monitor and manage network performance and provide a data ingress/egress point via a UART interface. It provides the core networking functionality, enabling the network to achieve unsurpassed levels of resilience, reliability, and scalability with advanced network management and comprehensive security features.The LTP5903-WHR is designed for use in line-powered gateways and controllers, such as WirelessHART Gateways, and enables customers to integrate a standards-based wireless sensor network that provides scalable bidirectional communications.The embedded network manager offers a comprehensive software application programming interface (API) to deliver rich and flexible functionality without complex coding. This API also provides full visibility and control over network configuration, security administration, network status, and performance statistics. The network-ready embedded manager enables industrial automation vendors to integrate advanced wireless sensor networking intelligence into monitoring and control solutions with low risk and rapid time-to-market.Network FeaturesFeaturesBenefitTime Synchronized Channel Hopping Communications>99.999% network reliability in even the most challenging RF environments.Sub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to IEC62591 (WirelessHART).Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracy.Manager FeaturesFeaturesBenefitAdvanced Network ManagementDynamically optimizes mesh connectivity based on the changing RF environment.Scalable Network ManagementManages Networks of Up to 250 Nodes (LTP5903-WHRB) or Up to 500 Nodes (LTP5903-WHRC).Load Balancing and OptimizationAdds more bandwidth for the busiest motes while maintaining normal traffic flow for the rest of network.

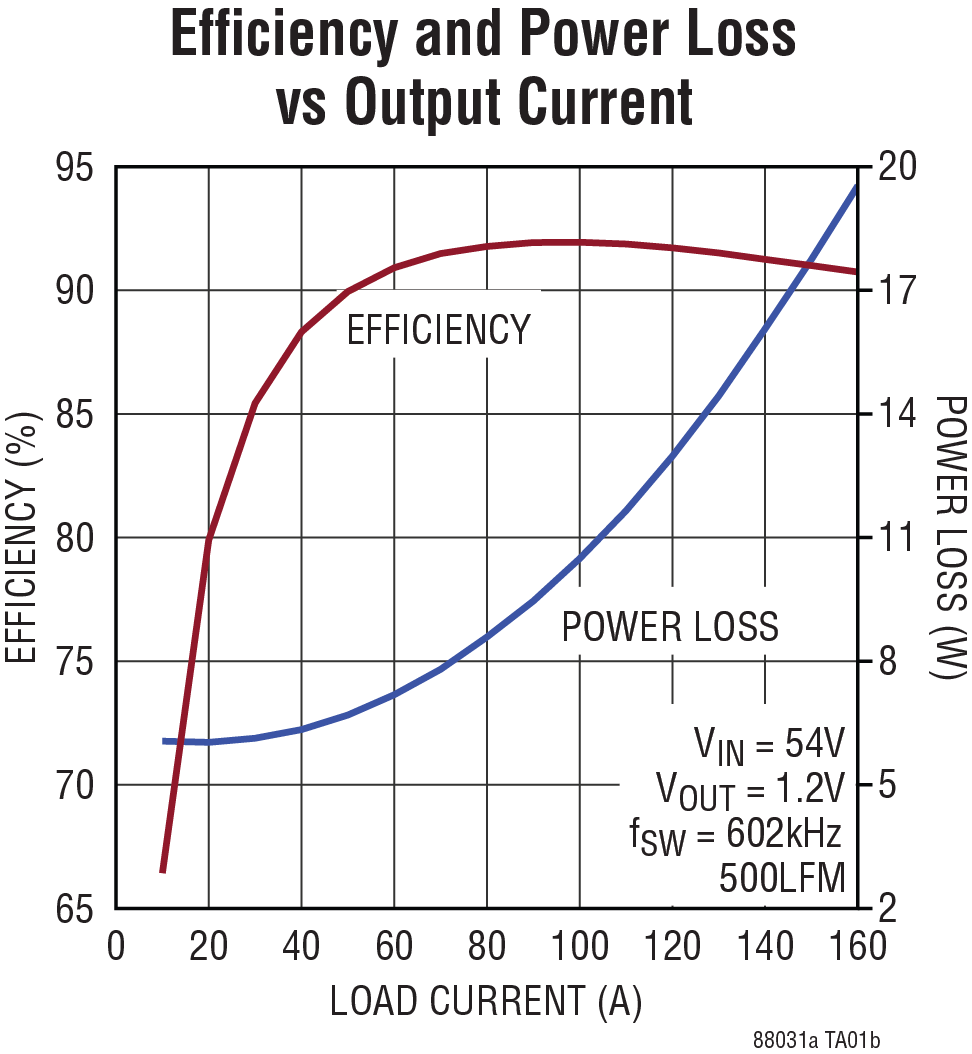

The LTP8803-1A is a 160A step-down μModule®regulator that provides microprocessor core voltage from 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol.The LTP8803-1A is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density.The LTP8803-1A preserves high efficiency at high conversion ratios by utilizing a resonant switching architecture that eliminates high voltage switching losses.The LTP8803-1A is available in a 22mm × 24mm × 22mm surface-mounted open frame package.ApplicationsHigh Current Distributed Power SystemsServers, Network, and Storage EquipmentIntelligent Energy Efficient Power Regulation

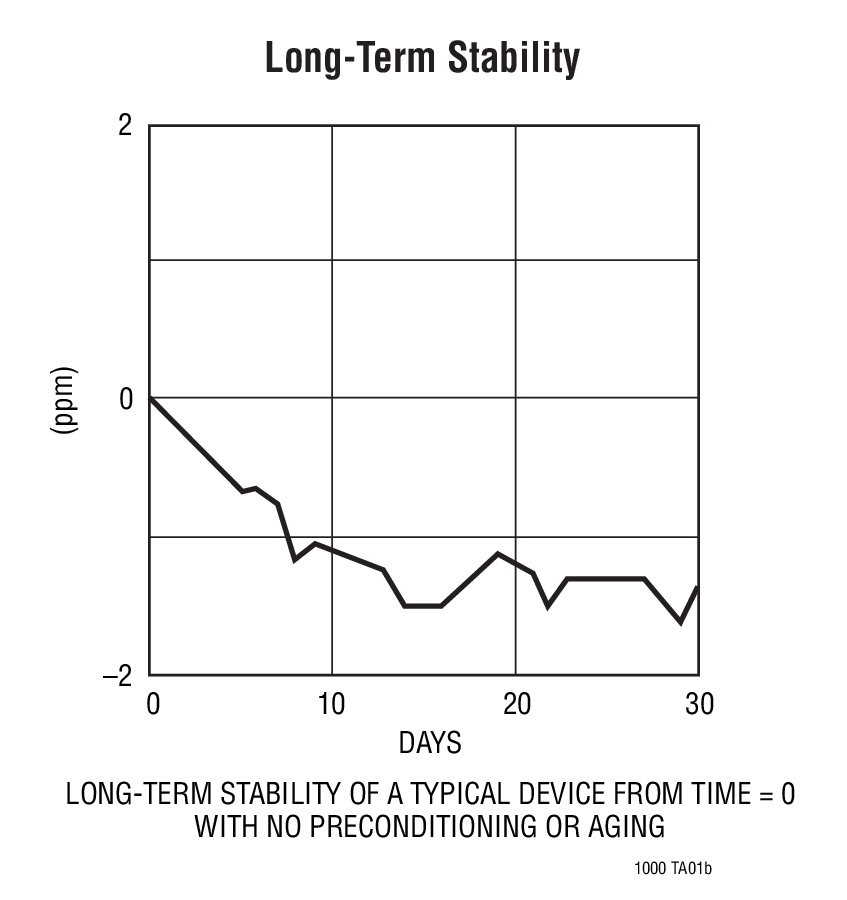

The LTZ1000 and LTZ1000A are ultra stable temperature controllable references. They are designed to provide 7V outputs with temperature drifts of 0.05ppm/°C, about 1.2µVP-Pof noise and long term stability of 2µV/√kHr.Included on the chip is a subsurface Zener reference, a heater resistor for temperature stabilization, and a temperature sensing transistor. External circuitry is used to set operating currents and to temperature stabilize the reference. This allows maximum fl exibility and best long term stability and noise.The LTZ1000 and LTZ1000A references can provide superior performance to older devices such as the LM199, provided that the user implements the heater control and properly manages the thermal layout. To simplify thermal insulation, the LTZ1000A uses a proprietary die attach method to provide signifi cantly higher thermal resistance than the LTZ1000.ApplicationsVoltmetersCalibratorsStandard CellsScalesLow Noise RF Oscillators

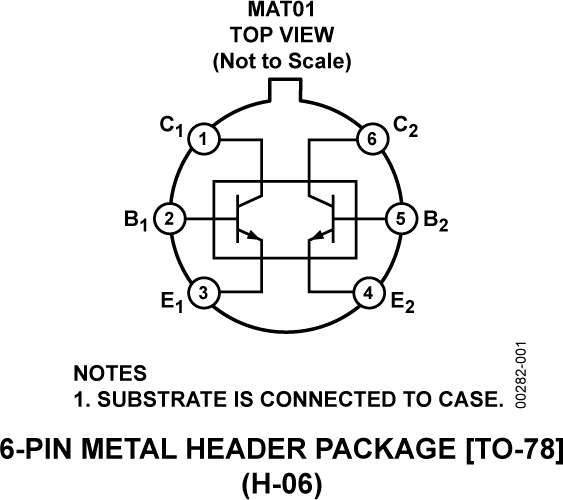

The MAT01 is a monolithic dual NPN transistor. An exclusive Silicon Nitride "Triple-Passivation" process provides excellent stability of critical parameters over both temperature and time. Matching characteristics include offset voltage of 40µV, temperature drift of 0.15µV/°C, and hFEmatching of 0.7%.Very high h is provided over a six decade range of collector current, including an exceptional hFEof 590 at a collector current of only 10nA. The high gain at lower collector current makes the MAT01 ideal for use in low-power, low-level input stages.APPLICATIONSWeigh scalesLow noise, op amp, front endCurrent mirror and current sink/sourceLow noise instrumentation amplifiersVoltage controlled attenuatorsLog amplifiers
