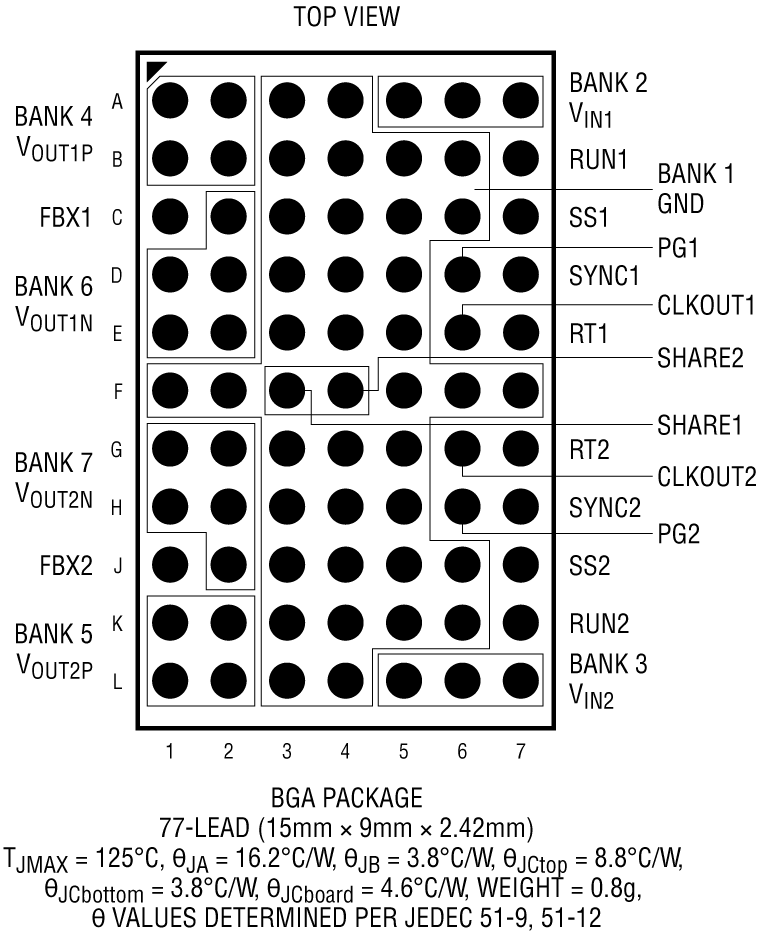

The LTM8049 is a Dual SEPIC/Inverting μModule®(power module) DC/DC Converter. Each of the two outputs can be easily configured as a SEPIC or Inverting converter by simply grounding the appropriate output rail. The LTM8049 includes power devices, inductors, control circuitry and passive components. All that is needed to complete the design are input and output caps, and small resistors to set the output voltages and switching frequency. Other components may be used to control the soft-start and undervoltage lockout.The LTM8049 is packaged in a thermally enhanced, compact (15mm × 9mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8049 is RoHS compliant.ApplicationsBattery Powered RegulatorLocal Negative Voltage RegulatorLow Noise Amplifier Power

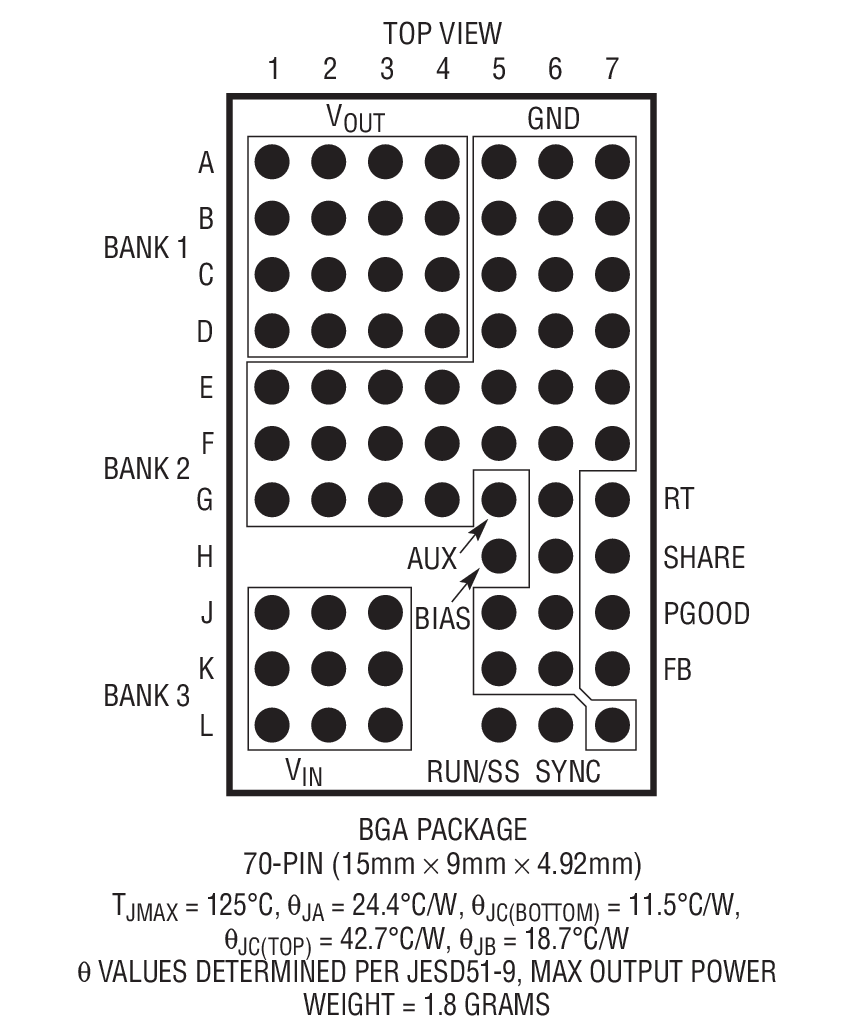

The LTM8050 is a 58VIN, 2A step down μModule®(power module) converter. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6V to 58V, the LTM8050 supports an output voltage range of 0.8V to 24V and a switching frequency range of 100kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.The LTM8050 is packaged in a 9mm × 15mm × 4.92mm ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8050 is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation

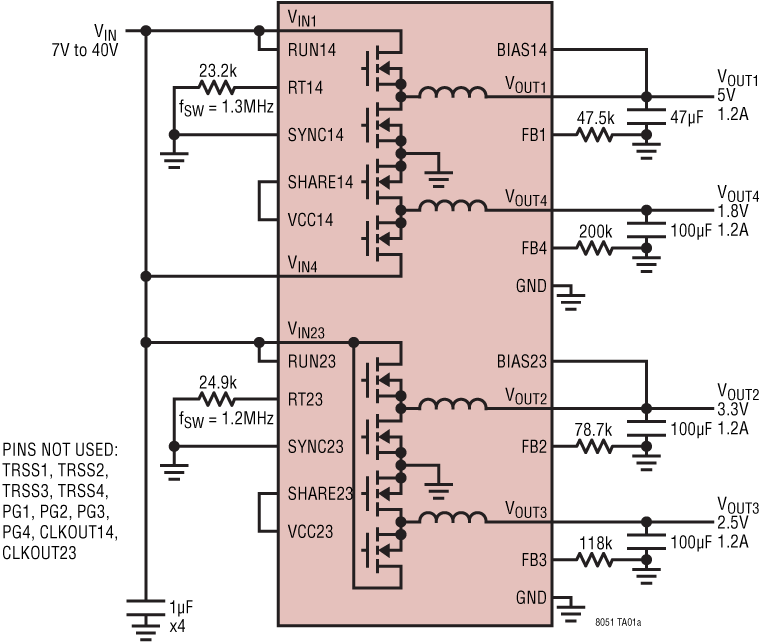

The LTM8051 is quad 40VIN, 1.2A step-down Silent Switcher μModule®regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8051 supports output voltages from 0.8V to 8V, and a switching frequency range of 300kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. TheLTM8051 product videois available on website.The LTM8051 is packaged in a compact (6.25mm × 11.25mm × 2.22mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8051 is available with SnPb (BGA) or RoHS compliant.ApplicationsAutomated Test EquipmentDistributed Supply RegulationIndustrial SuppliesMedical Equipment

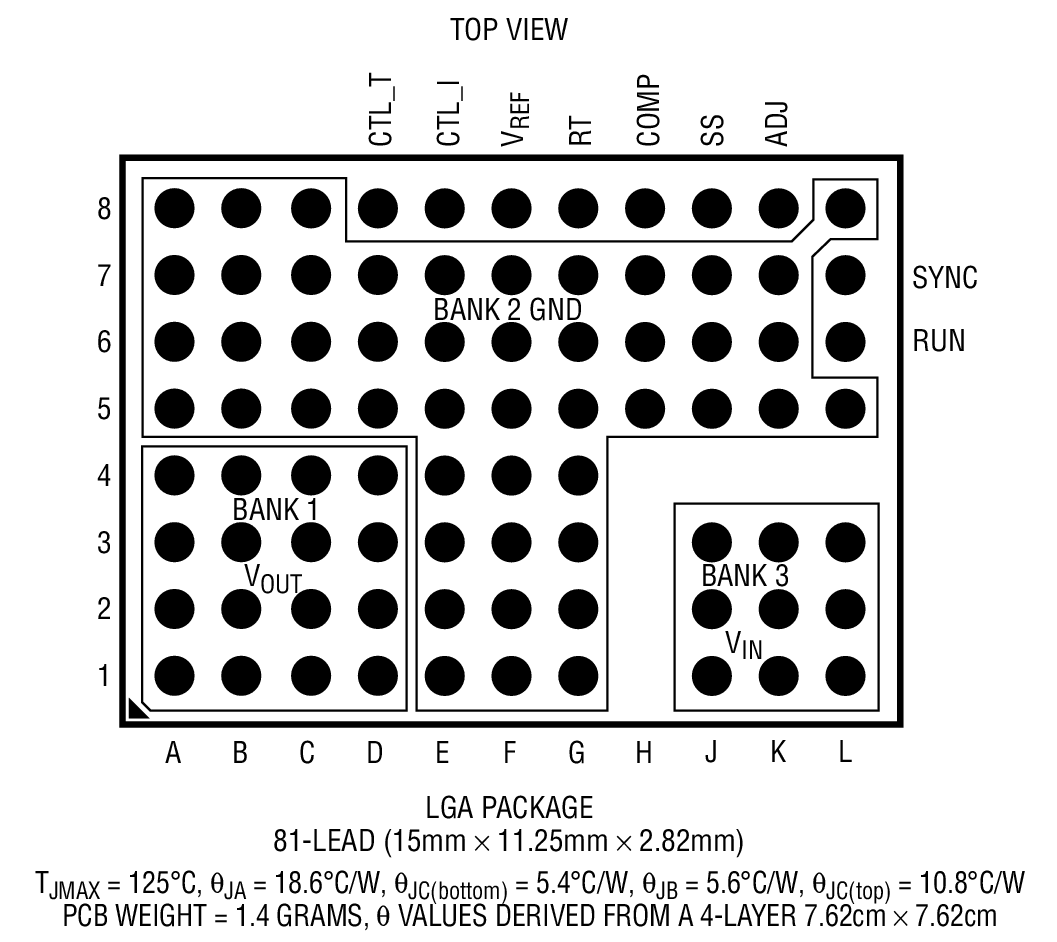

The LTM8052/LTM8052A is a 36VIN, 5A, 2-quadrant constant-voltage, constant-current (CVCC) step-down μModule®(power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6V to 36V, the LTM8052/LTM8052A supports an output voltage range of 1.2V to 24V. The LTM8052/LTM8052A is able to sink or source current to maintain voltage regulation up to the positive and negative current limits. This output current limit can be set by a control voltage, a single resistor or a thermistor. LTM8052 features a 125% output overvoltage protection, while LTM8052A does not, allowing operation when the output is above the target regulation point.The LTM8052/LTM8052A is packaged in a compact (11.25mm × 15mm × 2.82mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8052/LTM8052A are available with SnPb (BGA) or RoHS compliant terminal finish.PART NUMBERBEST FORLTM8052Sinking and sourcing output current for voltage regulation primarily.LTM8052ASinking and sourcing output current for current regulation primarily.LTM8026Sourcing more than 3A of output current. (Less than 3A maximum consider LTM8025.)ApplicationsConstant-Frequency Voltage Regulation Even at No LoadPeltier DriverBattery TesterBattery/Supercap Charging and Cell BalancingMotor Drive Power RegulatorHigh Power LED Drive

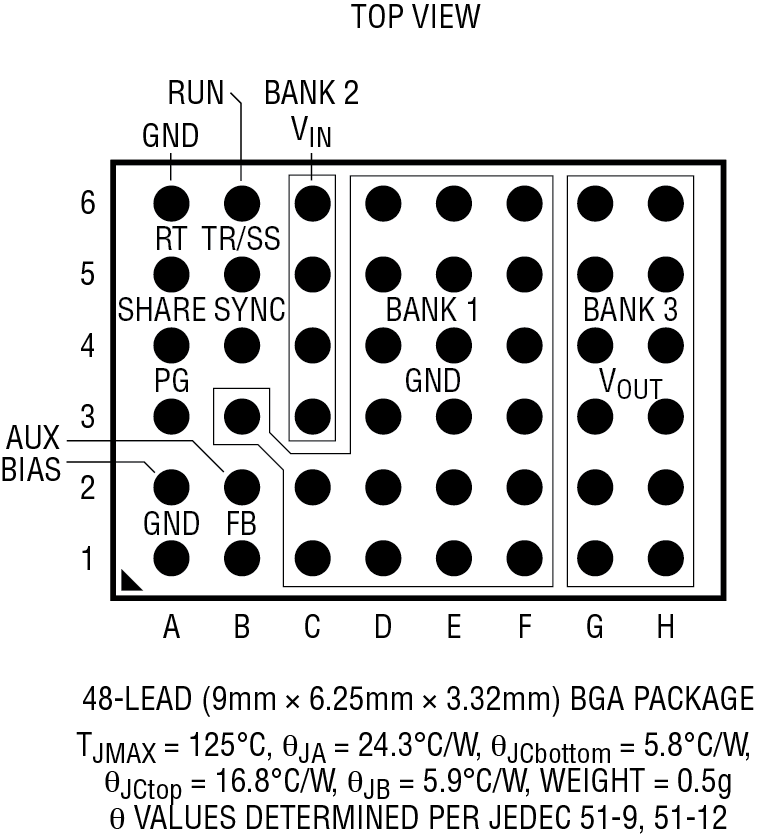

The LTM8053 is a 40VIN, 3.5A continuous, 6A peak step-down µModule®(power module) regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.4V to 40V, the LTM8053 / LTM8053- 1 supports an output voltage range of 0.97V to 15V and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design. The LTM8053-1 can operate in forced continuous mode.The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8053 / LTM8053-1 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8053 / LTM8053-1 is RoHS compliant.APPLICATIONSAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation

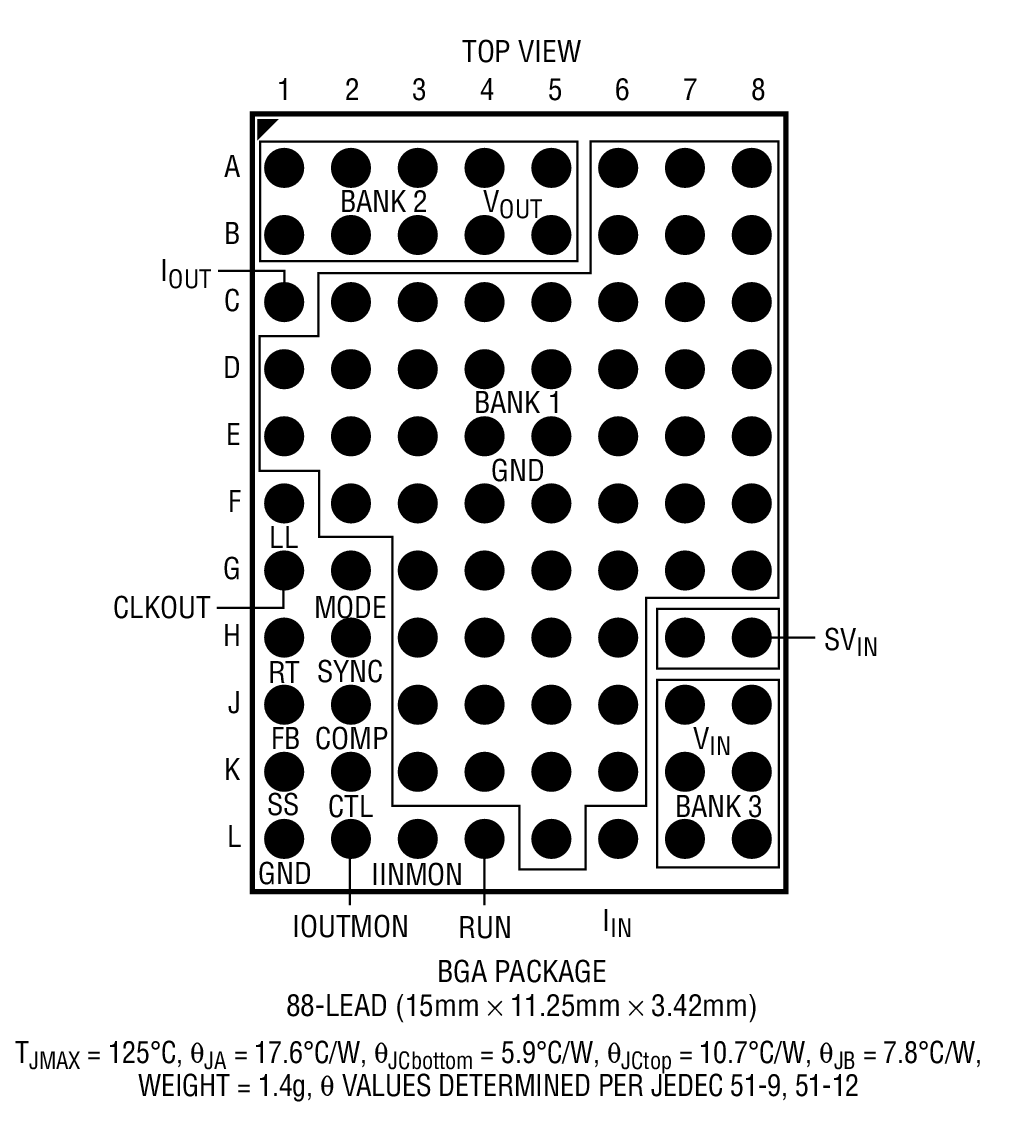

The LTM8054 is a 36VIN, buck-boost µModule®(micromodule) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are all that are needed to complete the design. Other features such as input and output average current regulation may be implemented with just a few components. The LTM8054 operates over an input voltage range of 5V to 36V, and can regulate output voltages between 1.2V and 36V. The SYNC input and CLKOUT output allow easy synchronization.The LTM8054 is housed in a compact overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8054 is RoHS compliant.Buck Boost Selection TableLTM8054LTM8055LTM8056VIN(Operation)363658VINAbs Max404060VOUTAbs Max404060IOUT(Peak)24VIN, 12VOUT5.48.55.5Package15 x 11.25mm x3.42mm BGA15 x 15mm x4.92mm BGA15 x 15mm x4.92mm BGAApplicationsHigh Power Battery-Operated DevicesIndustrial ControlSolar Powered Voltage RegulatorSolar Powered Battery Charging

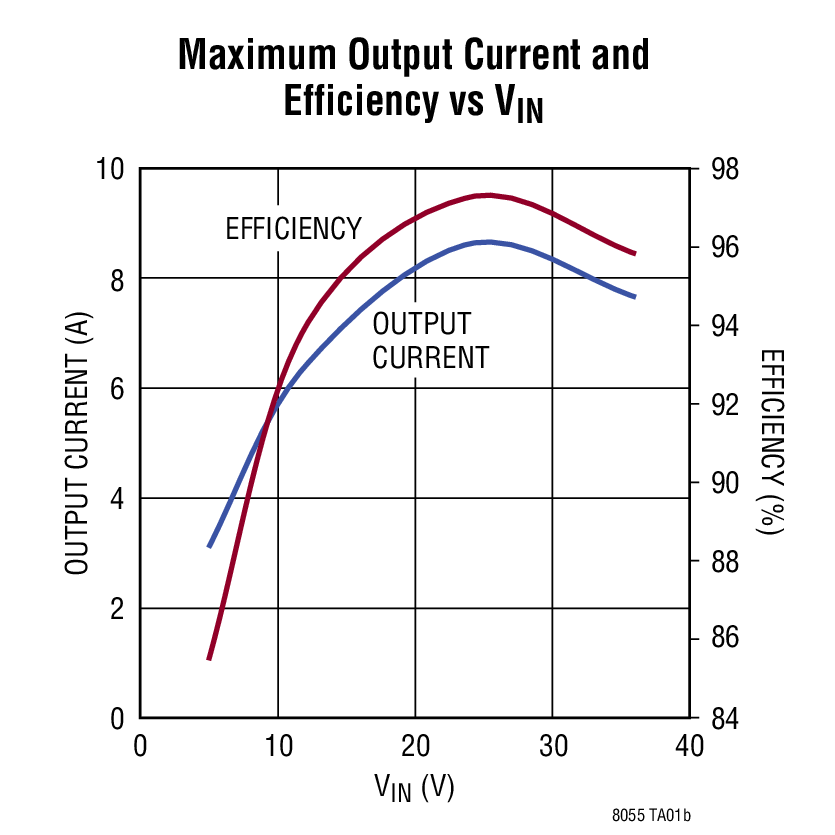

The LTM8055 is a 36VIN, buck-boost µModule®(micromodule) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are all that are needed to complete the design. Other features such as input and output average current regulation may be implemented with just a few components. The LTM8055 operates over an input voltage range of 5V to 36V, and can regulate output voltages between 1.2V and 36V. The SYNC input and CLKOUT output allow easy synchronization.The LTM8055 is housed in a compact overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8055 is RoHS compliant.LTM8054LTM8055LTM8056VIN(Operation)363658VINAbs Max404060VOUTAbs Max404060IOUT(Peak) 24VIN, 12VOUT5.48.55.5Package15 × 11.25mm × 3.42mm BGA15 × 15mm × 4.92mm BGA Pin and Function CompatibleApplicationsHigh Power Battery-Operated DevicesIndustrial ControlSolar Powered Voltage RegulatorSolar Powered Battery Charging

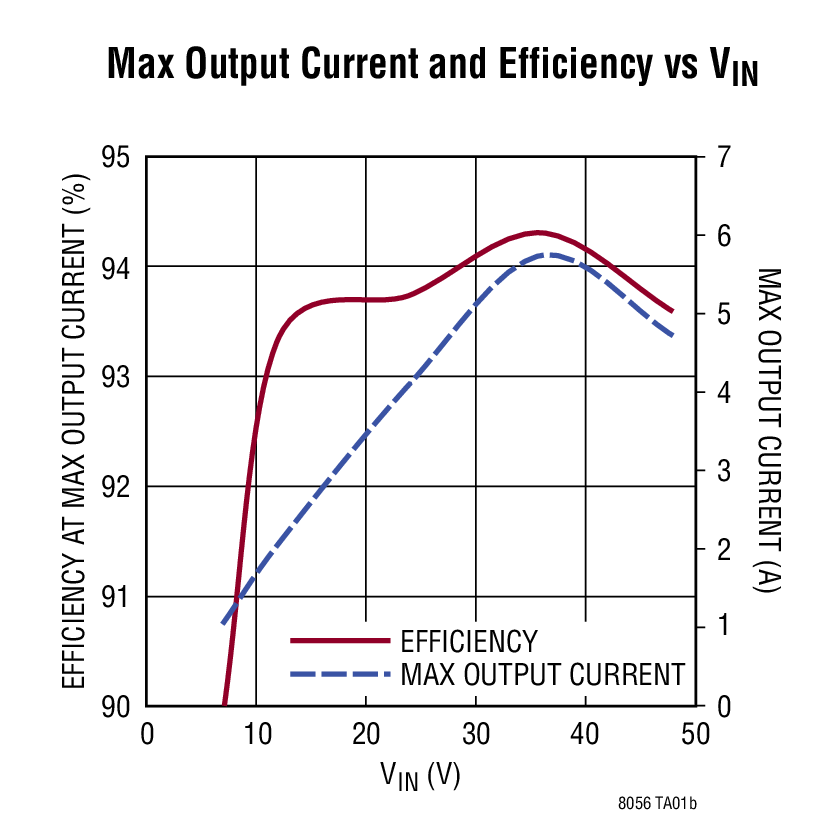

The LTM8056 is a 58VIN, buck-boost Power Module®(power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are all that are needed to complete the design. Other features such as input and output average current regulation may be implemented with just a few components. The LTM8056 operates over an input voltage range of 5V to 58V, and can regulate output voltages between 1.2V and 48V. The SYNC input and CLKOUT output allow easy synchronization.The LTM8056 is housed in a compact overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8056 is available with SnPB or RoHS compliant terminal finish.Buck-Boost Selection TableLTM8054LTM8055LTM8056VIN(Operation)363658VINAbs Max404060VOUTAbs Max404060IOUT(Peak) 24VIN, 12VOUT5.48.55.5Package15 × 11.25mm × 3.42mm BGA15 × 15mm × 4.92mm BGA Pin and Function CompatibleApplicationsHigh Power Battery-Operated DevicesIndustrial ControlSolar Powered Voltage RegulatorSolar Powered Battery Charging

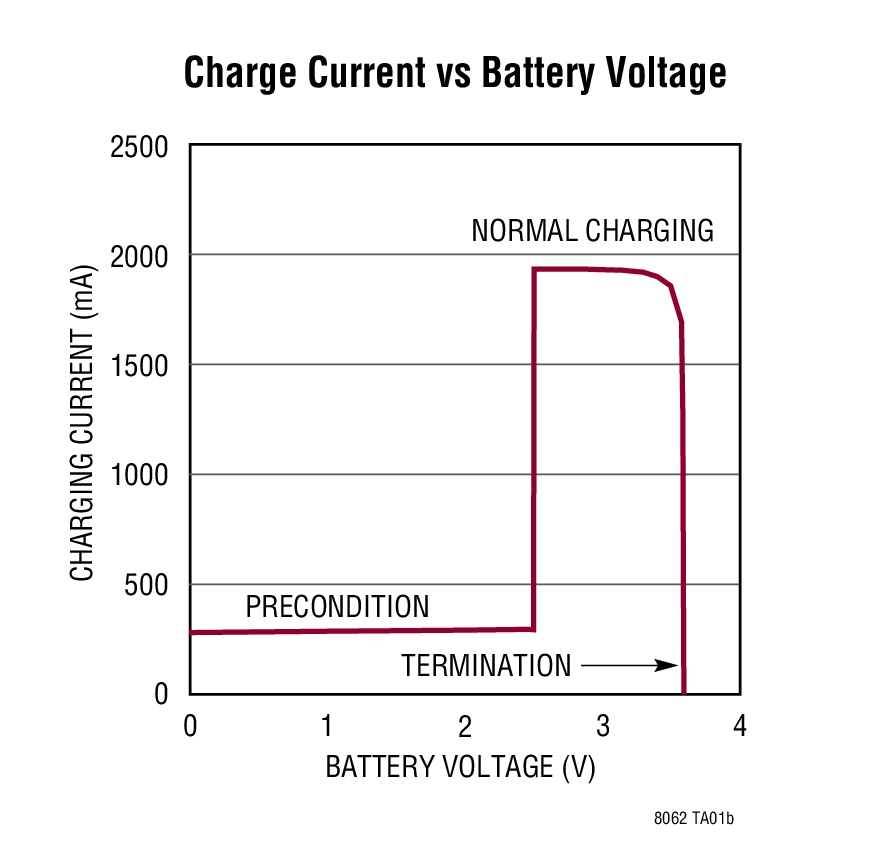

The LTM8062/LTM8062A are complete 32VIN, 2A μModule®(power module) power tracking battery chargers. The LTM8062/ LTM8062A provide a constant-current/constant-voltage charge characteristic, a 2A maximum charge current, and employ a 3.3V float voltage feedback reference, so any desired battery float voltage up to 14.4V for the LTM8062 and up to 18.8V for the LTM8062A can be programmed with a resistor divider.The LTM8062/LTM8062A employ an input voltage regulation loop, which reduces charge current if the input voltage falls below a programmed level, set with a resistor divider. When the LTM8062/LTM8062A are powered by a solar panel, this input regulation loop is used to maintain the panel at peak output power. The LTM8062/LTM8062A also feature preconditioning trickle charge, bad battery detection, a choice of termination schemes and automatic restart.The LTM8062/LTM8062A are packaged in a thermally enhanced, compact (9mm × 15mm × 4.32mm) over-molded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8062/LTM8062A are RoHS compliant.ApplicationsIndustrial Handheld Instruments12V to 24V Automotive and Heavy EquipmentDesktop Cradle ChargersSolar Power Battery Charging
