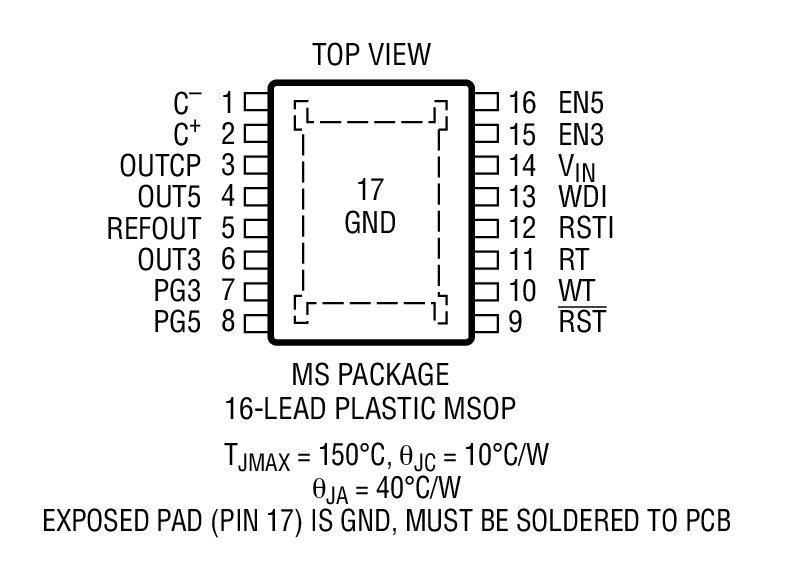

The LTC3256 is a wide input range switched capacitor step-down DC/DC converter that produces two regulated outputs: a 5V output via direct connection to the charge pump output, and a 3.3V output via a low dropout (LDO) linear post-regulator. The device provides up to 350mA of total output current. At 12V VINand maximum load on both outputs, power dissipation is reduced by over 2W compared to a dual LDO regulator solution.The LTC3256 maximizes efficiency by running the charge pump in 2:1 mode over as wide an operating range as pos- sible, and automatically switches to 1:1 mode as needed due to VINand load conditions. Controlled input current and switching slew rates minimize conducted and radiated EMI. An integrated watchdog timer, independent power good outputs and reset input ensure reliable system operation and fault monitoring. A buffered 1.1V reference output enables system self-testing for safety critical applications.The LTC3256 has numerous safety features including overcurrent fault protection, overtemperature protection and tolerance of 38V input transients. The LTC3256 is available in a thermally enhanced 16-lead MSOP plastic package with exposed pad (MSE16).ApplicationsAutomotive ECU/CAN Transceiver SuppliesIndustrial/Telecom Housekeeping SuppliesLow Power 12V to 5V and 3.3V Conversion

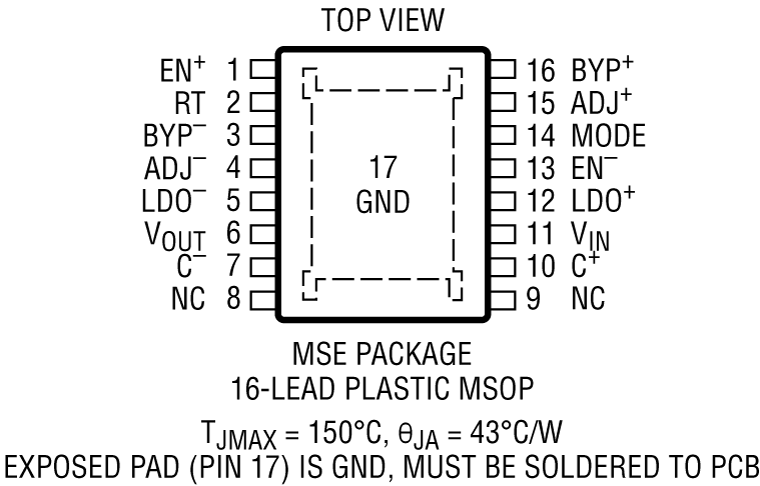

The LTC3260 is a low noise dual polarity output power supply that includes an inverting charge pump with both positive and negative LDO regulators. The charge pump operates over a wide 4.5V to 32V input range and can deliver up to 100mA of output current. Each LDO regulator can provide up to 50mA of output current. The negative LDO post regulator is powered from the charge pump output. The LDO output voltages can be adjusted using external resistor dividers.The charge pump employs either low quiescent current Burst Mode operation or low noise constant frequency mode. In Burst Mode operation the charge pump VOUTregulates to –0.94 • VIN, and the LTC3260 draws only 100μA of quiescent current with both LDO regulators on. In constant frequency mode the charge pump produces an output equal to –VINand operates at a fixed 500kHz or to a programmed value between 50kHz to 500kHz using an external resistor. The LTC3260 is available in low profile (0.75mm) 3mm x 4mm 14-pin DFN and thermally enhanced 16-pin MSOP packages.APPLICATIONSLow Noise Bipolar/Inverting SuppliesIndustrial/Instrumentation Low Noise Bias GeneratorsPortable Medical EquipmentPortable Instruments

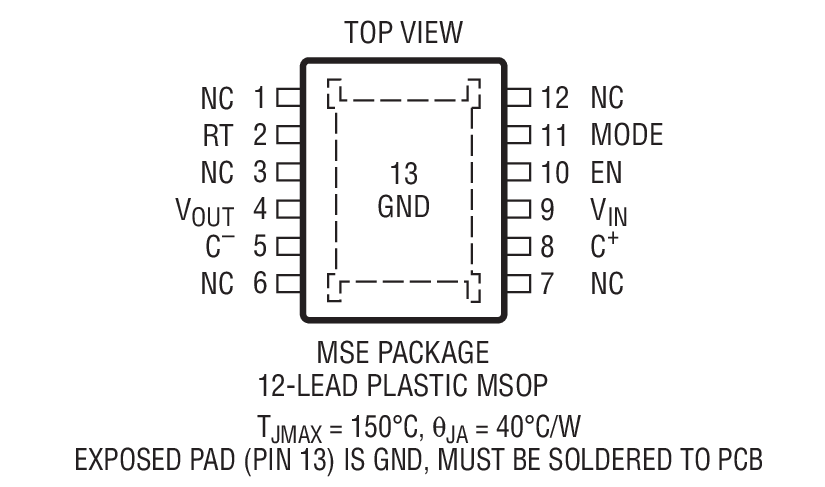

The LTC3261 is a high voltage inverting charge pump that operates over a wide 4.5V to 32V input range and is capable of delivering up to 100mA of output current.The charge pump employs either low quiescent current Burst Mode operation or low noise constant frequency mode. In Burst Mode operation the charge pump VOUTregulates to –0.94 • VINand the LTC3261 draws only 60μA of quiescent current. In constant frequency mode the charge pump produces an output equal to –VINand operates at a fixed 500kHz or to a programmed frequency between 50kHz to 500kHz using an external resistor. The LTC3261 is available in a thermally enhanced 12-pin MSOP package.ApplicationsBipolar/Inverting SuppliesIndustrial/Instrumentation Bias GeneratorsPortable Medical EquipmentPortable Instruments

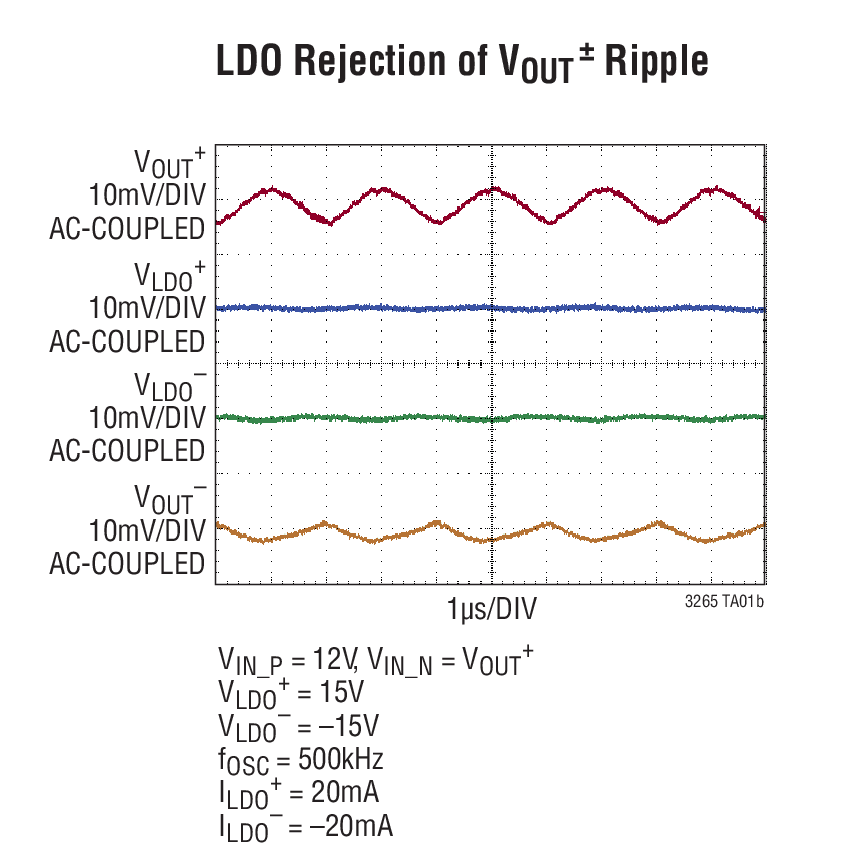

The LTC3265 is a low noise dual polarity output power supply including a boost charge pump, an inverting charge pump and two low noise positive and negative LDO post regulators. The boost charge pump powers the positive LDO post regulator while the inverting charge pump powers the negative LDO regulator. Each LDO can provide up to 50mA of output current. The LDO output voltages can be adjusted using external resistor dividers.The charge pumps employ low quiescent current Burst Mode operation or low noise constant frequency mode. During Burst Mode operation, the boost charge pump regulates its output (VOUT+) to 0.94 • 2 • VIN_Pwhile the inverting charge pump regulates its output (VOUT–) to –0.94 • VIN_N. In Burst Mode operation the LTC3265 draws only 135μA of quiescent current with both LDOs on. In constant frequency mode, the boost and inverting charge pumps produce outputs equal to 2 • VIN_Pand –VIN_Nrespectively and operate at a fixed 500kHz or to a programmed value between 50kHz to 500kHz using an external resistor. The LTC3265 is available in low profile 3mm × 5mm × 0.75mm 18-lead DFN and thermally enhanced 20-lead TSSOP packages.ApplicationsLow Noise Bipolar/Inverting SuppliesIndustrial/Instrumentation Low Noise Bias Generators

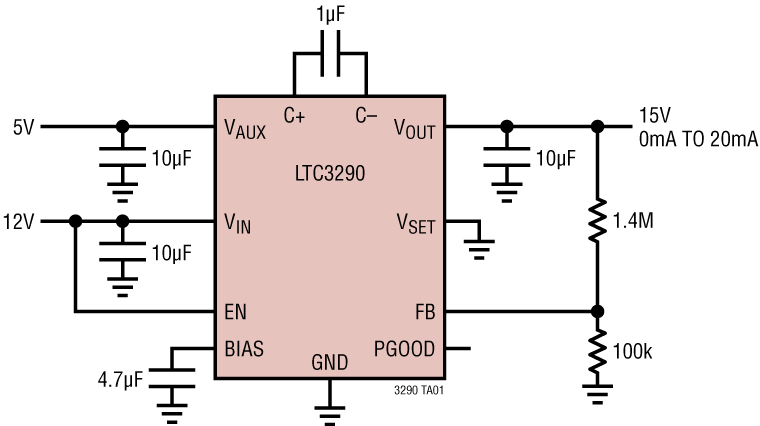

The LTC3290 is a high voltage boost charge pump with a wide 4.5V to 55V input voltage range that can deliver up to 50mA of output current.When the VSETpin is grounded, the LTC3290 operates as a standard boost charge pump, boosting the VOUToutput to a maximum of the sum of the VINand VAUXinput supplies. An external resistor divider can be used on the VOUT, FB and GND pins to set the output voltage to any value between 1V and VIN+ VAUXwith hysteretic Burst Mode operation.Alternatively, the device can be configured in a VINtracking mode, in which the VOUTpin regulates at a fixed offset above the VINpin. The offset voltage is programmed with external resistors, one from the VOUTto the VSETpin and the other from the FB pin to GND. The maximum output voltage is limited to VIN+ VAUX.The LTC3290 is available in a thermally enhanced 10-pin MSOP package.ApplicationsHigh Efficiency General Purpose High Voltage Boost SuppliesHigh Side N-FET DriverIndustrial/Automotive Power SwitchingVINTracking Supply

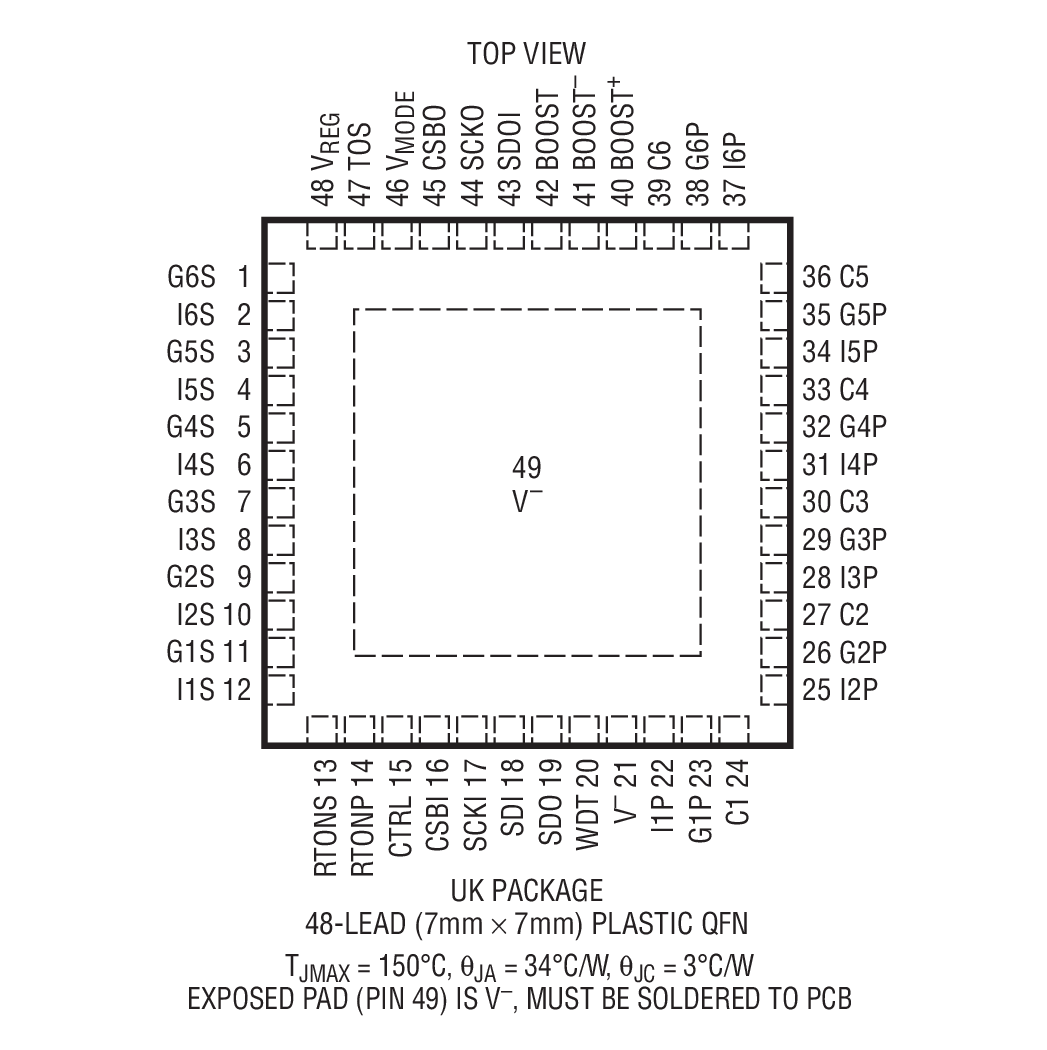

The LTC3300-1 is a fault-protected controller IC for transformer-based bidirectional active balancing of multicell battery stacks. All associated gate drive circuitry, precision current sensing, fault detection circuitry and a robust serial interface with built-in watchdog timer are integrated.Each LTC3300-1 can balance up to 6 series-connected battery cells with an input common mode voltage up to 36V. Charge from any selected cell can be transferred at high efficiency to or from 12 or more adjacent cells. A unique level-shifting SPI-compatible serial interface enables multiple LTC3300-1 devices to be connected in series, without opto-couplers or isolators, allowing for balancing of every cell in a long string of series-connected batteries.When multiple LTC3300-1 devices are connected in series they can operate simultaneously, permitting all cells in the stack to be balanced concurrently and independently. Fault protection features include readback capability, cyclic redundancy check (CRC) error detection, maximum on-time volt-second clamps, and overvoltage shutoffs.FeaturesLTC3300-1SPI-compatible serial interface in which each chip in the stack communicates bidirectionally to the chips of the same type above and below it via currents. There is no limit to the stack height. Large common mode voltage differences are handled by each LTC3300-1. The microprocessor in the BMS system communicates ONLY with the bottom chip in the stack and subsequently all of the chips use the same fixed internal address.LTC3300-2SPI-compatible serial interface in which each chip has a unique 5-bit pin-strapped address. The microprocessor in the BMS system communicates directly with every chip in the stack with common mode voltage differences handled by digital isolators or opto-couplers. Because of the 5-bit address, the stack height is limited to 32 LTC3300-2 ICs or 192 cells (~800V). There are 5 pins which have a different assignment, all of them serial interface related.ApplicationsElectric Vehicles/Plug-in HEVsHigh Power UPS/Grid Energy Storage SystemsGeneral Purpose Multicell Battery Stacks

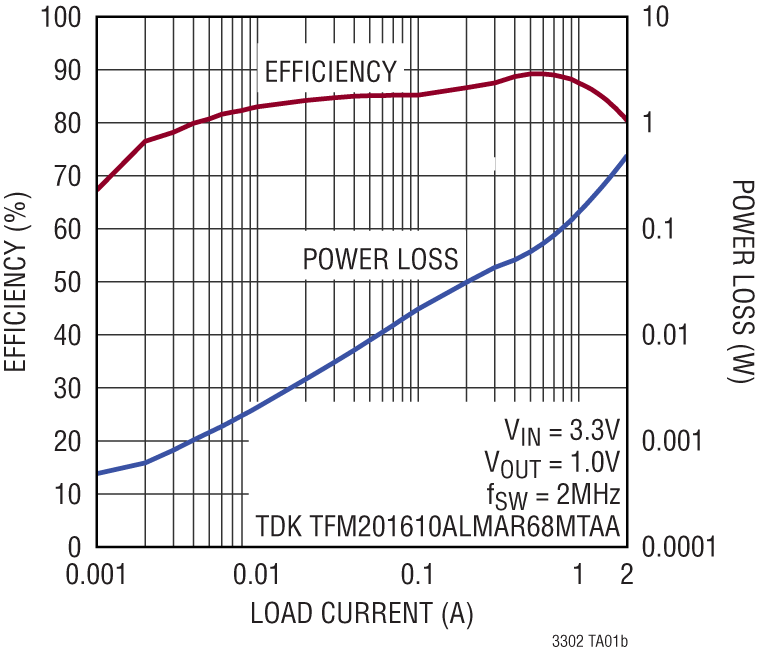

The LTC3302 is a very small, high efficiency, low noise, monolithic synchronous 2A step-down DC/DC converter operating from a 2.25V to 5.5V input supply. Using constant frequency, peak current mode control, this regulator achieves fast transient response with small external components.The LTC3302 operates in forced continuous or pulse-skipping mode for low noise, or in low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. The adjustable version operates from 500mV to VINwith two additional external resistors. Other features include output overvoltage protection, short-circuit protection, thermal shutdown, clock synchronization, and up to 100% duty cycle operation for low dropout.The LTC3302 is available in a low profile 2mm × 2mm FCQFN package with exposed pad and side wettable flanks.APPLICATIONSOptical Networking, Servers, TelecomAutomotive, Industrial, CommunicationsDistributed DC Power Systems (POL)FPGA, ASIC, μP Core Supplies

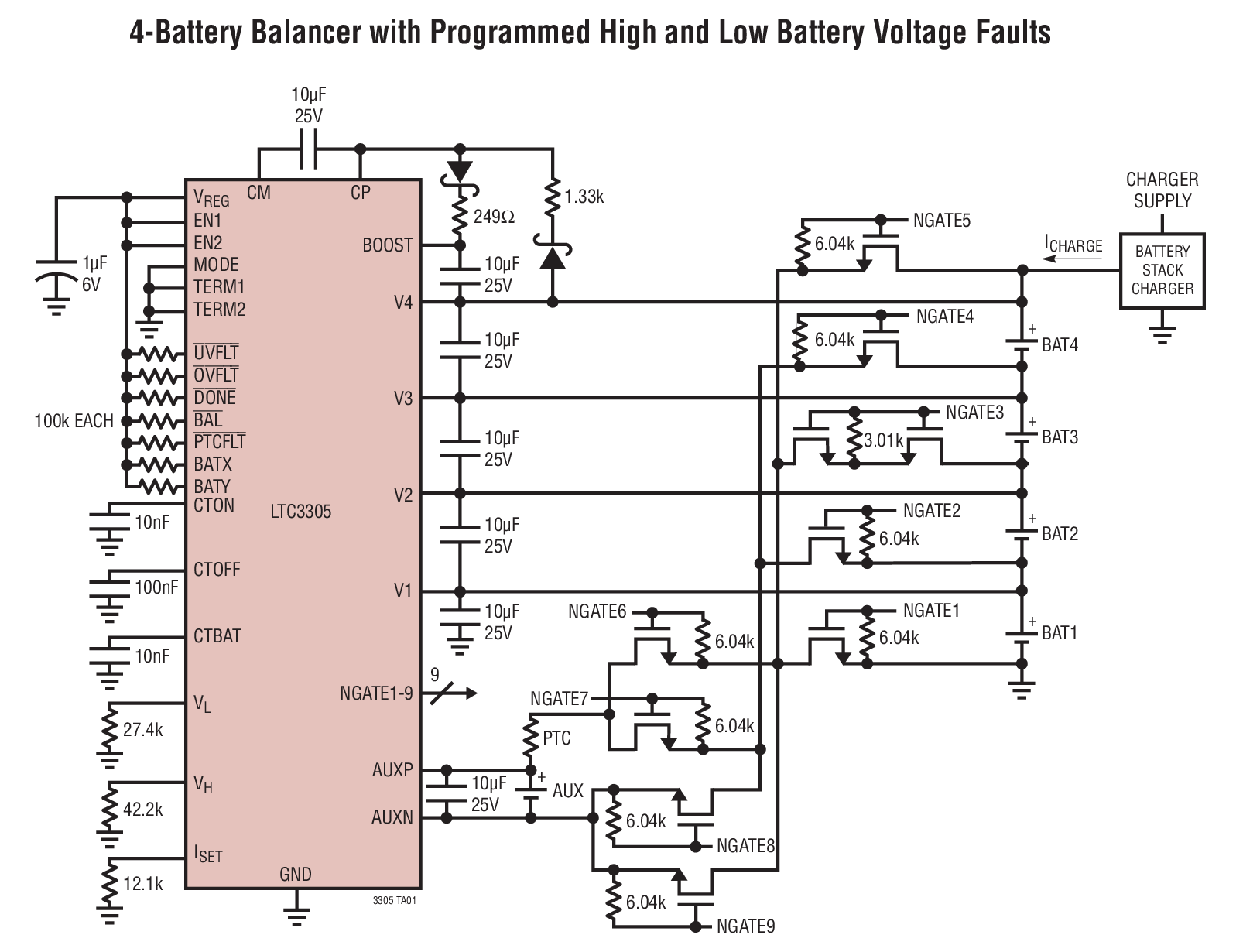

The LTC3305 balances up to 4 lead-acid batteries connected in series. It is intended to be used in conjunction with a separate pre-existing battery charger as part of a high performance battery system. All voltage monitoring, gate drive, and fault detection circuitry is integrated.The LTC3305 employs an auxiliary battery or an alternative storage cell to transfer charge to or from each individual battery in the stack. A mode pin provides two operating modes, timer mode and continuous mode. In timer mode, once the balancing operation is completed, the LTC3305 goes into a low power state for a programmed time and then periodically rebalances the batteries. In continuous mode, the balancing operation continues even after the batteries are balanced to their programmed termination voltage.The LTC3305 is available in a thermally enhanced 38-lead TSSOP package.ApplicationsTelecom Backup SystemsHome Battery Powered Backup SystemsIndustrial Electric VehiclesEnergy Storage Systems (ESS)Medical Equipment

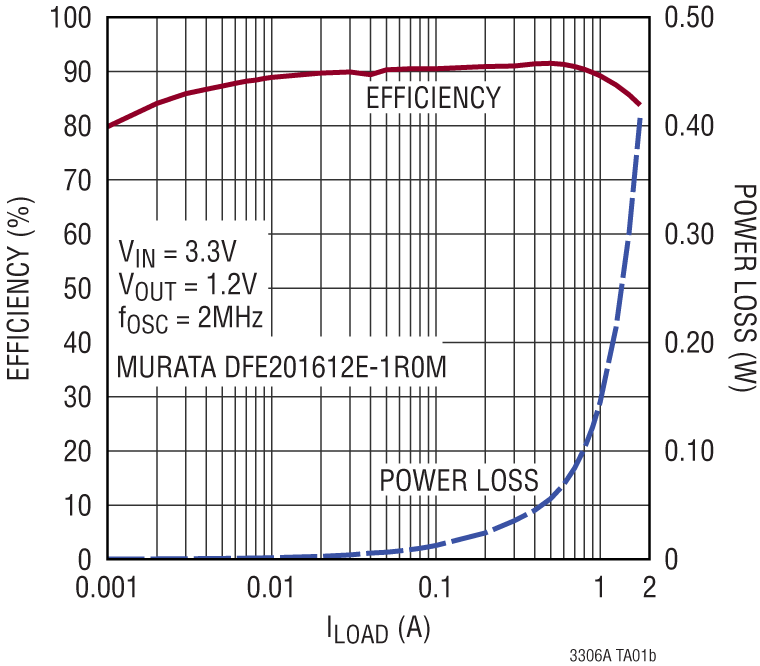

The LTC3306 is a very small, high efficiency, low noise, monolithic synchronous step-down DC/DC converter capable of providing as much as 1.75A average output current from a 2.25V to 5.5V input supply. Using constant frequency, peak current mode control at 2MHz switching frequency, and with a minimum on-time of 22ns, this regulator achieves fast transient response and precise regulation in an extremely small solution size.The LTC3306 is available in forced continuous mode for lower noise, or low-ripple Burst Mode operation for higher efficiency at light load.The LTC3306 is available with an external resistor programmable output or with fixed output voltages from 500mV to 3.65V in 50mV increments, and 100% duty cycle operation delivers very low drop out voltage.Other features include a high precision PGOOD output, a precision enable threshold, output overvoltage protection, thermal shutdown, and output short-circuit protection. This device is available in a 6-pin 1.6mm × 1mm, 0.5mm pitch WLCSP package.APPLICATIONSGeneral Purpose, Industrial, GSM SuppliesDistributed DC Power Systems (POL)FPGA, ASIC, μP Core Supplies

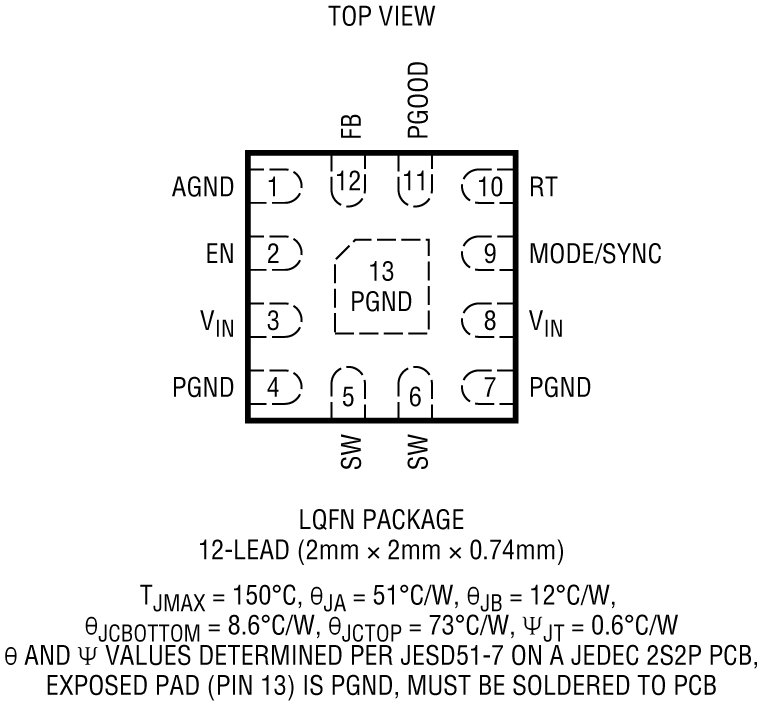

The LTC®3307A is a very small, high efficiency, low noise, monolithic synchronous 3A step-down DC/DC converter operating from a 2.25V to 5.5V input supply. Using constant frequency, peak current mode control at switching frequencies 1MHz to 3MHz and minimum on-time as low as 22ns, this regulator achieves fast transient response with small external components. Silent Switcher architecture minimizes EMI emissions.The LTC3307A operates in forced continuous or pulse skip mode for low noise, or low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. Other features include output overvoltage protection, short-circuit protection, thermal shutdown, clock synchronization, and up to 100% duty cycle operation for low dropout. The device is available in a low profile 12-lead 2mm × 2mm × 0.74mm LQFN package with exposed pad for low thermal resistance, and a 16-pin 1.64mm × 1.64mm × 0.5mm WLCSP package.The LTC3307A operates in forced continuous or pulse skipping mode for low noise, or low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. Other features include output overvoltage protection, short-circuit protection, thermal shut down, clock synchronization, and up to 100% duty cycle operation for low dropout. The device is available in a low profile 12-lead 2mm × 2mm × 0.74mm LQFN package with exposed pad for low thermal resistance, and a 16-pin 1.64mm × 1.64mm × 0.5mm WLCSP package.For applications that require a faster power-on and transient response, the LTC3307A-1 has reduced power-on time, soft-start time, and higher bandwidth.ApplicationsOptical Networking, Servers, TelecomAutomotive, Industrial, CommunicationsDistributed DC Power Systems (POL)FPGA, ASIC, µP Core SuppliesBattery Operated Systems
