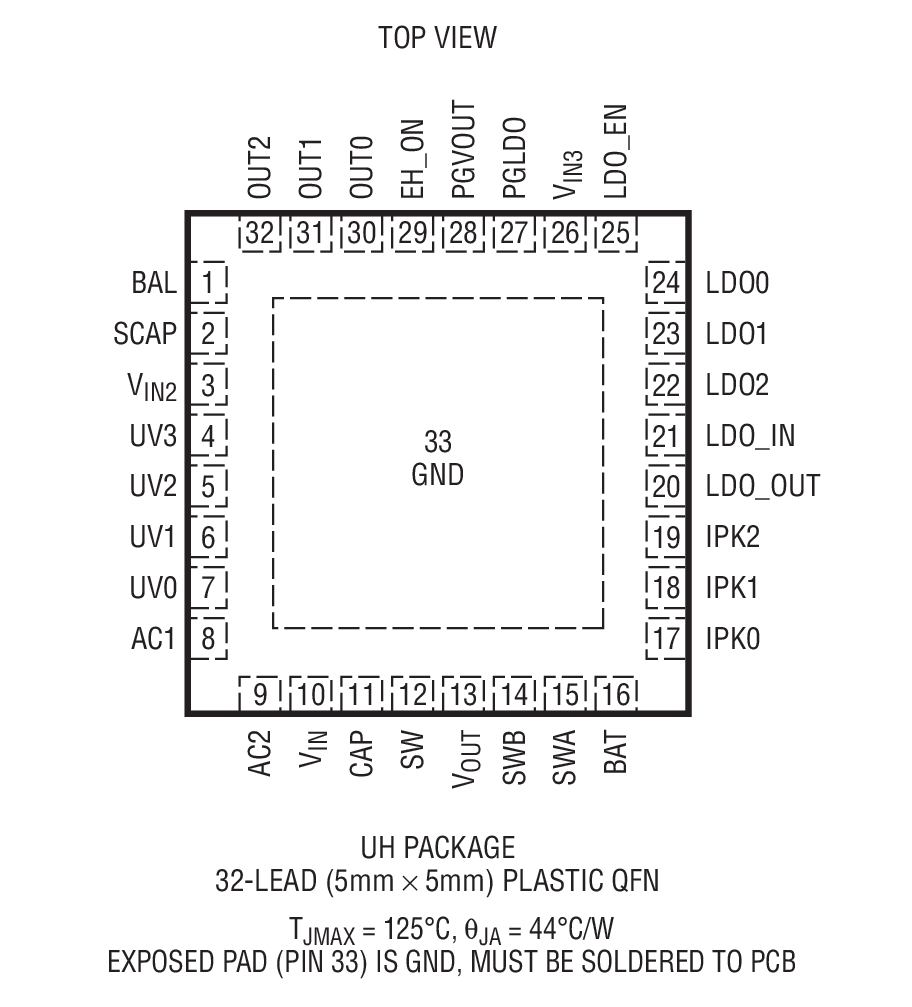

The LTC3330 integrates a high voltage energy harvesting power supply plus a DC/DC converter powered by a primary cell battery to create a single output supply for alternative energy applications. The energy harvesting power supply, consisting of an integrated full-wave bridge rectifier and a high voltage buck converter, harvests energy from piezoelectric, solar, or magnetic sources. The primary cell input powers a buck-boost converter capable of operation down to 1.8V at its input. Either DC/DC converter can deliver energy to a single output. The buck operates when harvested energy is available, reducing the quiescent current draw on the battery to essentially zero, thereby extending the life of the battery. The buck-boost powers VOUTonly when harvested energy goes away.A low noise LDO post regulator and a supercapacitor balancer are also integrated, accommodating a wide range of output storage configurations. Voltage and current settings for both inputs and outputs are programmable via pin-strapped logic inputs. The LTC3330 is available in a 5mm × 5mm QFN-32 package.ApplicationsEnergy HarvestingSolar Powered Systems with Primary Cell BackupWireless HVAC Sensors and Security DevicesMobile Asset Tracking

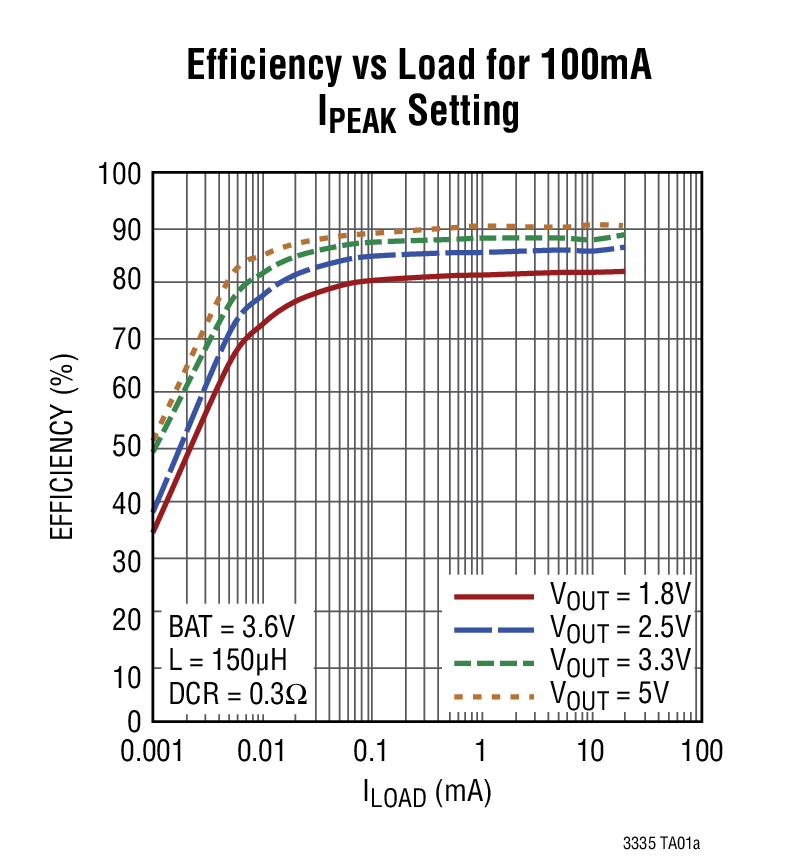

The LTC3335 is a high efficiency, low quiescent current (680nA) buck-boost DC/DC converter with an integrated precision coulomb counter which monitors accumulated battery discharge in long life battery powered applications. The buck-boost can operate down to 1.8V on its input and provides eight pin-selectable output voltages with up to 50mA of output current.The coulomb counter stores the accumulated battery discharge in an internal register accessible via an I2C interface. The LTC3335 features a programmable discharge alarm threshold. When the threshold is reached, an interrupt is generated at theIRQpin.To accommodate a wide range of battery types and sizes, the peak input current can be selected from as low as 5mA to as high as 250mA and the full-scale coulomb counter has a programmable range of 32,768:1.The LTC3335 is available in a 3mm × 4mm QFN-20 package.ApplicationsLong Lifetime Primary Cell Battery ApplicationsWireless SensorsRemote MonitorsDust Networks®SmartMesh®Applications

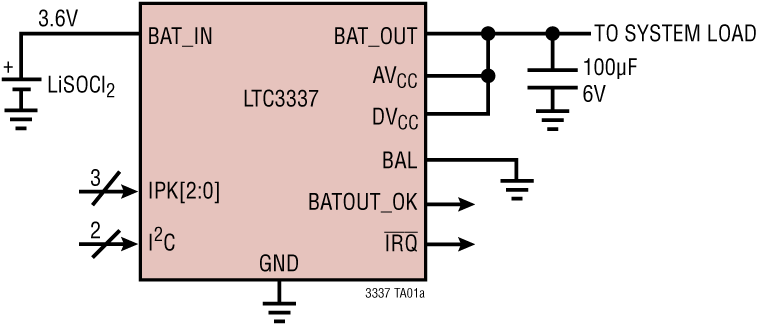

The LTC3337 is a primary battery state of health (SOH) monitor with a built-in precision coulomb counter. It is designed to be placed in series with a primary battery with minimal associated series voltage drop. The patentedinfinite dynamic rangecoulomb counter tallies ALL accumulated battery discharge and stores it in an internal register accessible via an I2C interface. A discharge alarm threshold based on this state of charge (SOC) is programmable. When it is reached, an interrupt is generated at theIRQpin. Coulomb counter accuracy is constant down to no load.The LTC3337 also integrates additional SOH monitoring which measures and reports via I2C: battery voltage, battery impedance, and temperature.To accommodate a wide range of primary battery inputs, the peak input current limit is pin selectable from 5mA to 100mA.Coulombs can be calculated for either the BAT_IN or BAT_OUT pin, determined by the AVCCpin connection.A BAL pin is provided for applications utilizing a stack of two supercapacitors (optional) at the output.The LTC3337 is offered in both 12-lead 2mm × 2mm LFCSP and 16-ball 1.64mm × 1.64mm WLCSP packages.APPLICATIONSLow Power Primary Battery Powered Systems (e.g., 1× LiSOCl2, 2–3× Alkaline)Remote Industrial Sensors (e.g., Meters, Alarms)Asset TrackersElectronic Door LocksKeep-Alive Supplies/Battery BackupSmartMesh®Applications

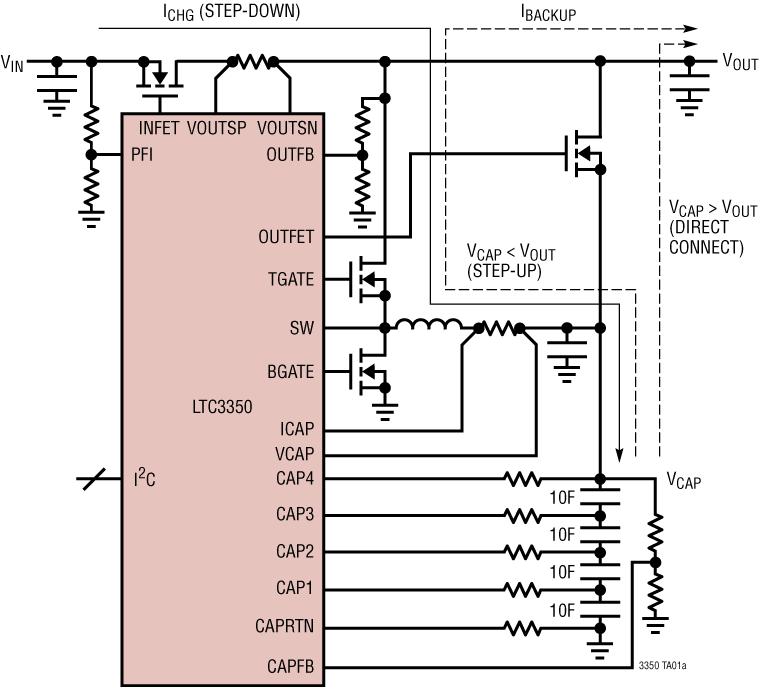

The LTC3350 is a backup power controller that can charge and monitor a series stack of one to four supercapacitors. The LTC3350’s synchronous step-down controller drives N‑channel MOSFETs for constant current/constant voltage charging with programmable input current limit. In addition, the step-down converter can run in reverse as a step-up converter to deliver power from the supercapacitor stack to the backup supply rail. Internal balancers eliminate the need for external balance resistors and each capacitor has a shunt regulator for overvoltage protection.The LTC3350 monitors system voltages, currents, stack capacitance and stack ESR which can all be read over the I2C/SMBus. The dual ideal diode controller uses N-channel MOSFETs for low loss power paths from the input and supercapacitors to the backup system supply. The LTC3350 is available in a low profile 38-lead 5mm × 7mm × 0.75mm QFN surface mount package.APPLICATIONSHigh Current 12V Ride-Through UPSServers/Mass Storage/High Availability Systems

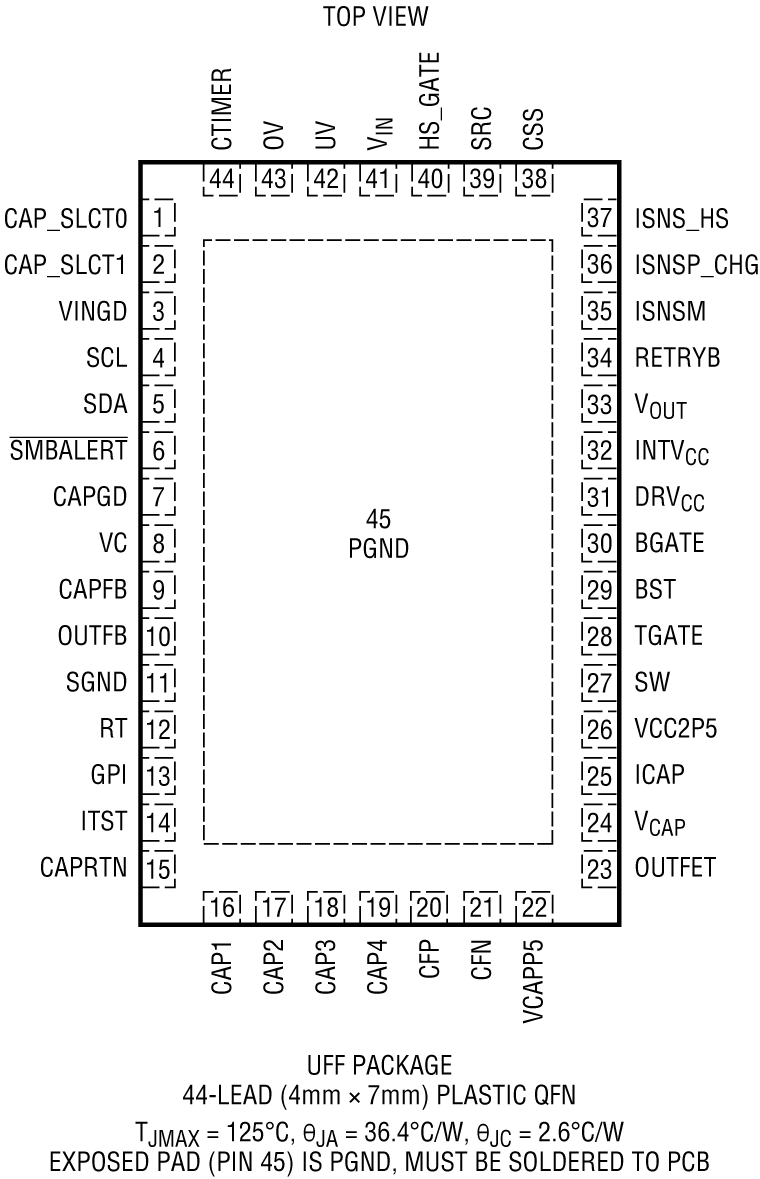

The LTC3351 is a backup power controller that charges and monitors a series stack of one to four supercapacitors. The LTC3351’s synchronous step-down controller drives N-channel MOSFETs for constant current/constant voltage charging with programmable input current limit. In addition, the step-down converter runs in reverse as a step-up converter to deliver power from the supercapacitor stack to the backup supply rail. Internal balancers eliminate the need for external balance resistors and each capacitor has a shunt regulator for overvoltage protection.The LTC3351 monitors system voltages, currents, stack capacitance and ESR which can all be read over the I2C/SMBus port. The hot swap controller uses N-channel MOSFETs for inrush control and a low loss path from the input to the output. The ideal diode controller uses an N-channel MOSFET for a low loss power path from the supercapacitors to the output. The LTC3351 is available in a thermally enhanced low profile 44-lead 4mm × 7mm × 0.75mm QFN surface mount package.APPLICATIONSSwappable PCIE Cards with NVMHigh Current 12V Ride-Through UPSServers/Mass Storage/High Availability Systems

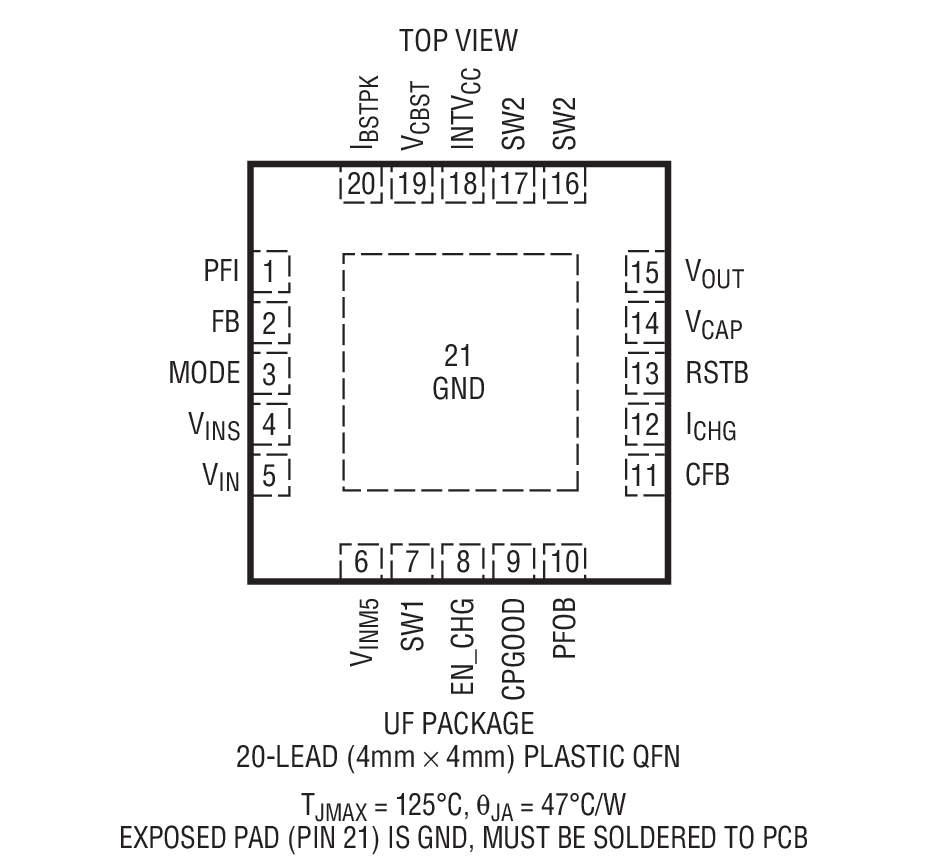

The LTC3355 is a complete input power interrupt ride-through DC/DC system. The part charges a supercapacitor while delivering load current to VOUT, and uses energy from the supercapacitor to provide continuous VOUTbackup power when VINpower is lost. The LTC3355 contains a nonsynchronous constant frequency current mode monolithic 1A buck switching regulator to provide a 2.7V to 5V regulated output voltage from an input supply of up to 20V.A 1A programmable CC/CV linear charger charges the supercapacitor from VOUT. When the VINsupply drops below the PFI threshold, the devices’s constant frequency nonsynchronous current mode 5A boost switching regulator delivers power from the supercapacitor to VOUT. A thermal regulation loop maximizes charge current while limiting the die temperature to 110°C. The IC has boost, charger and VINprogrammable current limits. The LTC3355 is available in a 20-lead 4mm × 4mm QFN surface mount package.ApplicationsRide-Through "Dying Gasp" SuppliesPower Meters/Industrial Alarms/Solid State Drives

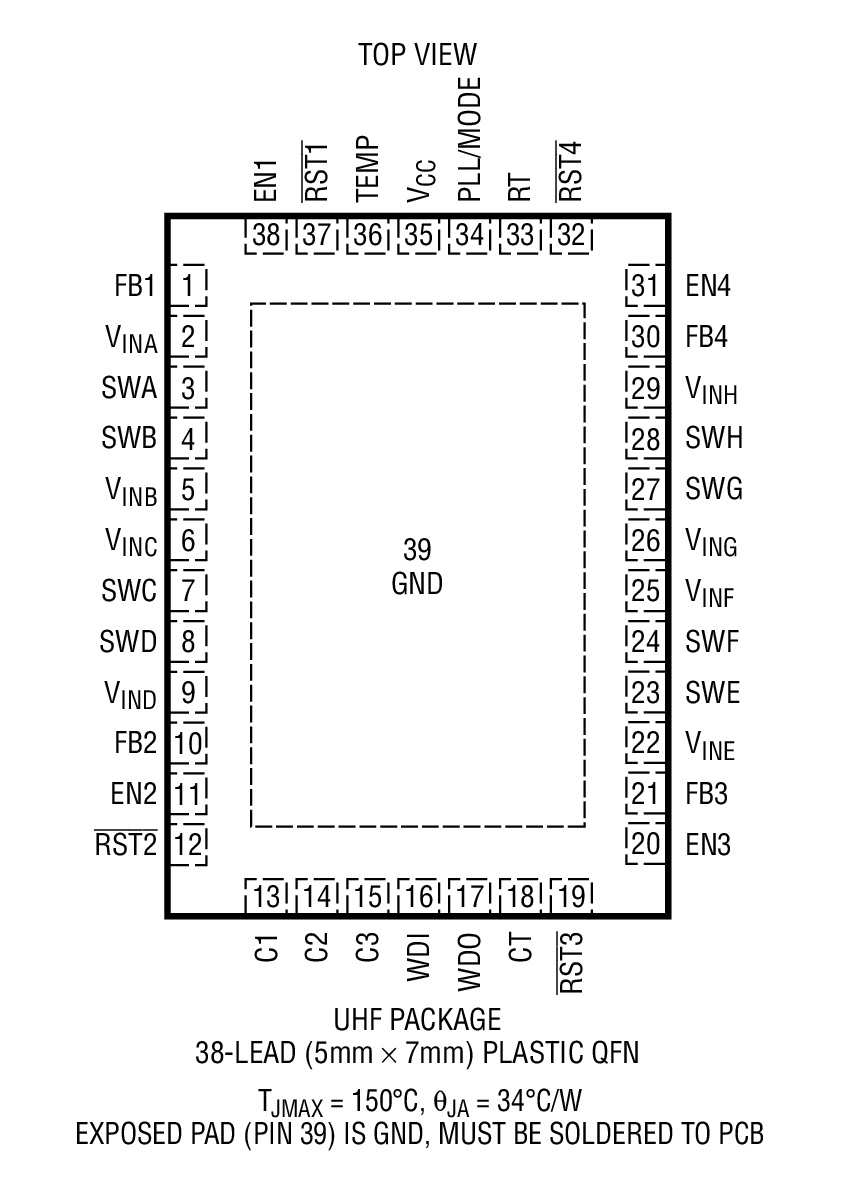

The LTC3371 is a highly flexible multi-output power supply IC. The device includes four synchronous buck converters, configured to share eight 1A power stages, each of which is powered from independent 2.25V to 5.5V inputs.The DC/DCs are assigned to one of eight possible power configurations via pin programmable C1-C3 pins. The common buck switching frequency may be programmed with an external resistor, synchronized to an external oscillator, or set to a default internal 2MHz clock. The operating mode for all DC/DCs may be programmed for Burst Mode or forced continuous mode operation.The CT pin programs the timing parameters of four independentRSTpins as well as the watchdog timer.To reduce input noise, the buck converters are phased in 90° steps. Precision enable pin thresholds facilitate reliable power sequencing. The LTC3371 is available in low profile 38-lead 5mm × 7mm QFN and TSSOP packages.ApplicationsGeneral Purpose Multichannel Power Supplies: Automotive, Industrial, Distributed Power Systems

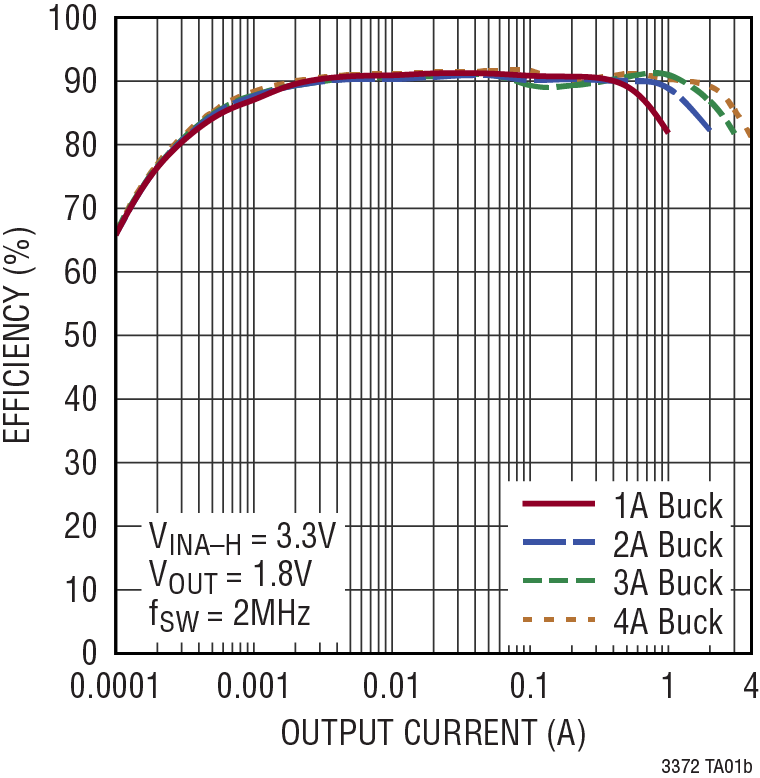

The LTC3372 is a highly flexible multioutput power supply IC. The device includes a high-performance, high voltage (HV) step-down DC/DC switching regulator controller that drives an all N-channel synchronous power FET stage from a 4.5V to 60V input.The LTC3372 also includes four low voltage (LV) synchronous buck regulators that can be programmed by the C1-C3 pins to share eight 1A integrated power stages in one of eight possible configurations. Each power stage is powered from independent inputs which may be connected to the HV buck’s VOUTor to other 2.25V to 5.5V supplies.The CT pin programs timing parameters of the watchdog timer and LV outputs’ Power-On Reset (RST). Precision enable thresholds facilitate reliable power-up sequencing.The LTC3372 is available in a 48-pin 7mm × 7mm QFN package.ApplicationsAutomotive and Industrial Always-On SystemsGeneral Purpose Multi-Channel Power Supplies

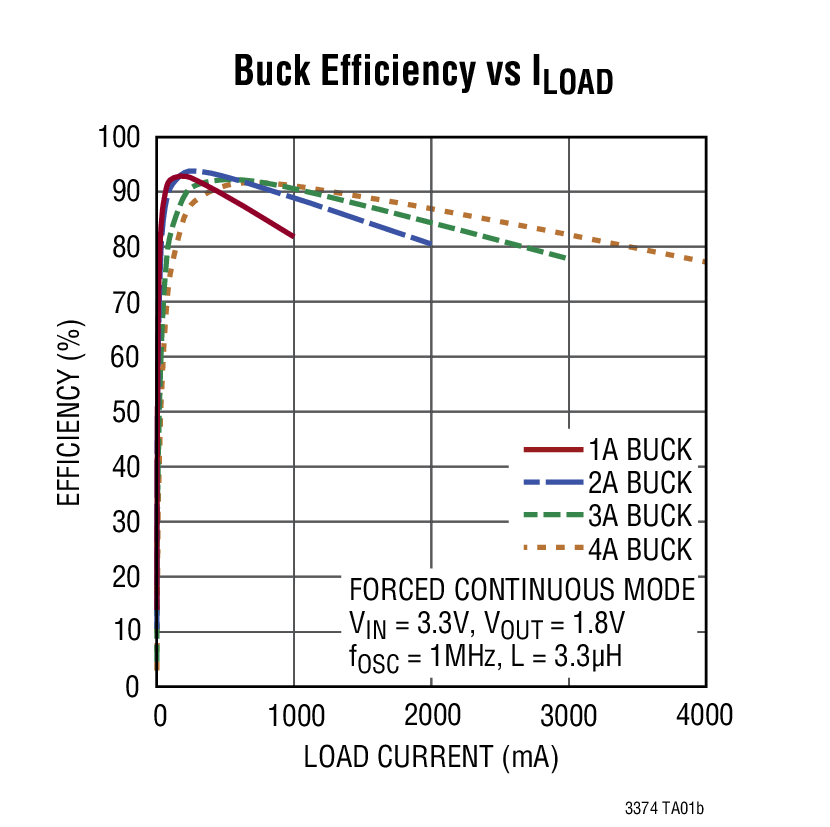

The LTC3374A is a multioutput power supply IC consisting of eight synchronous 1A buck converters, all powered from independent 2.25V to 5.5V input supplies. An upgraded pin-compatible version of the LTC3374, the LTC3374A, has higher efficiency, improved output voltage accuracy and an added overvoltage (OV) indicator.The DC/DCs may be used independently or in parallel to achieve higher output currents of up to 4A with a shared inductor. The common buck switching frequency may be programmed with an external resistor, synchronized to an external oscillator, or set to a default internal 2MHz clock. The operating mode for all DC/DCs may be programmed via the MODE pin.To reduce input noise the buck converters are phased in 90° steps. Precision enable pin thresholds simplify powerup sequencing. The LTC3374A is available in a 38-lead 5mm × 7mm QFN package as well as a 38-lead exposed pad TSSOP package.NOTESLTC3374LTC3374AHigher efficiency, improved output voltage accuracy and an added overvoltage (OV) indicatorAPPLICATIONSGeneral Purpose Multichannel Power SuppliesIndustrial/Automotive/Communications
