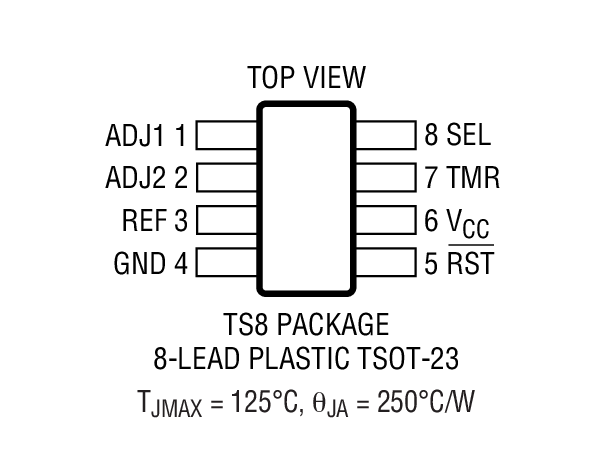

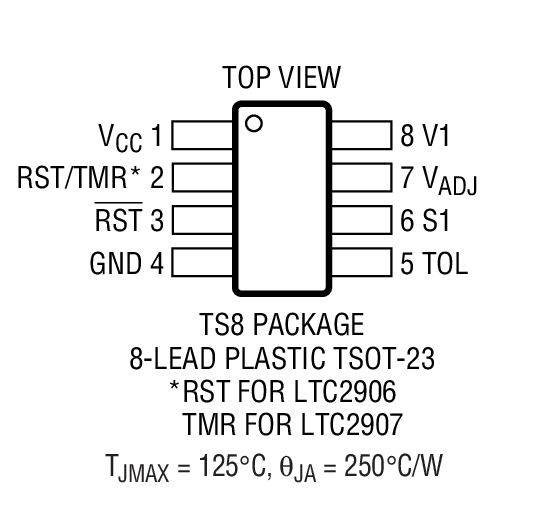

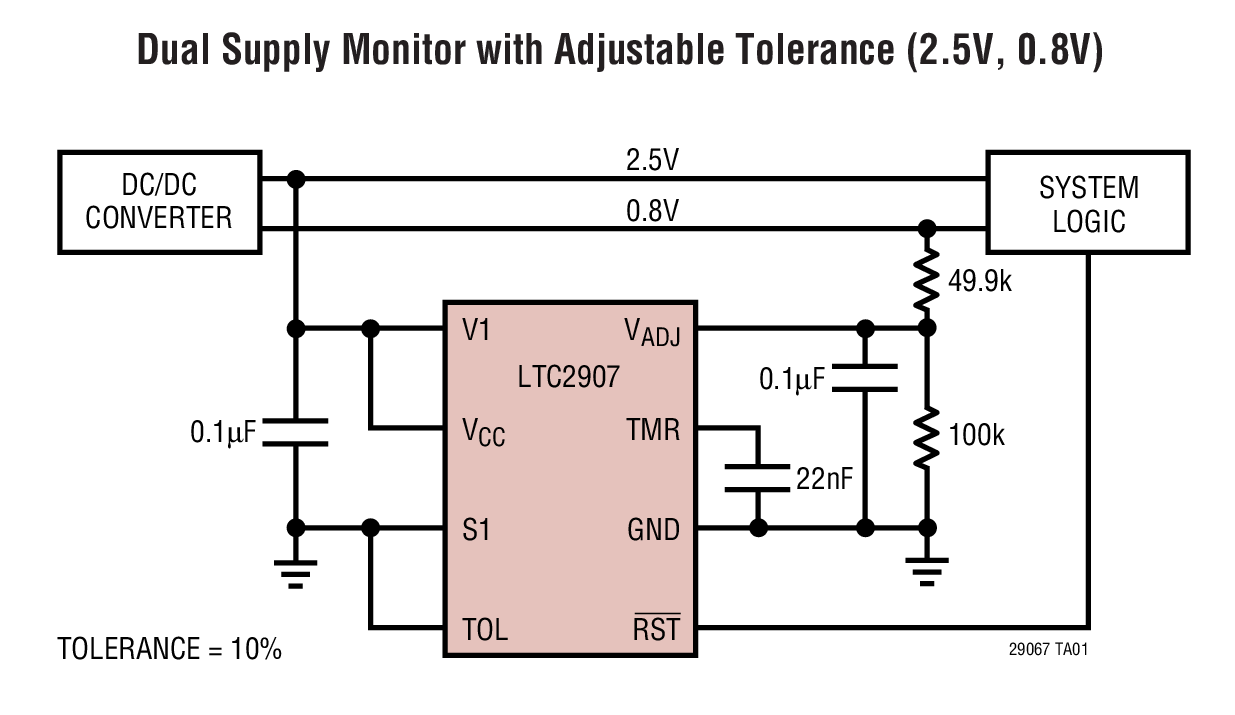

The LTC2906/LTC2907 are dual supply monitors intended for systems with multiple supply voltages. The dual supply monitors have a common reset output with delay (200ms for the LTC2906 and adjustable using an external capacitor for the LTC2907). These products provide a precise, space-conscious and micropower solution for supply monitoring.The LTC2906/LTC2907 feature a tight 1.5% threshold accuracy over the whole operating temperature range and glitch immunity to ensure reliable reset operation without false triggering. The open drain RST output state is guaranteed to be in the correct state for V1 and/or VCCdown to 1V.The LTC2906/LTC2907 also feature one adjustable input with a nominal threshold level at 0.5V, another input with three possible input threshold levels, and three supply tolerances for possible margining. These features provide versatility for any kind of system requiring dual supply monitors. Two three-state input pins program the threshold and tolerance level without requiring any external components.ApplicationsDesktop and Notebook ComputersHandheld DevicesNetwork ServersCore, I/O Monitor

The LTC2906/LTC2907 are dual supply monitors intended for systems with multiple supply voltages. The dual supply monitors have a common reset output with delay (200ms for the LTC2906 and adjustable using an external capacitor for the LTC2907). These products provide a precise, space-conscious and micropower solution for supply monitoring.The LTC2906/LTC2907 feature a tight 1.5% threshold accuracy over the whole operating temperature range and glitch immunity to ensure reliable reset operation without false triggering. The open drain RST output state is guaranteed to be in the correct state for V1 and/or VCCdown to 1V.The LTC2906/LTC2907 also feature one adjustable input with a nominal threshold level at 0.5V, another input with three possible input threshold levels, and three supply tolerances for possible margining. These features provide versatility for any kind of system requiring dual supply monitors. Two three-state input pins program the threshold and tolerance level without requiring any external components.ApplicationsDesktop and Notebook ComputersHandheld DevicesNetwork ServersCore, I/O Monitor

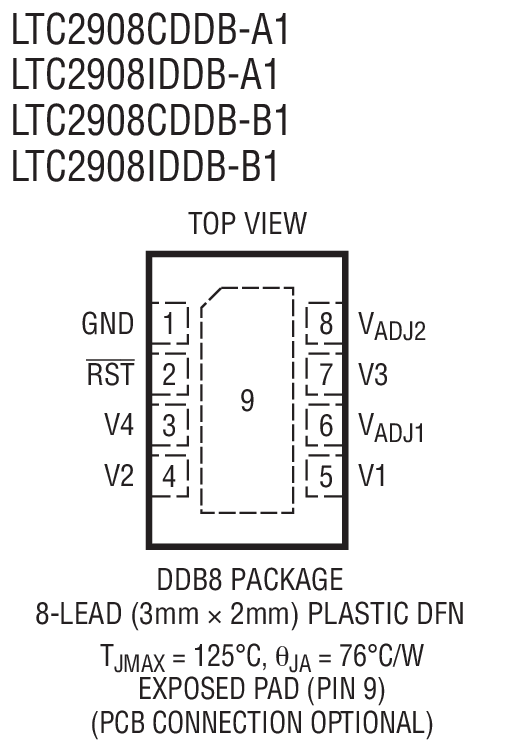

The LTC2908 is a six input supply monitor for systems requiring a precise and compact monitoring solution for multiple supply voltages. The inputs can be shorted together for monitoring systems with fewer than six supply voltages, and the open drainRSToutput of two or more LTC2908s can be wired-OR together for monitoring systems with more than six supply voltages. The common reset output remains low until all six inputs have been in compliance for 200ms.The LTC2908 features a tight 1.5% threshold accuracy over the entire operating temperature range and glitch immunity to ensure reliable reset operation without false triggering. The open-drainRSToutput state is guaranteed to be in the correct state as long as V1 and/or V2 is 0.5V or greater.The LTC2908 also features adjustable inputs with a nominal threshold level at 0.5V. This product provides a precise, space-conscious, micropower and general purpose solution for any kind of system requiring supply monitors.ApplicationsNetwork ServersWireless Base StationsOptical Networking SystemsMultivoltage SystemsDesktop and Notebook Computers

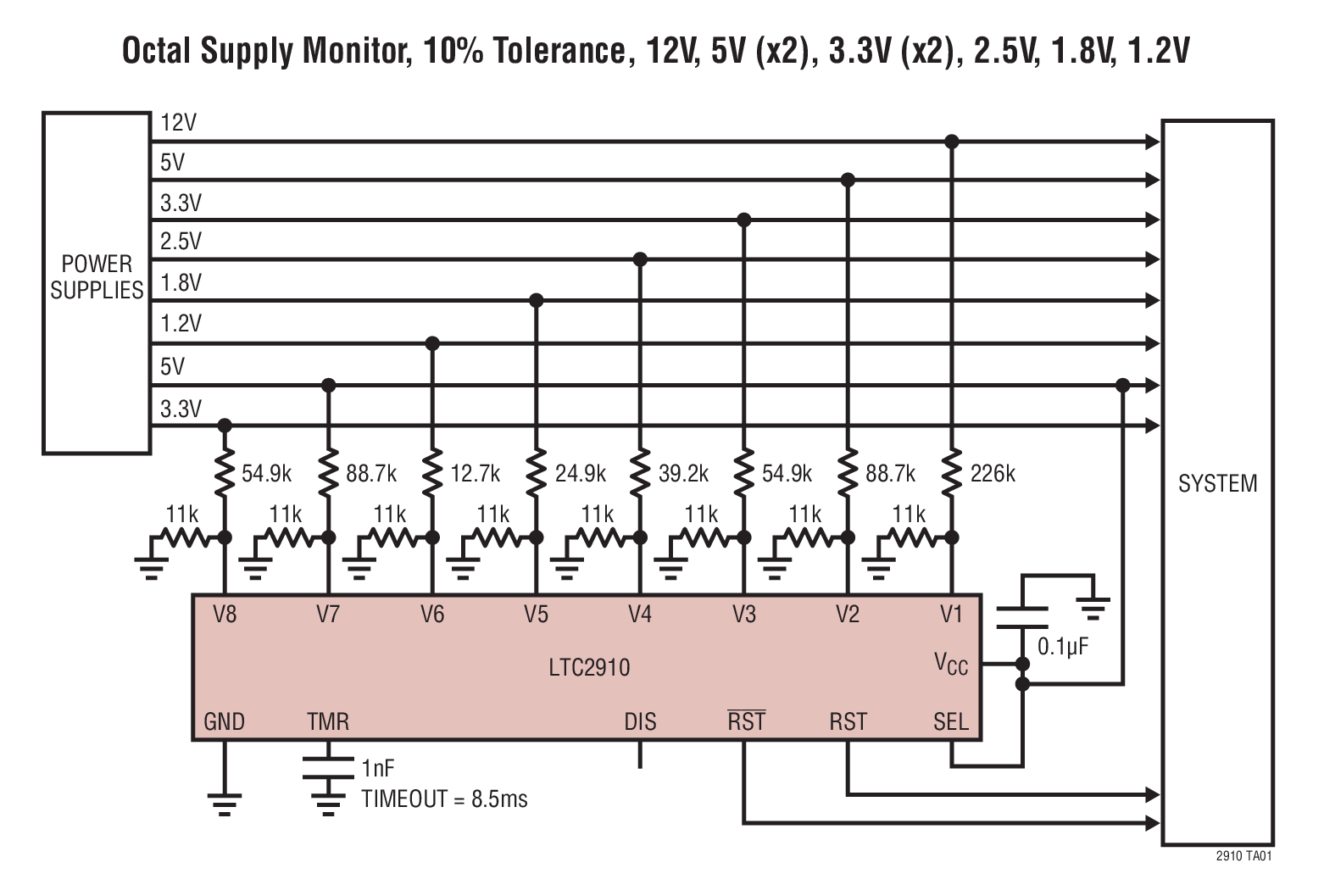

The LTC2910 is an octal input voltage monitor intended for monitoring multiple voltages in a variety of applications. Each input has a nominal 0.5V threshold, featuring 1.5% tight threshold accuracy over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false or noisy triggering.Polarity selection and a buffered reference allow monitoring up to two separate negative voltages. A three state input pin allows setting the polarity of two inputs without requiring any external components.The LTC2910 provides a precise, versatile, space-conscious, micropower solution for voltage monitoring.ApplicationsDesktop and Notebook ComputersNetwork ServersCore, I/O Voltage Monitors

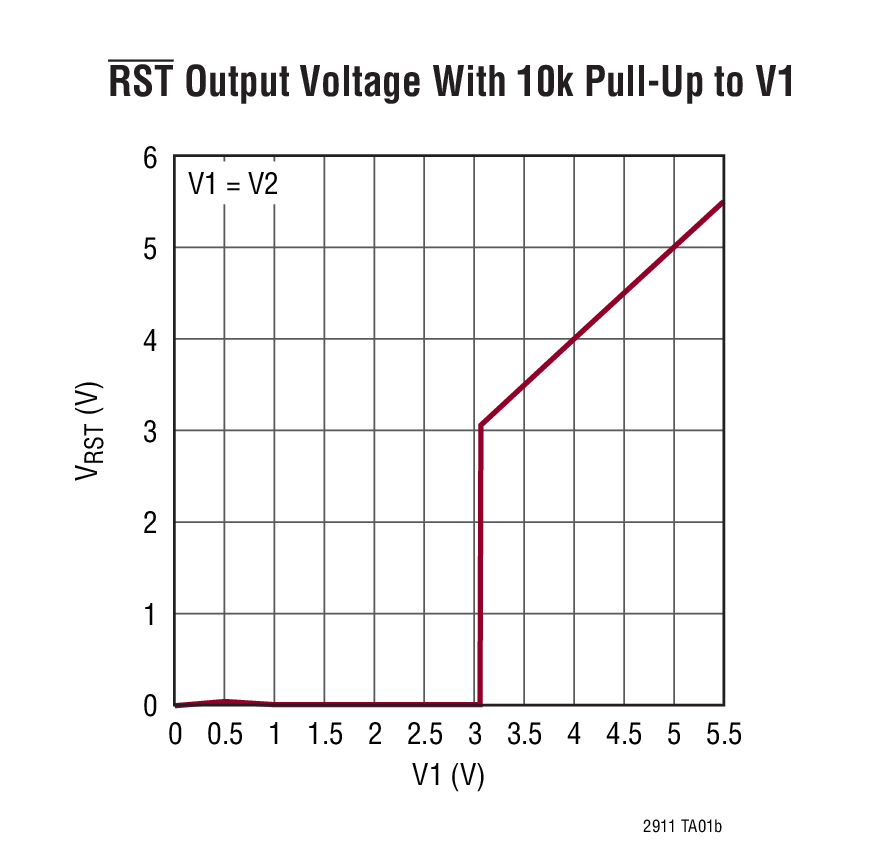

The LTC2911 is a low power, high accuracy triple supply monitor with a power-fail comparator. Reset timeout may be selected with an external capacitor or set to an internally generated 200ms.The V1 pin monitors a 3.3V supply. The V2 pin monitors a 5V, 2.5V, 1.8V, 1.2V or adjustable supply. A third adjustable input has a nominal 0.5V threshold allowing a resistive divider to configure its threshold. All three comparators feature a tight 1.5% threshold accuracy over the entire operating temperature range while a glitch filter ensures reliable reset operation.A spare comparator can be configured to provide early warning of a low voltage condition. It causes thePFOoutput to pull low when the voltage of the PFI input falls below 0.5V, allowing the power-fail threshold to be configured with a resistive divider. A latch feature on the TMR pin allows theRSToutput to be latched to prevent system resets, simplifying margin testing.ApplicationsNetwork ServersDesktop and Notebook ComputersAutomotive and Industrial Electronics

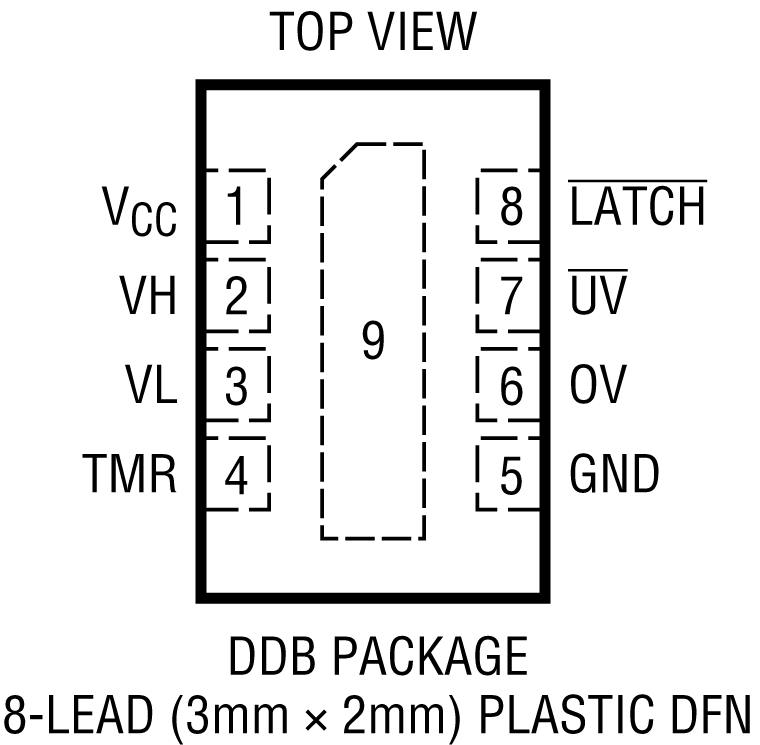

The LTC2912 voltage monitor is designed to detect power supply undervoltage and overvoltage events. The VL and VH monitor inputs include filtering to reject brief glitches, thereby ensuring reliable reset operation without false or noisy triggering. An adjustable timer defines the duration of the overvoltage and undervoltage reset outputs which function independently. While the LTC2912 operates directly from 2.3V to 6V supplies, an internal VCCshunt regulator coupled with low supply current demand allows operation from higher voltages such as 12V, 24V or 48V.Three output configurations are available: the LTC2912‑1 has a latch control for theOVoutput; the LTC2912-2 has anOVandUVoutput disable feature for margining applications; the LTC2912-3 is identical to the LTC2912-1 but with a noninverting,OVoutput.The LTC2912 provides a precise, versatile, space-conscious micropower solution for voltage monitoring.ApplicationsDesktop and Notebook ComputersNetwork ServersCore, I/O Voltage Monitors

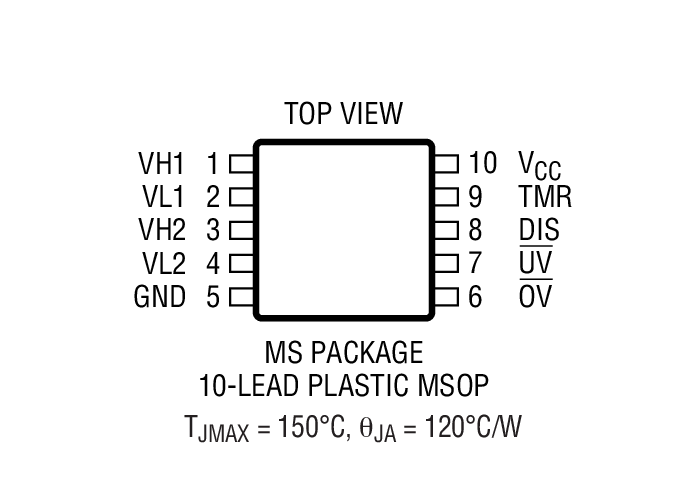

The LTC2913 is a dual input voltage monitor intended for multiple voltages in a variety of applications. Dual inputs for each voltage allow monitoring two separate undervoltage (UV) conditions and two separate overvoltage (OV) conditions. All monitors share a common undervoltage output and a common overvoltage output. The LTC2913-1 has latching capability for the overvoltage output. The LTC2913- 2 has functionality to disable both the overvoltage and undervoltage outputs.Glitch filtering ensures reliable reset operation without false or noisy triggering.The LTC2913 provides a precise, versatile, space-conscious, micropower solution for voltage monitoring.ApplicationsDesktop and Notebook ComputersNetwork ServersCore, I/O Voltage Monitors

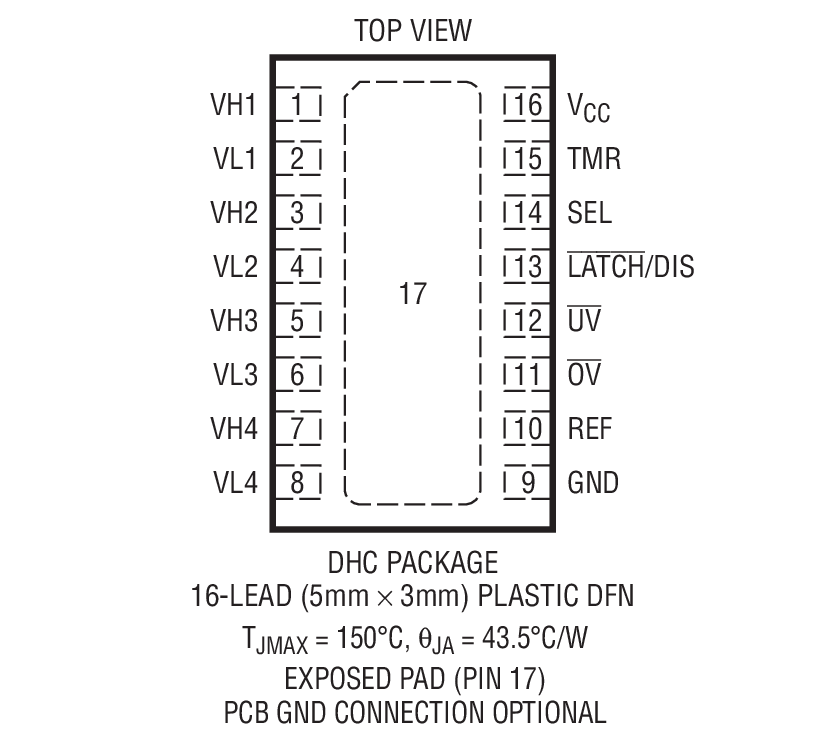

The LTC2914 is a quad input voltage monitor intended for monitoring multiple voltages in a variety of applications. Dual inputs for each monitored voltage allow monitoring four separate undervoltage (UV) conditions and four separate overvoltage (OV) conditions. All monitors share a common undervoltage output and a common overvoltage output. The LTC2914-1 has latching capability for the overvoltage output. The LTC2914-2 has functionality to disable both the overvoltage and undervoltage outputs.Polarity selection and a buffered reference allow monitoring up to two separate negative voltages. A three-state input pin allows setting the polarity of two inputs without requiring any external components. Glitch filtering ensures reliable reset operation without false or noisy triggering.The LTC2914 provides a precise, versatile, space-conscious, micropower solution for voltage monitoring.ApplicationsDesktop and Notebook ComputersNetwork ServersCore, I/O Voltage Monitors

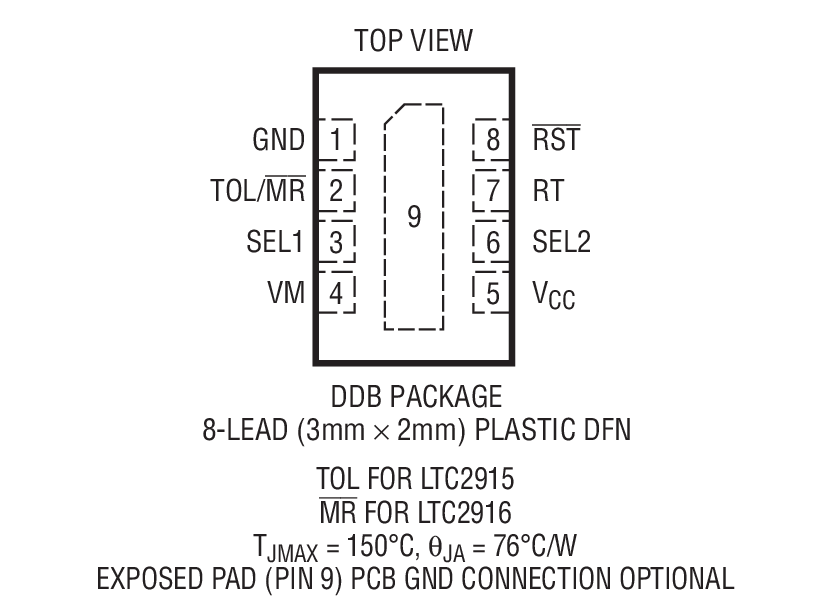

The LTC2915/LTC2916 are low voltage single-supply monitors with selectable thresholds. The parts operate from 1.5V to 5.5V and consume a quiescent current of only 30µA.Two three-state inputs select one of nine internally programmed thresholds without the need for external resistors. For the LTC2915, an additional three-state input determines the tolerance (–5%, –10%, –15%). The tolerance for the LTC2916 is fixed at –5%. Threshold accuracy is guaranteed at ±1.5% over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false triggering.The reset timeout may be set to 200ms or adjusted using an external capacitor. A separate manual reset input on the LTC2916 allows a simple push button interface.Operation to 125°C makes the LTC2915 and LTC2916 suitable for automotive applications.ApplicationsHandheld DevicesCell Phone Base StationsAutomotive Control SystemsNetwork ServersOptical Networking Systems
