The LTC2874 provides a rugged, 4-port IO-Link power and communications interface to remote devices connected by cables up to 20m in length.Output supply voltage and inrush current are ramped up in a controlled manner using external N-channel MOSFETs, providing improved robustness compared to fully integrated solutions.Wake-up pulse generation, line noise suppression, connection sensing and automatic restart after fault conditions are supported, along with signaling at 4.8kb/s, 38.4kb/s, and 230.4kb/s.Configuration and fault reporting are exchanged using a SPI-compatible 4-wire interface that operates at clock rates up to 20MHz.The LTC2874 implements an IO-Link master PHY. For IO-Link device designs, see the LT3669.ApplicationsIO-Link MastersIntelligent Sensors and ActuatorsFactory Automation Networks

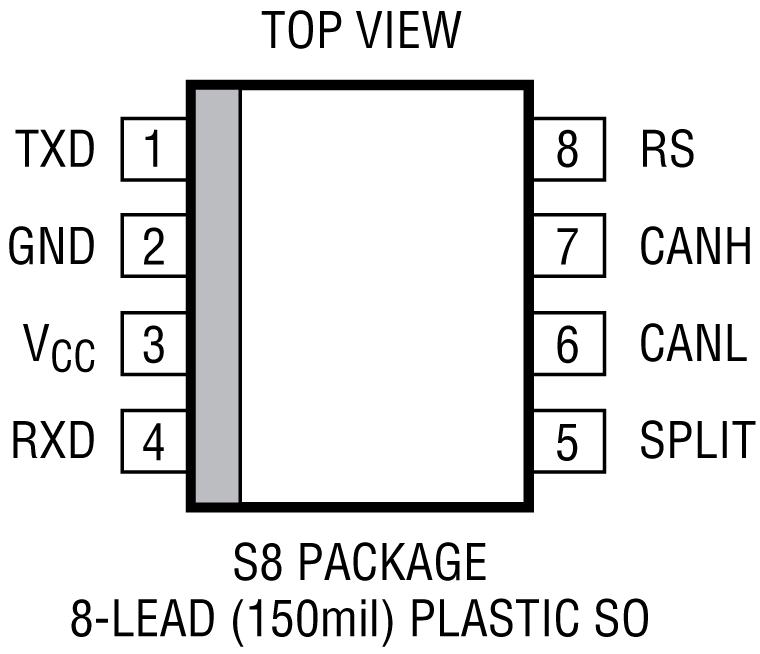

The LTC2875 is a robust high speed, low power CAN transceiver operating on 3.3V or 5V supplies that features ±60V overvoltage fault protection on the data transmission lines during all modes of operation, including powerdown. The maximum data rate has been extended to 4Mbps to support high speed protocols based on the CAN physical layer. Supports up to 4Mbps CAN with Flexible Data Rate (CAN FD). Enhanced ESD protection allows these parts to withstand ±25kV HBM on the transceiver interface pins without latchup or damage.Extended ±36V input common mode range and high common mode rejection on the CAN receiver provides tolerance of large ground loop voltages. A sophisticated CAN driver with active symmetry control maintains tight control of the common mode voltage for excellent electromagnetic emission, while the variable slew rate and split termination support allow additional EME reduction.ApplicationsIndustrial Control and Instrumentation NetworksAutomotive and Transportation ElectronicsBuilding Automation, Security Systems, HVACMedical Equipment

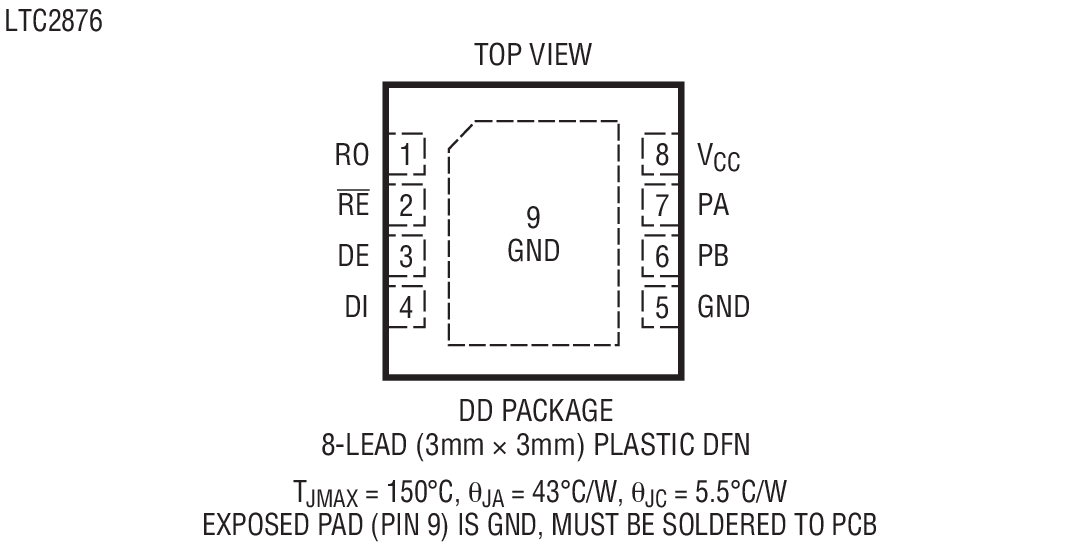

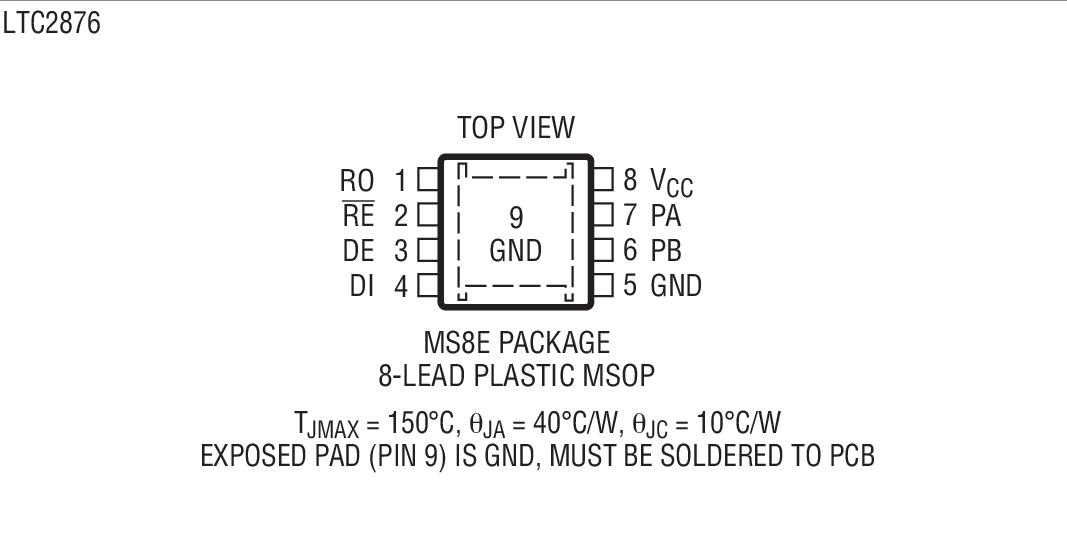

The LTC2876 and LTC2877 are PROFIBUS RS485 transceivers designed to meet the test specifications for PROFIBUS-DP masters and PROFIBUS-DP slaves, fully compatible with IEC 61158-2, type 3: medium attachment unit (MAU). With operation up to 20Mbps, the LTC2876/LTC2877 supports all PROFIBUS data rates up to 12Mbps.The LTC2876 and LTC2877 are exceptionally robust, tolerating ±60V faults on the bus pins and protected to ±52kV ESD. These devices are suitable for harsh environments or where 24V power might be inadvertently connected. Extended ±25V input common mode range and full failsafe operation improve data communication reliability in noisy systems.The LTC2876 and LTC2877 meet PROFIBUS and RS485 specifications with a supply voltage of 4.5V to 5.5V but can operate down to 3V with reduced supply current.Product Selection GuidePART NUMBERLOGIC SUPPLY PINPACKAGELTC2876NODFN-8, MSOP-8LTC2877YESDFN-10, MSOP-10ApplicationsPROFIBUS-DPIndustrial Communication NetworksRS485 and RS422 Systems3V Low Voltage Differential Signaling

The LTC2876 and LTC2877 are PROFIBUS RS485 transceivers designed to meet the test specifications for PROFIBUS-DP masters and PROFIBUS-DP slaves, fully compatible with IEC 61158-2, type 3: medium attachment unit (MAU). With operation up to 20Mbps, the LTC2876/ LTC2877 supports all PROFIBUS data rates up to 12Mbps.The LTC2876 and LTC2877 are exceptionally robust, tolerating ±60V faults on the bus pins and protected to ±52kV ESD. These devices are suitable for harsh environments or where 24V power might be inadvertently connected. Extended ±25V input common mode range and full fail safe operation improve data communication reliability in noisy systems.The LTC2876 and LTC2877 meet PROFIBUS and RS485 specifications with a supply voltage of 4.5V to 5.5V but can operate down to 3V with reduced supply current.Product Selection GuidePART NUMBERLOGIC SUPPLY PINPACKAGELTC2876NODFN-8, MSOP-8LTC2877YESDFN-10, MSOP-10ApplicationsPROFIBUS-DPIndustrial Communication NetworksRS485 and RS422 Systems3V Low Voltage Differential Signaling

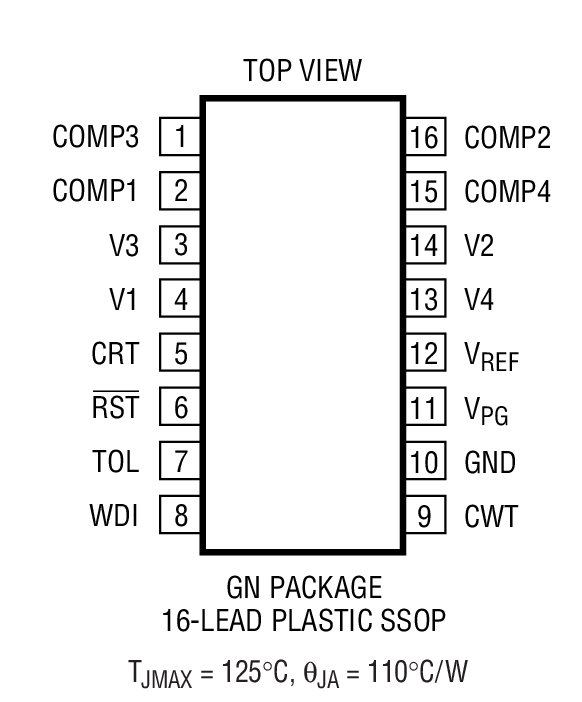

The LTC2901 is a programmable supply monitor for systems with up to four supply voltages. One of 16 preset or adjustable voltage monitor combinations can be selected using an external resistor divider connected to the program pin. The preset voltage thresholds are accurate to ±1.5% over temperature. All four voltage comparator outputs are connected to separate pins for individual supply monitoring.The reset and watchdog delay times are adjustable using external capacitors. Tight voltage threshold accuracy and glitch immunity ensure reliable reset operation without false triggering. TheRSToutput is guaranteed to be in the correct state for VCCdown to 1V. The LTC2901-1/LTC2901-3 features an open-drainRSToutput, while the LTC2901-2/LTC2901-4 has a push-pullRSToutput.The 43µA supply current makes the LTC2901 ideal for power conscious systems and it may be configured to monitor less than four inputs. The parts are available in the 16-lead narrow SSOP package.ApplicationsDesktop and Notebook ComputersMultivoltage SystemsTelecom EquipmentPortable Battery-Powered EquipmentNetwork Servers

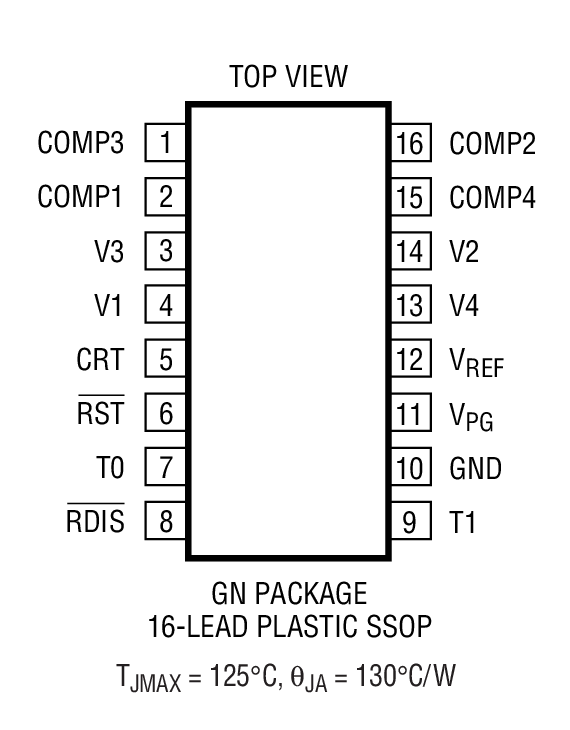

The LTC2902 is a programmable supply monitor for systems with up to four supply voltages. One of 16 preset or adjustable voltage monitor combinations can be selected using an external resistor divider connected to the program pin. The preset voltage thresholds are digitally programmable to 5%, 7.5%, 10% or 12.5% below the nominal operating voltage, and are accurate to 1.5% over temperature. All four voltage comparator outputs are connected to separate pins for individual supply monitoring.The reset delay time is adjustable using an external capacitor. Tight voltage threshold accuracy and glitch immunity ensure reliable reset operation without false triggering. TheRSToutput is guaranteed to be in the correct state for VCCdown to 1V and may be disabled during supply margin testing. The LTC2902-1 features an open-drainRSToutput, while the LTC2902-2 has a push-pullRSToutput.The 43µA supply current makes the LTC2902 ideal for power conscious systems and the part may be configured to monitor less than four inputs. The LTC2902-1/LTC2902-2 are available in the 16-lead narrow SSOP package.ApplicationsDesktop and Notebook ComputersMultivoltage SystemsTelecom EquipmentPortable Battery-Powered EquipmentNetwork Servers

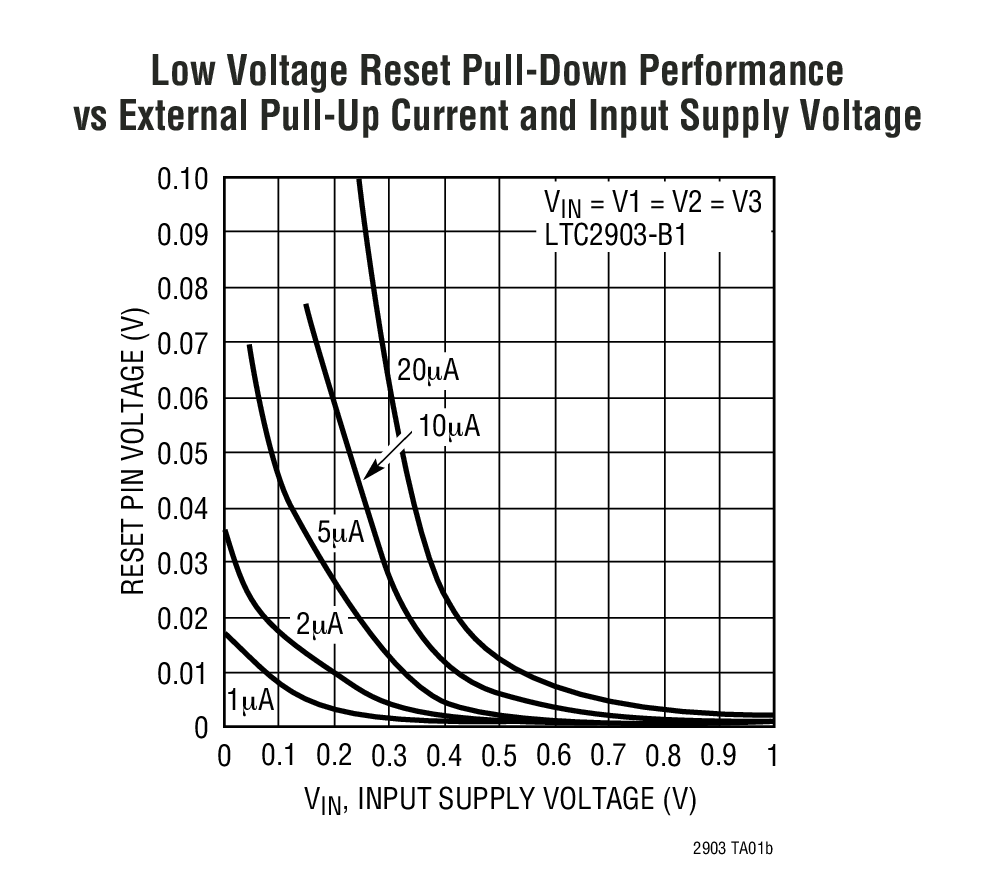

The LTC2903-1 monitors up to four supply voltages. The common reset output remains low until all four inputs have been in compliance for 200ms. Voltage thresholds maintain ±1.5% accuracy over temperature (with respect to the monitored voltage). The LTC2903-1 features an open-drainRSToutput with a weak internal pullup.Internal supply voltage (VCC)is generated from the greater voltage on the V1, V2 inputs. VCC= V1 for LTC2903-D1 and LTC2903-E1. TheRSToutput is guaranteed to sink at least 5µA (VOL= 0.15V) for VCCdown to 0.5V and will typically conduct current down to 0V. Quiescent current is 20µA typical, making the LTC2903-1 ideal for power conscious systems. The LTC2903-1 is available in a 6-lead low profile (1mm) SOT-23 package.ApplicationsMultivoltage SystemsOptical Networking SystemsCell Phone Base StationsNetwork Servers

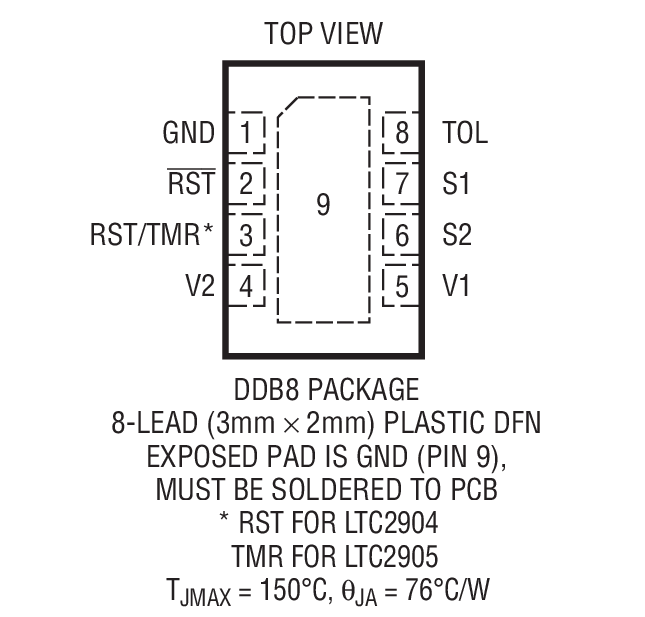

The LTC2904/LTC2905 are dual supply monitors intended for systems with two supply voltages. The dual supply monitors have a common reset output with delay (200ms for the LTC2904 and adjustable using an external capacitor for the LTC2905). This product provides a precise, space-conscious and micropower solution for supply monitoring.The LTC2904/LTC2905 feature a tight 1.5% threshold accuracy over the whole operating temperature range, and glitch immunity to ensure reliable reset operation without false triggering. The open drainRSToutput is guaranteed to be in the correct state for inputs down to 1V.The LTC2904/LTC2905 also feature three programming input pins, which program the threshold and tolerance level without requiring any external components. These three programming pins provide a total of 27 different voltage level and tolerance combinations, eliminating the need to have different parts for development and implementation of different systems with different voltage levels requiring monitoring function.ApplicationsDesktop and Notebook ComputersHandheld DevicesNetwork ServersCore, I/O Monitor

The LTC2904/LTC2905 are dual supply monitors intended for systems with two supply voltages. The dual supply monitors have a common reset output with delay (200ms for the LTC2904 and adjustable using an external capacitor for the LTC2905). This product provides a precise, space-conscious and micropower solution for supply monitoring.The LTC2904/LTC2905 feature a tight 1.5% threshold accuracy over the whole operating temperature range, and glitch immunity to ensure reliable reset operation without false triggering. The open drainRSToutput is guaranteed to be in the correct state for inputs down to 1V.The LTC2904/LTC2905 also feature three programming input pins, which program the threshold and tolerance level without requiring any external components. These three programming pins provide a total of 27 different voltage level and tolerance combinations, eliminating the need to have different parts for development and implementation of different systems with different voltage levels requiring monitoring function.ApplicationsDesktop and Notebook ComputersHandheld DevicesNetwork ServersCore, I/O Monitor
