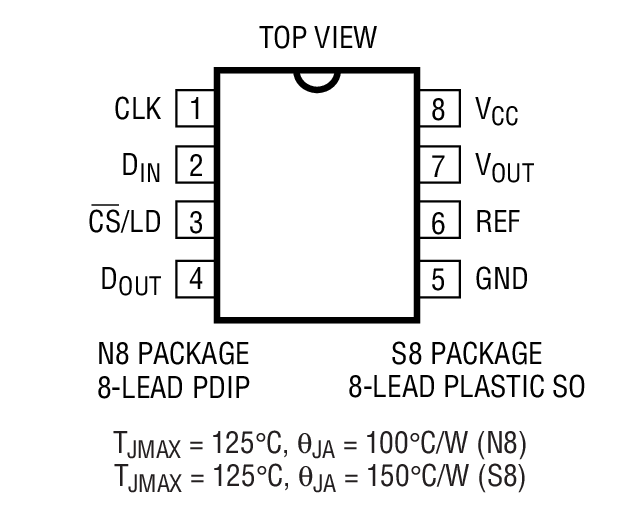

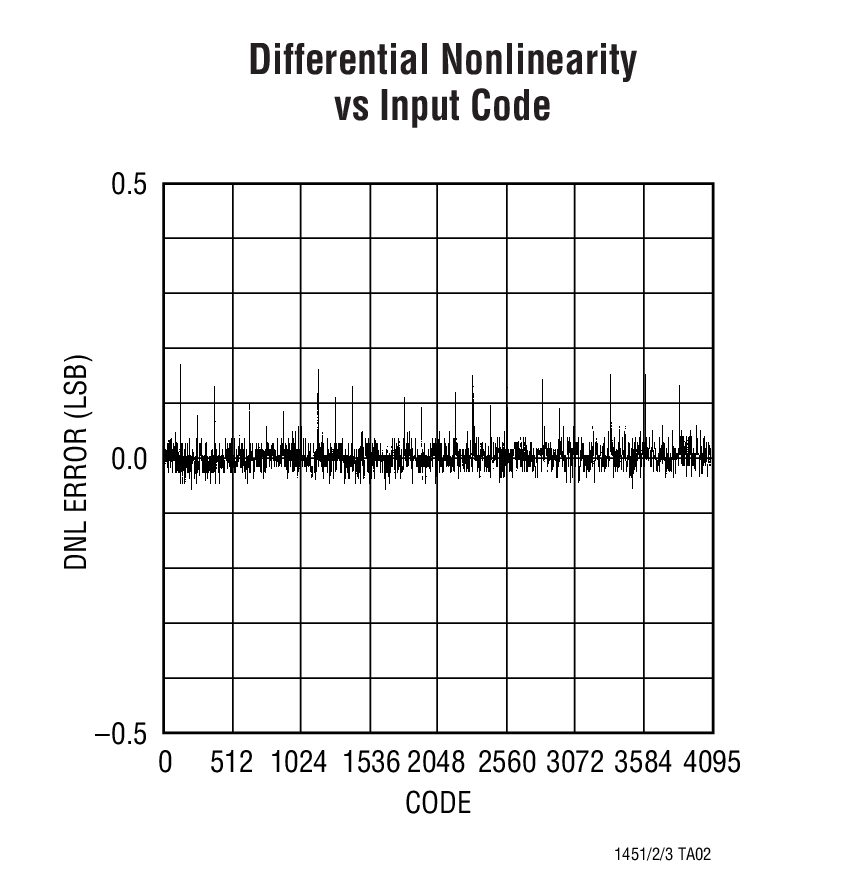

The LTC1451/LTC1452/LTC1453 are complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converters (DACs) in an SO-8 package. They include an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface.The LTC1451 has an onboard reference of 2.048V and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply.The LTC1452 is a multiplying DAC with a full-scale output of twice the reference input voltage. It operates from a single supply of 2.7V to 5.5V.The LTC1453 has an onboard 1.22V reference and a full-scale output of 2.5V. It operates from a single supply of 2.7V to 5.5V.The low power supply current makes the LTC1451 family ideal for battery-powered applications. The space saving 8-pin SO package and operation with no external components provide the smallest 12-bit DAC system available.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentCellular Telephones

The LTC1451/LTC1452/LTC1453 are complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converters (DACs) in an SO-8 package. They include an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface.The LTC1451 has an onboard reference of 2.048V and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply.The LTC1452 is a multiplying DAC with a full-scale output of twice the reference input voltage. It operates from a single supply of 2.7V to 5.5V.The LTC1453 has an onboard 1.22V reference and a full-scale output of 2.5V. It operates from a single supply of 2.7V to 5.5V.The low power supply current makes the LTC1451 family ideal for battery-powered applications. The space saving 8-pin SO package and operation with no external components provide the smallest 12-bit DAC system available.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentCellular Telephones

The LTC1451/LTC1452/LTC1453 are complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converters (DACs) in an SO-8 package. They include an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The LTC1451 has an onboard reference of 2.048V and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply.The LTC1452 is a multiplying DAC with a full-scale output of twice the reference input voltage. It operates from a single supply of 2.7V to 5.5V.The LTC1453 has an onboard 1.22V reference and a full-scale output of 2.5V. It operates from a single supply of 2.7V to 5.5V.The low power supply current makes the LTC1451 family ideal for battery-powered applications. The space saving 8-pin SO package and operation with no external components provide the smallest 12-bit DAC system available.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentCellular Telephones

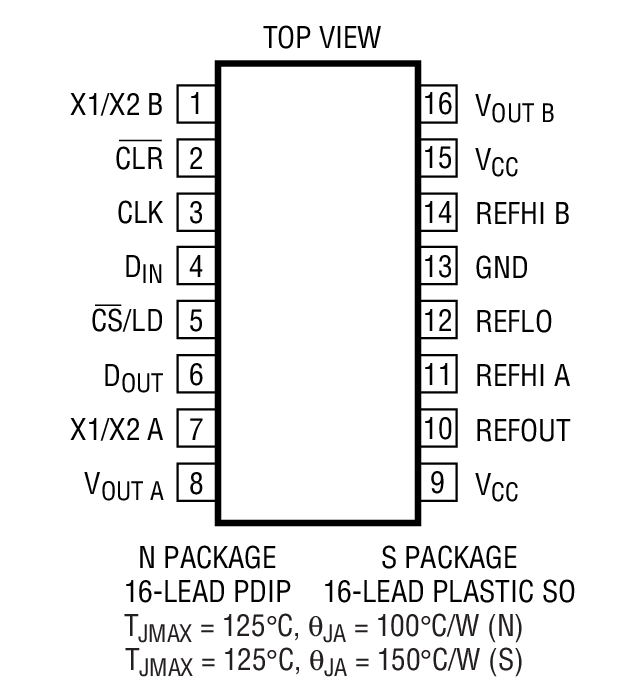

The LTC1454/LTC1454L are complete single supply, dual rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in a 16-lead SO package. They include an output buffer amplifier with variable gain (×1 or ×2) and an easy-to-use 3-wire cascadable serial interface.The LTC1454 has an on board reference of 2.048V and a full-scale output of 4.095V in a ×2 gain configuration. It operates from a single 4.5V to 5.5V supply.The LTC1454L has an on board 1.22V reference and a full-scale output of 2.5V in a ×2 gain configuration. It operates from a single 2.7V to 5.5V supply.Low power supply current, excellent DNL and small size allow these parts to be used in a host of applications where size, DNL and single supply operation are important.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentCellular Telephones

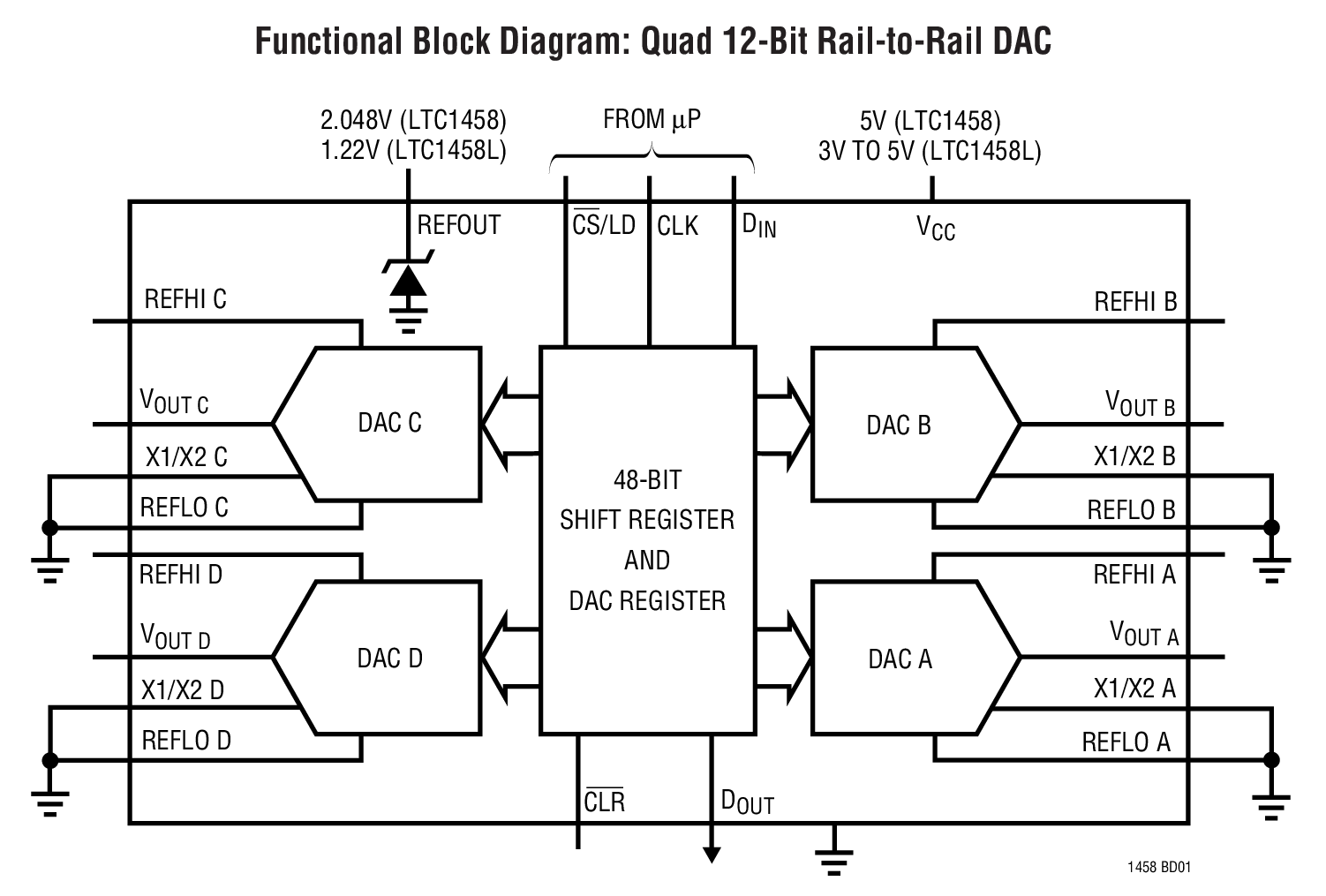

The LTC1458/LTC1458L are complete single supply, quad rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in SO-28 and SSOP-28 packages.They include an output buffer amplifier with variable gain (×1 or ×2) and an easy-to-use 3-wire cascadable serial interface.The LTC1458 has an on-board reference of 2.048V and a full-scale output of 4.095V in a ×2 gain configuration. It operates from a single 4.5V to 5.5V supply dissipating only 5.5mW (ICC= 1.1mA typ).The LTC1458L has an onboard 1.22V reference and a full-scale output of 2.5V in a ×2 gain configuration. It operates from a single supply of 2.7V to 5.5V dissipating 2.4mW.Excellent DNL, low supply current and a wide range of built-in functions allow these parts to be used in a host of applications when flexibility, power and single supply operation are important.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentLow Power Systems

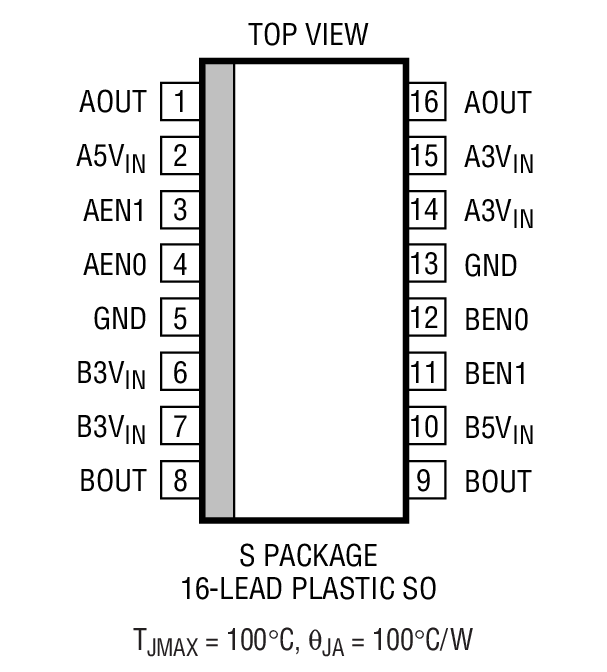

The LTC1470 switches the VCCpins of a Personal Computer Memory Card International Association (PCMCIA) card slot between three operating states: OFF, 3.3V and 5V. Two low RDS(ON)N-channel power MOSFETs are driven by a built-in charge pump which generates a voltage higher than the supply voltage to fully enhance each switch when selected by the input control logic.The LTC1470 inputs are compatible with industry standard PCMCIA controllers. A built-in XOR ensures that both switches are never on at the same time. This function also makes the LTC1470 compatible with both active-low and active-high controllers (see Applications Information section). The switch rise times are controlled to eliminate power supply glitching.The LTC1470 features built-in SafeSlot™current limit and thermal shutdown. The output is limited to 1A during short circuit to ground but 2A of peak operating current is allowed.The LTC1471 is a dual version of the LTC1470 and is available in a 16-pin SO package.ApplicationsNotebook ComputersPalmtop ComputersPen-Based ComputersHandi-TerminalsPC Card Reader/Writers3.3V/5V Power Supply Switch

The LTC1470 switches the VCCpins of a Personal Computer Memory Card International Association (PCMCIA) card slot between three operating states: OFF, 3.3V and 5V. Two low RDS(ON)N-channel power MOSFETs are driven by a built-in charge pump which generates a voltage higher than the supply voltage to fully enhance each switch when selected by the input control logic.The LTC1470 inputs are compatible with industry standard PCMCIA controllers. A built-in XOR ensures that both switches are never on at the same time. This function also makes the LTC1470 compatible with both active-low and active-high controllers (see Applications Information section). The switch rise times are controlled to eliminate power supply glitching.The LTC1470 features built-in SafeSlot™current limit and thermal shutdown. The output is limited to 1A during short circuit to ground but 2A of peak operating current is allowed.The LTC1471 is a dual version of the LTC1470 and is available in a 16-pin SO package.ApplicationsNotebook ComputersPalmtop ComputersPen-Based ComputersHandi-TerminalsPC Card Reader/Writers3.3V/5V Power Supply Switch

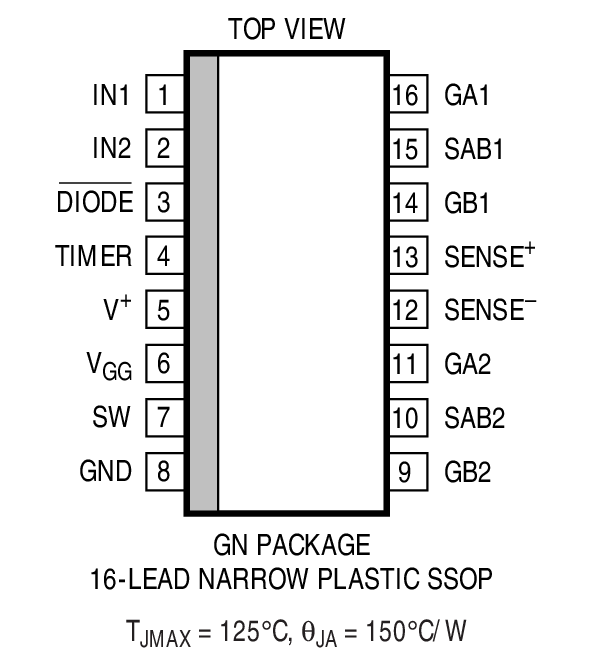

The LTC1473L provides reliable and efficient switching between two DC power sources. This device drives two external sets of back-to-back N-channel MOSFET switches to route power to the input of a low voltage system. An internal boost regulator provides the voltage to fully enhance the logic-level N-channel MOSFET switches while an internal undervoltage lock-out circuit keeps the system alive down to 2.8V.The LTC1473L senses current to limit inrush between the batteries and the system supply capacitor during switch-over transitions or during fault conditions. A user-programmable timer monitors the time the MOSFET switches are in current limit and latches them off when the programmed time is exceeded.A unique "2-diode" logic mode ensures system start-up regardless of which input receives power first.ApplicationsPortable ComputersPortable InstrumentsFault Tolerant ComputersBattery-Backup Systems3.3V/5V Power Management

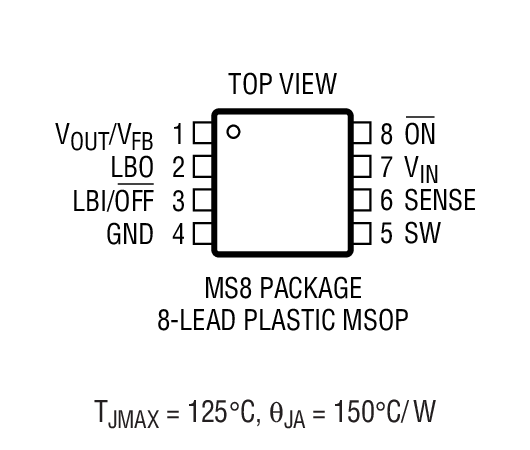

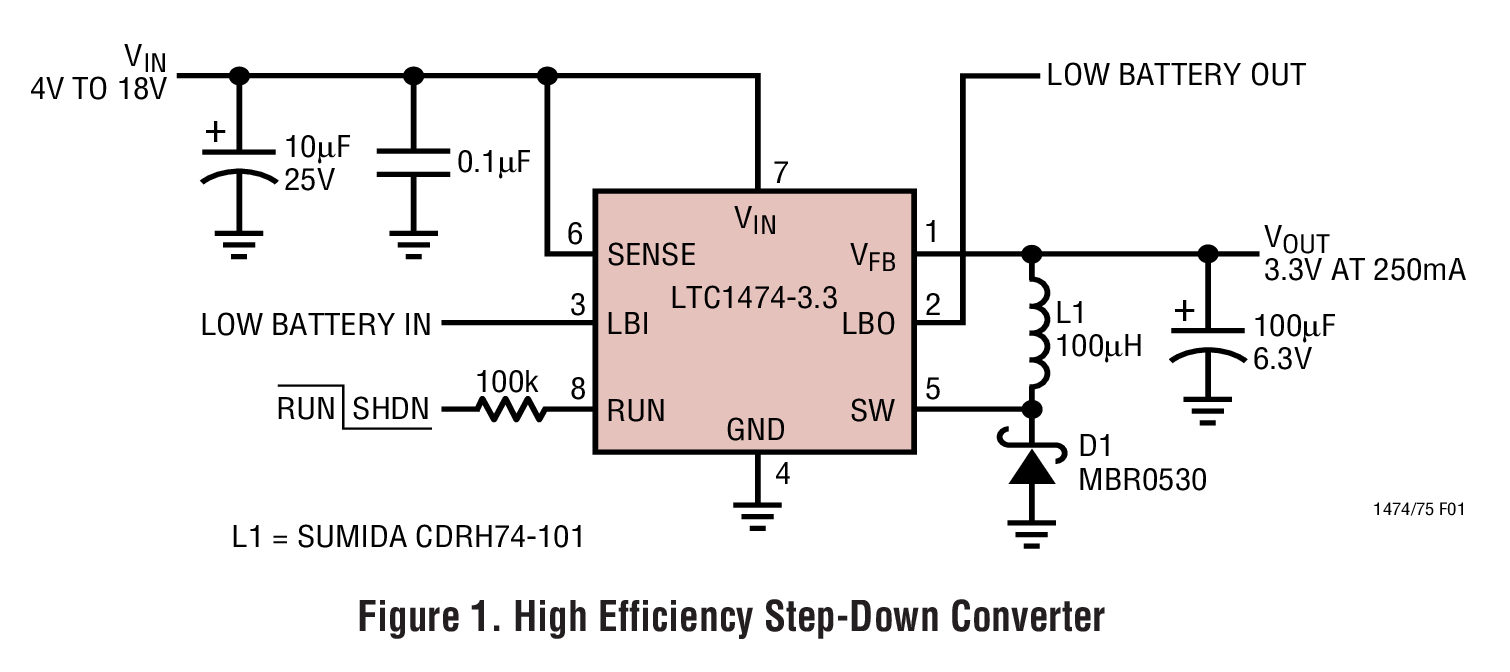

The LTC1474/LTC1475 series are high efficiency step-down converters with internal P-channel MOSFET power switches that draw only 10µA typical DC supply current at no load while maintaining output voltage. The LTC1474 uses logic-controlled shutdown while the LTC1475 features pushbutton on/off.The low supply current coupled with Burst Mode™operation enables the LTC1474/LTC1475 to maintain high efficiency over a wide range of loads. These features, along with their capability of 100% duty cycle for low dropout and wide input supply range, make the LTC1474/LTC1475 ideal for moderate current (up to 300mA) battery-powered applications.The peak switch current is user-programmable with an optional sense resistor (defaults to 325mA minimum if not used) providing a simple means for optimizing the design for lower current applications. The peak current control also provides short-circuit protection and excellent startup behavior. A low-battery detector that remains functional in shutdown is provided .The LTC1474/LTC1475 series availability in 8-lead MSOP and SO packages and need for few additional components provide for a minimum area solution.ApplicationsCellular Telephones and Wireless Modems4mA to 20mA Current Loop Step-Down ConverterPortable InstrumentsBattery-Operated Digital DevicesBattery ChargersInverting ConvertersIntrinsic Safety Applications

The LTC1474/LTC1475 series are high efficiency step-down converters with internal P-channel MOSFET power switches that draw only 10µA typical DC supply current at no load while maintaining output voltage. The LTC1474 uses logic-controlled shutdown while the LTC1475 features pushbutton on/off.The low supply current coupled with Burst Mode™operation enables the LTC1474/LTC1475 to maintain high efficiency over a wide range of loads. These features, along with their capability of 100% duty cycle for low dropout and wide input supply range, make the LTC1474/LTC1475 ideal for moderate current (up to 300mA) battery-powered applications.The peak switch current is user-programmable with an optional sense resistor (defaults to 325mA minimum if not used) providing a simple means for optimizing the design for lower current applications. The peak current control also provides short-circuit protection and excellent start-up behavior. A low-battery detector that remains functional in shutdown is provided.The LTC1474/LTC1475 series availability in 8-lead MSOP and SO packages and need for few additional components provide for a minimum area solution.ApplicationsCellular Telephones and Wireless Modems4mA to 20mA Current Loop Step-Down ConverterPortable InstrumentsBattery-Operated Digital DevicesBattery ChargersInverting ConvertersIntrinsic Safety Applications
