LTC1458 Series

Quad 12-Bit Rail-to-Rail Micropower DACs

Catalog

Quad 12-Bit Rail-to-Rail Micropower DACs

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	INL/DNL (LSB)	Architecture	Package / Case	Package / Case [x]	Package / Case [y]	Data Interface	Number of D/A Converters	Reference Type	Number of Bits	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Supplier Device Package	Mounting Type	Package / Case [custom]	Package / Case [custom]	Voltage - Supply, Analog	Voltage - Supply, Digital
Analog Devices LTC1458LCSW#PBF	70 °C	0 °C	Voltage - Buffered	0.5 LSB 2.25 LSB	R-2R	28-SOIC	0.295 in	7.5 mm	SPI	4	External Internal	12 bits	2.7 V	5.5 V	5.5 V	2.7 V	28-SOIC	Surface Mount

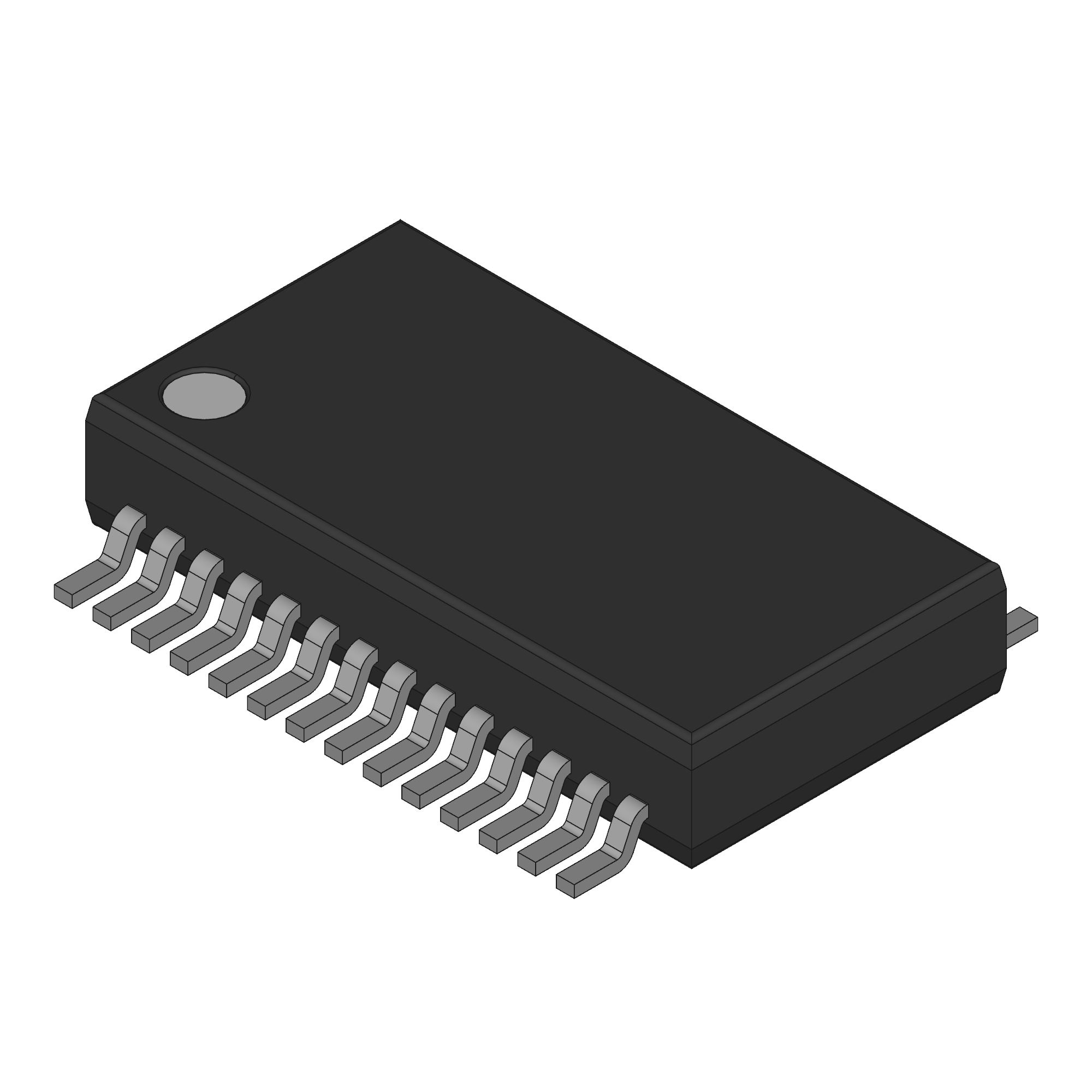

Analog Devices LTC1458LIG#TRPBF	85 °C	-40 °C	Voltage - Buffered	0.5 LSB 2.25 LSB	R-2R	28-SSOP			SPI	4	External Internal	12 bits	2.7 V	5.5 V	5.5 V	2.7 V	28-SSOP	Surface Mount	0.209 in	5.3 mm
Analog Devices LTC1458IG#PBF	85 °C	-40 °C	Voltage - Buffered	0.5 LSB 2.25 LSB	R-2R	28-SSOP			SPI	4	External Internal	12 bits					28-SSOP	Surface Mount	0.209 in	5.3 mm	5 V	5 V
Analog Devices LTC1458LIG#PBF	85 °C	-40 °C	Voltage - Buffered	0.5 LSB 2.25 LSB	R-2R	28-SSOP			SPI	4	External Internal	12 bits	2.7 V	5.5 V	5.5 V	2.7 V	28-SSOP	Surface Mount	0.209 in	5.3 mm
Analog Devices LTC1458ISW#PBF	85 °C	-40 °C	Voltage - Buffered	0.5 LSB 2.25 LSB	R-2R	28-SOIC	0.295 in	7.5 mm	SPI	4	External Internal	12 bits					28-SOIC	Surface Mount			5 V	5 V
Analog Devices LTC1458LCG#TRPBF	70 °C	0 °C	Voltage - Buffered	0.5 LSB 2.25 LSB	R-2R	28-SSOP			SPI	4	External Internal	12 bits	2.7 V	5.5 V	5.5 V	2.7 V	28-SSOP	Surface Mount	0.209 in	5.3 mm

Catalog

Quad 12-Bit Rail-to-Rail Micropower DACs

Key Features

• Quad 12-Bit DAC

• Buffered True Rail-to-Rail Voltage Output

• Maximum DNL Error: 0.5LSB

• 5V Operation, ICC: 1.1mA Typ (LTC1458)

• 3V Operation, ICC: 800µA Typ (LTC1458L)

• Internal or External Reference Operation

• Settling Time: 14µs to ±0.5LSB

• Schmitt Trigger On Clock Input Allows Direct Optocoupler Interface

• Power-On Reset andCLRPin

• SSOP-28 Package

• 3-Wire Cascadable Serial Interface with 250kHz Update Rate

• Low Cost

Description

The LTC1458/LTC1458L are complete single supply, quad rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in SO-28 and SSOP-28 packages.They include an output buffer amplifier with variable gain (×1 or ×2) and an easy-to-use 3-wire cascadable serial interface.The LTC1458 has an on-board reference of 2.048V and a full-scale output of 4.095V in a ×2 gain configuration. It operates from a single 4.5V to 5.5V supply dissipating only 5.5mW (ICC= 1.1mA typ).The LTC1458L has an onboard 1.22V reference and a full-scale output of 2.5V in a ×2 gain configuration. It operates from a single supply of 2.7V to 5.5V dissipating 2.4mW.Excellent DNL, low supply current and a wide range of built-in functions allow these parts to be used in a host of applications when flexibility, power and single supply operation are important.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentLow Power Systems
