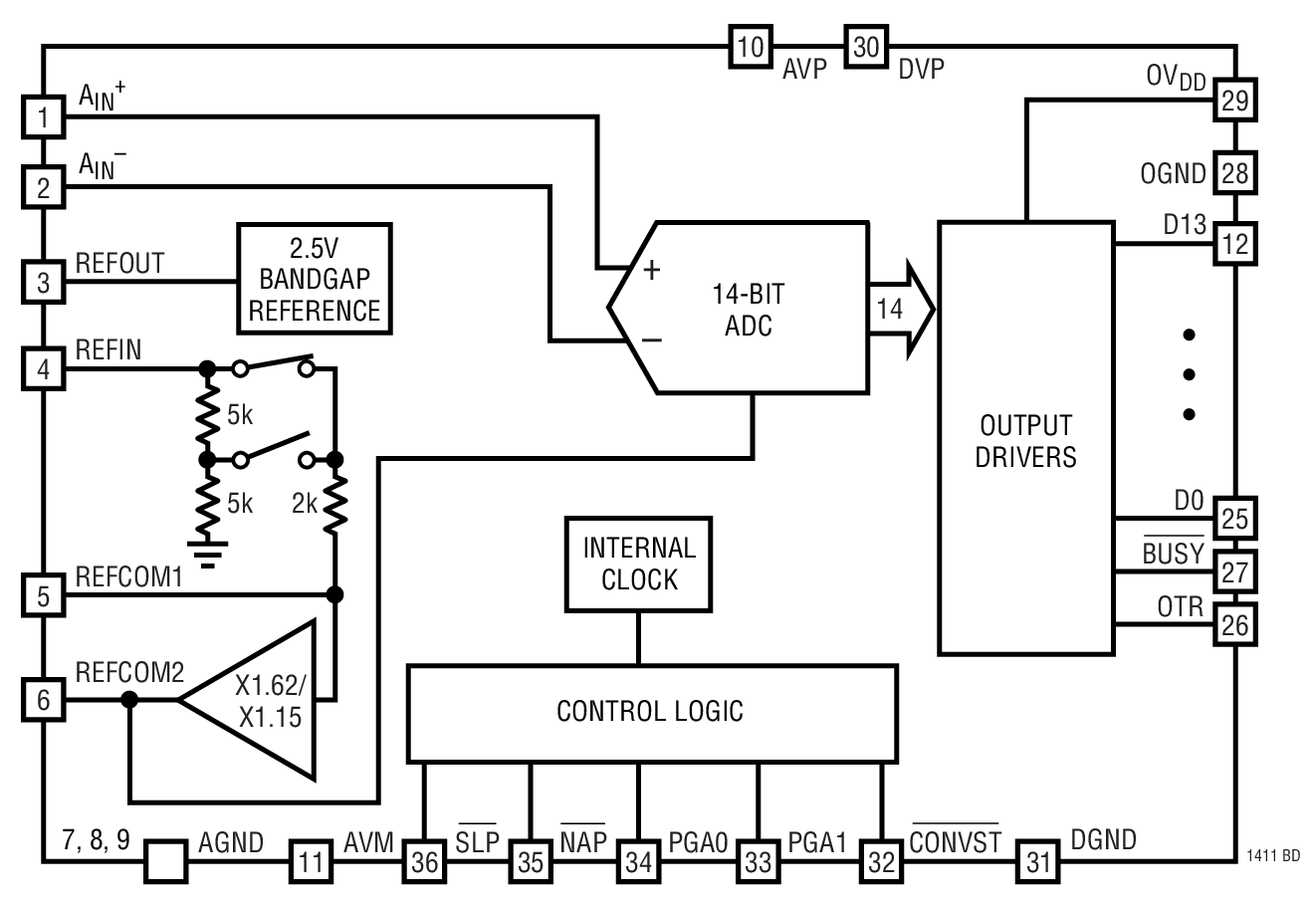

The LTC1411 is a 2.5Msps sampling 14-bit A/D converter in a 36-pin SSOP package, which typically dissipates only 195mW from a single 5V supply. This device comes complete with a high bandwidth sample-and-hold, a precision reference, programmable input ranges and an internally trimmed clock. The ADC can be powered down with either the Nap or Sleep mode for low power applications.The LTC1411 converts either differential or single-ended inputs and presents data in 2’s complement format. Maximum DC specs include ±2LSB INL and 14-bit no missing code over temperature. Outstanding dynamic performance includes 80dB S/(N + D) and 90dB THD at 100kHz input frequency.The LTC1411 has four programmable input ranges selected by two digital input pins, PGA0 and PGA1. This provides input spans of ±1.8V, ±1.27V, ±0.9V and ±0.64V. An out-of-the-range signal together with the D13 (MSB) will indicate whether a signal is over or under the ADC’s input range. A simple conversion start input and a data ready signal ease connections to FIFOs, DSPs and microprocessors.ApplicationsTelecommunicationsHigh Speed Data AcquisitionDigital Signal ProcessingMultiplexed Data Acquisition SystemsSpectrum AnalysisImaging Systems

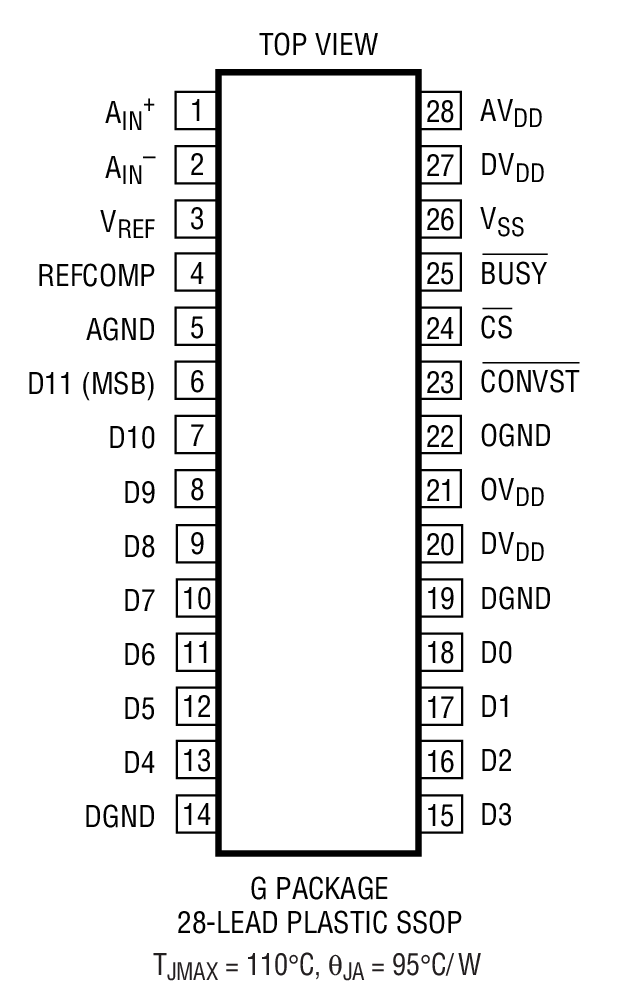

The LTC1412 is a 12-bit, 3Msps, sampling A/D converter. This high performance device includes a high dynamic range sample-and-hold and a precision reference. Operating from ±5V supplies it draws only 150mW.The ±2.5V input range is optimized for low noise and low distortion. Most high performance op amps also perform best over this range, allowing direct coupling to the analog inputs and eliminating the need for special translation circuitry. Outstanding AC performance includes 72dB S/(N + D) and 82dB SFDR at the Nyquist input frequency of 1.5MHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 40MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The ADC has a high speed 12-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and converter status signal (BUSY) ease connections to FIFOs, DSPs and microprocessors. A digital output driver power supply pin allows direct connection to 3V logic.ApplicationsTelecommunicationsDigital Signal ProcessingMulitplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectrum AnalysisImaging Systems

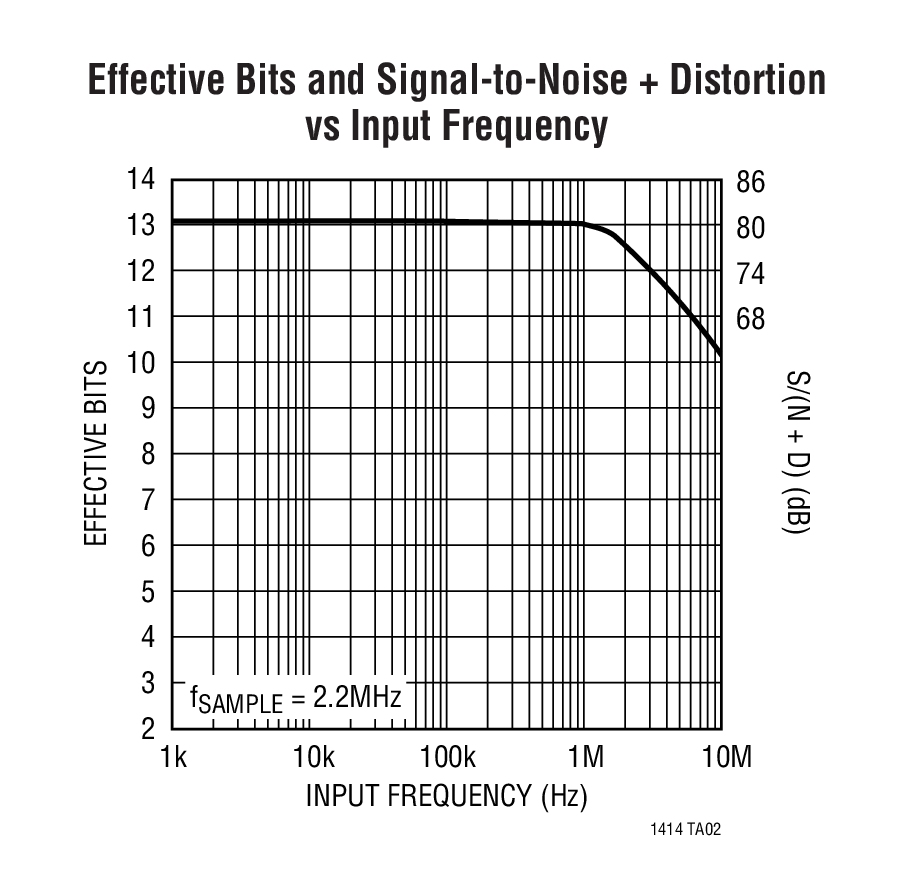

The LTC1414 is a 14-bit, 2.2Msps, sampling A/D converter which draws only 175mW from ±5V supplies. This high performance ADC includes a high dynamic range sample-and-hold, a precision reference and requires no external components.The LTC1414's high performance sample-and-hold has a full-scale input range of ±2.5V. Outstanding AC performance includes 80dB S/(N + D) and 95dB SFDR with a 100kHz input. The performance remains high at the Nyquist input frequency of 1.1MHz with 78dB S/(N + D) and 84dB SFDR.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 40MHz bandwidth. The 70dB common mode rejection can eliminate ground loops and common mode noise by measuring signal differentially from the source.The ADC has a microprocessor compatible, 14-bit parallel output port. There is no pipeline delay in the conversion results.ApplicationsTelecommunicationsDigital Signal ProcessingMultiplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectrum AnalysisImaging Systems

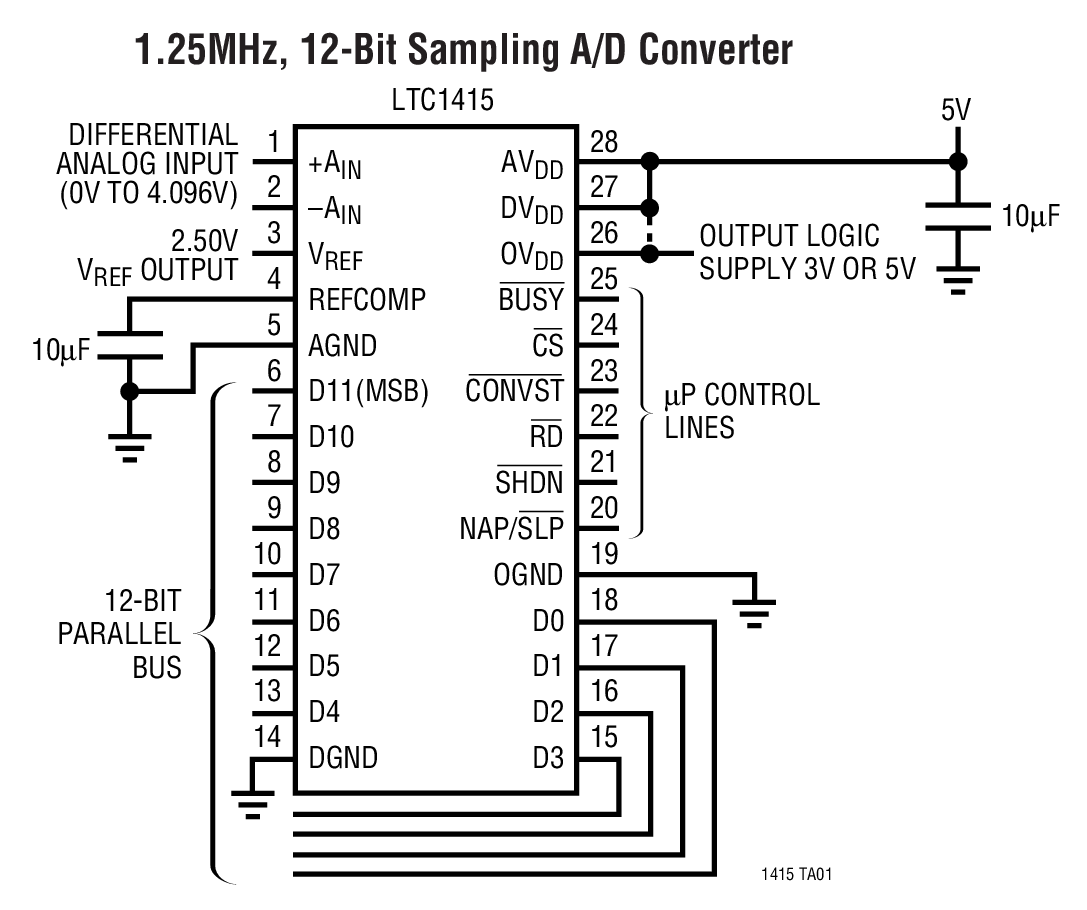

The LTC1415 is a 700ns, 1.25Msps, 12-bit sampling A/D converter that draws only 55mW from a single 5V supply. This easy-to-use device includes a high dynamic range sample-and-hold, precision reference and a trimmed internal clock. Two power shutdown modes provide flexibility for low power systems.The LTC1415’s full-scale input range is 4.096V. Low linearity errors ±0.35LSB INL, ±0.25LSB DNL make it ideal for imaging systems. Outstanding AC performance includes 72dB S/(N + D) and 80dB THD with an input frequency of 100kHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 18MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The ADC has a µP compatible, 12-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors. A separate output logic supply pin allows direct connection to 3V components.ApplicationsHigh Speed Data AcquisitionImaging SystemsDigital Signal ProcessingMultiplexed Data Acquisition SystemsTelecommunications

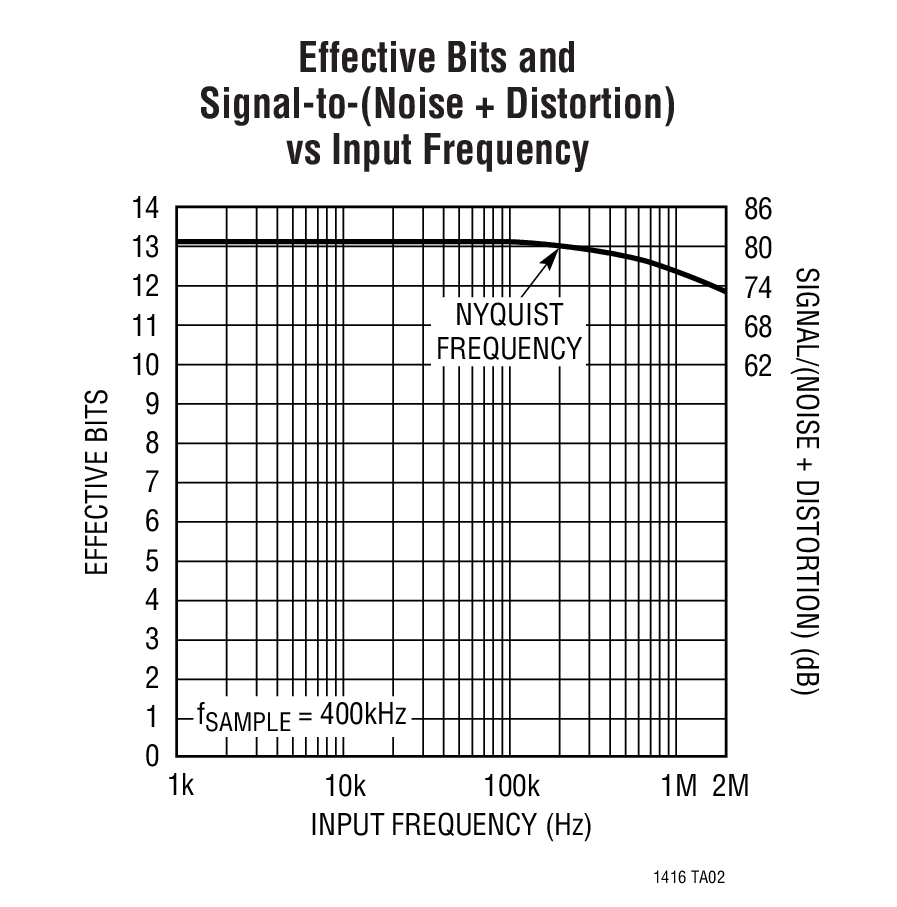

The LTC1416 is a 2.2µs, 400ksps, 14-bit sampling A/D converter that draws only 70mW from ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold and a precision reference. Two digitally selectable power shutdown modes provide flexibility for low power systems.The LTC1416’s full-scale input range is ±2.5V. Maximum DC specifications include ±2LSB INL, ±1.5LSB DNL over temperature. Outstanding AC performance includes 80.5dB S/(N + D) and 93dB THD with a 100kHz input, and 80dB S/(N + D) and 90dB THD at the Nyquist input frequency of 200kHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 15MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The ADC has a µP compatible, 14-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.ApplicationsTelecommunicationsDigital Signal ProcessingMultiplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectrum AnalysisImaging Systems

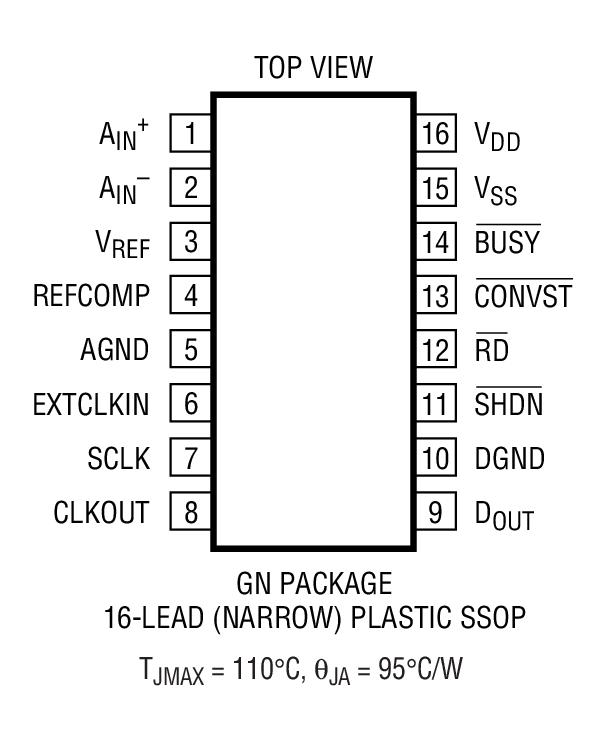

The LTC1417 is a low power, 400ksps, 14-bit A/D converter. This versatile device can operate from a single 5V or ±5V supplies. An on-board high performance sample-and-hold, a precision reference and internal trimming minimize external circuitry requirements. The low 20mW power dissipation is made even more attractive with two user-selectable power shutdown modes.The LTC1417 converts 0V to 4.096V unipolar inputs when using a 5V supply and ±2.048V bipolar inputs when using ±5V supplies. DC specs include ±1.25LSB INL, ±1LSB DNL and no missing codes over temperature. Outstanding AC performance includes 81dB S/(N + D) and −95dB THD at a Nyquist input frequency of 200kHz.The internal clock is trimmed for 2µs maximum conversion time. A separate convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.ApplicationsHigh Speed Data AcquisitionDigital Signal ProcessingIsolated Data Acquisition SystemsAudio and Telecom ProcessingSpectrum Instrumentation

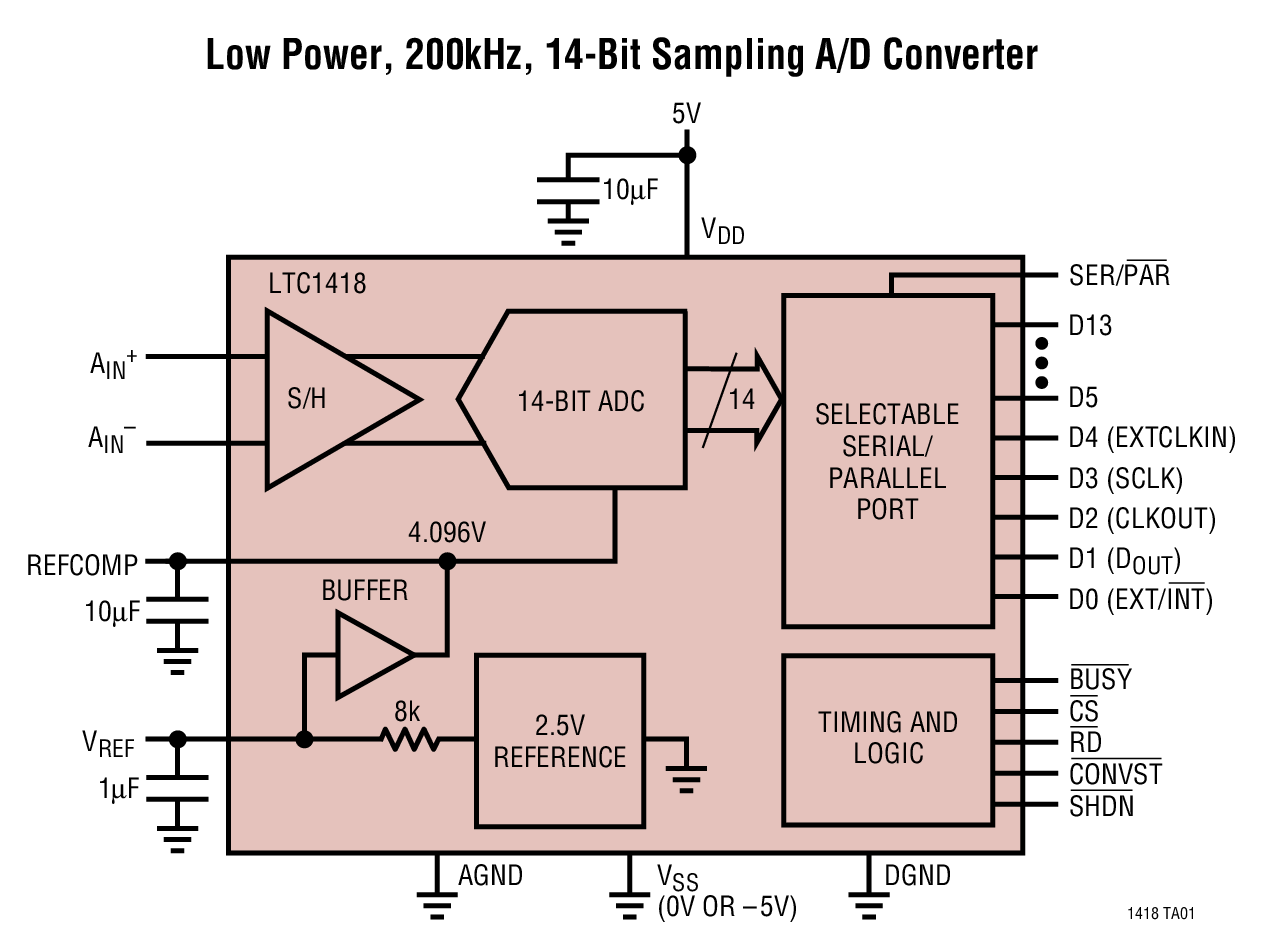

The LTC1418 is a low power, 200ksps, 14-bit A/D converter. Data output is selectable for 14-bit parallel or serial format. This versatile device can operate from a single 5V or ±5V supply. An on-board high performance sample-and-hold, a precision reference and internal timing minimize external circuitry requirements. The low 15mW power dissipation is made even more attractive with two user selectable power shutdown modes.The LTC1418 converts 0V to 4.096V unipolar inputs from a single 5V supply and ±2.048V bipolar inputs from ±5V supplies. DC specs include ±1.25LSB INL, ±1LSB DNL and no missing codes over temperature. Outstanding AC performance includes 82dB S/(N + D) and 94dB THD at the Nyquist input frequency of 100kHz.The flexible output format allows either parallel or serial I/O. The SPI/MICROWIRE compatible serial I/O port can operate as either master or slave and can support clock frequencies from DC to 10MHz. A separate convert start input and a data ready signal (BUSY) allow easy control of conversion start and data transfer.ApplicationsRemote Data AcquisitionBattery Operated SystemsDigital Signal ProcessingIsolated Data Acquisition SystemsAudio and Telecom ProcessingMedical Instrumentation

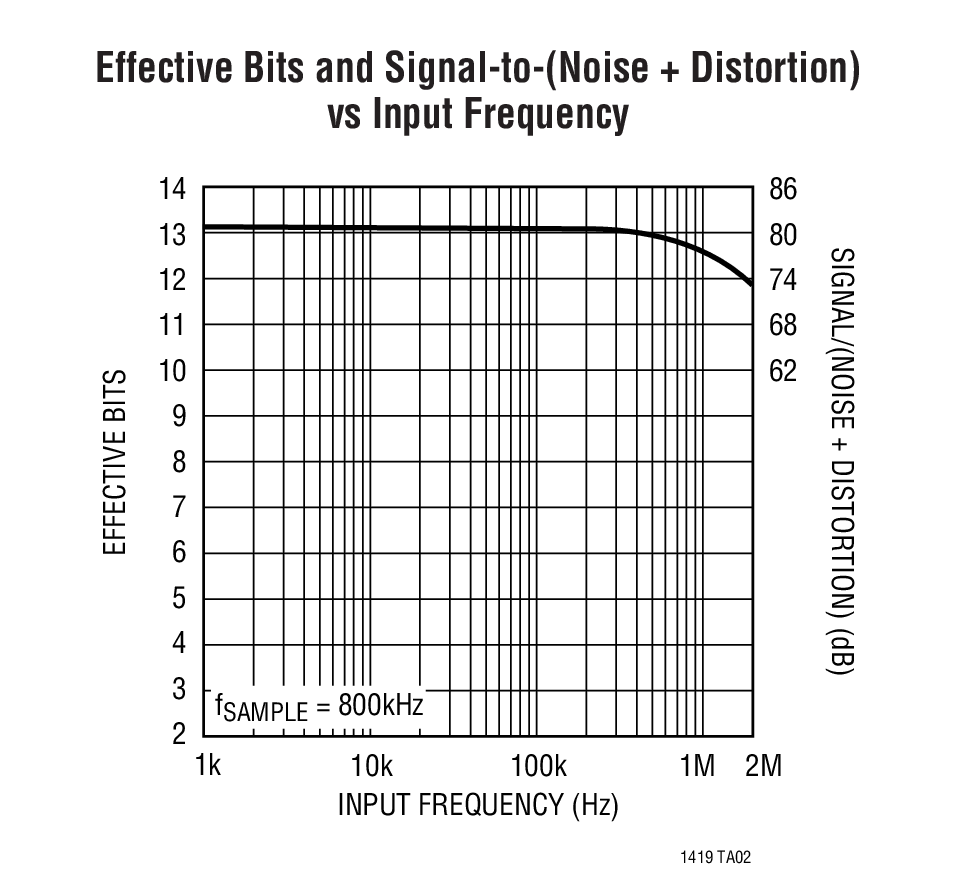

The LTC1419 is a 1µs, 800ksps, 14-bit sampling A/D converter that draws only 150mW from ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold and a precision reference. Two digitally selectable power shutdown modes provide flexibility for low power systems.The LTC1419 has a full-scale input range of ±2.5V. Outstanding AC performance includes 81.5dB S/(N + D) and 93dB THD with a 100kHz input; 80dB S/(N + D) and 86dB THD at the Nyquist input frequency of 400kHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 20MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The ADC has a µP compatible, 14-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.Third Party Vendor AvailabilityADI partners with third party vendors who assemble and test packaged products with RH Dice inside.Part NumberDescriptionSCD or SMD#RAD141914-Bit, 800ksps Sampling ADC With ShutdownViewApplicationsTelecommunicationsDigital Signal ProcessingMultiplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectrum AnalysisImaging Systems

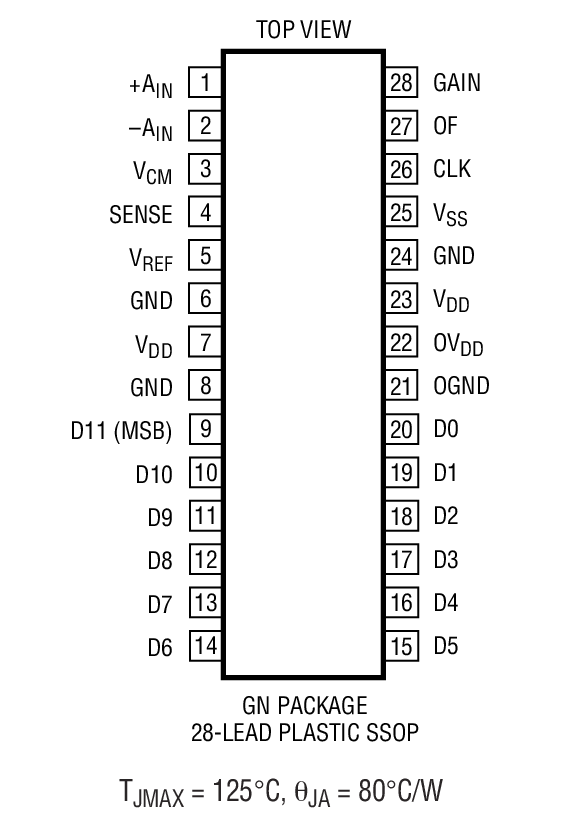

The LTC1420 is a 10Msps, 12-bit sampling A/D converter that draws only 250mW from either single 5V or dual ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold, a precision reference and a PGA input circuit.The LTC1420 has a flexible input circuit that allows fullscale input ranges of ±2.048V ±1.024V and ±0.512V. The input common mode voltage is arbitrary, though a 2.5V reference is provided for single supply applications. The input PGA has a digitally selectable 1x or 2x gain.Maximum DC specs include ±1LSB INL and ±1LSB DNL over temperature. Outstanding AC performance includes 71dB S/(N + D) and 83dB SFDR at the Nyquist input frequency of 5MHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 100MHz bandwidth. The 75dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. A separate output logic supply allows direct connection to 3V components.ApplicationsTelecommunicationsDigital Signal ProcessingMultiplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectral AnalysisImaging Systems

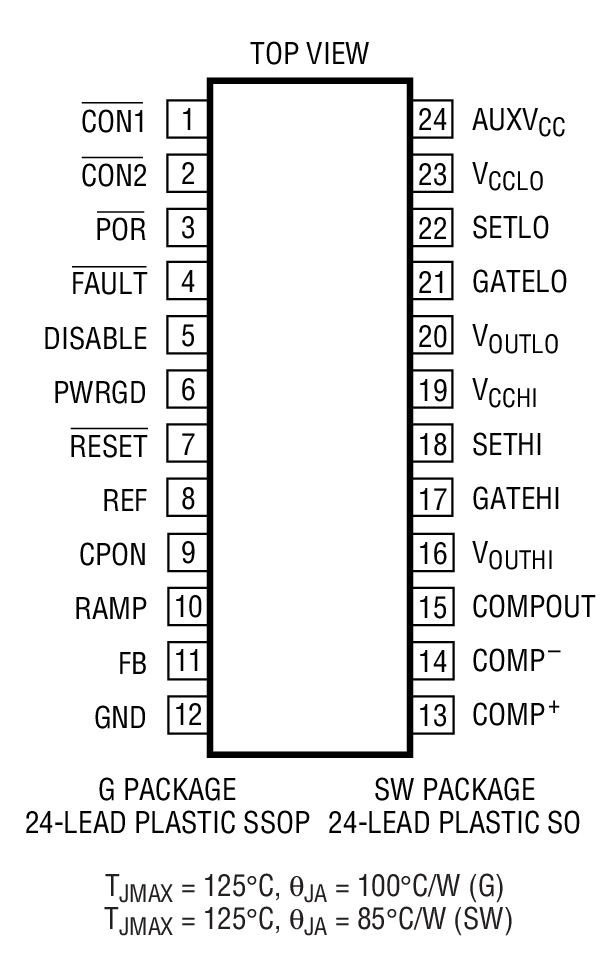

The LTC1421/LTC1421-2.5 are Hot Swap™controllers that allow a board to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, the board supply voltages can be ramped up at a programmable rate. Two high side switch drivers control the N-channel gates for supply voltages ranging from 3V to 12V.A programmable electronic circuit breaker protects against shorts. Warning signals indicate that the circuit breaker has tripped, a power failure has occurred or that the switch drivers are turned off. The reset output can be used to generate a system reset when the power cycles or a fault occurs. The two connect inputs can be used with staggered connector pins to indicate board insertion or removal. The power-on reset input can be used to cycle the board power or clear the circuit breaker.The trip point of the ground sense comparator is set at 0.1V for LTC1421 and 2.5V for LTC1421-2.5.The LTC1421/LTC1421-2.5 are available in 24-pin SO and SSOP packages.ApplicationsHot Board InsertionElectronic Circuit Breaker
