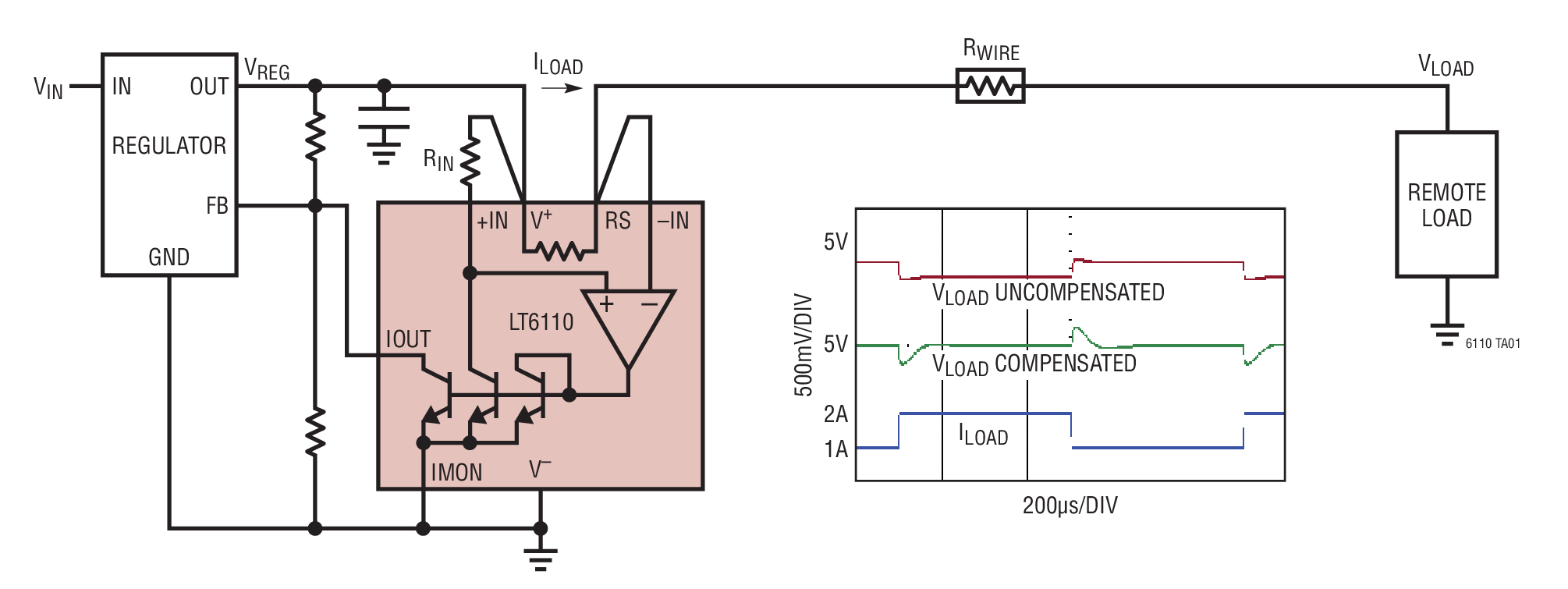

The LT6110 is a precision high side current sense with a current mode output, designed for controlling the output voltage of an adjustable power supply or voltage regulator. This can be used to compensate for drops in voltage at a remote load due to resistance in a wire, trace or cable.The LT6110 monitors load current via a series-connected internal or external sense resistor. Two current mode outputs, one sinking and one sourcing, are provided that are proportional to the load current. This allows the LT6110 to adjust the output voltage of a wide variety of regulators. Either output may be used to monitor the load current.Low DC offset allows for the use of a small sense resistor, as well as precise control of small variations in wire voltage drop.ApplicationsAutomotive and Industrial Power DistributionUSB PowerDC/DC ConvertersPlug-In DC AdaptersPower over Ethernet

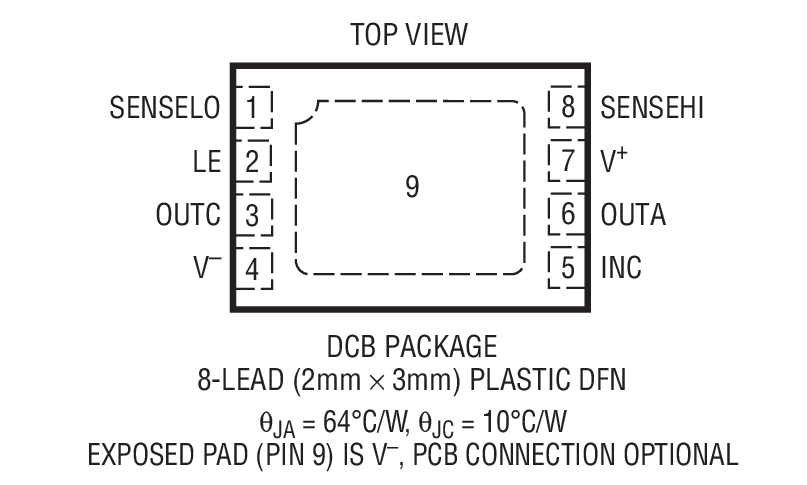

The LT6118 is a complete high side current sense device that incorporates a precision current sense amplifier, an integrated voltage reference and a latching comparator. The comparator latch functionality can be enabled or disabled and the comparator can be configured to reset upon power-on. The input and the open-drain output of the comparator are independent from the current sense amplifier. The comparator trip point and amplifier gain are configured with external resistors.The overall propagation delay of the LT6118 is typically only 1.4μs, allowing for quick reaction to overcurrent conditions. The 1MHz bandwidth allows the LT6118 to be used for error detection in critical applications such as motor control. The high threshold accuracy of the comparator, combined with the ability to latch the comparator, ensures the LT6118 can capture high speed events.The LT6118 is fully specified for operation from –40°C to 125°C, making it suitable for industrial and automotive applications. The LT6118 is available in the small 8-lead MSOP and 8-lead DFN packages.ApplicationsOvercurrent and Fault DetectionCurrent Shunt MeasurementBattery MonitoringMotor ControlAutomotive Monitoring and ControlIndustrial Control

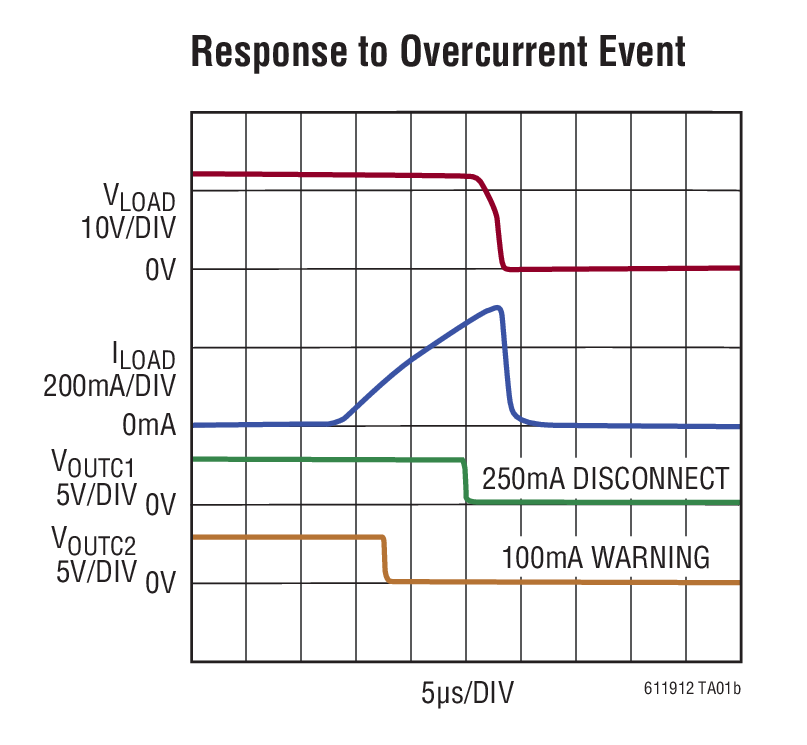

The LT6119 is a complete high side current sense device that incorporates a precision current sense amplifier, an integrated voltage reference and two latching comparators. Two versions of the LT6119 are available. The LT6119-1 has the comparators connected in opposing polarity and the LT6119-2 has the comparators connected in the same polarity. The comparator latch functionality can be enabled or disabled and the comparators can be configured to reset upon power-on. The input and the open-drain outputs of the comparators are independent from the current sense amplifier. The comparator trip points and amplifier gain are configured with external resistors.The overall propagation delay of the LT6119 is typically only 1.4μs, allowing for quick reaction to overcurrent and undercurrent conditions. The 1MHz bandwidth allows the LT6119 to be used for error detection in critical applications such as motor control. The high threshold accuracy of the comparators, combined with the ability to latch both comparators, ensures the LT6119 can capture high speed events.The LT6119 is fully specified for operation from –40°C to 125°C, making it suitable for industrial and automotive applications. The LT6119 is available in a small 10-lead MSOP.ApplicationsOvercurrent, Undercurrent and Fault DetectionCurrent Shunt MeasurementBattery MonitoringMotor ControlAutomotive Monitoring and ControlIndustrial Control

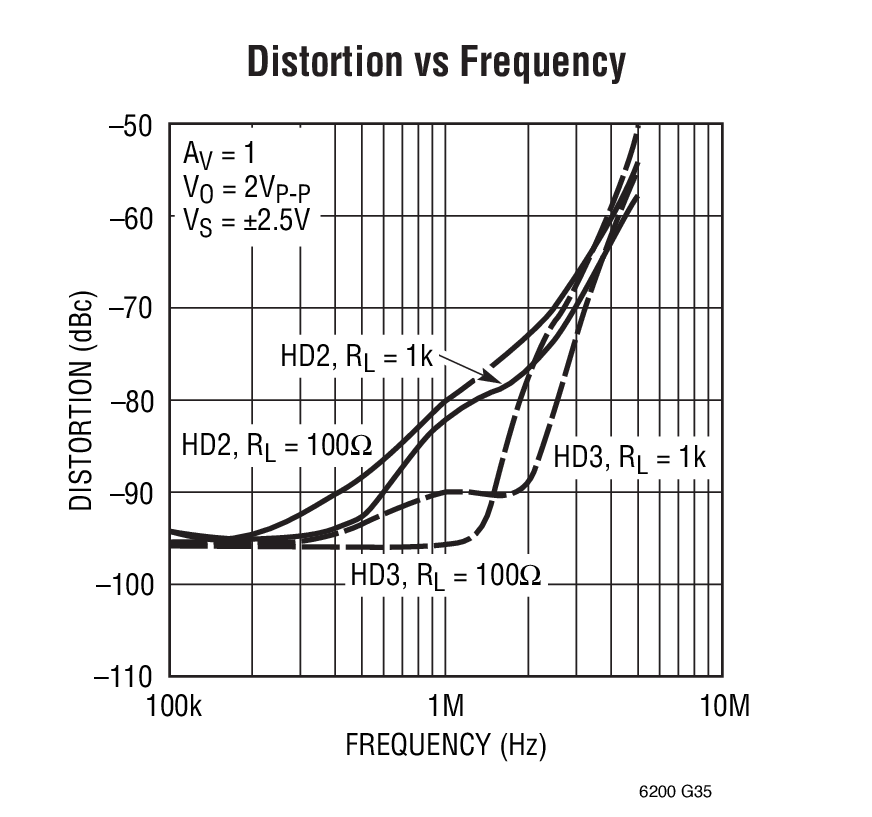

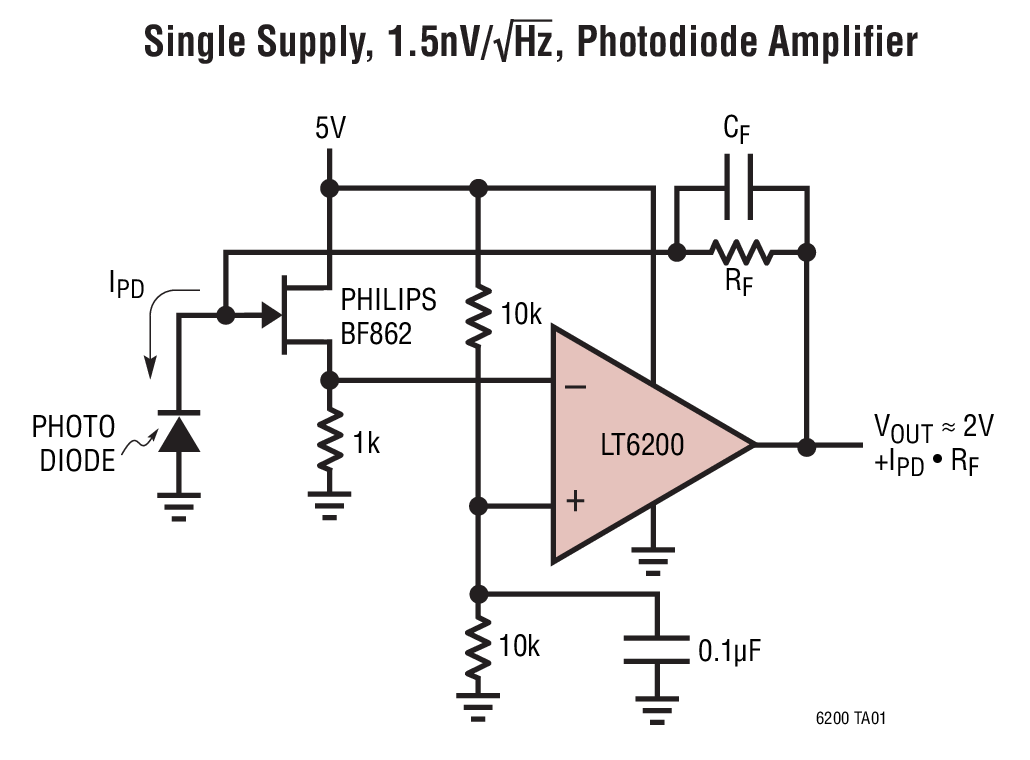

The LT6200/LT6201 are single and dual ultralow noise, rail-to-rail input and output unity gain stable op amps that feature 0.95nV/√Hznoise voltage. These amplifiers combine very low noise with a 165MHz gain bandwidth, 50V/μs slew rate and are optimized for low voltage signal conditioning systems. A shutdown pin reduces supply current during standby conditions and thermal shutdown protects the part from overload conditions.The LT6200-5/LT6200-10 are single amplifiers optimized for higher gain applications resulting in higher gain bandwidth and slew rate. The LT6200 family maintains its performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V.For compact layouts the LT6200/LT6200-5/LT6200-10 are available in the 6-lead ThinSOT™and the 8-pin SO package. The dual LT6201 is available in an 8-pin SO package with standard pinouts as well as a tiny, dual fine pitch leadless package (DFN). These amplifiers can be used as plug-in replacements for many high speed op amps to improve input/output range and noise performance.ApplicationsTransimpedance AmplifiersLow Noise Signal ProcessingActive FiltersRail-to-Rail Buffer AmplifiersDriving A/D Converters

The LT6200/LT6201 are single and dual ultralow noise, rail-to-rail input and output unity gain stable op amps that feature 0.95nV/√Hznoise voltage. These amplifiers combine very low noise with a 165MHz gain bandwidth, 50V/μs slew rate and are optimized for low voltage signal conditioning systems. A shutdown pin reduces supply current during standby conditions and thermal shutdown protects the part from overload conditions.The LT6200-5/LT6200-10 are single amplifiers optimized for higher gain applications resulting in higher gain bandwidth and slew rate. The LT6200 family maintains its performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V.For compact layouts the LT6200/LT6200-5/LT6200-10 are available in the 6-lead ThinSOT™and the 8-pin SO package. The dual LT6201 is available in an 8-pin SO package with standard pinouts as well as a tiny, dual fine pitch leadless package (DFN). These amplifiers can be used as plug-in replacements for many high speed op amps to improve input/output range and noise performance.ApplicationsTransimpedance AmplifiersLow Noise Signal ProcessingActive FiltersRail-to-Rail Buffer AmplifiersDriving A/D Converters

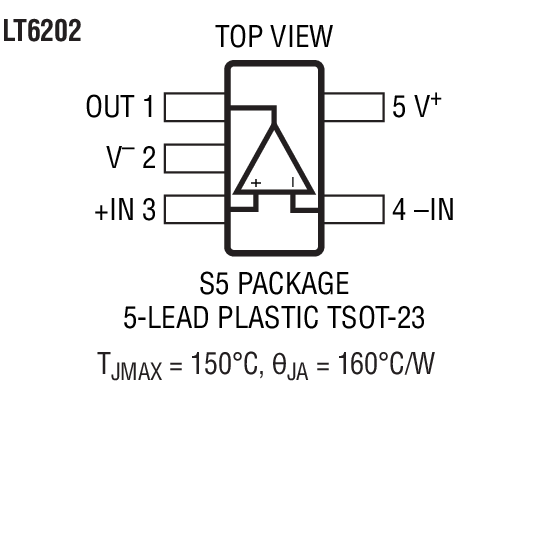

The LT6202/LT6203/LT6204 are single/dual/quad low noise, rail-to-rail input and output unity gain stable op amps that feature 1.9nV/√Hznoise voltage and draw only 2.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/μs slew rate, and are optimized for low supply signal conditioning systems.These amplifiers maintain their performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V supplies. Harmonic distortion is less than – 80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems.The LT6202 is available in the 5-pin TSOT-23 and the 8-pin SO, while the LT6203 comes in 8-pin SO and MSOP packages with standard op amp pinouts. For compact layouts the LT6203 is also available in a tiny fine line leadless package (DFN), while the quad LT6204 is available in the 16-pin SSOP and 14-pin SO packages. These devices can be used as plug-in replacements for many op amps to improve input/output range and noise performance.ApplicationsLow Noise, Low Power Signal ProcessingActive FiltersRail-to-Rail Buffer AmplifiersDriving A/D ConvertersDSL ReceiversBattery Powered/Battery Backed Equipment

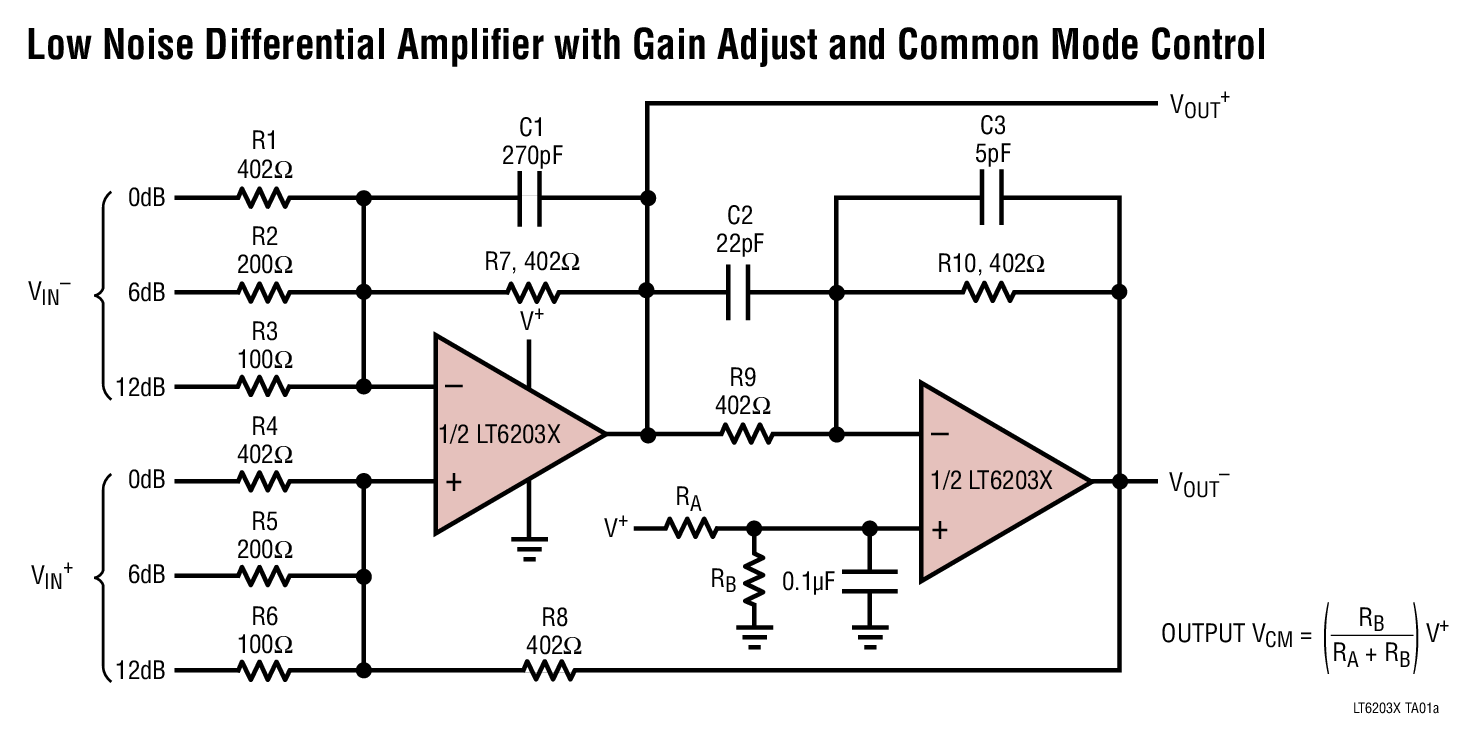

The LT6203X is a dual low noise, rail-to-rail input and output unity gain stable op amp that features 1.9nV/√Hznoise voltage and draws only 2.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/µs slew rate, and are optimized for low supply signal conditioning systems.These amplifiers maintain their performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V supplies. Harmonic distortion is less than –80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems.These devices can be used as plug-in replacements for many op amps to improve input/output range and noise performance.The LT6203X is a member or a growing series of high temperature qualified products offered by Analog Devices.The LT6203X comes in an 8-pin SO package with standard dual op amp pinout. The LT6203X is also available as dice.ApplicationsDown Hole Drilling and InstrumentationHeavy IndustrialAvionicsHigh Temperature EnvironmentsLow Noise, Low Power Signal ProcessingActive FiltersRail-to-Rail Buffer AmplifiersDriving A/D ConvertersDSL ReceiversBattery Powered/Battery Backed Equipment

The LT6202/LT6203/LT6204 are single/dual/quad low noise, rail-to-rail input and output unity gain stable op amps that feature 1.9nV/√Hznoise voltage and draw only 2.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/μs slew rate, and are optimized for low supply signal conditioning systems.These amplifiers maintain their performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V supplies. Harmonic distortion is less than – 80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems.The LT6202 is available in the 5-pin TSOT-23 and the 8-pin SO, while the LT6203 comes in 8-pin SO and MSOP packages with standard op amp pinouts. For compact layouts the LT6203 is also available in a tiny fine line leadless package (DFN), while the quad LT6204 is available in the 16-pin SSOP and 14-pin SO packages. These devices can be used as plug-in replacements for many op amps to improve input/output range and noise performance.ApplicationsLow Noise, Low Power Signal ProcessingActive FiltersRail-to-Rail Buffer AmplifiersDriving A/D ConvertersDSL ReceiversBattery Powered/Battery Backed Equipment

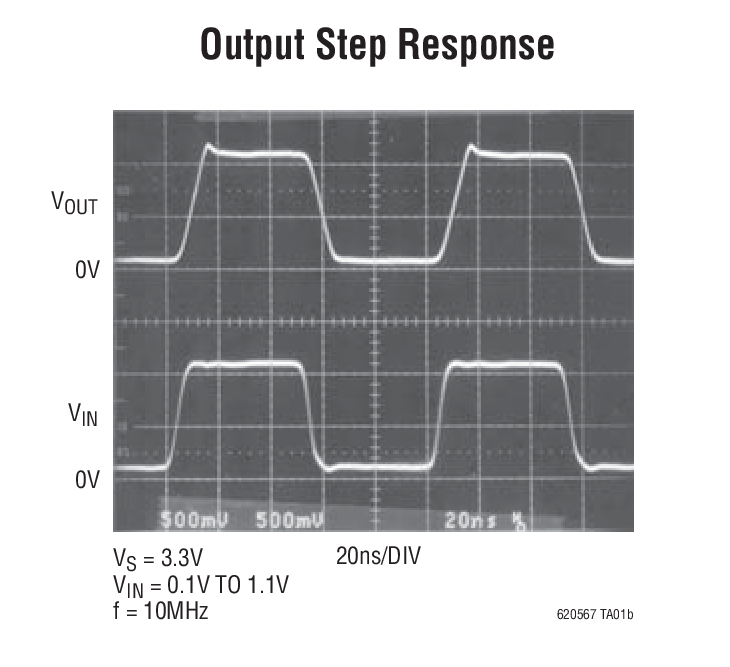

The LT6205/LT6206/LT6207 are low cost single/dual/quad voltage feedback amplifiers that feature 100MHz gain-bandwidth product, 450V/μs slew rate and 50mA output current. These amplifiers have an input range that includes ground and an output that swings within 60mV of either supply rail, making them well suited for single supply operation.These amplifiers maintain their performance for supplies from 2.7V to 12.6V and are specified at 3V, 5V and ±5V. The inputs can be driven beyond the supplies without damage or phase reversal of the output. Isolation between channels is high, over 90dB at 10MHz.The LT6205 is available in the 5-pin SOT-23, and the LT6206 is available in an 8-lead MSOP package with standard op amp pinouts. For compact layouts the quad LT6207 is available in the 16-pin SSOP package. These devices are specified over the commercial, industrial and automotive temperature ranges.ApplicationsVideo Line DriverAutomotive DisplaysRGB AmplifiersCoaxial Cable DriversLow Voltage High Speed Signal Processing
