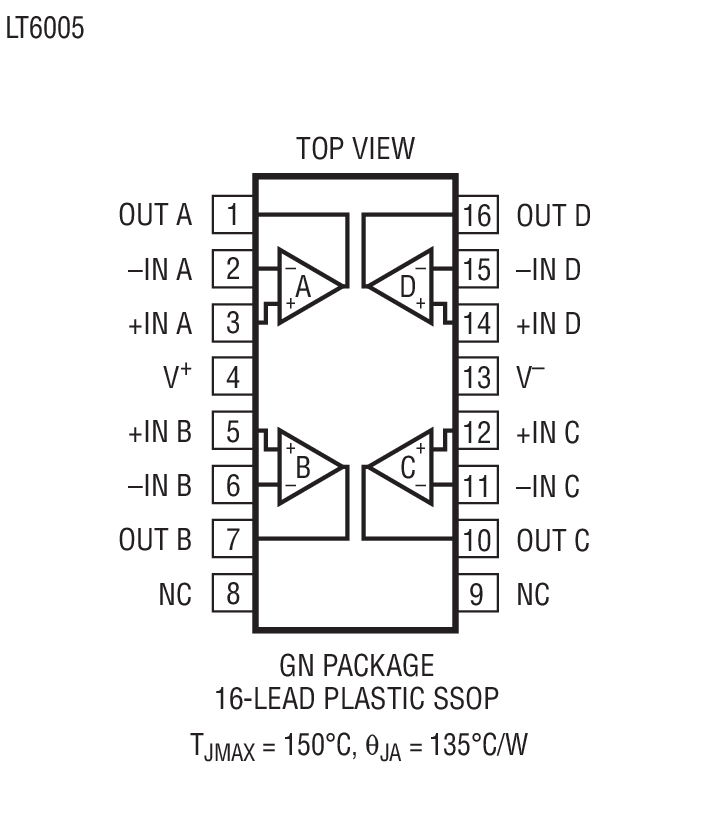

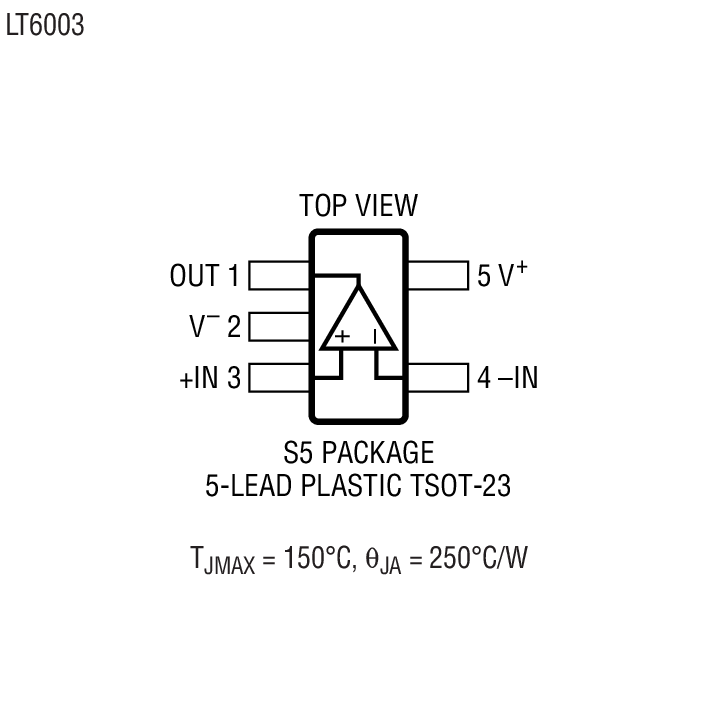

The LT6003/LT6004/LT6005 are single/dual/quad op amps designed to maximize battery life and performance for portable applications. These amplifiers operate on supplies as low as 1.6V and are fully specified and guaranteed over temperature on 1.8V, 5V and ±8V supplies while only drawing 1µA maximum quiescent current.The ultralow supply current and low operating voltage are combined with excellent amplifier specifications; input offset voltage of 500µV maximum with a typical drift of only 2µV/°C, input bias current of 90pA maximum, open loop gain of 100,000 and the ability to drive 500pF capacitive loads, making the LT6003/LT6004/LT6005 amplifiers ideal when excellent performance is required in battery powered applications.The single LT6003 is available in the 5-pin TSOT-23 and tiny 2mm × 2mm DFN packages. The dual LT6004 is available in the 8-pin MSOP and 3mm × 3mm DFN packages. The quad LT6005 is available in the 16-pin TSSOP and 5mm × 3mm DFN packages. These devices are specified over the commercial, industrial and automotive temperature ranges.ApplicationsPortable Gas MonitorsBattery- or Solar-Powered SystemsLow Voltage Signal ProcessingMicropower Active Filters

The LT6003/LT6004/LT6005 are single/dual/quad op amps designed to maximize battery life and performance for portable applications. These amplifiers operate on supplies as low as 1.6V and are fully specified and guaranteed over temperature on 1.8V, 5V and ±8V supplies while only drawing 1µA maximum quiescent current.The ultralow supply current and low operating voltage are combined with excellent amplifier specifications; input offset voltage of 500µV maximum with a typical drift of only 2µV/°C, input bias current of 90pA maximum, open loop gain of 100,000 and the ability to drive 500pF capacitive loads, making the LT6003/LT6004/LT6005 amplifiers ideal when excellent performance is required in battery powered applications.The single LT6003 is available in the 5-pin TSOT-23 and tiny 2mm × 2mm DFN packages. The dual LT6004 is available in the 8-pin MSOP and 3mm × 3mm DFN packages. The quad LT6005 is available in the 16-pin TSSOP and 5mm × 3mm DFN packages. These devices are specified over the commercial, industrial and automotive temperature ranges.ApplicationsPortable Gas MonitorsBattery- or Solar-Powered SystemsLow Voltage Signal ProcessingMicropower Active Filters

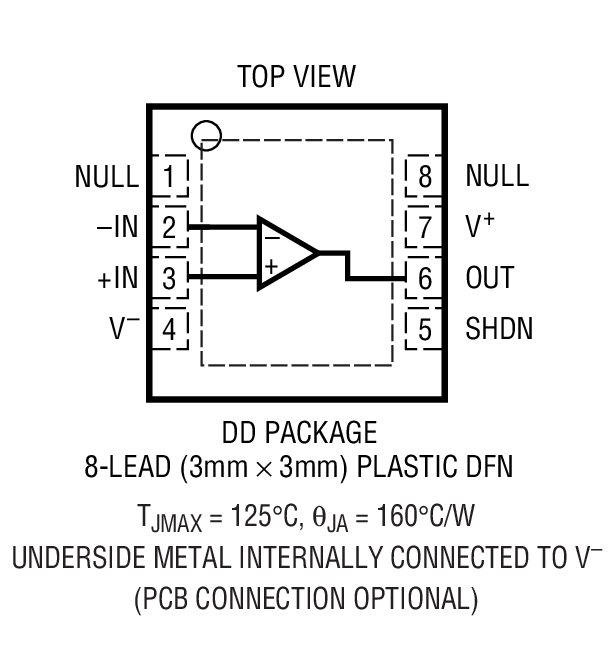

The LT6010 op amp combines low noise and high precision input performance with low power consumption and rail-to-rail output swing.Input offset voltage is trimmed to less than 35µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and over time. The 110pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.The LT6010 works on any power supply voltage from 2.7V to 36V, and draws only 135µA of supply current on a 5V supply. A power saving shutdown feature reduces supply current to 12µA. The output voltage swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply operation.The LT6010 is fully specified at 5V and ±15V supplies and from –40°C to 85°C. The device is available in SO-8 and space-saving 3mm × 3mm DFN packages. This op amp is also available in dual (LT6011) and quad (LT6012) packages.ApplicationsThermocouple AmplifiersPrecision Photo Diode AmplifiersInstrumentation AmplifiersBattery-Powered Precision Systems

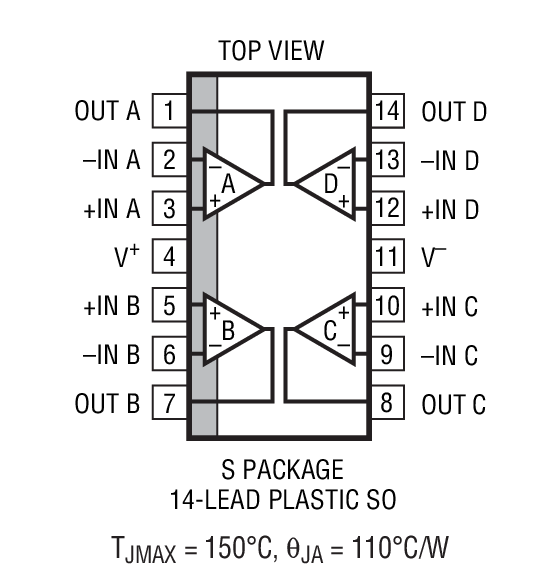

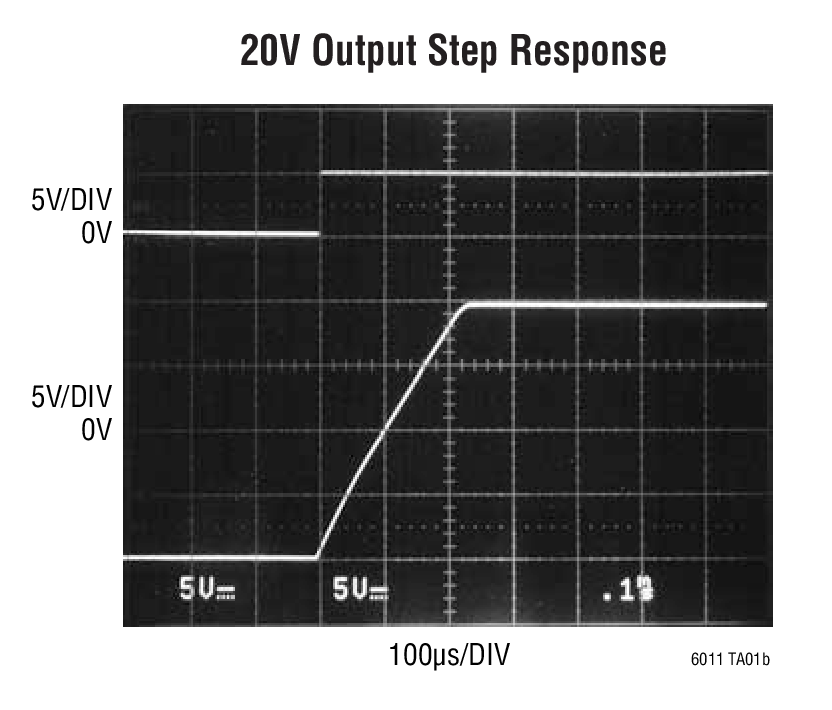

The LT6011/LT6012 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing.Input offset voltage is trimmed to less than 60µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and time. The 300pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.The LT6011/LT6012 work on any power supply voltage from 2.7V to 36V and draw only 135µA of supply current on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply applications.The LT6011/LT6012 are specified at 5V and ±15V supplies and from –40°C to 85°C. The LT6011 (dual) is available in SO-8 and space saving 3mm x 3mm DFN packages. The LT6012 (quad) is available in SO-14 and 16-pin SSOP packages.ApplicationsThermocouple AmplifiersPrecision Photo Diode AmplifiersInstrumentation AmplifiersBattery-Powered Precision SystemsLow Voltage Precision Systems

The LT6011/LT6012 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing.Input offset voltage is trimmed to less than 60µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and time. The 300pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.The LT6011/LT6012 work on any power supply voltage from 2.7V to 36V and draw only 135µA of supply current on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply applications.The LT6011/LT6012 are specified at 5V and ±15V supplies and from –40°C to 85°C. The LT6011 (dual) is available in SO-8 and space saving 3mm x 3mm DFN packages. The LT6012 (quad) is available in SO-14 and 16-pin SSOP packages.ApplicationsThermocouple AmplifiersPrecision Photo Diode AmplifiersInstrumentation AmplifiersBattery-Powered Precision SystemsLow Voltage Precision Systems

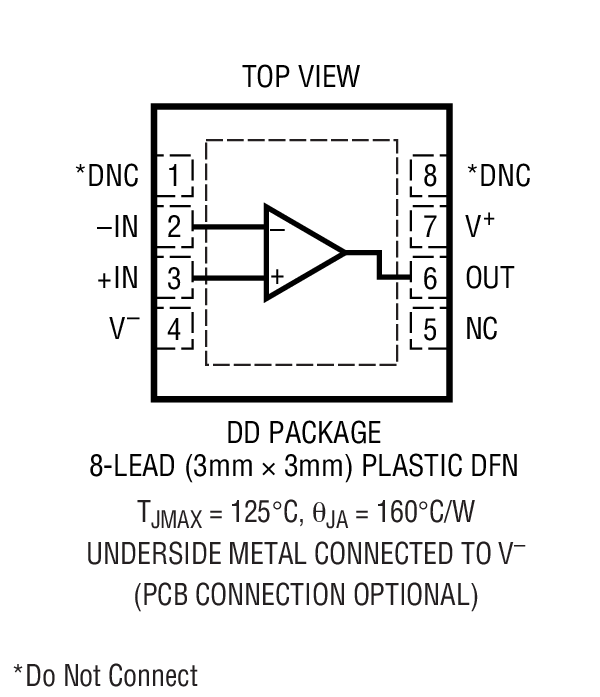

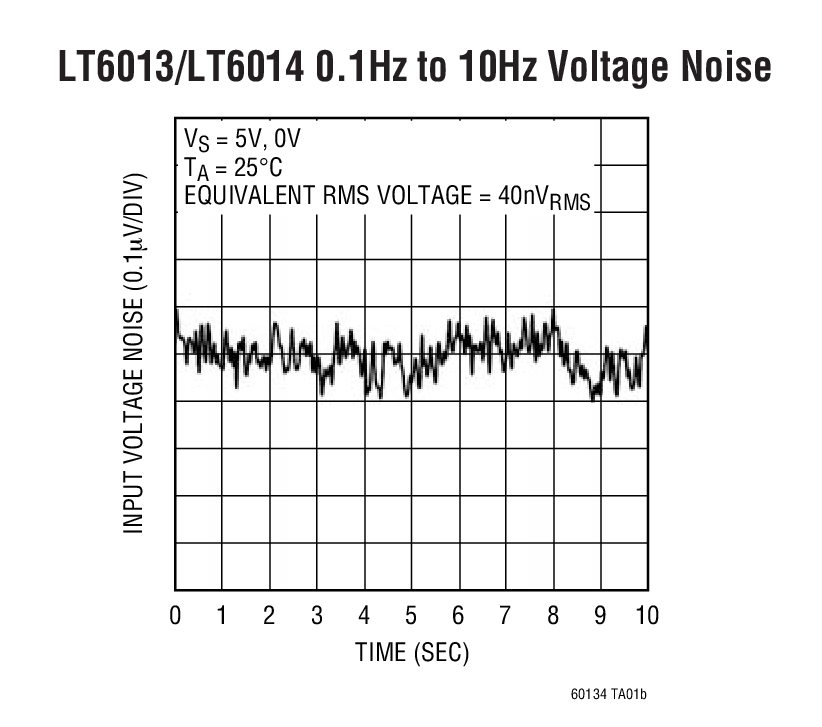

The LT6013 and LT6014 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing. The amplifiers are stable in a gain of 5 or more and feature greatly improved CMRR and PSRR versus frequency compared to other precision op amps.Input offset voltage is factory-trimmed to less than 35µV. The low drift and excellent long-term stability ensure a high accuracy over temperature and time. The 250pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.The LT6013 and LT6014 operate from any supply voltage from 2.7V to 36V and draw only 145µA of supply current per amplifier on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifiers very useful for low voltage single supply operation.The amplifiers are fully specified at 5V and ±15V supplies and from -40°C to 85°C. The single LT6013 and dual LT6014 are both available in SO-8 and space saving 3mm × 3mm DFN packages. For unity gain stable versions, refer to the LT6010 and LT6011 data sheets.ApplicationsThermocouple AmplifiersPrecision Photodiode AmplifiersInstrumentation AmplifiersBattery-Powered Precision SystemsLow-Voltage Precision SystemsMicro-Power Sensor Interface

The LT6013 and LT6014 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing. The amplifiers are stable in a gain of 5 or more and feature greatly improved CMRR and PSRR versus frequency compared to other precision op amps.Input offset voltage is factory-trimmed to less than 35µV. The low drift and excellent long-term stability ensure a high accuracy over temperature and time. The 250pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.The LT6013 and LT6014 operate from any supply voltage from 2.7V to 36V and draw only 145µA of supply current per amplifier on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifiers very useful for low voltage single supply operation.The amplifiers are fully specified at 5V and ±15V supplies and from -40°C to 85°C. The single LT6013 and dual LT6014 are both available in SO-8 and space saving 3mm × 3mm DFN packages. For unity gain stable versions, refer to the LT6010 and LT6011 data sheets.ApplicationsThermocouple AmplifiersPrecision Photodiode AmplifiersInstrumentation AmplifiersBattery-Powered Precision SystemsLow-Voltage Precision SystemsMicro-Power Sensor Interface

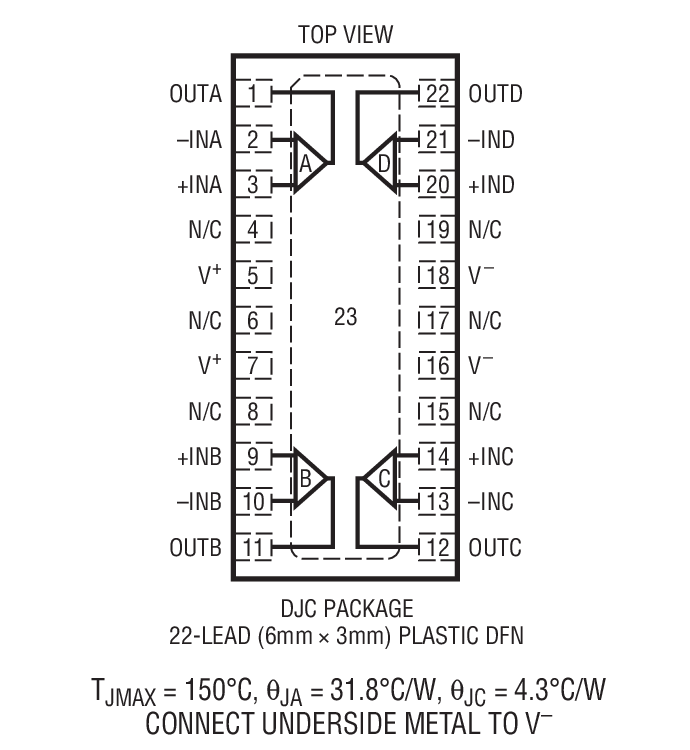

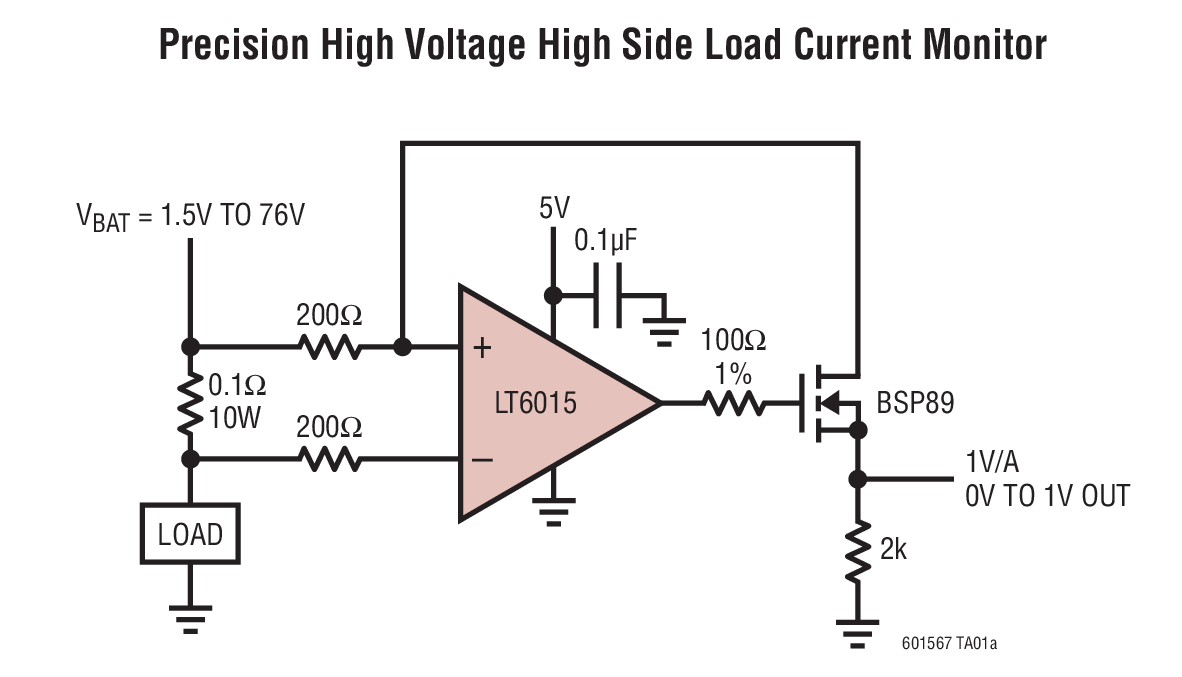

The LT6015/LT6016/LT6017 are single/dual/quad rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.The Over-The-Top®input stage of the LT6015/LT6016/LT6017 is designed to provide added protection in tough environments. The input common mode range extends from V–to V+and beyond: these amplifiers operate with inputs up to 76V above V–independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6015/LT6016/LT6017 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.The LT6015 is offered in a 5-lead SOT package. The LT6016 dual op amp is available in an 8-lead MSOP package. The LT6017 is offered in a 22-pin leadless DFN package.ApplicationsHigh Side or Low Side Current SensingBattery/Power Supply Monitoring4mA to 20mA TransmittersHigh Voltage Data AcquisitionBattery/Portable Instrumentation

The LT6015/LT6016/LT6017 are single/dual/quad rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.The Over-The-Top®input stage of the LT6015/LT6016/ LT6017 is designed to provide added protection in tough environments. The input common mode range extends from V–to V+and beyond: these amplifiers operate with inputs up to 76V above V–independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6015/LT6016/ LT6017 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.The LT6015 is offered in a 5-lead SOT package. The LT6016 dual op amp is available in an 8-lead MSOP package. The LT6017 is offered in a 22-pin leadless DFN package.ApplicationsHigh Side or Low Side Current SensingBattery/Power Supply Monitoring4mA to 20mA TransmittersHigh Voltage Data AcquisitionBattery/Portable Instrumentation
