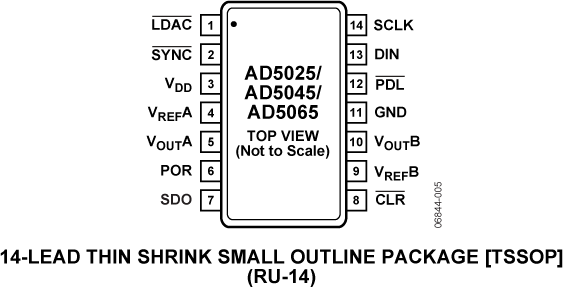

AD5065Fully Accurate 16-Bit VOUTnanoDAC®SPI Interface 4.5 V to 5.5 V in a TSSOP | Data Acquisition | 2 | Active | TheAD5025/AD5045/ AD5065 are low power, dual 12-/14-/16-bit buffered voltage output nanoDAC®DACs offering relative accuracy specifications of ±1 LSB INL with individual reference pins, and can operate from a single 4.5 V to 5.5 V supply. The AD5025 / AD5045 / AD5065 also offer a differential accuracy specification of ±1 LSB. The parts use a versatile 3-wire, low power Schmitt trigger serial interface that operates at clock rates up to 50 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The reference for the AD5025 / AD5045 / AD5065 are supplied from an external pin and a reference buffer is provided on chip. The AD5025 / AD5045 / AD5065 incorporate a power-on reset circuit that ensures the DAC output powers up zero scale or midscale and remains there until a valid write takes place to the device. The AD5025 / AD5045 / AD5065 contain a power-down feature that reduces the current consumption of the device to typically 400 nA at 5 V and provides software selectable output loads while in power-down mode. The parts are put into power-down mode over the serial interface. Total unadjusted error for the parts is <2.5 mV. The parts exhibit very low glitch on power-up. The outputs of all DACs can be updated simultaneously using theLDACfunction, with the added functionality of user-selectable DAC channels to simultaneously update. There is also an asynchronousCLRthat clears all DACs to a software-selectable code—0 V, midscale, or full scale. The parts also feature a power-down lockout pin,PDL, which can be used to prevent the DAC from entering power-down under any circumstances over the serial interface.Product HighlightsDual channel available in a 14-lead TSSOP package with individual voltage reference pins.12-/14-/16-bit accurate, ±1 LSB INL.Low glitch on power-up.High speed serial interface with clock speeds up to 50 MHz.Three power-down modes available to the user.Reset to known output voltage (zero scale or midscale).Power-down lockout capability.ApplicationsProcess controlsData acquisition systemsPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage and current sourcesProgrammable attenuators |
| Data Acquisition | 3 | Active | |

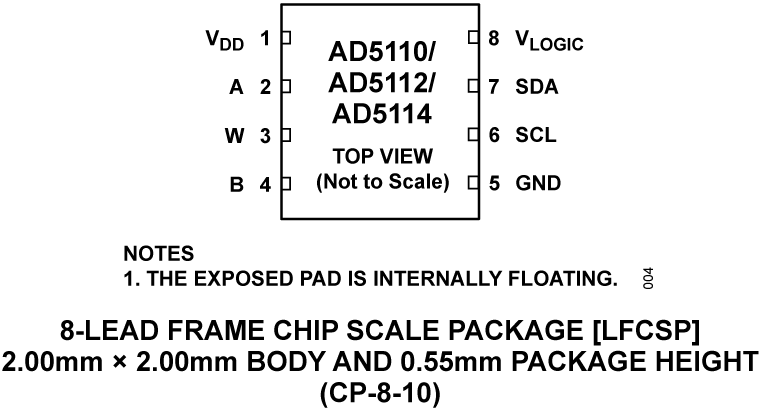

AD5110Single Channel, 128-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer | Digital Potentiometers | 1 | Active | The AD5110 provides a nonvolatile solution for 128-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient and high bandwidth simplify open-loop applications, as well as tolerance matching applications.The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω, typical.The wiper settings are controllable through an I2C-compatible digital interface that is also used to readback the wiper register and EEPROM content. Resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%.The AD5110 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.APPLICATIONSMechanical potentiometer replacementPortable electronics level adjustmentAudio volume controlLow resolution DACLCD panel brightness and contrast controlProgrammable voltage to current conversionProgrammable filters, delays, time constantsFeedback resistor programmable power supplySensor calibration |

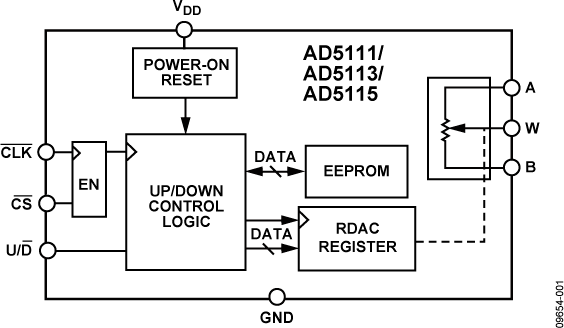

AD5111Single Channel, 128-Position, Up/Down, ±8 % Resistor Tolerance, Nonvolatile Digital Potentiometer | Data Acquisition | 2 | Active | The AD5111 provides a nonvolatile solution for 128-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient, and high bandwidth simplify open-loop applications, as well as tolerance matching applications.The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω typical.A simple 3-wire up/down interface allows manual switching or high speed digital control with clock rates up to 50 MHz.The AD5111 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.APPLICATIONSMechanical potentiometer replacementPortable electronics level adjustmentAudio volume controlLow resolution DACLCD panel brightness and contrast controlProgrammable voltage to current conversionProgrammable filters, delays, time constantsFeedback resistor programmable power supplySensor calibration |

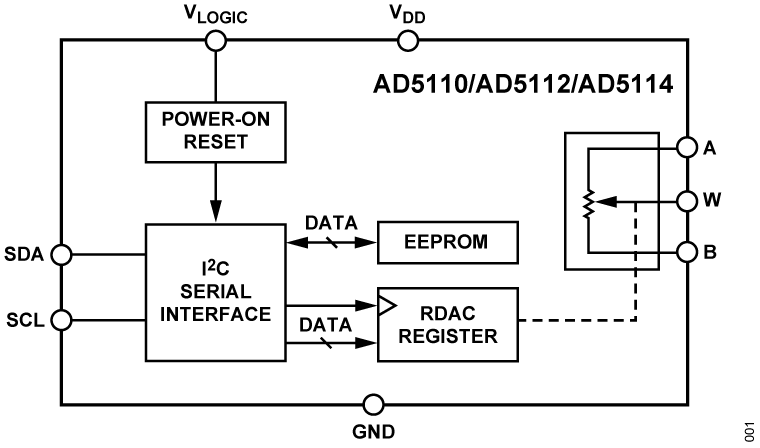

AD5112Single Channel, 64-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer | Integrated Circuits (ICs) | 1 | Active | The AD5112 provides a nonvolatile solution for 64-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient and high bandwidth simplify open-loop applications, as well as tolerance matching applications.The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω, typical.The wiper settings are controllable through an I2C-compatible digital interface that is also used to readback the wiper register and EEPROM content. Resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%.The AD5112 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.APPLICATIONSMechanical potentiometer replacementPortable electronics level adjustmentAudio volume controlLow resolution DACLCD panel brightness and contrast controlProgrammable voltage to current conversionProgrammable filters, delays, time constantsFeedback resistor programmable power supplySensor calibration |

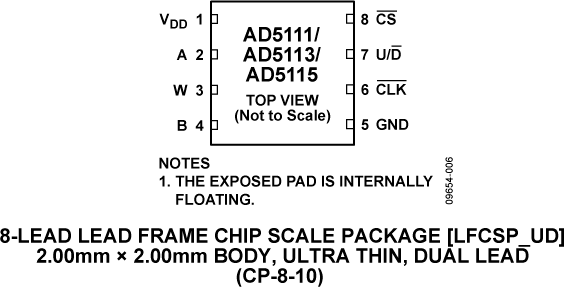

AD5113Single Channel, 64-Position, Up/Down, ±8 % Resistor Tolerance, Nonvolatile Digital Potentiometer | Integrated Circuits (ICs) | 3 | Active | The AD5113 provides a nonvolatile solution for 64-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient, and high bandwidth simplify open-loop applications, as well as tolerance matching applications.The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω typical.A simple 3-wire up/down interface allows manual switching or high speed digital control with clock rates up to 50 MHz.The AD5113 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.APPLICATIONSMechanical potentiometer replacementPortable electronics level adjustmentAudio volume controlLow resolution DACLCD panel brightness and contrast controlProgrammable voltage to current conversionProgrammable filters, delays, time constantsFeedback resistor programmable power supplySensor calibration |
AD5114Single Channel, 32-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer | Digital Potentiometers | 3 | Active | The AD5114 provides a nonvolatile solution for 32-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient and high bandwidth simplify open-loop applications, as well as tolerance matching applications.The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω, typical.The wiper settings are controllable through an I2C-compatible digital interface that is also used to readback the wiper register and EEPROM content. Resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%.The AD5114 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.APPLICATIONSMechanical potentiometer replacementPortable electronics level adjustmentAudio volume controlLow resolution DACLCD panel brightness and contrast controlProgrammable voltage to current conversionProgrammable filters, delays, time constantsFeedback resistor programmable power supplySensor calibration |
AD5115Single Channel, 32-Position, Up/Down, ±8 % Resistor Tolerance, Nonvolatile Digital Potentiometer | Integrated Circuits (ICs) | 2 | Active | The AD5115 provides a nonvolatile solution for 32-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient, and high bandwidth simplify open-loop applications, as well as tolerance matching applications.The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω typical.A simple 3-wire up/down interface allows manual switching or high speed digital control with clock rates up to 50 MHz.The AD5115 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.APPLICATIONSMechanical potentiometer replacementPortable electronics level adjustmentAudio volume controlLow resolution DACLCD panel brightness and contrast controlProgrammable voltage to current conversionProgrammable filters, delays, time constantsFeedback resistor programmable power supplySensor calibration |
| Data Acquisition | 4 | Active | |

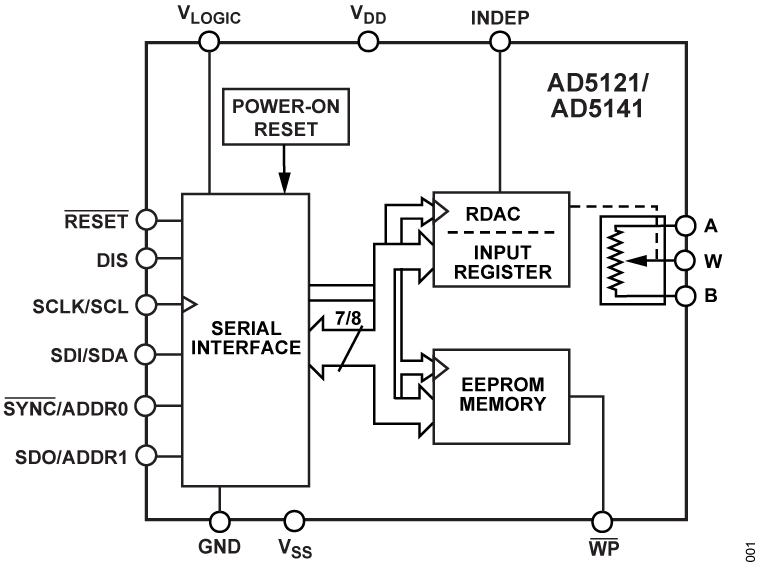

AD5121Single Channel, 128-Position, I2C / SPI, Nonvolatile Digital Potentiometer | Integrated Circuits (ICs) | 1 | Active | The AD5121/AD5141potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through RAWand RWBstring resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making it suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allows for pin-to-pin connection.The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.The AD5121/AD5141 is available in a compact, 16-lead, 3 mm × 3 mm LFCSP. The devices are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, and time constantsProgrammable power supplies |
