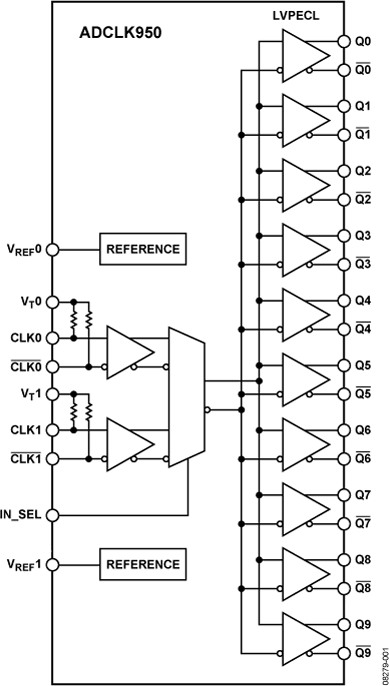

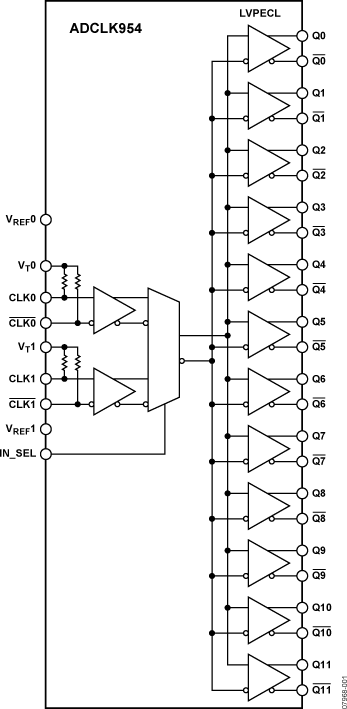

The ADCLK950 is an ultrafast clock fanout buffer fabricated on the Analog Devices, Inc., proprietary XFCB3 silicon germanium (SiGe) bipolar process. This device is designed for high speed applications requiring low jitter.The device has two selectable differential inputs via the IN_SEL control pin. Both inputs are equipped with center tapped, differential, 100 Ω on-chip termination resistors. The inputs accept dc-coupled LVPECL, CML, 3.3 V CMOS (single-ended), and ac-coupled 1.8 V CMOS, LVDS, and LVPECL inputs. A VREFx pin is available for biasing ac-coupled inputs.The ADCLK950 features 10 full-swing emitter coupled logic (ECL) output drivers. For LVPECL (positive ECL) operation, bias VCCto the positive supply and VEEto ground. For ECL operation, bias VCCto ground and VEEto the negative supply.The output stages are designed to directly drive 800 mV each side into 50 Ω terminated to VCC− 2 V for a total differential output swing of 1.6 V.The ADCLK950 is available in a 40-lead LFCSP and specified for operation over the standard industrial temperature range of −40°C to +85°C.ApplicationsLow jitter clock distributionClock and data signal restorationLevel translationWireless communicationsWired communicationsMedical and industrial imagingATE and high performance instrumentation

TheADCMP341/ ADCMP343 consist of two low power, high accuracy comparators with a 400 mV reference in an 8-lead SOT-23 package. Operating within a supply range of 1.7 V to 5.5 V, the devices only draw 6.5 μA (typical), making them ideal for low voltage system monitoring and portable applications.Hysteresis is determined using three resistors in a string configuration with the upper and lower tap points connected to the ±INA_U and ±INA_L pins of each comparator, respectively. The state of the outputs of the comparators selects which pin is internally connected to the comparators input. Therefore, a change of state in the comparators output results in one of the inputs being switched in to the comparator and the other being switched out. This provides the user with a fully flexible and accurate method of setting the hysteresis. One input of each comparator is internally connected to the reference. The other input is available externally, via an internal mux, through pins ±INA_U or ±INA_L. The state of the output determines which of these pins is connected at any one time.The comparator outputs are open-drain with the output stage sinking capability guaranteed greater than 5 mA over temperature. The ADCMP341 has noninverting inputs and the ADCMP343 has inverting inputs. The devices are suitable for portable, commercial, industrial, and automotive applications.APPLICATIONSPortable applicationsLi-Ion monitoringHandheld instrumentsLED/relay drivingOptoisolator drivingControl systems

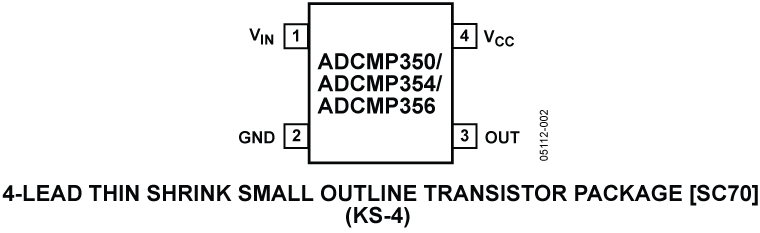

The ADCMP350/ADCMP354/ADCMP356 parts are comparator and reference circuits suitable for use in general-purpose applications. The high voltage input and output structures will allow voltages of up to 22 V on the input of all devices and the output of the open-drain devices. High performance over the −40°C to +125°C temperature range makes them suitable for use in automotive and other thermally harsh applications, while low power consumption and space-efficient SC70 packaging make them ideal for battery-powered portable equipment.ApplicationsVoltage detectorsMicroprocessor systemsComputersBattery monitorsIntelligent instrumentsPortable equipment

The ADCMP350/ADCMP354/ADCMP356 parts are comparator and reference circuits suitable for use in general-purpose applications. The high voltage input and output structures will allow voltages of up to 22 V on the input of all devices and the output of the open-drain devices. High performance over the −40°C to +125°C temperature range makes them suitable for use in automotive and other thermally harsh applications, while low power consumption and space-efficient SC70 packaging make them ideal for battery-powered portable equipment.ApplicationsVoltage detectorsMicroprocessor systemsComputersBattery monitorsIntelligent instrumentsPortable equipment

The ADCMP350/ADCMP354/ADCMP356 parts are comparator and reference circuits suitable for use in general-purpose applications. The high voltage input and output structures will allow voltages of up to 22 V on the input of all devices and the output of the open-drain devices. High performance over the −40°C to +125°C temperature range makes them suitable for use in automotive and other thermally harsh applications, while low power consumption and space-efficient SC70 packaging make them ideal for battery-powered portable equipment.ApplicationsVoltage detectorsMicroprocessor systemsComputersBattery monitorsIntelligent instrumentsPortable equipment

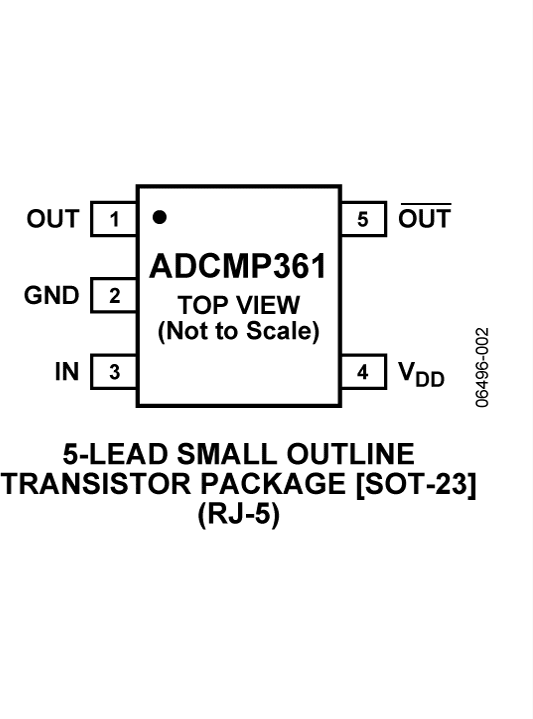

The ADCMP361 is a single low power, high accuracy comparator with a 400 mV reference in a 5-lead SOT-23 package. The internal 400 mV reference provides the ability to monitor low voltage supplies. The device operates on a supply voltage from 1.7 V to 5.5 V and only draws 6.5 μA typical, making it suitable for low power system monitoring and portable applications. Hysteresis is included in the comparators.There are dual open-drain outputs to enable the comparator and reference circuit to be used in an inverting or noninverting configuration. The outputs can be pulled to any voltage up to a maximum of 5.5 V. The output stage is guaranteed to sink greater than 5 mA over temperature.The device is suitable for portable, commercial, industrial, and automotive applications.APPLICATIONSLi-Ion monitoringThreshold detectorsRelay drivingOptoisolator drivingIndustrial control systemsHandheld instruments

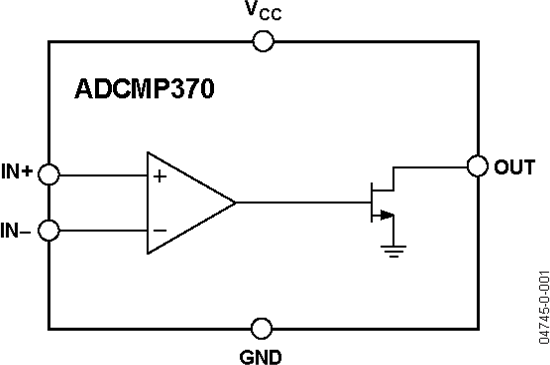

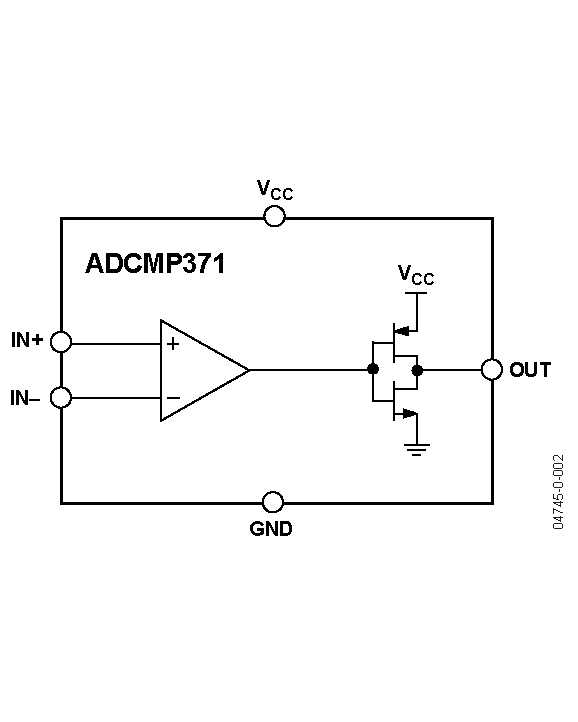

The ADCMP370 /ADCMP371are general purpose comparators with input offset voltages of 6mV (max). High performance over the -40°C to +85°C temperature range make them suitable for use in automotive and other thermally harsh applications, while low power consumption and space efficient SC70 packaging make them ideal for battery powered portable equipment.The ADCMP371 has a push-pull output stage, while the ADCMP370 has an open-drain output. The inputs on both parts and the output on the ADCMP370 can tolerate voltages up to 22 V, making them suitable for use as voltage detectors in portable equipment.The devices are available in space-efficient, 5-lead SC70 packaging.APPLICATIONSVoltage DetectorsBattery Management SystemsA/D ConvertersLow Voltage ApplicationsBattery Powered ElectronicsPortable Equipment

TheADCMP370/ ADCMP371 are general-purpose comparators with input offset voltages of 9 mV (max) and low power consumption, which make them ideal for battery-powered portable equipment. The ADCMP371 has a push-pull output stage, while the ADCMP370 has an open-drain output. The inputs on both parts and the output on the ADCMP370 can tolerate voltages up to 22 V, making them suitable for use as voltage detectors in portable equipment.They are available in space-efficient 5-lead SC70 packaging.APPLICATIONSBattery Management SystemsA/D ConvertersLow Voltage ApplicationsBattery Powered ElectronicsPortable Equipment

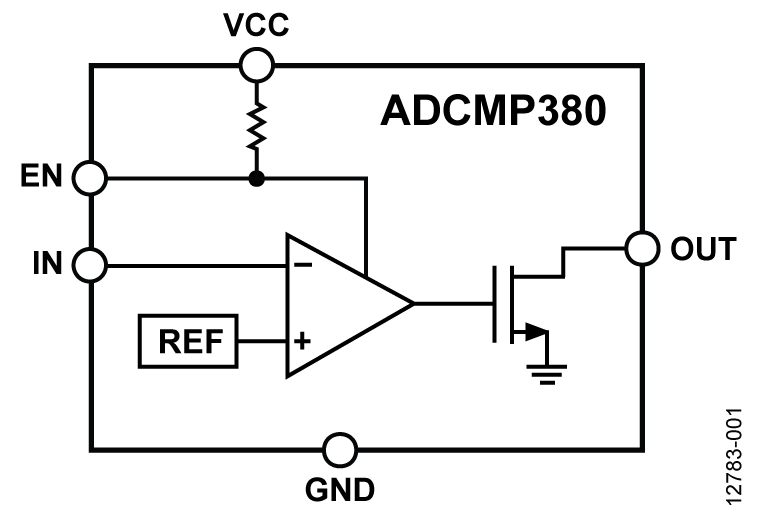

The ADCMP380 is an ultralow power voltage comparator with internal reference suitable for use in general-purpose applications. The ultralow power consumption of this device makes it suitable for power efficiency sensitive systems, such as battery-powered portable devices and energy meters.The ADCMP380 is available with a 0.5 V and 1 V internal reference with ±2.2% and ±1.6% accuracy, respectively, over the full temperature range; this internal reference enables the device to monitor the node of interest accurately to 0.5 V. The enable input allows the user to hold the output low regardless of the state of the input.The ADCMP380 is available in a 6-ball, 1.46 mm × 0.96 mm WLCSP and is specified over the temperature range of −40°C to +85°C.APPLICATIONSPortable/battery-operated equipmentBattery monitorsEnergy harvesting
