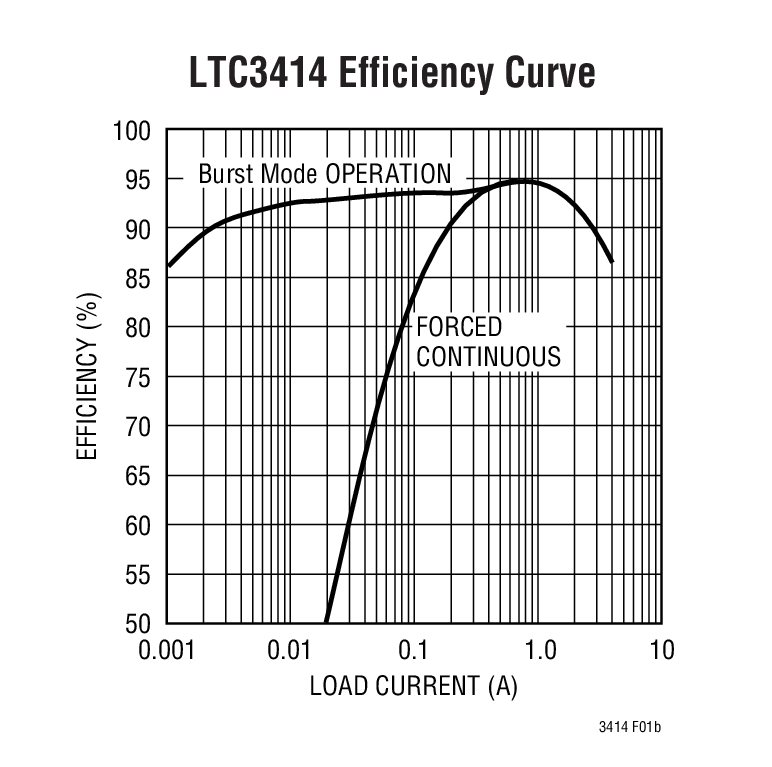

The LTC3414 is a high efficiency monolithic synchronous, step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 4A of output current. The internal synchronous power switch with 67mΩ on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. 100% duty cycle provides low dropout operation extending battery life in portable systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of loads and output capacitors.The LTC3414 can be configured for either Burst Mode operation or forced continuous operation. Forced continuous operation reduces noise and RF interference while Burst Mode operation provides high efficiency by reducing gate charge losses at light loads. In Burst Mode operation, external control of the burst clamp level allows the output voltage ripple to be adjusted according to the requirements of the application.ApplicationsPoint-of-Load RegulationNotebook ComputersPortable InstrumentsDistributed Power Systems

The LTC3415 is a high efficiency, monolithic synchronous buck regulator using a phase lockable constant frequency, current mode architecture. PolyPhase®operation allows multiple LTC3415s to run out of phase while using minimal input and output capacitance. The operating supply range is from 5.5V down to 2.5V, making it suitable for single Lithium-Ion battery as well as point of load power supply applications. Burst Mode operation provides high efficiency at low load currents. 100% duty cycle provides low dropout operation that extends operating time in battery-operated systems.The operating frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors. For switching-noise sensitive applications, it can be externally synchronized from 0.75MHz to 2.25MHz. The PHMODE pin allows user control of the phase of the outgoing clock signal. The current sense comparator is factory trimmed for accurate output current sharing. Burst Mode operation is inhibited during synchronization or when the MODE pin is pulled low to reduce noise and RF interference.ApplicationsPoint of Load Power SupplyPortable InstrumentsDistributed Power SystemsBattery-Powered Equipment

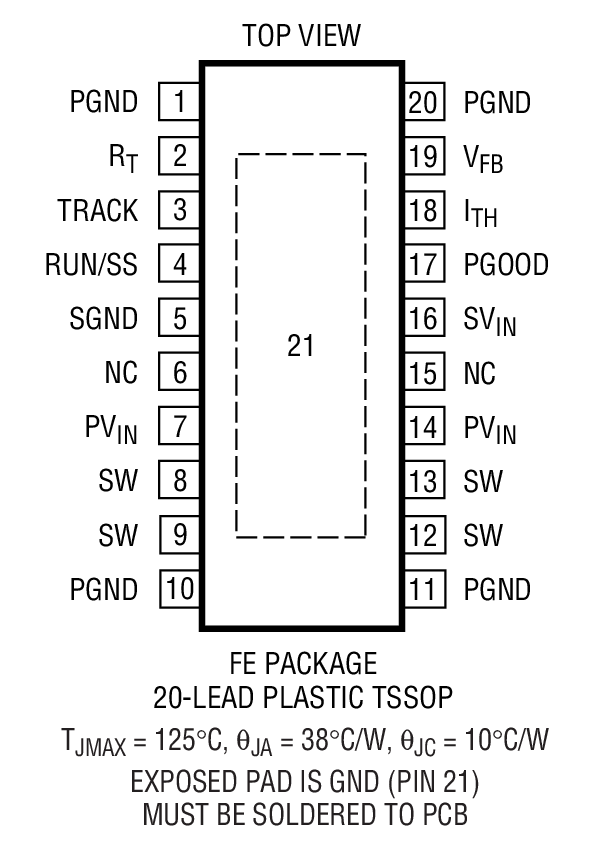

The LTC3416 is a high efficiency monolithic synchronous, step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 4A of output current. The internal synchronous power switch with 67mΩ of on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor. 100% duty cycle provides low dropout operation extending battery life in portable systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of loads and output capacitors.The LTC3416 operates in forced continuous operation and provides tracking of another power supply rail. Forced continuous operation reduces noise and RF interference and provides excellent transient response. Fault protection is provided by an overcurrent comparator, and adjustable compensation allows the transient response to be optimized over a wide range of loads and output capacitors.ApplicationsPortable InstrumentsNotebook ComputersDistributed Power SystemsBattery-Powered EquipmentPOL Board Power

The LTC3417A-1 is a dual constant frequency, synchronous step-down DC/DC converter. Intended for medium power applications, it operates from a 2.25V to 5.5V input voltage range and has a constant programmable switching frequency, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Each output voltage is adjustable from 0.8V to 5V. Internal synchronous, low RDS(ON)power switches provide high efficiency without the need for external Schottky diodes.The open drainPORpin goes low when either output voltage falls 6% below regulation. The output will remain low 150ms longer than the duration of the out of regulation condition.A user selectable mode input allows the user to trade off ripple voltage for light load efficiency. Burst Mode operation provides high efficiency at light loads, while pulse skip mode provides low ripple noise at light loads. A phase mode pin allows the second channel to operate in-phase or 180° out-of-phase with respect to channel 1. Out-of-phase operation produces lower RMS current on VINand thus lower stress on the input capacitor.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle) and both channels draw a total quiescent current of only 100μA. In shutdown, the device draws <1μA.FeaturesNotesLTC3417--LTC3417AImproved Channel Matching-LTC3417A-1Power On ResetRecommended For New DesignsLTC3417A-2Power GoodRecommended For New DesignsApplicationsGPS/Navigation SystemsAutomotive InstrumentationPC CardsIndustrial Power SuppliesGeneral Purpose Point of Load DC/DC

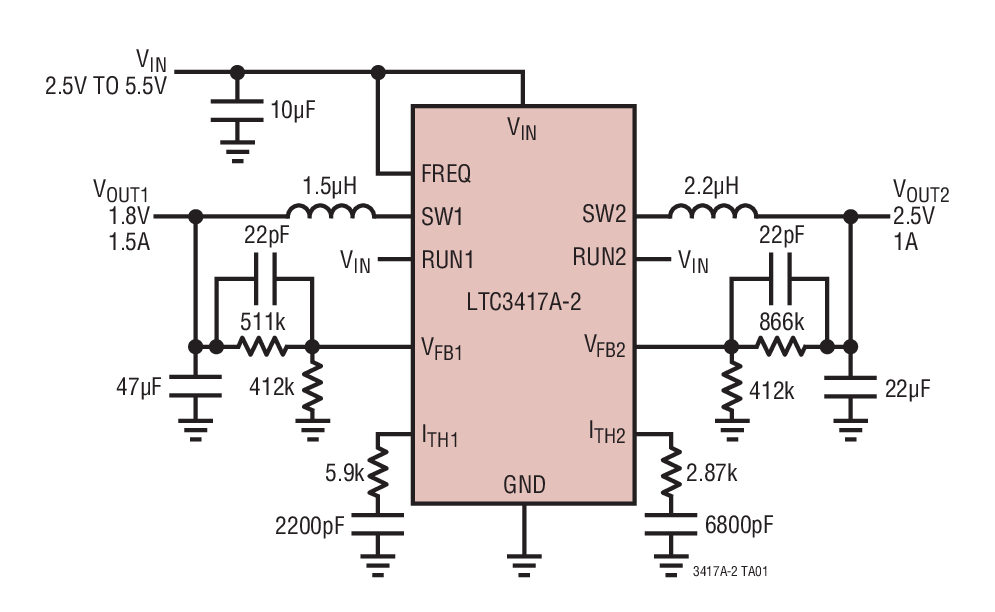

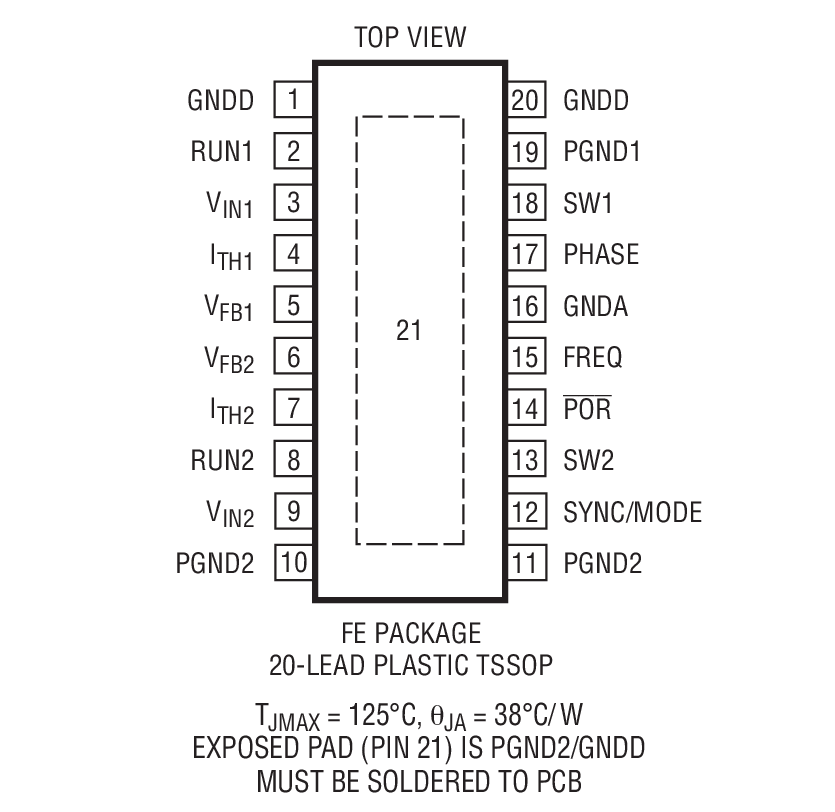

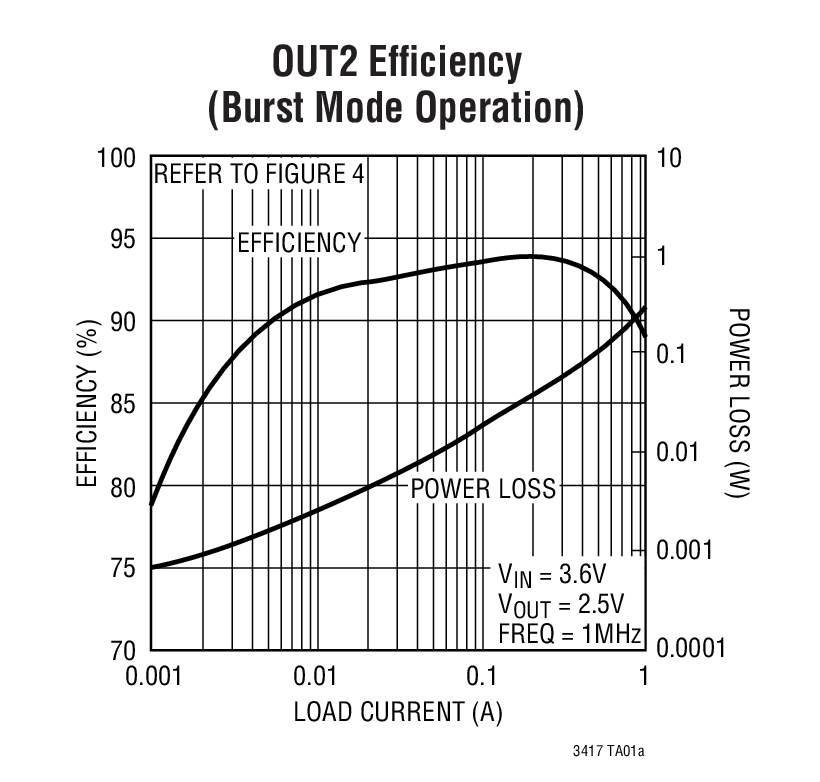

The LTC3417A is a dual constant frequency, synchronous step-down DC/DC converter. Intended for medium power applications, it operates from a 2.25V to 5.5V input voltage range and has a constant programmable switching frequency, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Each output voltage is adjustable from 0.8V to 5V. Internal, synchronous, low RDS(ON)power switches provide high efficiency without the need for external Schottky diodes.A user selectable mode input allows the user to trade off ripple voltage for light load efficiency. Burst Mode®operation provides high efficiency at light loads, while Pulse Skip mode provides low ripple noise at light loads. A phase mode pin allows the second channel to operate in-phase or 180° out-of-phase with respect to channel 1. Out-ofphase operation produces lower RMS current on VINand thus a lower RMS derating on the input capacitor.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle) and both channels draw a total quiescent current of only 125µA. In shutdown, the device draws <1µA.FeaturesNotesLTC3417--LTC3417AImproved Channel Matching-LTC3417A-1Power On ResetRecommended For New DesignsLTC3417A-2Power GoodRecommended For New DesignsApplicationsGPS/NavigationDigital CamerasPC CardsWireless and DSL ModemsGeneral Purpose Point of Load DC/DC

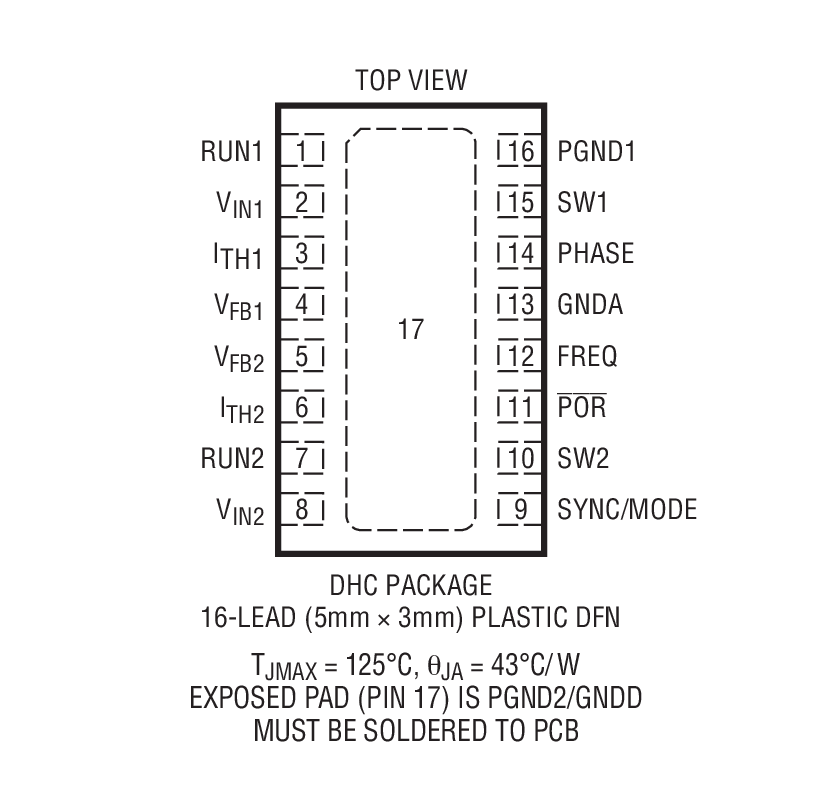

The LTC3417A-1 is a dual constant frequency, synchronous step-down DC/DC converter. Intended for medium power applications, it operates from a 2.25V to 5.5V input voltage range and has a constant programmable switching frequency, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Each output voltage is adjustable from 0.8V to 5V. Internal synchronous, low RDS(ON)power switches provide high efficiency without the need for external Schottky diodes.The open drainPORpin goes low when either output voltage falls 6% below regulation. The output will remain low 150ms longer than the duration of the out of regulation condition.A user selectable mode input allows the user to trade off ripple voltage for light load efficiency. Burst Mode operation provides high efficiency at light loads, while pulse skip mode provides low ripple noise at light loads. A phase mode pin allows the second channel to operate in-phase or 180° out-of-phase with respect to channel 1. Out-of-phase operation produces lower RMS current on VINand thus lower stress on the input capacitor.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle) and both channels draw a total quiescent current of only 100μA. In shutdown, the device draws <1μA.FeaturesNotesLTC3417--LTC3417AImproved Channel Matching-LTC3417A-1Power On ResetRecommended For New DesignsLTC3417A-2Power GoodRecommended For New DesignsApplicationsGPS/Navigation SystemsAutomotive InstrumentationPC CardsIndustrial Power SuppliesGeneral Purpose Point of Load DC/DC

The LTC3417A-2 is a dual constant frequency, synchronous step-down DC/DC converter. Intended for medium power applications, it operates from a 2.25V to 5.5V input voltage range and has a constant programmable switching frequency, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Each output voltage is adjustable from 0.8V to 5V. Internal synchronous, low RDS(ON)power switches provide high efficiency without the need for external Schottky diodes.A user selectable mode input allows the user to trade off ripple voltage for light load efficiency. Burst Mode operation provides high efficiency at light loads, while Pulse Skip mode provides low ripple noise at light loads. A phase mode pin allows the second channel to operate in-phase or 180° out-of-phase with respect to channel 1. Out-of-phase operation produces lower RMS current on VINand thus lower stress on the input capacitor.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle) and both channels draw a total quiescent current of only 100μA. In shutdown, the device draws <1μA.FeaturesNotesLTC3417--LTC3417AImproved Channel Matching-LTC3417A-1Power On ResetRecommended For New DesignsLTC3417A-2Power GoodRecommended For New DesignsApplicationsGPS/Navigation SystemsAutomotive InstrumentationPC CardsIndustrial Power SuppliesGeneral Purpose Point of Load DC/DC

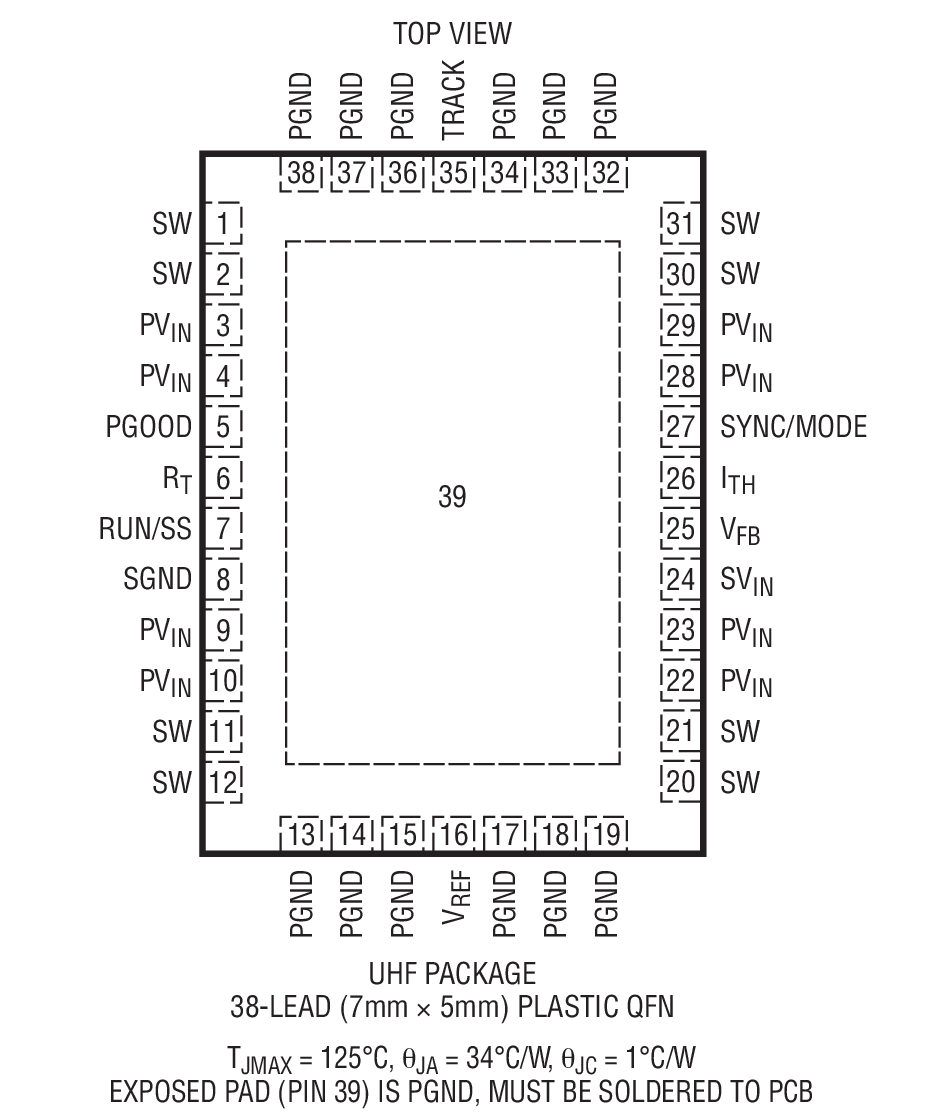

The LTC3418 is a high efficiency, monolithic synchronous step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 8A of output current. The internal synchronous power switch increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of loads and output capacitors.The LTC3418 can be configured for either Burst Mode operation or forced continuous operation. Forced continuous operation reduces noise and RF interference while Burst Mode operation provides high efficiency by reducing gate charge losses at light loads. In Burst Mode operation, external control of the burst clamp level allows the output voltage ripple to be adjusted according to the requirements of the application. A tracking input in the LTC3418 allows for proper sequencing with respect to another power supply.ApplicationsMicroprocessor, DSP and Memory SuppliesDistributed 2.5V, 3.3V and 5V Power SystemsAutomotive ApplicationsPoint of Load RegulationNotebook Computers

The LTC3419 is a dual, 2.25MHz, constant-frequency, synchronous step-down DC/DC converter in a tiny 3mm × 3mm DFN package. 100% duty cycle provides low dropout operation, extending battery life in portable systems. Low output voltages are supported with the 0.6V feedback reference voltage. Each regulator can supply 600mA output current.The input voltage range is 2.5V to 5.5V, making it ideal for Li-Ion and USB powered applications. Supply current during operation is only 35µA and drops to <1µA in shutdown. A user-selectable mode input allows the user to trade off between high efficiency Burst Mode operation and pulse-skipping mode.An internally set 2.25MHz switching frequency allows the use of tiny surface mount inductors and capacitors. Internal soft-start reduces inrush current during start-up. Both outputs are internally compensated to work with ceramic output capacitors. The LTC3419 is available in a low profile (0.75mm) 3mm × 3mm DFN package. The LTC3419 is also available in a fixed output voltage configuration selected via internal resistor dividers.ApplicationsCellular TelephonesDigital Still CamerasWireless and DSL ModemsPortable Media PlayersPDAs/Palmtop PCs
