LTC34221.5A, 3MHz Synchronous Step-Up DC/DC Converter with Output Disconnect | Voltage Regulators - DC DC Switching Regulators | 2 | Active | The LTC3422 is a high efficiency, current mode, fixed frequency, step-up DC/DC converter with true output disconnect and inrush current limiting. The part is guaranteed to start up from an input voltage of 1V. The device includes a 0.20Ω N-channel MOSFET switch and a 0.24Ω P-channel MOSFET synchronous rectifier. The output voltage, switching frequency, soft-start time, Burst Mode threshold and loop compensation are all simply programmed using tiny external passive components.Quiescent current is only 25μA during Burst Mode operation, maximizing battery life in portable applications. The oscillator frequency can be programmed up to 3MHz and can be synchronized to an external clock applied to the SYNC pin.Other features include 1μA shutdown, short-circuit protection, anti-ringing control, thermal shutdown and current limit. The LTC3422 is available in a (3mm × 3mm × 0.75mm) 10-pin DFN package.ApplicationsWireless HandsetsHandheld ComputersGPS ReceiversMP3 Players |

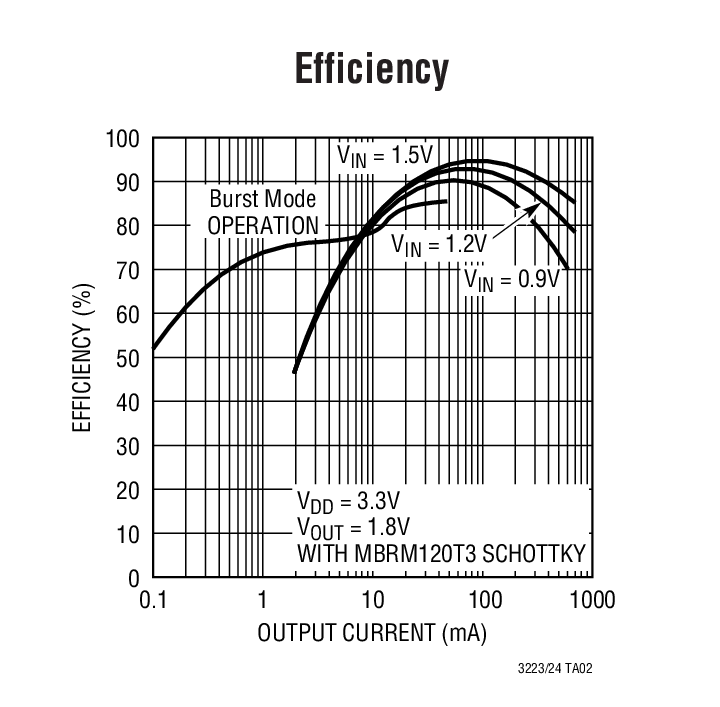

LTC3423Low Output Voltage, 3MHz Micropower Synchronous Boost Converters | Integrated Circuits (ICs) | 3 | Active | The LTC3423 and LTC3424 are high efficiency, fixed frequency, step-up DC/DC converters that can regulate output voltages as low as 1.5V from a single cell. An applied voltage of at least 2.7V to the VDDpin is required to power the internal control circuitry.The devices include a 0.16Ω N-channel MOSFET switch and a 0.21Ω P-channel synchronous rectifier. The LTC3423 is intended for applications requiring less than 0.75W of output power and the LTC3424 for 1.5W or less. Switching frequencies up to 3MHz are programmed with an external timing resistor and the oscillator can be synchronized to an external clock.Quiescent current is only 38µA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and can be enabled by driving the MODE/SYNC pin high. If the MODE/SYNC pin has either a clock or is driven low then the operation is at constant fixed frequency.Other features include a 1µA shutdown, thermal shutdown and current limit. The LTC3423 and LTC3424 are available in the 10-lead MSOP package. For applications requiring an output voltage greater than 2.6V, the LTC3401 and LTC3402 are recommended without the need of a separate voltage for the VDDpin.ApplicationsPagersHandheld InstrumentsCordless PhonesWireless HandsetsGPS ReceiversBattery Backup |
| PMIC | 2 | Active | |

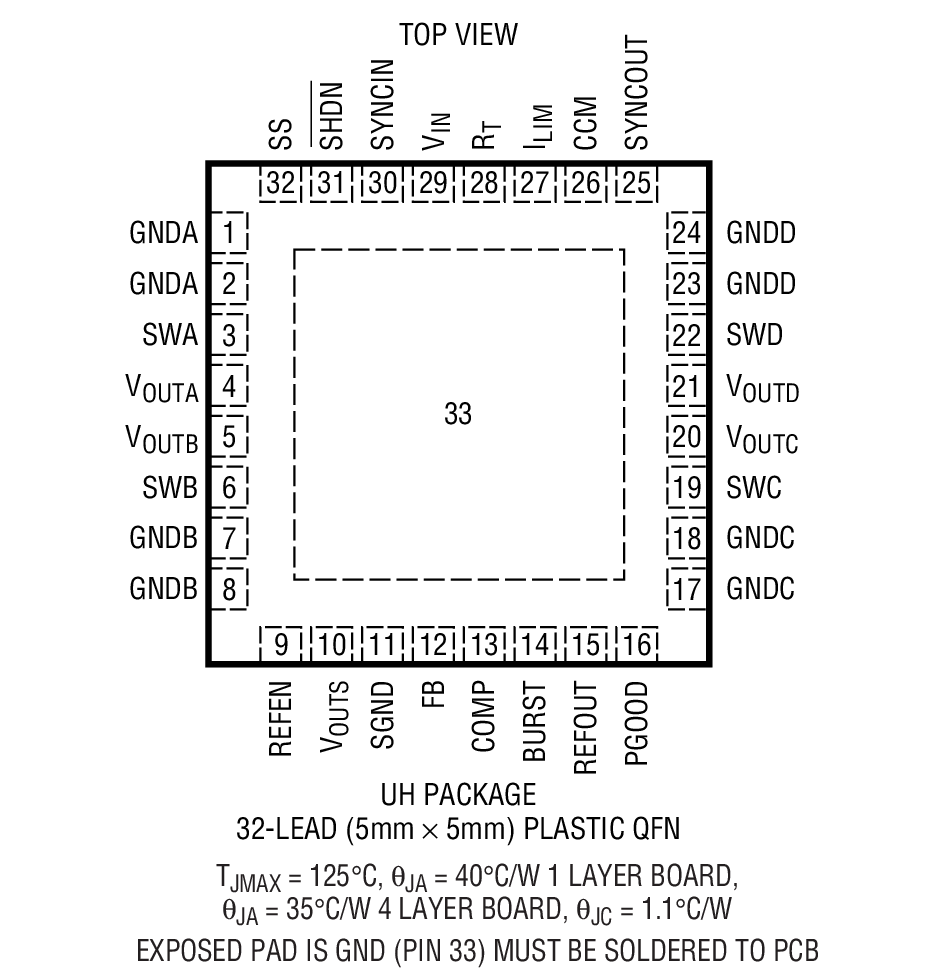

LTC34255A, 8MHz, 4-Phase Synchronous Step-Up DC/DC Converter | Integrated Circuits (ICs) | 2 | Active | The LTC3425 is a synchronous, 4-phase boost converter with output disconnect capable of operation below 1V input. It includes four N-channel MOSFET switches and four P-channel synchronous rectifiers for an effective RDS(ON)of 0.045Ω and 0.05Ω, respectively. 4-phase operation greatly reduces peak inductor currents, and capacitor ripple current, and increases effective switching frequency, minimizing inductor and capacitor sizes. True output disconnect eliminates inrush current and allows zero load current in shutdown. External Schottky diodes are not required in most applications (VOUT< 4.3V). Power saving Burst Mode operation can be user controlled or left in automatic mode.Other features include 1µA shutdown current, programmable frequency with sync in and out, programmable soft-start, antiringing control, thermal shutdown, adjustable current limit, reference output and power good comparator.The LTC3425 is available in a small, thermally enhanced 32-pin QFN package.ApplicationsHandheld ComputersPoint-of-Load Regulators3.3V to 5V Conversion |
LTC34261.2MHz Step-Up DC/DC Converter in SOT-23 | Power Management (PMIC) | 2 | Active | The LTC3426 step-up switching regulator generates an output voltage of up to 5.5V from an input voltage as low as 1.6V. Ideal for applications where space is limited, it switches at 1.2MHz, allowing the use of tiny, low cost and low profile external components. Its internal 2A, 100mΩ NMOS switch provides high efficiency even at heavy load, while the constant frequency, current mode architecture results in low, predictable output noise that is easy to filter.Anti-ringing circuitry reduces EMI concerns by damping the inductor while in discontinuous mode, and internal soft-start eases inrush current worries. Internal frequency compensation is designed to accommodate ceramic output capacitors, further reducing noise. The device features very low shutdown current of 0.5µA.The LTC3426 is available in the 6-lead SOT-23 package.Protected by U.S. Patents, including 6498466, 6611131ApplicationsWhite LED Driver SupplyLocal 3.3V or 5V SupplyBattery Back-Up |

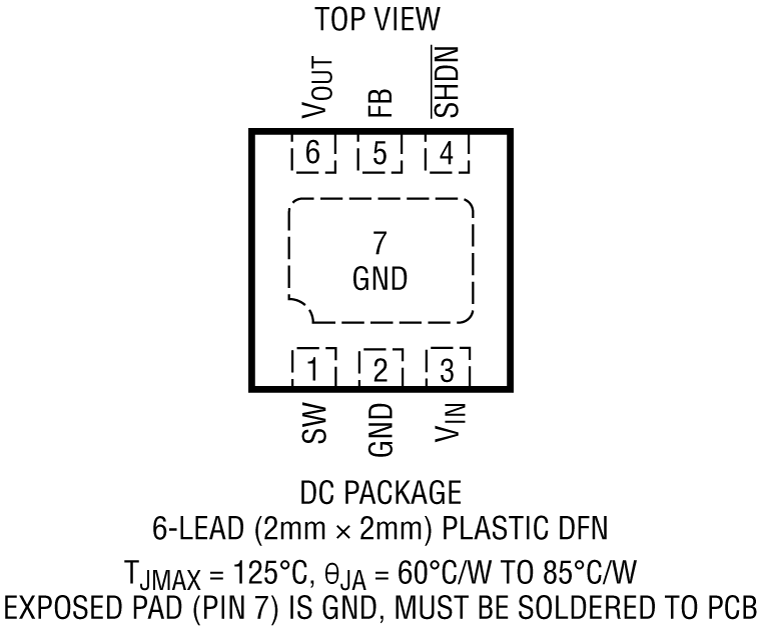

LTC3427500mA, 1.25MHz Synchronous Step-Up DC/DC Converter in 2mm × 2mm DFN Package | Voltage Regulators - DC DC Switching Regulators | 2 | Active | The LTC3427 is the industry’s first high efficiency, fixed frequency, step-up DC/DC converter with true output disconnect in a 6-lead 2mm × 2mm DFN package. Requiring minimal external components, the LTC3427 operates from an input voltage as low as 1.8V. The LTC3427 contains an internal 0.525Ω N-channel MOSFET switch and a 0.575Ω P-channel MOSFET synchronous rectifier, which enables it to supply 200mA at 3.3V from a 2-cell alkaline battery input.The LTC3427 limits inrush current during start-up and provides a soft-start of VOUT. A switching frequency of 1.25MHz minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors and produces very low VOUTripple. The current mode PWM design is internally compensated, reducing external parts count. Anti-ringing control reduces EMI in discontinuous mode operation. The LTC3427 also features low shutdown current of under 1μA and thermal shutdown.APPLICATIONSHandheld InstrumentsDigital CamerasWireless HandsetsGPS ReceiversPortable Medical DevicesMP3 Players |

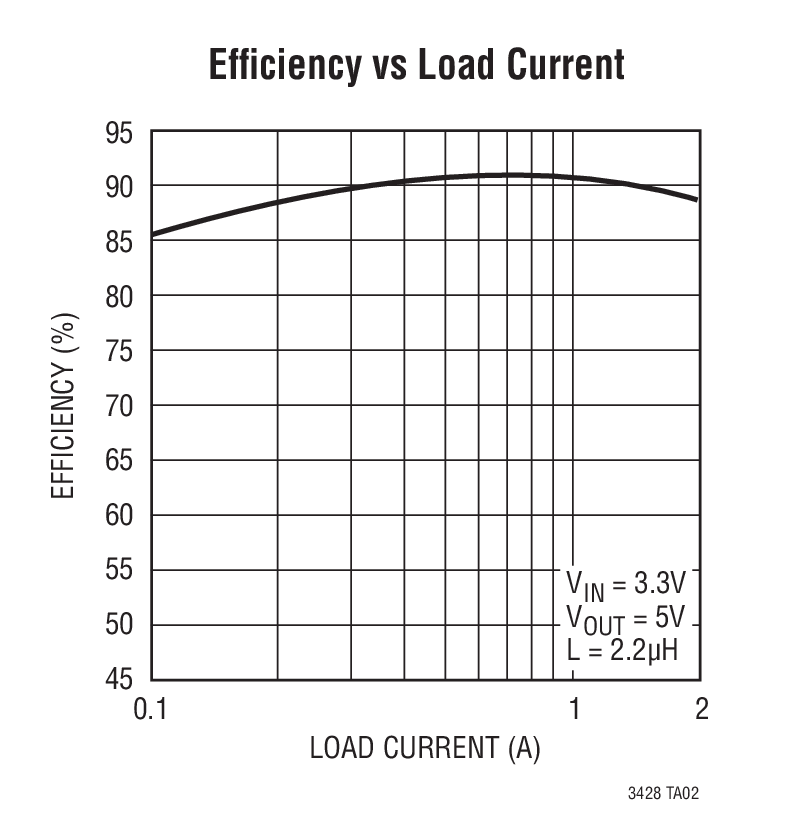

LTC34284A, 2MHz Dual Phase Step-Up DC/DC Converter in 3mm × 3mm DFN | PMIC | 2 | Active | The LTC3428 is a 2-phase, current mode boost converter, capable of supplying 2A at 5V from a 3.3V input. Two 93mΩ, 2A N-channel MOSFET switches allow the LTC3428 to deliver high efficiency from input voltages as low as 1.6V.External parts count and size are minimized by a 1MHz switching frequency and a 2-phase design. Two phase operation significantly reduces peak inductor currents and capacitor ripple current, doubling the effective switching frequency and minimizing inductor and capacitor size. External compensation allows the feedback loop response to be optimized for a particular application.Other features include: an active low shutdown pin reduces supply current to below 1µA, internal soft-start, antiringing control and thermal shutdown. The LTC3428 is available in a low profile (0.75mm) 10-lead (3mm × 3mm) DFN package.ApplicationsNetworking EquipmentHandheld InstrumentsDigital CamerasDistributed PowerLocal 3.3V to 5V Conversion |
| PMIC | 4 | Active | |
LTC3440Micropower Synchronous Buck-Boost DC/DC Converter | Voltage Regulators - DC DC Switching Regulators | 4 | Active | The LTC3440 is a high efficiency, fixed frequency, Buck-Boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides a continuous transfer function through all operating modes, making the product ideal for single lithium-ion, multicell alkaline or NiMH applications where the output voltage is within the battery voltage range.The device includes two 0.19Ω N-channel MOSFET switches and two 0.22Ω P-channel switches. Switching frequencies up to 2MHz are programmed with an external resistor and the oscillator can be synchronized to an external clock. Quiescent current is only 25µA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and can be enabled by driving the MODE/SYNC pin high. If the MODE/SYNC pin has either a clock or is driven low, then fixed frequency switching is enabled.Other features include a 1µA shutdown, soft-start control, thermal shutdown and current limit. The LTC3440 is available in the 10-pin thermally enhanced MSOP package.Protected by U.S. Patents including 6404251, 6166527.ApplicationsPalmtop ComputersHandheld InstrumentsMP3 PlayersDigital Cameras |

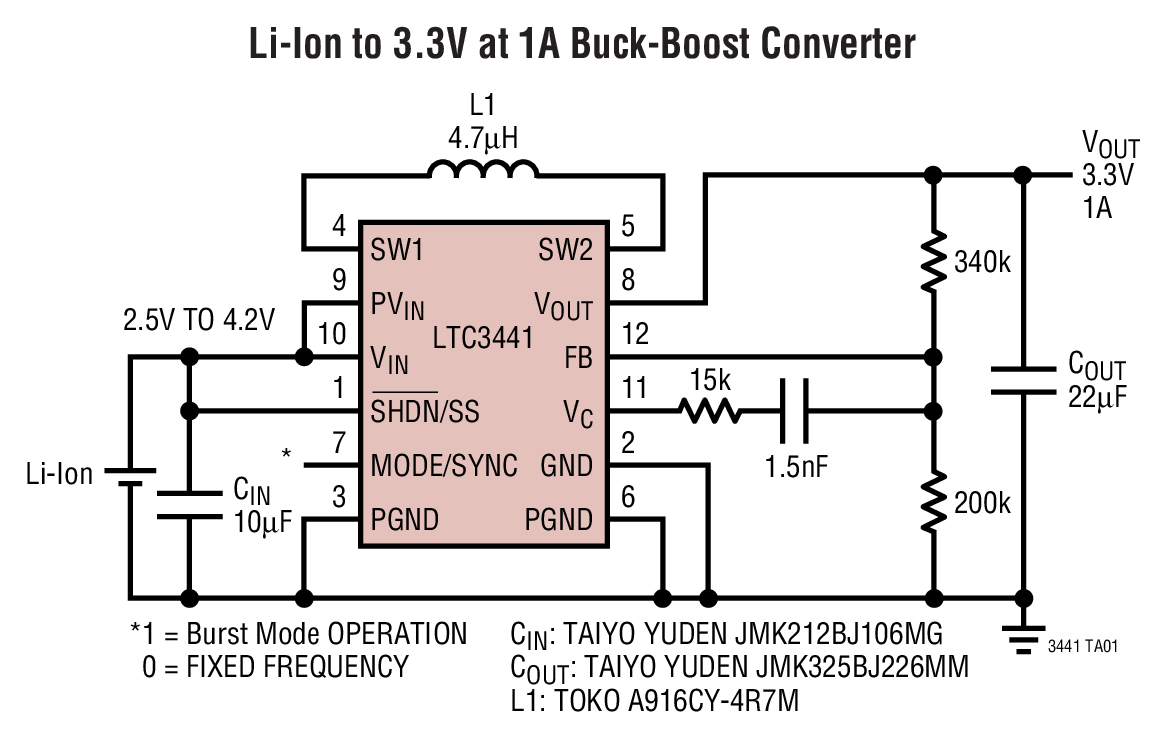

LTC3441High Current Micropower Synchronous Buck-Boost DC/DC Converter | Voltage Regulators - DC DC Switching Regulators | 2 | Active | The LTC3441 is a high efficiency, fixed frequency, buck-boost DC/DC converter that operates efficiently from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides a continuous transfer function through all operating modes, making the product ideal for single lithium ion or multicell applications where the output voltage is within the battery voltage range.The device includes two 0.10Ω N-channel MOSFET switches and two 0.11Ω P-channel switches. External Schottky diodes are optional, and can be used for a moderate efficiency improvement. The operating frequency is internally set to 1MHz and can be synchronized up to 1.7MHz. Quiescent current is only 25µA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and can be enabled by driving the MODE/SYNC pin high. If the MODE/SYNC pin is driven low or with a clock, then fixed frequency switching is enabled.Other features include a 1µA shutdown, soft-start control, thermal shutdown and current limit. The LTC3441 is available in a thermally enhanced 12-lead (4mm × 3mm) DFN package.ApplicationsHandheld ComputersHandheld InstrumentsMP3 PlayersDigital Cameras |
