Analog Devices Inc./Maxim Integrated

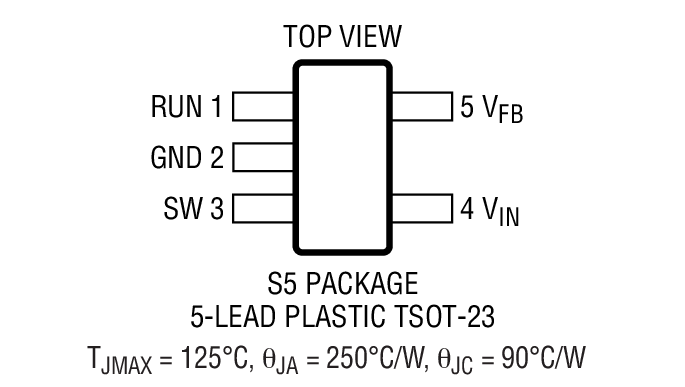

The LTC3406AB-2 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current with no load is 200µA and drops to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406AB-2 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3406AB-2 is available in a low profile (1mm) ThinSOT package. Refer to LTC3406A for applications that require Burst Mode®operation.VOUTFSWFeaturesLTC3406Adj.1.5MHzBurst ModeLTC3406-1.21.2V1.5MHzBurst ModeLTC3406-1.51.5V1.5MHzBurst ModeLTC3406-1.81.8V1.5MHzBurst ModeLTC3406BAdj.1.5MHzBurst Mode DisabledLTC3406B-1.21.2V1.5MHzBurst Mode DisabledLTC3406B-2Adj.2.25MHzBurst Mode DisabledLTC3406AAdj.1.5MHzLow Ripple Burst ModeLTC3406ABAdj.1.5MHzBurst Mode DisabledLTC3406AB-2Adj.2.25MHzBurst Mode DisabledApplicationsCellular TelephonesPersonal Navigation DevicesWireless and DSL ModemsDigital Still CamerasMedia PlayersPortable Instruments

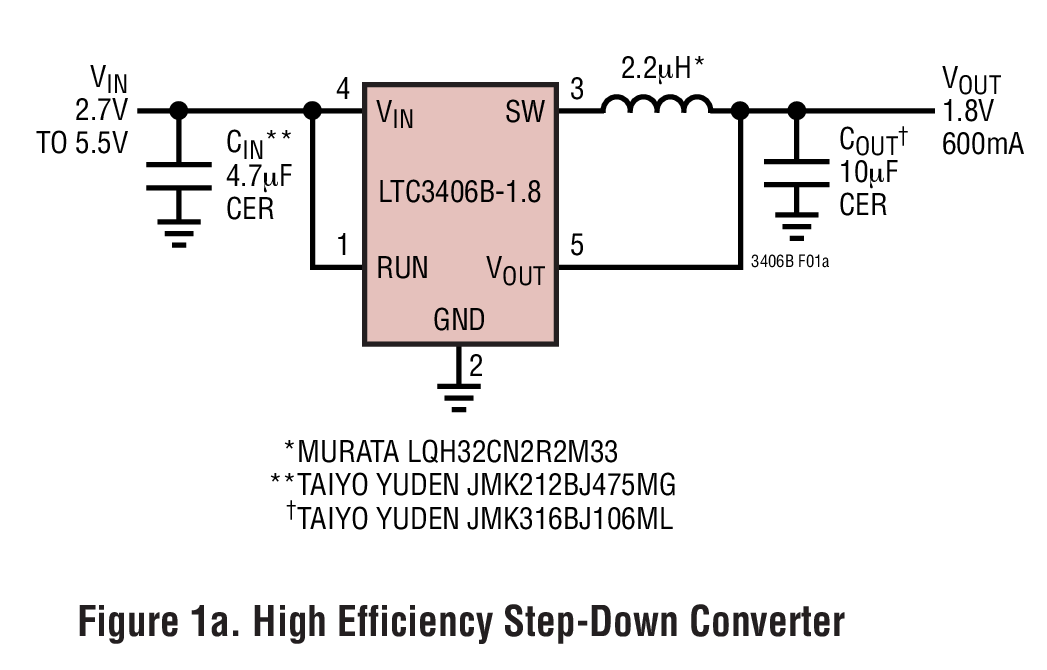

The LTC3406B is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version and fixed output voltages of 1.5V and 1.8V. Supply current with no load is 300µA and drops to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406B ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3406B is available in a low profile (1mm) ThinSOT package. Refer to LTC3406 for applications that require Burst Mode®operation.VOUTFSWFeaturesLTC3406Adj.1.5MHzBurst ModeLTC3406-1.21.2V1.5MHzBurst ModeLTC3406-1.51.5V1.5MHzBurst ModeLTC3406-1.81.8V1.5MHzBurst ModeLTC3406BAdj1.5MHzBurst Mode DisabledLTC3406B-1.21.2V1.5MHzBurst Mode DisabledLTC3406B-2Adj.2.25MHzBurst Mode DisabledLTC3406AAdj.1.5MHzLow Ripple Burst ModeLTC3406ABAdj.1.5MHzBurst Mode DisabledLTC3406AB-2Adj.2.25MHzBurst Mode DisabledApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments

The LTC3406B-1.2 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current with no load is 300µA dropping to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406B-1.2 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. The LTC3406B-1.2 is available in a low profile (1mm) ThinSOT package.Protected by U.S. Patents including 5481178, 6580258, 6304066, 6127815, 6498466, 6611131.VoutFswFeaturesLTC3406Adj.1.5MHzBurst ModeLTC3406-1.21.2V1.5MHzBurst ModeLTC3406-1.51.5V1.5MHzBurst ModeLTC3406-1.81.8V1.5MHzBurst ModeLTC3406BAdj.1.5MHzBurst Mode DisabledLTC3406B-1.21.2V1.5MHzBurst Mode DisabledLTC3406B-2Adj.2.25MHzBurst Mode DisabledLTC3406AAdj.1.5MHzLow Ripple Burst ModeLTC3406ABAdj.1.5MHzBurst Mode DisabledLTC3406AB-2Adj.2.25MHzBurst Mode DisabledApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments

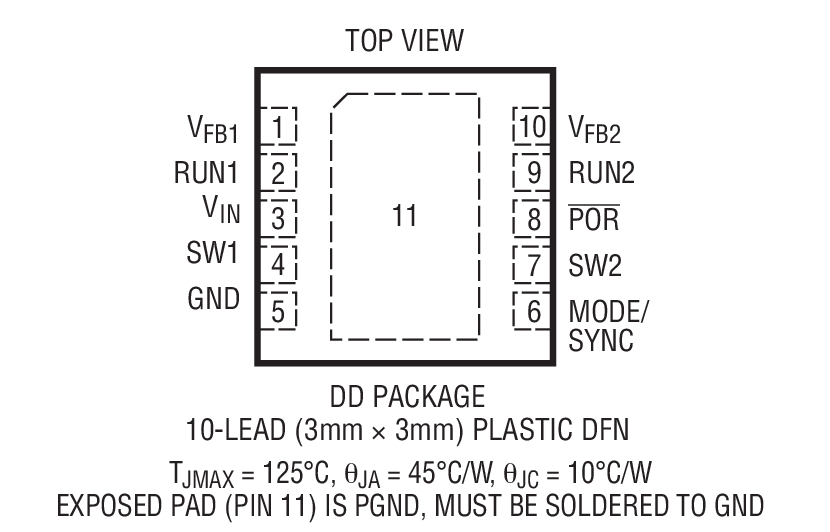

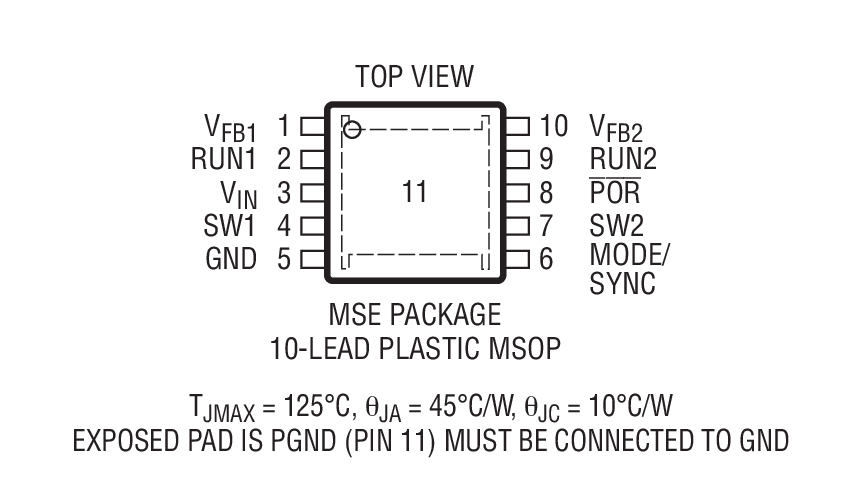

The LTC3407-4 is a dual, constant frequency, synchronous step down DC/DC converter. Intended for low power applications, it operates from 2.5V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, allowing the use of tiny, low cost capacitors and inductors with a profile ≤1mm. Each output voltage is adjustable from 0.6V to 5V. Internal synchronous 0.35Ω, 1.2A power switches provide high efficiency without the need for external Schottky diodes.A user selectable mode input is provided to allow the user to trade-off noise ripple for low power efficiency. Burst Mode®operation provides high efficiency at light loads, while Pulse Skip Mode provides low noise ripple at light loads.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40µA. In shutdown, the device draws <1µA.The LTC3407-4 is identical to the LTC3407-2 except for the reduced power-on reset delay time.IoutFswFeaturesLTC34072x 600mA1.5MHzLTC3407-22x 800mA2.25MHzLTC3407-32x 800mA2.25MHzFixed 1.8V/3.3VLTC3407-42x 800mA2.25MHzReduced POR DelayLTC3407A2x 600mA1.5MHzLow Ripple Burst ModeLTC3407A-22x 800mA2.25MHzLow Ripple Burst ModeApplicationsPDAs/Palmtop PCsDigital CamerasCellular PhonesPortable Media PlayersPC CardsWireless and DSL Modems

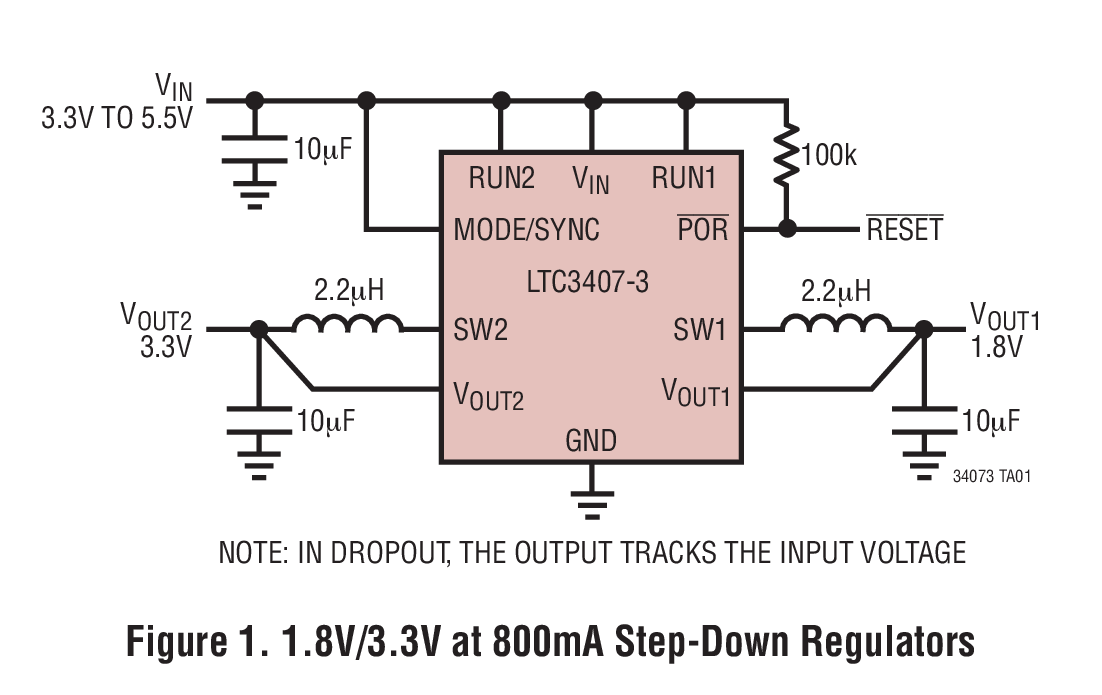

The LTC3407-3 is a dual, constant frequency, synchronous step down DC/DC converter. Intended for low power applications, it operates from 3.3V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, allowing the use of tiny, low cost capacitors and inductors with a profile ≤1.0mm. Internal synchronous 0.35Ω, 1.2A power switches provide high efficiency without the need for external Schottky diodes.A user selectable mode input is provided to allow the user to trade-off noise ripple for low power efficiency. Burst Mode®operation provides high efficiency at light loads, while Pulse Skip Mode provides low noise ripple at light loads.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40µA. In shutdown, the device draws <1µA.IoutFswFeaturesLTC34072x 600mA1.5MHzLTC3407-22x 800mA2.25MHzLTC3407-32x 800mA2.25MHzFixed 1.8V/3.3VLTC3407-42x 800mA2.25MHzReduced POR DelayLTC3407A2x 600mA1.5MHzLow Ripple Burst ModeLTC3407A-22x 800mA2.25MHzLow Ripple Burst ModeApplicationsPDAs/Palmtop PCsDigital CamerasCellular PhonesPortable Media PlayersPC CardsWireless and DSL Modems

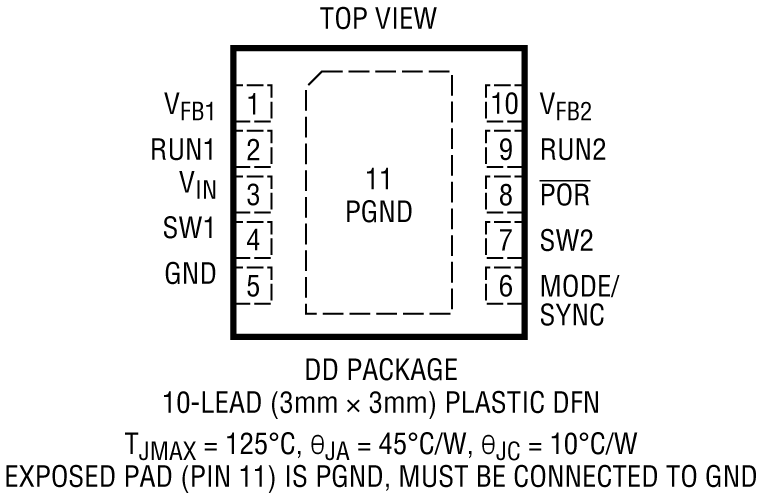

The LTC3407-4 is a dual, constant frequency, synchronous step down DC/DC converter. Intended for low power applications, it operates from 2.5V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, allowing the use of tiny, low cost capacitors and inductors with a profile ≤1mm. Each output voltage is adjustable from 0.6V to 5V. Internal synchronous 0.35Ω, 1.2A power switches provide high efficiency without the need for external Schottky diodes.A user selectable mode input is provided to allow the user to trade-off noise ripple for low power efficiency. Burst Mode®operation provides high efficiency at light loads, while Pulse Skip Mode provides low noise ripple at light loads.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40µA. In shutdown, the device draws <1µA.The LTC3407-4 is identical to the LTC3407-2 except for the reduced power-on reset delay time.IoutFswFeaturesLTC34072x 600mA1.5MHzLTC3407-22x 800mA2.25MHzLTC3407-32x 800mA2.25MHzFixed 1.8V/3.3VLTC3407-42x 800mA2.25MHzReduced POR DelayLTC3407A2x 600mA1.5MHzLow Ripple Burst ModeLTC3407A-22x 800mA2.25MHzLow Ripple Burst ModeApplicationsPDAs/Palmtop PCsDigital CamerasCellular PhonesPortable Media PlayersPC CardsWireless and DSL Modems

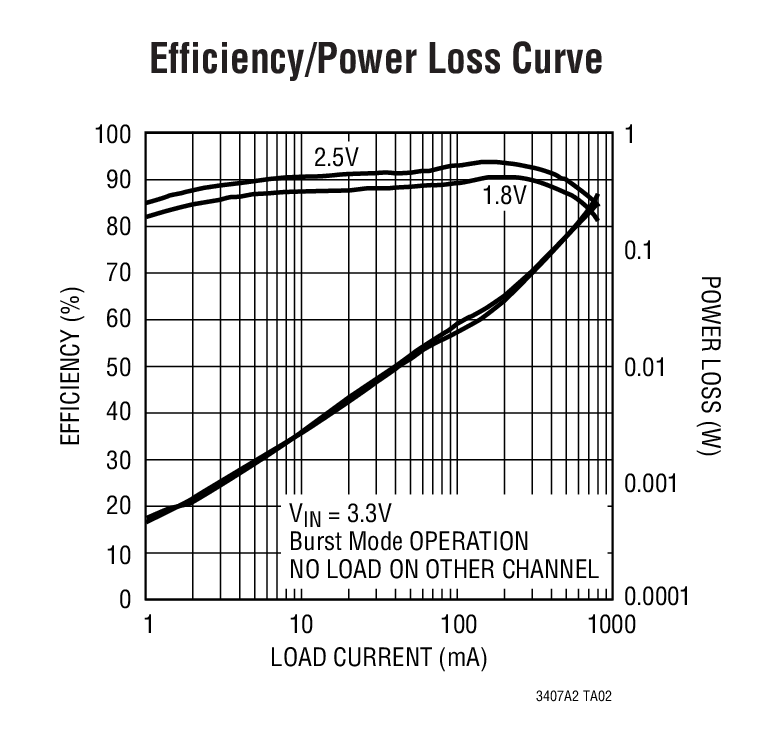

The LTC3407A-2 is a dual, constant frequency, synchronous step-down DC/DC converter. Intended for low power applications, it operates from a 2.5V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, enabling the use of tiny, low cost capacitors and inductors 1mm or less in height. Each output voltage is adjustable from 0.6V to 5V. Internal synchronous 0.35Ω, 1A power switches provide high efficiency without the need for external Schottky diodes.A user selectable mode input is provided to allow the user to trade-off ripple noise for low power efficiency. Burst Mode®operation provides the highest efficiency at light loads, while Pulse Skip Mode provides the lowest ripple noise at light loads.To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40µA. In shutdown, the device draws <1µA.IOUTFSWFeaturesLTC34072x 600mA1.5MHzLTC3407-22x 800mA2.25MHzLTC3407-32x 800mA2.25MHzFixed 1.8V/3.3VLTC3407-42x 800mA2.25MHzReduced POR DelayLTC3407A2x 800mA1.5MHzLow Ripple Burst ModeLTC3407A-22x 800mA2.25MHzLow Ripple Burst ModeApplicationsPDAs/Palmtop PCsDigital CamerasCellular PhonesWireless and DSL Modems
