LTC34051.375V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT | Power Management (PMIC) | 9 | Active | The LTC3405A is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 20µA and drops to <1µA in shutdown. The 2.5V to5.5V input voltage range makes the LTC3405A ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors.The LTC3405A is specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.8V feedback reference voltage. The LTC3405A is available in a low profile (1mm) ThinSOT package.For fixed 1.5V and 1.8V output versions, refer to theLTC3405A-1.5/LTC3405A-1.8 data sheet.Protected by U.S. Patents, including 6580258, 5481178.VoutFeaturesLTC3405Adj.-LTC3405AAdj.Stable With All Ceramic CapsLTC3405A-1.3751.375VStable With All Ceramic CapsLTC3405A-1.51.5VStable With All Ceramic CapsLTC3405A-1.81.8VStable With All Ceramic CapsApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments |
| Voltage Regulators - DC DC Switching Regulators | 1 | Active | |

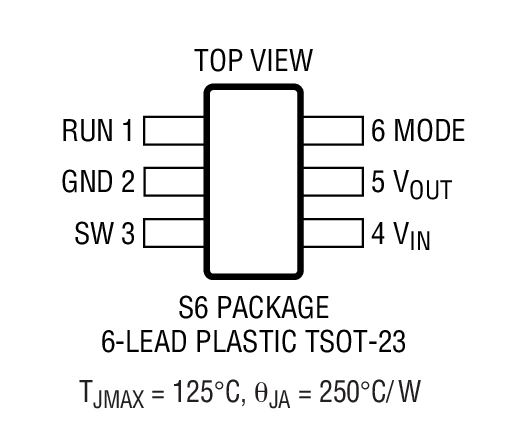

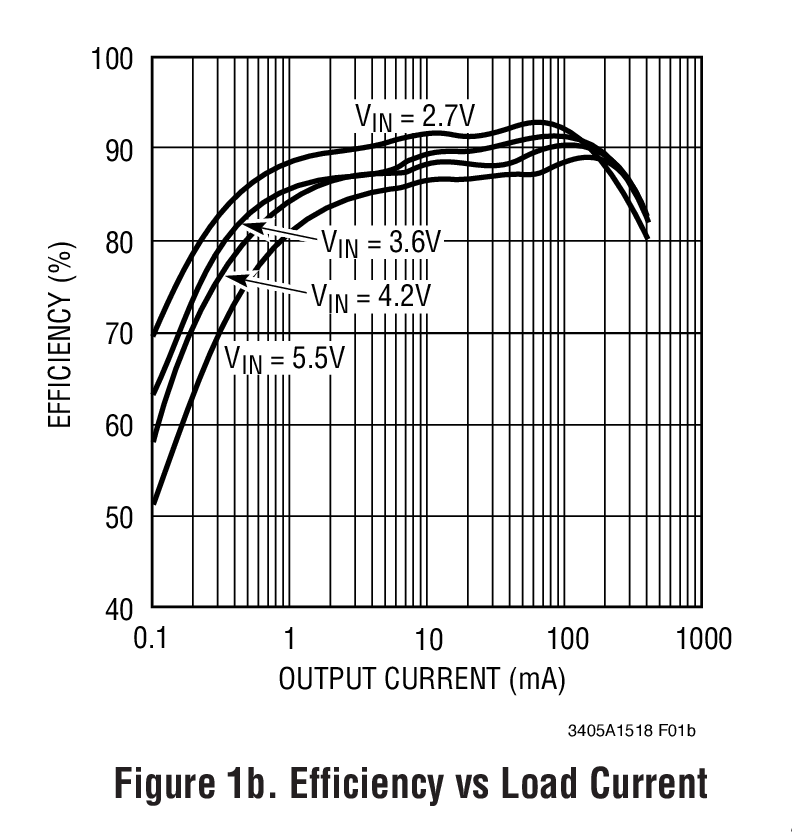

LTC3405A-1.51.5V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT | Integrated Circuits (ICs) | 1 | Active | The LTC3405A-1.5/LTC3405A-1.8 are high efficiency monolithic synchronous buck regulators using a constant frequency, current mode architecture. Supply current during operation is only 20µA and drops to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3405A-1.5/LTC3405A-1.8 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors.The LTC3405A-1.5/LTC3405A-1.8 are specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. The LTC3405A-1.5/LTC3405A-1.8 are available in a low profile (1mm) ThinSOT package.For adjustable output voltage, refer to the LTC3405A data sheet.Protected by U.S. Patents, including 6580258, 5481178.VoutFeaturesLTC3405Adj.-LTC3405AAdj.Stable With All Ceramic CapsLTC3405A-1.3751.375VStable With All Ceramic CapsLTC3405A-1.51.5VStable With All Ceramic CapsLTC3405A-1.81.8VStable With All Ceramic CapsApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments |
LTC3405A-1.81.8V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT | Integrated Circuits (ICs) | 1 | Active | The LTC3405A-1.5/LTC3405A-1.8 are high efficiency monolithic synchronous buck regulators using a constant frequency, current mode architecture. Supply current during operation is only 20µA and drops to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3405A-1.5/LTC3405A-1.8 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors.The LTC3405A-1.5/LTC3405A-1.8 are specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. The LTC3405A-1.5/LTC3405A-1.8 are available in a low profile (1mm) ThinSOT package.For adjustable output voltage, refer to the LTC3405A data sheet.Protected by U.S. Patents, including 6580258, 5481178.VOUTFeaturesLTC3405Adj.-LTC3405AAdj.Stable With All Ceramic CapsLTC3405A-1.3751.375VStable With All Ceramic CapsLTC3405A-1.51.5VStable With All Ceramic CapsLTC3405A-1.81.8VStable With All Ceramic CapsApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments |

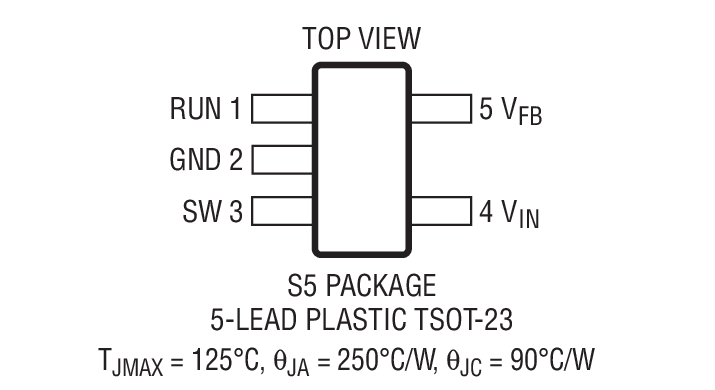

LTC34062.25MHz, 600mA Synchronous Step-Down Regulator in ThinSOT | Voltage Regulators - DC DC Switching Regulators | 18 | Active | The LTC3406B is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version and fixed output voltages of 1.5V and 1.8V. Supply current with no load is 300µA and drops to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406B ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3406B is available in a low profile (1mm) ThinSOT package. Refer to LTC3406 for applications that require Burst Mode®operation.VOUTFSWFeaturesLTC3406Adj.1.5MHzBurst ModeLTC3406-1.21.2V1.5MHzBurst ModeLTC3406-1.51.5V1.5MHzBurst ModeLTC3406-1.81.8V1.5MHzBurst ModeLTC3406BAdj1.5MHzBurst Mode DisabledLTC3406B-1.21.2V1.5MHzBurst Mode DisabledLTC3406B-2Adj.2.25MHzBurst Mode DisabledLTC3406AAdj.1.5MHzLow Ripple Burst ModeLTC3406ABAdj.1.5MHzBurst Mode DisabledLTC3406AB-2Adj.2.25MHzBurst Mode DisabledApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments |

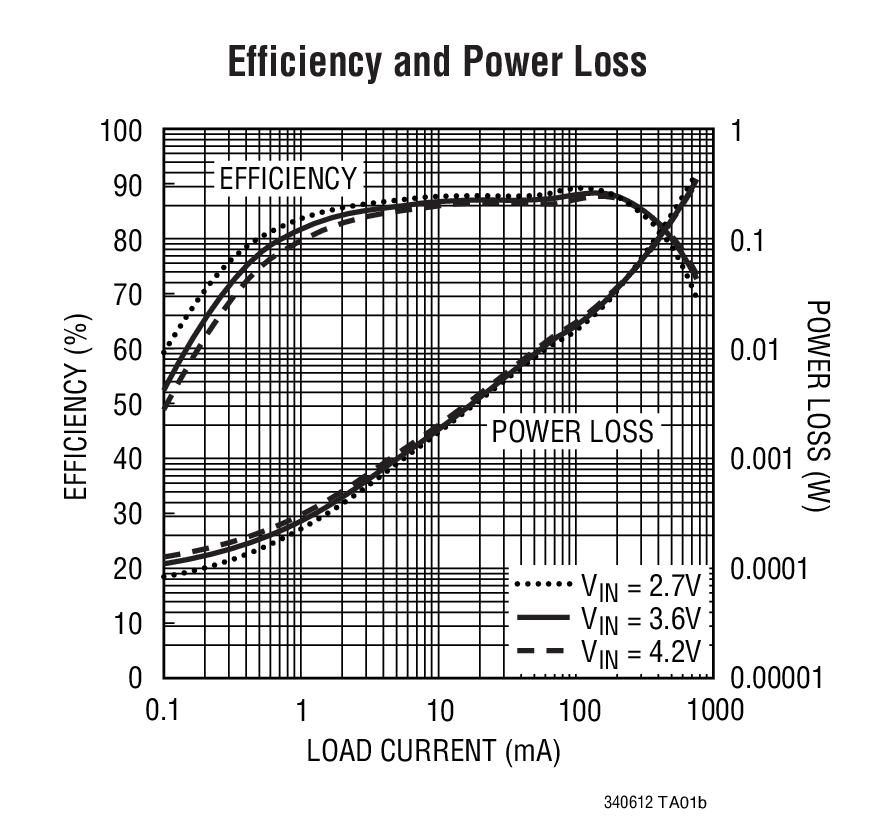

LTC3406-1.21.5MHz, 600mA Synchronous Step-Down Regulator in ThinSOT | Integrated Circuits (ICs) | 1 | Active | The LTC3406-1.2 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation with only 20µA drops <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406-1.2 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. Automatic Burst Mode operation further increases efficiency at light loads.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. The LTC3406-1.2 is available in a low profile (1mm) ThinSOT package.Protected by U.S. Patents including 5481178, 6580258, 6304066, 6127815, 6498466, 6611131.VoutFswFeaturesLTC3406Adj.1.5MHzBurst ModeLTC3406-1.21.2V1.5MHzBurst ModeLTC3406-1.51.5V1.5MHzBurst ModeLTC3406-1.81.8V1.5MHzBurst ModeLTC3406BAdj.1.5MHzBurst Mode DisabledLTC3406B-1.21.2V1.5MHzBurst Mode DisabledLTC3406B-2Adj.2.25MHzBurst Mode DisabledLTC3406AAdj.1.5MHzLow Ripple Burst ModeLTC3406ABAdj.1.5MHzBurst Mode DisabledLTC3406AB-2Adj.2.25MHzBurst Mode DisabledApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments |

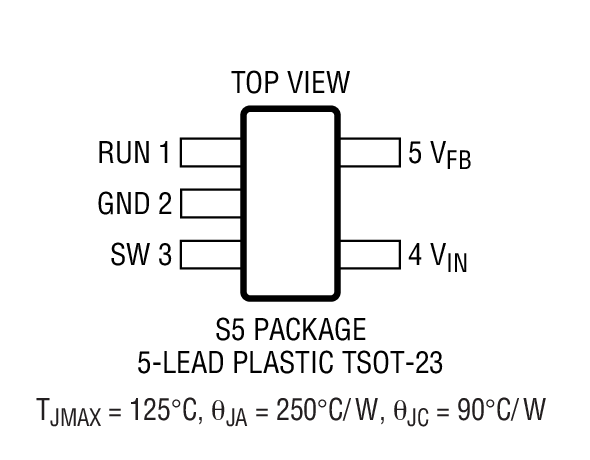

LTC3406-1.81.5MHz, 600mA Synchronous Step-Down Regulator in ThinSOT | Power Management (PMIC) | 1 | Active | The LTC3406 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version and fixed output voltages of 1.5V and 1.8V. Supply current during operation is only 20µA and drops to <=1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. Automatic Burst Mode®operation increases efficiency at light loads, further extending battery life.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3406 is available in a low profile (1mm) ThinSOT package.Protected by U.S. Patents, including 6580258, 5481178.VoutFswFeaturesLTC3406Adj.1.5MHzBurst ModeLTC3406-1.21.2V1.5MHzBurst ModeLTC3406-1.51.5V1.5MHzBurst ModeLTC3406-1.81.8V1.5MHzBurst ModeLTC3406BAdj.1.5MHzBurst Mode DisabledLTC3406B-1.21.2V1.5MHzBurst Mode DisabledLTC3406B-2Adj.2.25MHzBurst Mode DisabledLTC3406AAdj.1.5MHzLow Ripple Burst ModeLTC3406ABAdj.1.5MHzBurst Mode DisabledLTC3406AB-2Adj.2.25MHzBurst Mode DisabledApplicationsCellular TelephonesPersonal Information AppliancesWireless and DSL ModemsDigital Still CamerasMP3 PlayersPortable Instruments |

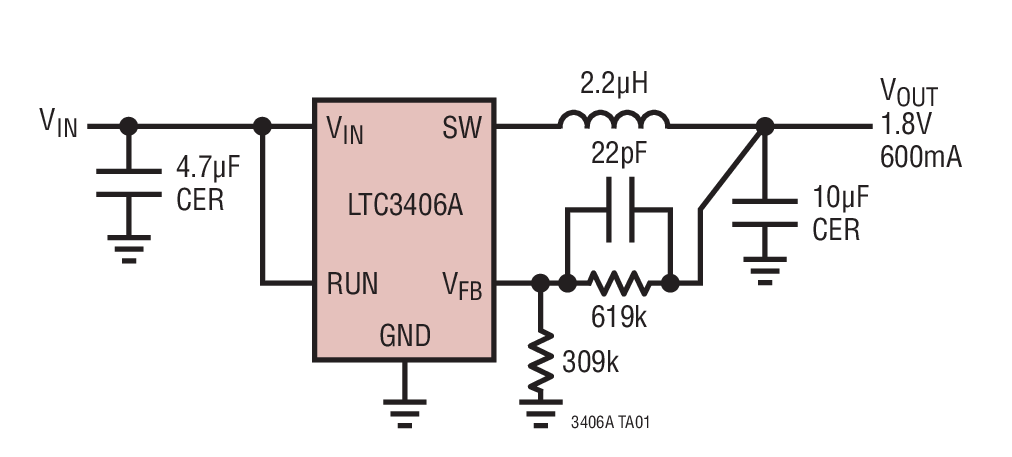

LTC3406A1.5MHz, 600mA Synchronous Step-Down Regulator in ThinSOT | Voltage Regulators - DC DC Switching Regulators | 1 | Active | The LTC3406A is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 20µA, dropping to ≤1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406A ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery runtime portable systems. Automatic Burst Mode operation increases efficiency at light loads, further extending battery runtime.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3406A is available in a low profile (1mm) ThinSOT package.VoutFswFeaturesLTC3406Adj.1.5MHzBurst ModeLTC3406-1.21.2V1.5MHzBurst ModeLTC3406-1.51.5V1.5MHzBurst ModeLTC3406-1.81.8V1.5MHzBurst ModeLTC3406BAdj.1.5MHzBurst Mode DisabledLTC3406B-1.21.2V1.5MHzBurst Mode DisabledLTC3406B-2Adj.2.25MHzBurst Mode DisabledLTC3406AAdj.1.5MHzLow Rippe Burst ModeLTC3406ABAdj.1.5MHzBurst Mode DisabledLTC3406AB-2Adj.2.25MHzBurst Mode DisabledApplicationsCellular TelephonesWireless and DSL ModemsDigital Still CamerasMedia PlayersPortable InstrumentsPoint of Load Regulation |
