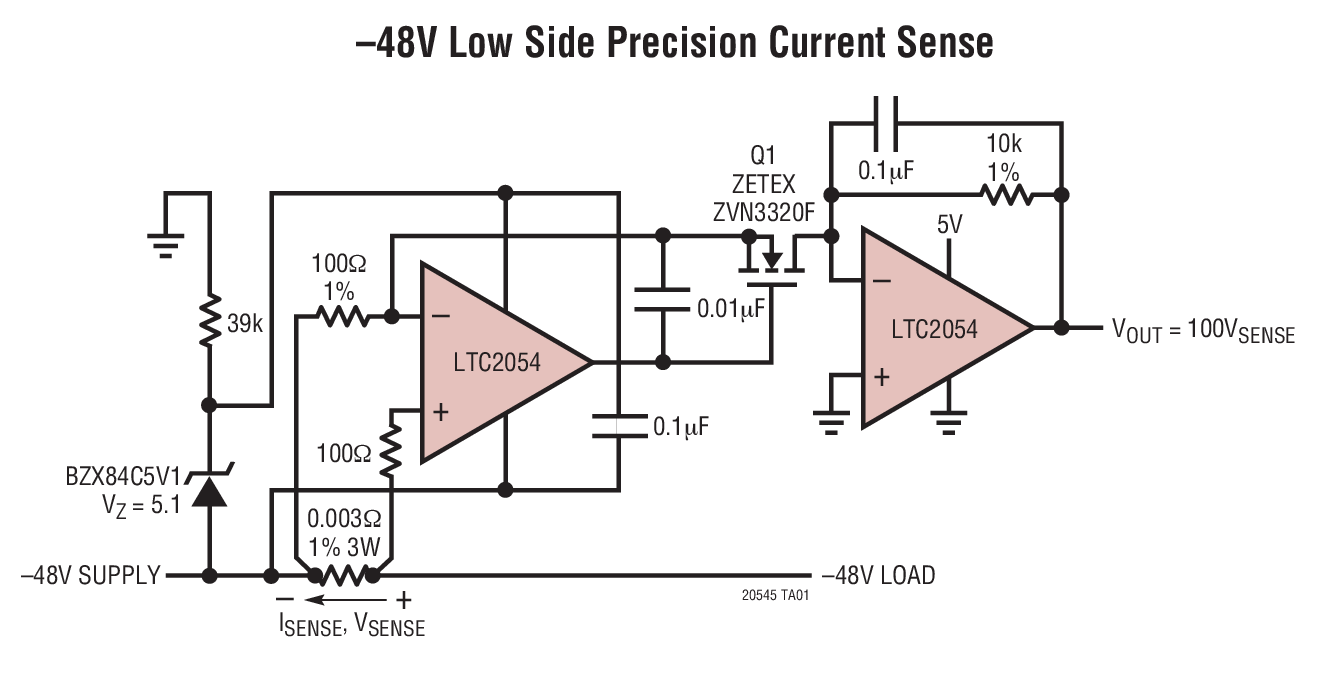

The LTC2054/LTC2055 are low power, low noise, single/dual, zero-drift operational amplifiers with an extended temperature version (LTC2054MP) that has guaranteed specifications from –55°C to 150°C. They are available in SOT-23 (ThinSOT™) and MS8 packages. For space limited applications, the LTC2055 is also available in a 3mm × 3mm × 0.8mm dual fine pitch leadless package (DFN). They operate from a single 2.7V minimum supply and support ± 5V applications. The current consumption is typically 150μA for the LTC2054 and 130μA/amp for the LTC2055.The LTC2054/LTC2055, despite their miniature size, feature uncompromising DC performance. The maximum input offset voltage and offset drift are 3.0μV and 30nV/°C over the –40°C to 85°C industrial temperature range. The almost zero DC offset and drift are supported with a power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) of 130dB (typ).The input common mode voltage ranges from the negative supply up to typically 0.5V below the positive supply. The open-loop gain is typically 140dB. The LTC2054/LTC2055 also feature a 1.6μVP-PDC to 10Hz noise and a 500kHz gain-bandwidth product.ApplicationsThermocouple AmplifiersElectronic ScalesMedical InstrumentationStrain Gauge AmplifiersHigh Resolution Data AcquisitionDC Accurate RC Active FiltersLow Side Current SenseBattery-Powered Systems

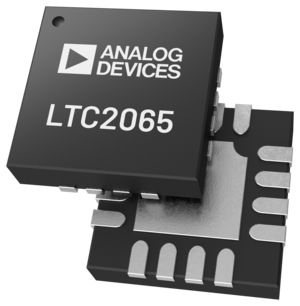

The LTC2063/LTC2064/LTC2065 are single, dual, and quad low power, zero-drift, 20kHz amplifiers. The LTC2063/LTC2064/LTC2065 enable high resolution measurement at extremely low power levels.Typical supply current is 1.4µA per amplifier with a maximum of 2µA. The available shutdown mode has been optimized to minimize power consumption in duty-cycled applications and features low charge loss during power-up, reducing total system power.The LTC2063/LTC2064/LTC2065’s self-calibrating circuitry results in very low input offset (5µV max) and offset drift (0.02µV/°C). The maximum input bias current is only 20pA and does not exceed 100pA over the full specified temperature range. The extremely low input bias current of the LTC2063/LTC2064/LTC2065 allows the use of high value power-saving resistors in the feedback network.With its ultralow quiescent current and outstanding precision, the LTC2063/LTC2064/LTC2065 can serve as a signal chain building block in portable, energy harvesting and wireless sensor applications.The LTC2063 is available in 6-lead SC70 and 5-lead TSOT-23 packages. The LTC2064 is available in 8-lead MSOP and 10-lead DFN packages. The LTC2065 is available in 14-lead TSSOP and 16-lead 3mm × 3mm QFN packages. These devices are fully specified over the –40°C to 85°C and –40°C to 125°C temperature ranges.ApplicationsSignal Conditioning in Wireless Mesh NetworksPortable Instrumentation SystemsLow-Power Sensor ConditioningGas DetectionTemperature MeasurementMedical InstrumentationEnergy Harvesting ApplicationsLow Power Current Sensing
