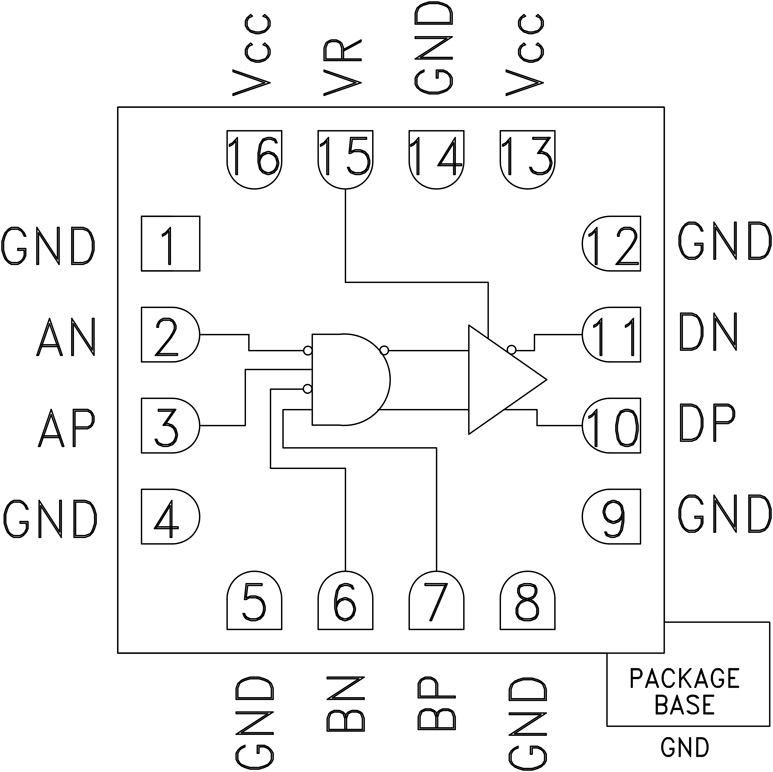

The HMC748 is a 2:1 Selector designed to support data transmission rates of up to 13 Gbps, and selector port operation of up to 13 GHz. The selector routes one of the two single-ended inputs to the differential output upon assertion of the proper select port. The HMC748 also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.All single-ended input signals to the HMC748 are terminated with 50 ohms to VCCon-chip, and may be either AC or DC coupled. The outputs of the HMC748 may be operated either differentially or single-ended. Inputs or outputs can be connected directly to a 50 ohm to VCCterminated system, while DC blocking capacitors may be used if the terminating system is 50 ohms to ground. The HMC748 operates from a single +3.3V DC supply and is housed in a ceramic RoHS compliant 3x3 mm SMT package.APPLICATIONS2:1 Multiplexer up to 13 GbpsRF ATE ApplicationsBroadband Test & MeasurementSerial Data Transmission up to 13 GbpsRedundant Path SwitchingBuilt-in Test

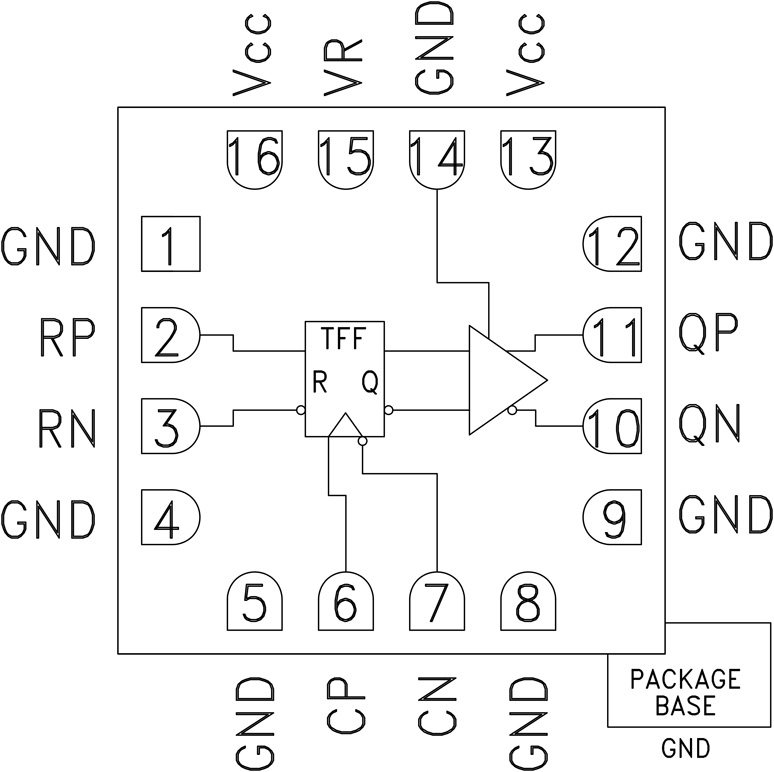

The HMC749LC3C is a T Flip-Flop w/Reset designed to support clock frequencies as high as 26 GHz. During normal operation, with the reset pin not asserted, the output toggles from its prior state on the positive edge of the clock. This results in a divide-by two function of the clock input. Asserting the reset pin forces the Q output low regardless of the clock edge state (asynchronous reset assertion). Reversing the clock inputs allows for negative-edge triggered applications. The HMC749LC3C also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.All input signals to the HMC749LC3C are terminated with 50 to Vcc on-chip, and may be either AC or DC coupled. inputs or outputs can be connected directly to a 50 Vcc terminated system, while DC blocking capacitors may be used if the terminating system is 50Ω ground. The HMC749LC3C operates from a single +3.3V DC supply and is available in a ceramic RoHS compliant 3x3 mm SMT package.APPLICATIONSSerial Data Transmission up to 26 GbpsHigh Speed Frequency Divider (up to 26 GHz)Broadband Test & MeasurementRF ATE Applications

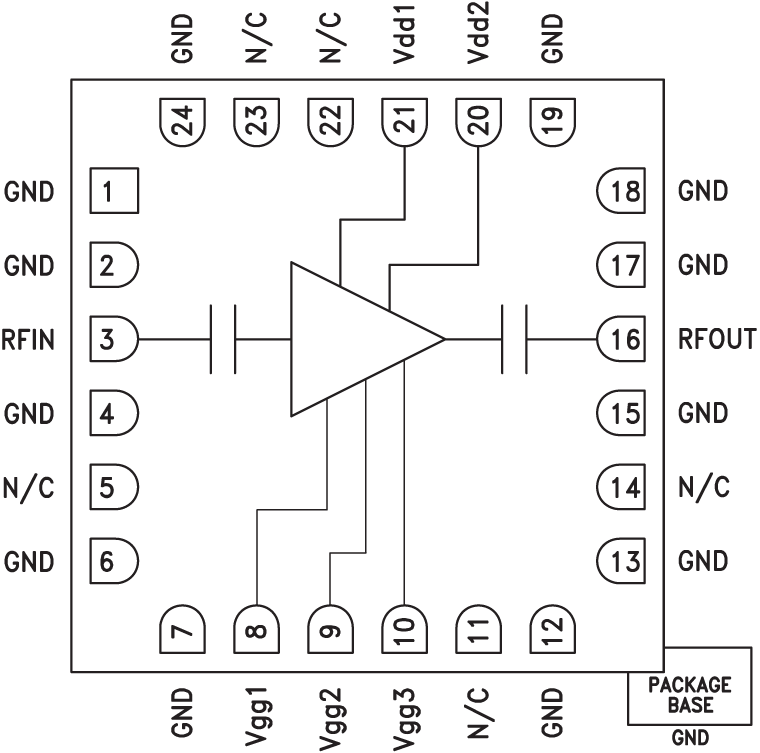

The HMC753 is a GaAs MMIC Low Noise Wideband Amplifier housed in a leadless 4x4 mm plastic surface mount package. The amplifier operates between 1 and 11 GHz, providing up to 16.5 dB of small signal gain, 1.5 dB noise figure, and output IP3 of +30 dBm, while requiring only 55 mA from a +5V supply. The P1dB output power of up to +18 dBm enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The HMC753 also features I/Os that are DC blocked and internally matched to 50 Ohms, making it ideal for high capacity microwave radios or VSAT applications. This versatile LNA is also available in die form as the HMC-ALH444.ApplicationsPoint-to-Point RadiosPoint-to-Multi-Point RadiosMilitary & SpaceTest Instrumentation.
