Analog Devices Inc./Maxim Integrated

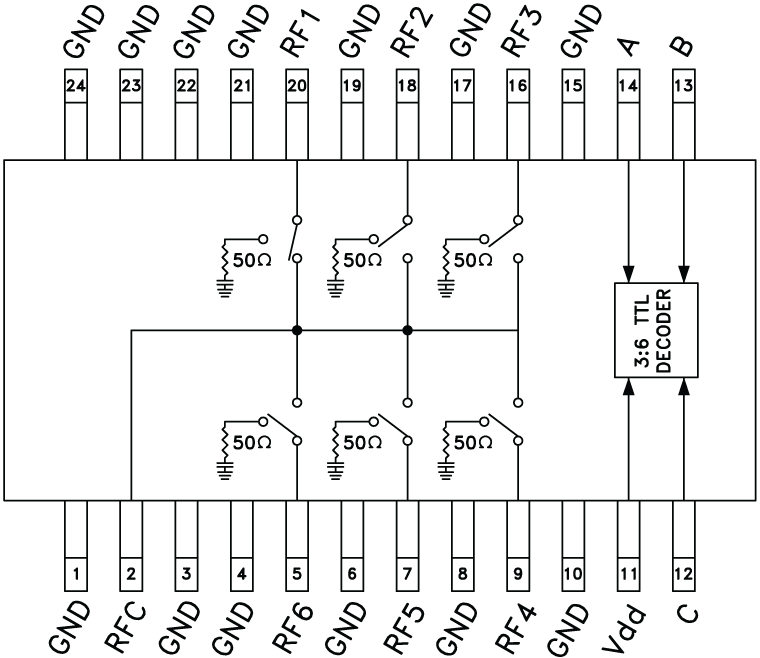

The HMC252AQS24E is low-cost non-reflective SP6T switches in 24-lead QSOP packages featuring wideband operation from DC to 3.0 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC252AQS24E SP6T replaces multiple configurations of SP4T and SPDT MMIC switches and logic drivers.ApplicationsBase stationCATV / DBSMMDS and wireless LANTest equipment

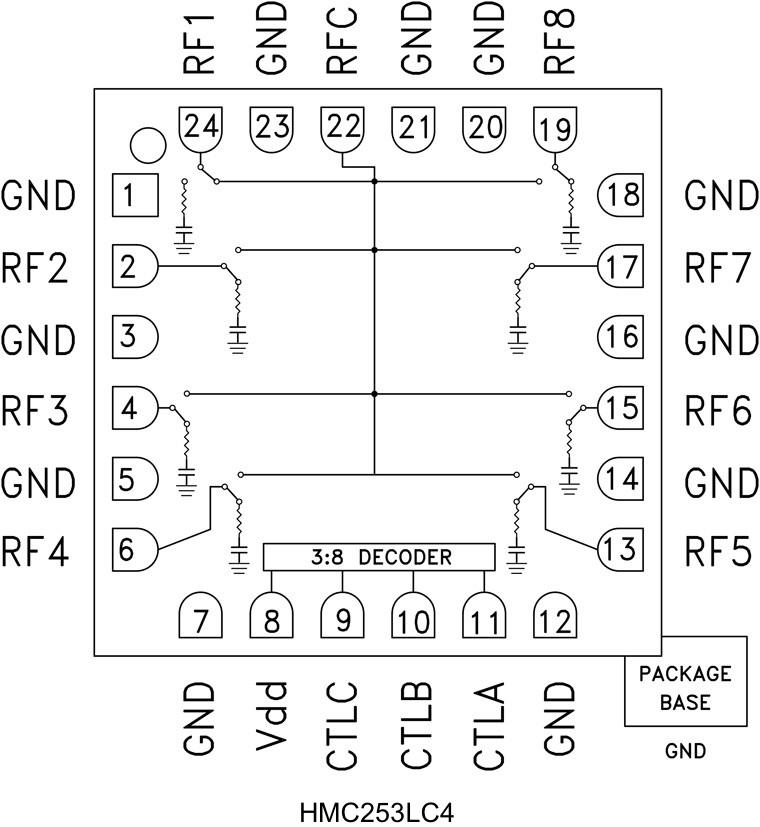

The HMC253ALC4 is a non-reflective SP8T switch in a leadless RoHS compliant 4x4 mm ceramic SMT package featuring wideband operation from DC to 3.5 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility enabling it to operate with 0/+3V control and a +5V supply. A 3:8 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC253ALC4 SP8T will replace multiple configurations of SP4T and SPDT MMIC switches.ApplicationsBasestations & RepeatersWiMAX/WiBro, and Fixed WirelessCellular/3G infrastructureCATV/DBSMilitary & Hi-Rel

The HMC253AQS24 & HMC253AQS24E are lowcost non-reflective SP8T switches in 24-lead QSOP packages featuring wideband operation from DC to 2.5 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:8 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC253AQS24 & HMC253AQS24E SP8T will replace multiple configurations of SP4T and SPDT MMIC switches.ApplicationsCATV/DBSCDMACellular/PCS

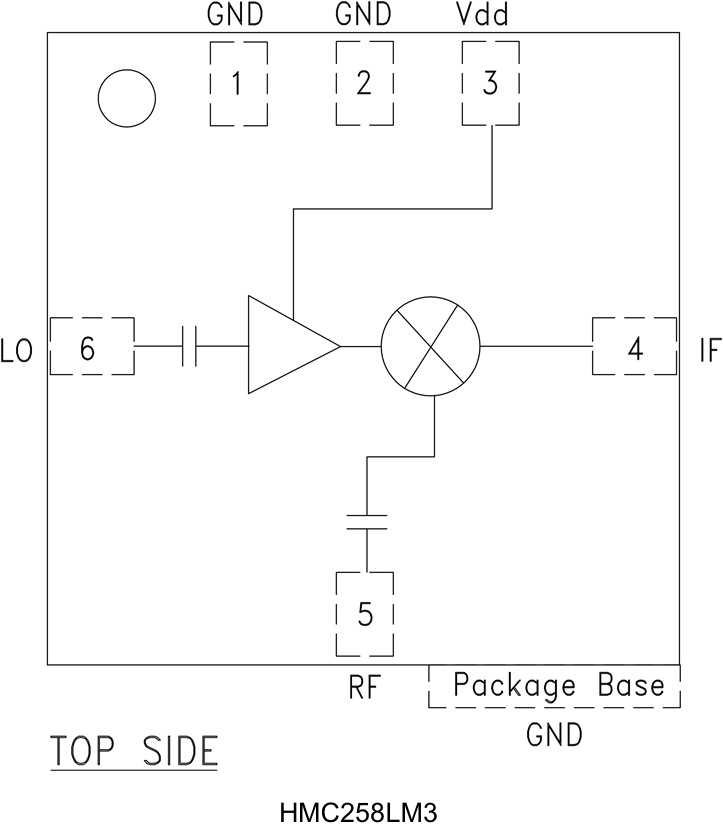

The HMC258 devices are sub-harmonically pumped (×2) single-ended monolithic microwave integrated circuit (MMIC) mixers with integrated LO amplifiers which can be used as upconverters or downconverters. The HMC258 devices are available in a chip (HMC258), an SMT leadless ceramic package (HMC258LC3B), and an SMT leadless chip carrier package (HMC258LM3). The HMC258 utilizes a GaAs metal semiconductor field effect transistor (MESFET) technology that results in a small overall chip area of 0.9 mm2. The 2LO to RF isolation is excellent, eliminating the need for additional filtering. The LO amplifier is a single bias (5 V) two stage design with only 0 dBm drive requirement.A less stringent oscillator design is made possible by the low LO drive and sub harmonic nature of the HMC258 chip. All data is with the chip in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter wire bonds of minimal length less than 0.31 mm (<12 mils). The HMC258LC3B requires no external matching components, making it ideal for integrated subsystem applications. All data for the HMC258LM3 is with the nonhermetic, epoxy sealed LM3 packaged device mounted in a 50 Ω test fixture. Utilizing the HMC258LC3B or the HMC258LM3 eliminates the need for wire bonding, thereby providing a consistent connection interface for the customer.ApplicationsMicrowave point-to-point radiosVery small aperture terminal (VSAT)Satellite communications (SATCOM)Test and measurement equipmentMilitary and space14 GHz and 20 GHz microwave radios (HMC258LM3)

The HMC260 devices are double-balanced mixers available as a passive chip (HMC260) and a general purpose, leadless RoHS compliant SMT package (HMC260LC3B), both of which can be used as an upconverter or downconverter between 14 GHz and 26 GHz. These mixers require no external components or matching circuitry and provide excellent LO to RF and LO to IF suppression due to optimized balun structures. The mixer operates with LO drive levels greater than 9 dBm. Measurements for the HMC260 were made with the chip mounted and bonded into in a 50 Ω test fixture. Data includes the parasitic effects of wire bond assembly. Connections were made with a 3 mil ribbon bond with minimal length (<12 mil).The HMC260LC3B eliminates the need for wire bonding, allowing use of surface mount manufacturing techniques.ApplicationsPoint-to-point radiosPoint-to-multipoint radios and very small aperture terminal (VSAT)Test equipment and sensorsMilitary end use

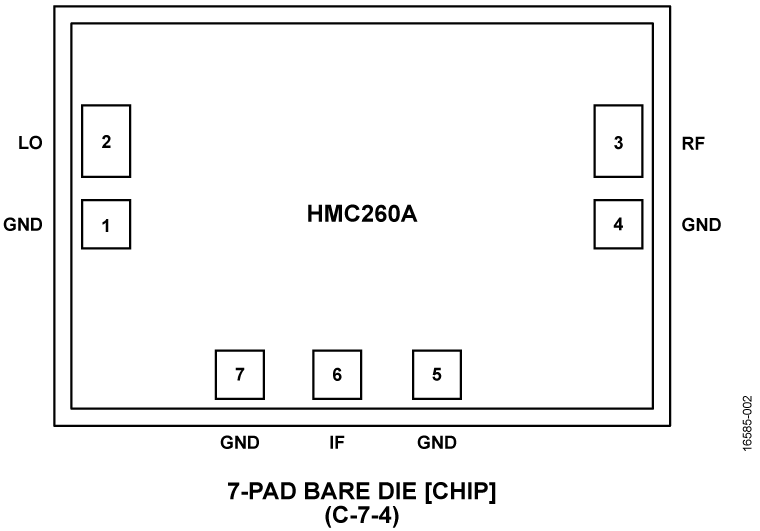

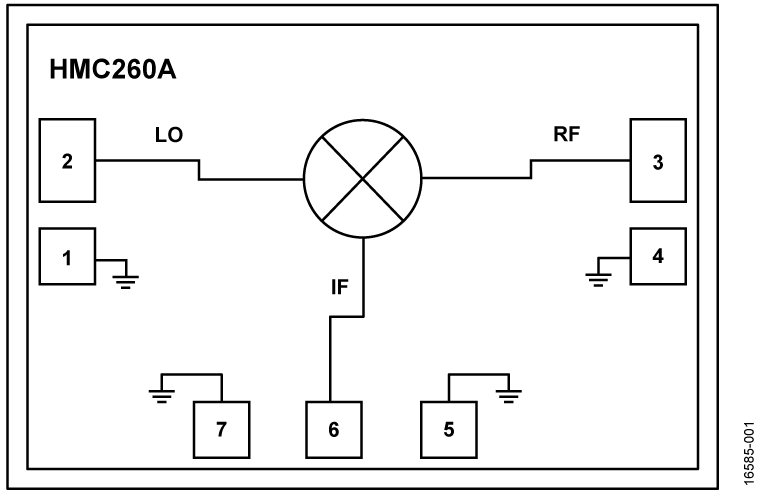

The HMC260A is a general-purpose, double balanced mixer chip that can be used as an upconverter or downconverter from 10 GHz to 26 GHz. This miniature monolithic mixer (MMIC) requires no external components or matching circuitry.The HMC260A provides excellent LO to RF and LO to IF suppression due to optimized balun structures. The mixer operates well with LO drive levels of 13 dBm or above. The HMC260A is also available in SMT format as theHMC260ALC3B.ApplicationsPoint to point radiosPoint to multipoint radios and very small aperture terminals (VSATs)Test equipment and sensorsMilitary end use

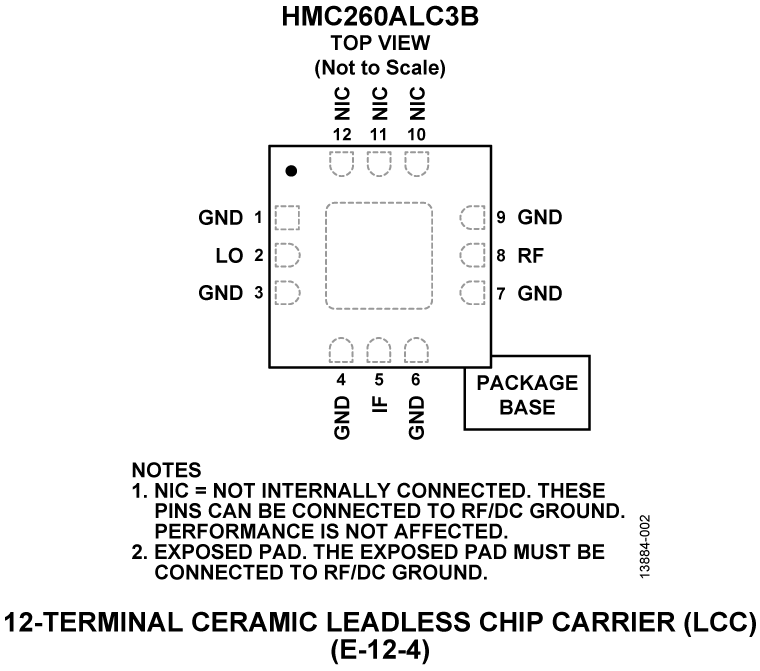

The HMC260ALC3B is a general-purpose, double balanced, monolithic microwave integrated circuit (MMIC) mixer housed in a leadless, Pb-free, RoHS compliant LCC package. The device can be used as an upconverter or downconverter in the 10 GHz to 26 GHz frequency range. The HMC260ALC3B mixer requires no external components or matching circuitry.The HMC260ALC3B provides local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) suppression due to optimized balun structures. The mixer operates with LO amplitude levels between 9 dBm and 15 dBm. The HMC260ALC3B eliminates the need for wire bonding, allowing the use of surface-mount manufacturing techniques.ApplicationsPoint to point radiosPoint to multipoint radios and very small aperture terminals (VSATs)Test equipment and sensorsMilitary end use

The HMC263 chip is a GaAs MMIC Low Noise Amplifier (LNA) which covers the frequency range of 24 to 36 GHz. The chip can easily be integrated into Multi-Chip Modules (MCMs) due to its small (3.29 mm²) size. The chip utilizes a GaAs PHEMT process offering 22 dB gain from a single bias supply of +3V @ 58 mA with a noise figure of 2 dB. All data is with the chip in a 50 ohm test fixture connected via 0.076 mm (3 mil) diameter ribbon bonds of minimal length 0.31 mm (<12 mils). The HMC263 may be used in conjunction with HMC264 or HMC265 mixers to realize a millimeterwave system receiver.ApplicationsMillimeterwave Point-to-Point RadiosLMDSVSATSATCOM

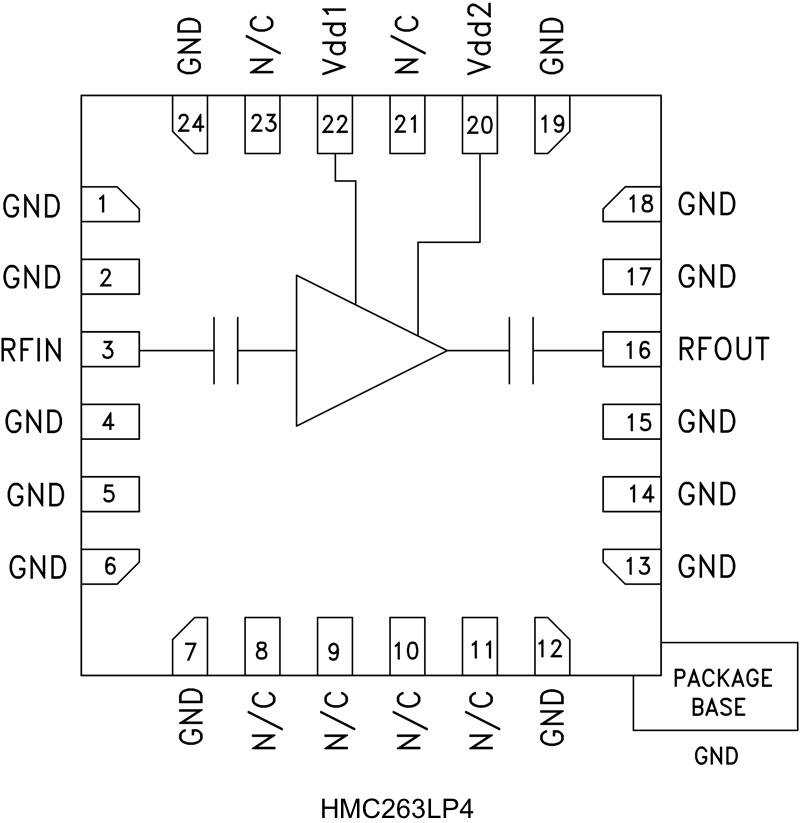

The HMC263LP4E is a GaAs MMI C Low Noise Amplifier (LNA) which covers the frequency range of 24 to 36 GHz and is housed in a leadless plastic SMT package. The HMC263LP4E utilizes a GaAs PHEMT process offering 20 dB gain from a single bias supply of + 3V @ 58 mA with a noise figure of 2.2 dB. The HMC263LP4E may be used in conjunction withHMC264LC3BorHMC265LM3 mixers to realize a millimeterwave system receiver. The RF I/Os are DC blocked and matched to 50 Ohms requiring no external components.ApplicationsMillimeterwave Point-to-Point RadiosLMDSVSATSATCOM
