HMC253 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC RF SWITCH SP8T 3.5GHZ 24CQFN

Part	Topology	Impedance	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Mounting Type	Insertion Loss	Test Frequency	IIP3	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Range [Max]	Frequency Range [Min]	RF Type	Isolation	P1dB	Package / Case [y]	Contents	Frequency [Max]	Frequency [Min]	Type	Utilized IC / Part	For Use With/Related Products	Supplied Contents
Analog Devices Inc./Maxim Integrated HMC253LC4TR-R5	Absorptive	50 Ohms	24-TFCQFN Exposed Pad	5.5 V	4.5 V	24-CQFN (4x4)	Surface Mount	1.3 dB	3.5 GHz	43 dBm	85 °C	-40 C	3.5 GHz	0 Hz	CATV Cellular	35 dB
Analog Devices Inc./Maxim Integrated HMC253QS24E	Absorptive	50 Ohms	24-SSOP			24-QSOP	Surface Mount	1.8 dB	2.5 GHz	43 dBm	85 °C	-40 C	2.5 GHz	0 Hz	General Purpose	28 dB	23 dBm	0.154 in 3.9 mm Width
Analog Devices Inc./Maxim Integrated HMC253QS24TR	Absorptive	50 Ohms	24-SSOP			24-QSOP	Surface Mount	1.8 dB	2.5 GHz	43 dBm	85 °C	-40 C	2.5 GHz	0 Hz	General Purpose	28 dB	23 dBm	0.154 in 3.9 mm Width
Analog Devices Inc./Maxim Integrated HMC253LC4	Absorptive	50 Ohms	24-TFCQFN Exposed Pad	5.5 V	4.5 V	24-CQFN (4x4)	Surface Mount	1.3 dB	3.5 GHz	43 dBm	85 °C	-40 C	3.5 GHz	0 Hz	CATV Cellular	35 dB
Analog Devices Inc./Maxim Integrated HMC253QS24	Absorptive	50 Ohms	24-SSOP			24-QSOP	Surface Mount	1.8 dB	2.5 GHz	43 dBm	85 °C	-40 C	2.5 GHz	0 Hz	General Purpose	28 dB	23 dBm	0.154 in 3.9 mm Width
Analog Devices Inc./Maxim Integrated HMC253ALC4	Absorptive	50 Ohms	24-TFCQFN Exposed Pad			24-CQFN (4x4)	Surface Mount	1.1 dB	2 GHz	43 dBm	85 °C	-40 C	3.5 GHz	0 Hz	WiMAX	43 dB	24 dBm
Analog Devices Inc./Maxim Integrated EV1HMC253AQS24																			Board(s)	2.5 GHz	0 Hz	Switch SP8T	HMC253AQS24
Analog Devices Inc./Maxim Integrated HMC253LC4TR	Absorptive	50 Ohms	24-TFCQFN Exposed Pad	5.5 V	4.5 V	24-CQFN (4x4)	Surface Mount	1.3 dB	3.5 GHz	43 dBm	85 °C	-40 C	3.5 GHz	0 Hz	CATV Cellular	35 dB

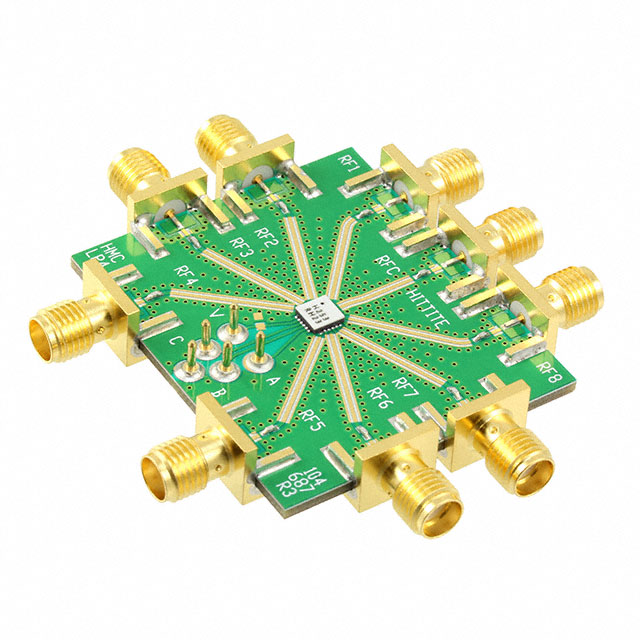

Analog Devices Inc./Maxim Integrated 107780-HMC253LC4																			Board(s)	3.5 GHz	0 Hz	Switch SP8T	HMC253LC4	HMC253LC4	Board(s)
Analog Devices Inc./Maxim Integrated HMC253QS24ETR	Absorptive	50 Ohms	24-SSOP			24-QSOP	Surface Mount	1.8 dB	2.5 GHz	43 dBm	85 °C	-40 C	2.5 GHz	0 Hz	General Purpose	28 dB	23 dBm	0.154 in 3.9 mm Width
