AD5781True 18-Bit, Voltage Output DAC ±0.5 LSB INL, ±0.5 LSB DNL | Development Boards, Kits, Programmers | 7 | Active | The AD5781 is a single 18-bit, unbuffered voltage-output DAC that operates from a bipolar supply of up to 33 V. The AD5781 accepts a positive reference input in the range 5V to VDD– 2.5 V and a negative reference input in the range VSS+ 2.5 V to 0 V. The AD5781 offers a relative accuracy specification of ±0.5 LSB max, and operation is guaranteed monotonic with a ±0.5 LSB DNL maximum specification.The part uses a versatile 3-wire serial interface that operates at clock rates up to 35 MHz and that is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides an output clamp feature that places the output in a defined load state.PRODUCT HIGHLIGHTSTrue 18-Bit Accuracy.Wide Power Supply Range of Up to ±16.5 V.−40°C to +125°C Operating Temperature Range.Low 7.5 nV/√HzNoise.Low 0.05 ppm/°C Temperature Drift.APPLICATIONSMedical InstrumentationTest and MeasurementIndustrial ControlScientific and Aerospace InstrumentationData Acquisition SystemsDigital Gain and Offset AdjustmentPower Supply Control |

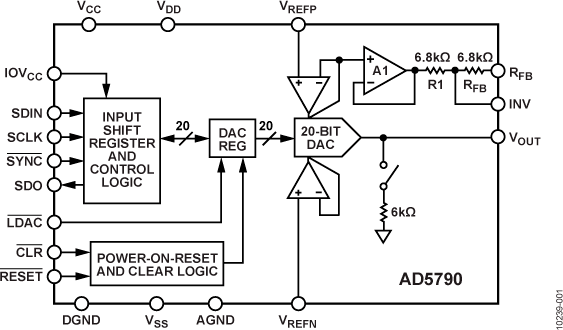

AD5790System Ready 20-Bit, ±2 LSB INL, Voltage Output DAC | Data Acquisition | 2 | Active | The AD5790 is a single 20-bit, voltage out DAC that operates from a bipolar supply up to 33V. Reference buffers are also provided on-chip The AD5790 accepts a positive reference input in the range of 5V to VDD – 2.5V and a negative reference input in the range of VSS + 2.5v to 0V. The AD5790 offers a relative accuracy of +/-2 LSB's max and operation is guaranteed monotonic with a -1 LSB to +3 LSB's DNL specification.The part uses a versatile 3-wire serial interface that operates at clock rates up to 35 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0V and in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides a disable feature that places the output in a defined load state.PRODUCT HIGHLIGHTS20-bit resolutionWide power supply range of up to ±16.5 V.−40°C to +125°C operating temperature range.Low 8 nV/√Hz noise.Low ±0.018 ppm/°C gain error temperature coefficient.APPLICATIONSMedical instrumentationTest and measurementIndustrial controlScientific and aerospace instrumentationData acquisition systemsDigital gain and offset adjustmentPower supply control |
| Expansion Boards, Daughter Cards | 6 | Active | |
| PMIC | 11 | Active | |
| Voltage Reference | 10 | Active | |
| Amplifiers | 3 | Active | |

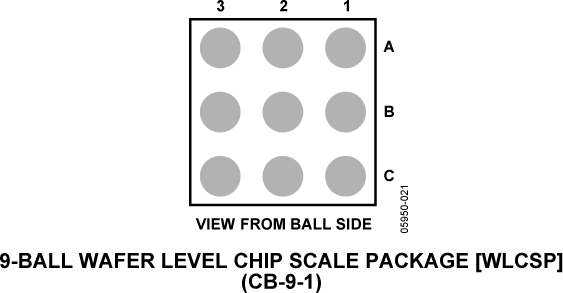

AD5821120 mA, Current Sinking, 10-Bit, I2C DAC | Evaluation Boards | 5 | Active | The AD5821 is a single 10-bit digital-to-analog converter with 120 mA output current sink capability. It features an internal reference and operates from a single 2.7 V to 5.5 V supply. The DAC is controlled via a 2-wire (I2C-compatible) serial interface that operates at clock rates up to 400 kHz.The AD5821 incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V and remains there until a valid write takes place. It has a power-down feature that reduces the current consumption of the device to 1 µA maximum.The AD5821 is designed for autofocus, image stabilization, and optical zoom applications in camera phones, digital still cameras, and camcorders.The AD5821 also has many industrial applications, such as controlling temperature, light, and movement, over the range of −40°C to +85°C without derating.The I2C address for the AD5821 is 0x18.CONSUMER APPLICATIONSLens autofocusImage stabilizationOptical zoomShuttersIris/exposureNeutral density (ND) filtersLens coversCamera phonesDigital still camerasCamera modulesDigital video cameras/camcordersCamera-enabled devicesSecurity camerasWeb/PC camerasINDUSTRIAL APPLICATIONSHeater controlsFan controlsCooler (Peltier) controlsSolenoid controlsValve controlsLinear actuator controlsLight controlsCurrent loop controls |
| Digital to Analog Converters (DACs) Evaluation Boards | 1 | Active | |
AD584Pin Programmable Precision Voltage Reference | Integrated Circuits (ICs) | 9 | Active | The AD584 is an 8-terminal precision voltage reference offering pin programmable selection of four popular output voltages: 10.000 V, 7.500 V, 5.000 V and 2.500 V. Other output voltages, above, below, or between the four standard outputs, are available by the addition of external resistors. The input voltage can vary between 4.5 V and 30 V.Laser wafer trimming (LWT) is used to adjust the pin programmable output levels and temperature coefficients, resulting in the most flexible high precision voltage reference available in monolithic form.In addition to the programmable output voltages, the AD584 offers a unique strobe terminal that permits the device to be turned on or off. When the AD584 is used as a power supply reference, the supply can be switched off with a single, low power signal. In the off state, the current drained by the AD584 is reduced to approximately 100 μA. In the on state, the total supply current is typically 750 μA, including the output buffer amplifier.The AD584 is recommended for use as a reference for 8-, 10-, or 12-bit digital-to-analog converters (DACs) that require an external precision reference. In addition, the device is ideal for analog-to-digital converters (ADCs) of up to 14-bit accuracy, either successive approximation or integrating designs, and in general, it can offer better performance than that provided by standard self-contained references.The AD584J and AD584K are specified for operation from 0°C to +70°C, and the AD584S and AD584T are specified for the −55°C to +125°C range. All grades are packaged in a hermetically sealed, eight-terminal TO-99 metal can, and the AD584J and AD584K are also available in an 8-lead PDIP. |
AD585Complete Monolithic SHA Circuit | Amplifiers | 8 | Active | The AD585 is a complete monolithic sample-and-hold circuit consisting of a high performance operational amplifier in series with an ultralow leakage analog switch and a FET input integrating amplifier. An internal holding capacitor and matched applications resistors have been provided for high precision and applications flexibility.The performance of the AD585 makes it ideal for high speed 10- and 12-bit data acquisition systems, where fast acquisition time, low sample-to-hold offset, and low droop are critical. The AD585 can acquire a signal to ±0.01% in 3 µs maximum, and then hold that signal with a maximum sample-to-hold offset of 3 mV and less than 1 mV/ms droop, using the on-chip hold capacitor. If lower droop is required, it is possible to add a larger external hold capacitor.The high speed analog switch used in the AD585 exhibits aperture jitter of 0.5 ns, enabling the device to sample full scale (20 V peak-to-peak) signals at frequencies up to 78 kHz with 12-bit precision.The AD585 can be used with any user-defined feedback net-work to provide any desired gain in the sample mode. On-chip precision thin-film resistors can be used to provide gains of +1, -1, or +2. Output impedance in the hold mode is sufficiently low to maintain an accurate output signal even when driving the dynamic load presented by a successive-approximation A/D converter. However, the output is protected against damage from accidental short circuits.The control signal for the HOLD command can be either active high or active low. The differential HOLD signal is compatible with all logic families, if a suitable reference level is provided. An on-chip TTL reference level is provided for TTL compatibility.The AD585 is available in three performance grades. The JP grade is specified for the 0°C to +70°C commercial temperature range and packaged in a 20-pin PLCC. The AQ grade is specified for the -25°C to +85°C industrial temperature range and is packaged in a 14-pin cerdip. The SQ and SE grades are specified for the -55°C to +125°C military temperature range and are packaged in a 14-pin cerdip and 20-pin LCC. |
