AD5781 Series

True 18-Bit, Voltage Output DAC ±0.5 LSB INL, ±0.5 LSB DNL

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

True 18-Bit, Voltage Output DAC ±0.5 LSB INL, ±0.5 LSB DNL

Part	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Reference Type	Output Type	Number of D/A Converters	Number of Bits	Mounting Type	Architecture	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Min)	Data Interface	Package Length	Package Width	Differential Output	Settling Time (Typical)	DNL (LSB)	INL (LSB)	DNL (LSB) Tolerance	INL (LSB) Tolerance	DAC Type	Settling Time	Contents	Number of DAC's	Utilized IC / Part	DNL (Max) (LSB)	INL (Max) (LSB)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)
Analog Devices Inc./Maxim Integrated AD5781SRU-EP	2.7 V	5.5 V	20-TSSOP	125 °C	-55 °C	External	Voltage - Unbuffered	1 count	18 bits	Surface Mount	R-2R	-2.5 V	16.5 V	16.5 V	7.5 V	DSP SPI	0.173 in	4.4 mm	No	1 µs	0.5 LSB	0.5 LSB
Analog Devices Inc./Maxim Integrated AD5781ARUZ	2.7 V	5.5 V	20-TSSOP	125 °C	-40 °C	External	Voltage - Unbuffered	1 count	18 bits	Surface Mount	R-2R	-2.5 V	16.5 V	16.5 V	7.5 V	DSP SPI	0.173 in	4.4 mm	No	1 µs			0.5 LSB	2 LSB
Analog Devices Inc./Maxim Integrated AD5781BRUZ	2.7 V	5.5 V	20-TSSOP	125 °C	-40 °C	External	Voltage - Unbuffered	1 count	18 bits	Surface Mount	R-2R	-2.5 V	16.5 V	16.5 V	7.5 V	DSP SPI	0.173 in	4.4 mm	No	1 µs	0.5 LSB	0.5 LSB
Analog Devices Inc./Maxim Integrated AD5781ARUZ-REEL7	2.7 V	5.5 V	20-TSSOP	125 °C	-40 °C	External	Voltage - Unbuffered	1 count	18 bits	Surface Mount	R-2R	-2.5 V	16.5 V	16.5 V	7.5 V	DSP SPI	0.173 in	4.4 mm	No	1 µs			0.5 LSB	2 LSB

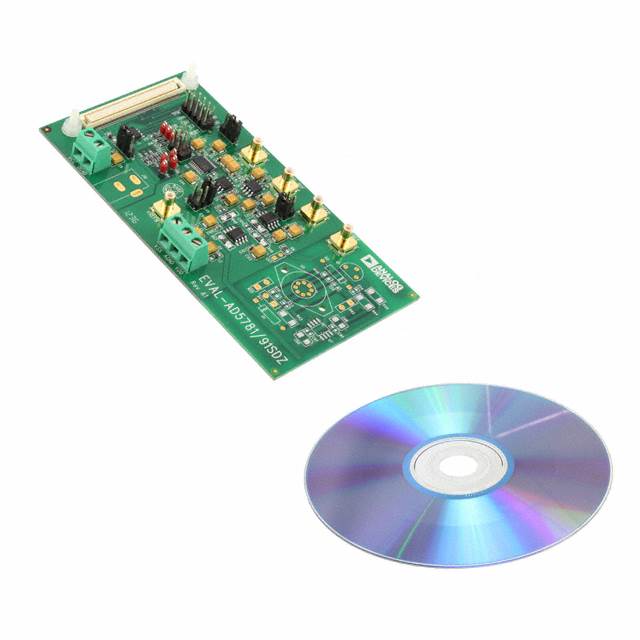

Analog Devices Inc./Maxim Integrated EVAL-AD5781SDZ									18 bits							DSP MICROWIRE™ QSPI™ Serial SPI™									Voltage	1 µs	Board	1	AD5781
Analog Devices Inc./Maxim Integrated AD5781SRUZ-EP	2.7 V	5.5 V	20-TSSOP	125 °C	-55 °C	External	Voltage - Unbuffered	1 count	18 bits	Surface Mount						SPI	0.173 in	4.4 mm	Yes							1 µs				0.5 LSB	0.5 LSB	2.7 V	5.5 V
Analog Devices Inc./Maxim Integrated AD5781BRUZ-REEL7	2.7 V	5.5 V	20-TSSOP	125 °C	-40 °C	External	Voltage - Unbuffered	1 count	18 bits	Surface Mount	R-2R	-2.5 V	16.5 V	16.5 V	7.5 V	DSP SPI	0.173 in	4.4 mm	No	1 µs	0.5 LSB	0.5 LSB

Catalog

True 18-Bit, Voltage Output DAC ±0.5 LSB INL, ±0.5 LSB DNL

Description

The AD5781 is a single 18-bit, unbuffered voltage-output DAC that operates from a bipolar supply of up to 33 V. The AD5781 accepts a positive reference input in the range 5V to VDD– 2.5 V and a negative reference input in the range VSS+ 2.5 V to 0 V. The AD5781 offers a relative accuracy specification of ±0.5 LSB max, and operation is guaranteed monotonic with a ±0.5 LSB DNL maximum specification.The part uses a versatile 3-wire serial interface that operates at clock rates up to 35 MHz and that is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides an output clamp feature that places the output in a defined load state.PRODUCT HIGHLIGHTSTrue 18-Bit Accuracy.Wide Power Supply Range of Up to ±16.5 V.−40°C to +125°C Operating Temperature Range.Low 7.5 nV/√HzNoise.Low 0.05 ppm/°C Temperature Drift.APPLICATIONSMedical InstrumentationTest and MeasurementIndustrial ControlScientific and Aerospace InstrumentationData Acquisition SystemsDigital Gain and Offset AdjustmentPower Supply Control
