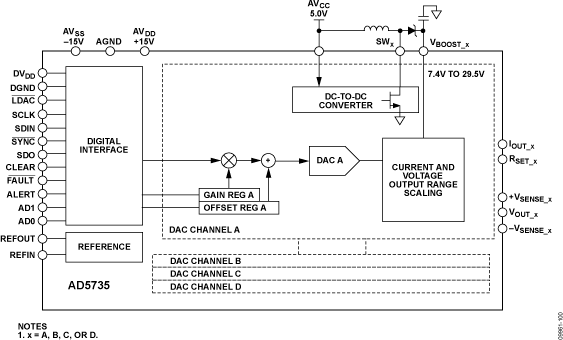

| Digital to Analog Converters (DAC) | 2 | Active | |

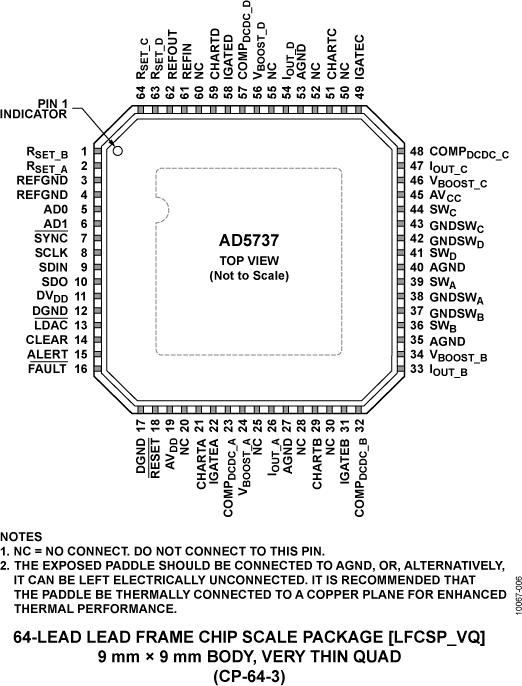

AD5737Quad Channel, 12-Bit, Serial Input, 4-20mA Output DAC with Dynamic Power Control and HART Connectivity | Integrated Circuits (ICs) | 2 | Active | The AD5737 is a quad-channel current output DAC that operates with a power supply range from 10.8 V to 33 V. On-chip dynamic power control minimizes package power dissipation by regulating the voltage on the output driver from 7.4 V to 29.5 V using a dc-to-dc boost converter optimized for minimum on-chip power dissipation.Each channel has a corresponding CHART pin so that HART signals can be coupled onto the current output of the AD5737.The AD5737 uses a versatile 3-wire serial interface that operates at clock rates of up to 30 MHz and is compatible with standard SPI, QSPI™, MICROWIRE®, DSP, and microcontroller interface standards. The serial interface also features optional CRC-8 packet error checking, as well as a watchdog timer that monitors activity on the interface.For a 16 bit equivalent solution, look at the AD5757. For a voltage and current configurable version, see the AD5755, AD5755-1 or AD5735.Product HighlightsDynamic power control for thermal management.12-bit performance.Quad channel.HART compliant.ApplicationsProcess controlActuator ControlPLCsHART Network Connectivity |

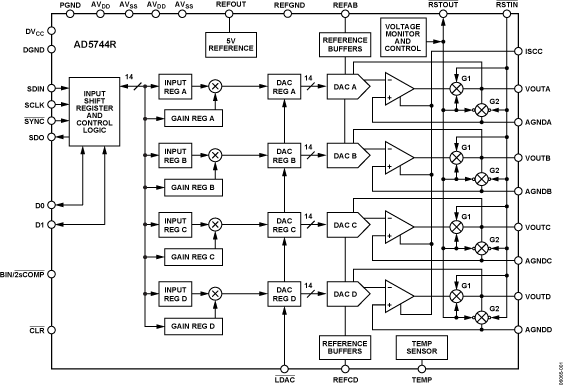

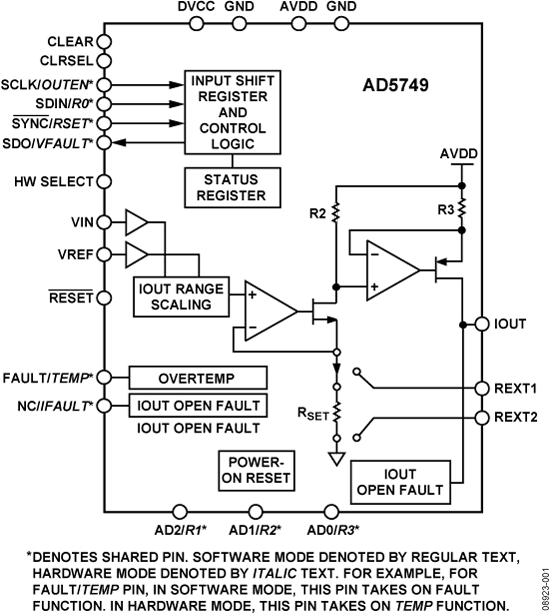

AD5744Complete Quad, 14-Bit, High Accuracy, Serial Input, Bipolar Voltage Output D/A Converter | Digital to Analog Converters (DAC) | 2 | Active | The AD5744R is a quad, 14-bit, serial input, bipolar voltage output DAC that operates from supply voltages of ±11.4 V to ±16.5 V. Nominal full-scale output range is ±10 V. The AD5744R provides integrated output amplifiers, reference buffers, and proprietary power-up/power-down control circuitry. The part also features a digital I/O port, programmed via the serial interface, and an analog temperature sensor. The part incorporates digital offset and gain adjust registers per channel.The AD5744R is a high performance converter that provides guaranteed monotonicity, integral nonlinearity (INL) of ±1 LSB, low noise, and 10 μs settling time. The AD5744R includes an on-chip 5 V reference with a reference temperature coefficient of 10 ppm/°C maximum. During power-up when the supply voltages are changing, VOUTx is clamped to 0 V via a low impedance path.The AD5744R is based on theiCMOS®technology platform, which is designed for analog systems designers within industrial/instrumentation equipment OEMs who need high performance ICs at higher voltage levels.iCMOS enables the development of analog ICs capable of 30 V and operation at ±15 V supplies, while allowing reductions in power consumption and package size, coupled with increased ac and dc performance.The AD5744R uses a serial interface that operates at clock rates of up to 30 MHz and is compatible with DSP and microcontroller interface standards. Double buffering allows the simultaneous updating of all DACs. The input coding is programmable to either twos complement or offset binary formats. The asynchronous clear function clears all DATA registers to either bipolar zero or zero scale, depending on the coding used. The AD5744R is ideal for both closed-loop servo control and open-loop control applications. The AD5744R is available in a 32-lead TQFP and offers guaranteed specifications over the −40°C to +85°C industrial temperature range (see Figure 1 for the functional block diagram).APPLICATIONSIndustrial automationOpen-loop/closed-loop servo controlProcess controlData acquisition systemsAutomatic test equipmentAutomotive test and measurementHigh accuracy instrumentation |
| Amplifiers | 1 | Active | |
| Data Acquisition | 29 | Active | |
| Integrated Circuits (ICs) | 3 | Active | |
| Integrated Circuits (ICs) | 2 | Active | |

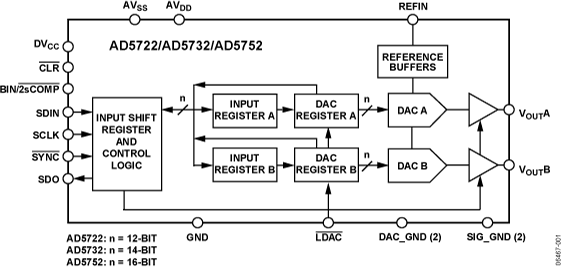

AD5752Complete, Dual, 16-Bit, Serial Input, Unipolar/Bipolar, Voltage Output DAC | Digital to Analog Converters (DAC) | 1 | Active | TheAD5722/AD5732/ AD5752 are dual, 12-/14-/16-bit, serial input, voltage output, digital-to-analog converters. They operate from single-supply voltages from +4.5 V up to +16.5 V or dual-supply voltages from ±4.5 V up to ±16.5 V. Nominal full-scale output range is software-selectable from +5 V, +10 V, +10.8 V, ±5 V, ±10 V, or ±10.8 V. Integrated output amplifiers, reference buffers, and proprietary power-up/power-down control circuitry are also provided.The parts offer guaranteed monotonicity, integral nonlinearity (INL) of ±16 LSB maximum, low noise, and 10 μs typical settling time.The AD5722 / AD5732 / AD5752 use a serial interface that operates at clock rates up to 30 MHz and are compatible with DSP and microcontroller interface standards. Double buffering allows the simultaneous updating of all DACs. The input coding is user-selectable twos complement or offset binary for a bipolar output (depending on the state of Pin BIN/2sComp), and straight binary for a unipolar output. The asynchronous clear function clears all DAC registers to a user-selectable zero-scale or midscale output. The parts are available in a 24-lead TSSOP and offer guaranteed specifications over the −40°C to +85°C industrial temperature range.The AD5722 / AD5732 / AD5752 are pin compatible with theAD5724/AD5734/AD5754, which are complete, quad, 12-/14-/ 16-bit, serial input, unipolar/bipolar voltage output DACs.APPLICATIONSIndustrial automationClosed-loop servo control, process controlAutomotive test and measurementProgrammable logic controllers |
| Digital to Analog Converters (DAC) | 2 | Active | |
AD5753Single-Channel, 16-Bit Current and Voltage Output DAC with Dynamic Power Control and HART Connectivity | Data Acquisition | 2 | Active | The AD5753 is a single-channel, voltage and current output digital-to-analog converter (DAC) that operates with a power supply range from a minimum of −33 V on AVSSto a maximum of +33 V on AVDD1with a maximum operating voltage of 60 V between the two rails. On-chip dynamic power control (DPC) minimizes package power dissipation. This minimization is achieved by using buck dc-to-dc converters optimized for minimum on-chip power dissipation to regulate the voltage (VDPC+and VDPC−) that is sent to the VIOUToutput driver circuitry from the ±5 V to ±27 V supply voltage. The CHARTpin enables a Highway Addressable Remote Transducer®(HART) signal to be coupled on the current output.The AD5753 uses a versatile, 4-wire, serial peripheral interface (SPI) that operates at clock rates of up to 50 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, digital signal processor (DSP), and microcontroller interface standards. The interface features an optional SPI cyclic redundancy check (CRC) and a watchdog timer (WDT). The AD5753 offers improved diagnostic features from earlier versions of similar DACs, such as output current monitoring and an integrated, 12-bit diagnostic analog-to-digital converter (ADC). The inclusion of a line protector on the VIOUT, +VSENSE, and −VSENSEpins provides additional robustness.PRODUCT HIGHLIGHTSRange of advanced diagnostic features, including integrated ADC with two external input pins.DPC, using integrated buck dc-to-dc converters for thermal management, which enables higher channel count in small size module housing.Programmable power control (PPC) mode to enable faster than DPC settling time (15 μs typical).Highly robust with output protection from miswire events (±38 V).HART compliant.APPLICATIONSProcess controlActuator controlChannel isolated analog outputsProgrammable logic controller (PLC) and distributed control systems (DCS) applicationsHART network connectivity |
