TheADP1878/ ADP1879 are versatile current mode, synchronous step-down controllers. They provide superior transient response, optimal stability, and current-limit protection by using a constant on-time, pseudo fixed frequency with a programmable current limit, current control scheme. In addition, these devices offer optimum performance at low duty cycles by using a valley, current mode control architecture. This allows the ADP1878 / ADP1879 to drive all N-channel power stages to regulate output voltages to as low as 0.6 V.The ADP1879 is the power saving mode (PSM) version of the device and is capable of pulse skipping to maintain output regulation while achieving improved system efficiency at light loads (see the ADP1879 Power Saving Mode (PSM) section for more information).Available in three frequency options (300 kHz, 600 kHz, and 1.0 MHz, plus the PSM option), the ADP1878 / ADP1879 are well suited for a wide range of applications that require a single-input power supply range from 2.95 V to 20 V. Low voltage biasing is supplied via a 5 V internal low dropout regulator (LDO).In addition, soft start, programmability is included to limit input in-rush current from the input supply during startup and to provide reverse current protection during precharged output conditions. The low-side current sense, current gain scheme and integration of a boost diode, along with the PSM/forced pulsewidth modulation (PWM) option, reduce the external part count and improve efficiency.The ADP1878/ADP1879 operate over the −40°C to +125°C junction temperature range and are available in a 14-Lead LFCSP_WD package.APPLICATIONSTelecom and networking systemsMid to high-end serversSet-top boxesDSP core power supplies

The ADP1882 /ADP1883are versatile current-mode, synchronous step-down controllers that provide superior transient response, optimal stability, and current-limit protection by using a constant on-time, pseudo-fixed frequency with a programmable current-limit, current-control scheme. In addition, these devices offer optimum performance at low duty cycles by using valley current-mode control architecture. This allows the ADP1882 / ADP1883 to drive all N-channel power stages to regulate output voltages as low as 0.8 V.The ADP1883 is the power saving mode (PSM) version of the device and is capable of pulse skipping to maintain output regulation while achieving improved system efficiency at light loads (see the Power Saving Mode (PSM) Version (ADP1883) section for more information).Available in three frequency options (300 kHz, 600 kHz, and 1.0 MHz, plus the PSM option), the ADP1882 / ADP1883 are well suited for a wide range of applications. These ICs not only operate from a 2.75 V to 5.5 V bias supply, but they also can accept a power input as high as 20 V.In addition, an internally fixed soft start period is included to limit input in-rush current from the input supply during startup and to provide reverse current protection during soft start for a pre-charged output. The low-side current-sense, current-gain scheme and integration of a boost diode, along with the PSM/forced pulse-width modulation (PWM) option, reduce the external part count and improve efficiency.The ADP1882 / ADP1883 operate over the -40°C to +125°C junction temperature range and are available in a 10-lead MSOP.

The ADP190 is a high-side load switch designed for operation from 1.2 V to 3.6 V. This load switch provides power domain isolation for extended power battery life. The device contains a low on-resistance P-channel MOSFET that supports more than 500 mA of continuous current and minimizes power loss. The low 2 μA (maximum) of ground current and ultralow shutdown current make the ADP190 ideal for battery-operated portable equipment. The built-in level shifter for enable logic makes the ADP190 compatible with modern processors and GPIO controllers.Beyond operating performance, the ADP190 occupies minimal printed circuit board (PCB) space with an area less than 0.64 mm2 and a height of 0.60 mm. It is available in an ultrasmall 0.8 mm × 0.8 mm, 4-ball, 0.4 mm pitch WLCSP.ApplicationsMobile phonesDigital cameras and audio devicesPortable and battery-powered equipment

TheADP190/ ADP191 are high-side load switches designed for operation from 1.2 V to 3.6 V. These load switches provide power domain isolation for extended power battery life. The devices contain a low on-resistance P-channel MOSFET that supports more than 500 mA of continuous current and minimizes power loss. The low 2 μA (maximum) of ground current and ultralow shutdown current make the ADP190 / ADP191 ideal for battery-operated portable equipment. The built-in level shifter for enable logic makes the ADP190 / ADP191 compatible with modern processors and GPIO controllers.The ADP191 controls the turn-on slew rate of the switch to reduce the input inrush current. The ADP191 also incorporates an internal output discharge resistor to discharge the output capacitance when the ADP191 output is disabled.Beyond operating performance, the ADP190 / ADP191 occupy minimal printed circuit board (PCB) space with an area less than 0.64 mm2and a height of 0.60 mm. It is available in an ultrasmall 0.8 mm × 0.8 mm, 4-ball, 0.4 mm pitch WLCSP.APPLICATIONSMobile phonesDigital cameras and audio devicesPortable and battery-powered equipment

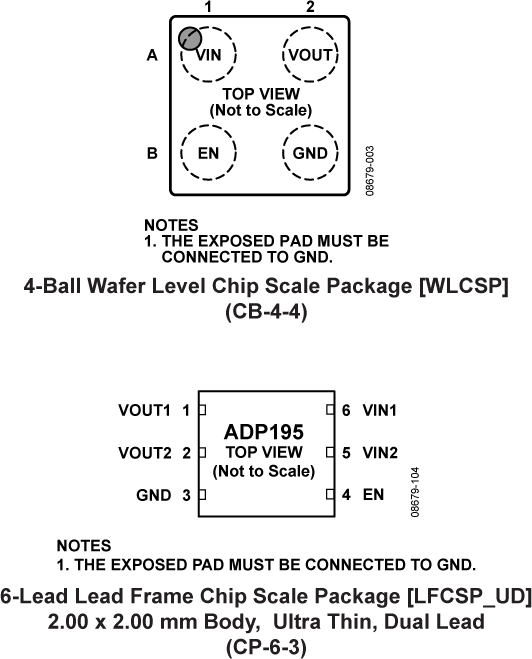

The ADP195 is a high-side load switch designed for operation between 1.1 V to 3.6 V and protected against reverse current flow from output to input. This load switch provides power domain isolation helping extended power domain isolation. The device contains a low on-resistance, P-channel MOSFET that supports over 500 mA of continuous current and minimizes power loss. The low 1 μA of quiescent current and ultralow shutdown current make the ADP195 ideal for battery-operated portable equipment. The built-in level shifter for enable logic makes the ADP195 compatible with many processors and GPIO controllers.In addition to operating performance, the ADP195 occupies minimal printed circuit board (PCB) space with an area of less than 1.0 mm2and a height of 0.60 mm.It is available in an ultrasmall 1 mm × 1 mm, 4-ball, 0.5 mm pitch WLCSP. A 6-lead 2 mm × 2 mm × 0.55 mm, 0.65 mm pitch LFCSP is also available.APPLICATIONSMobile phonesDigital cameras and audio devicesGPS devicesPersonal media playersPortable and battery-powered equipment

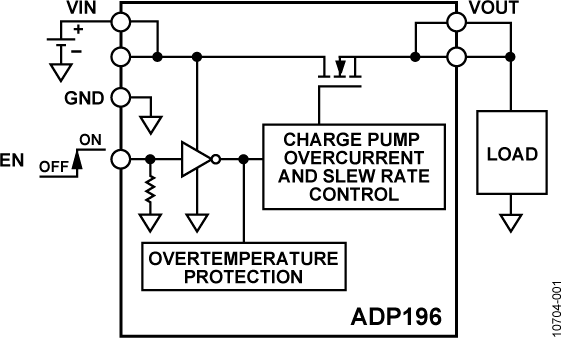

The ADP196 is a high-side load switch designed for operation from 1.8 V to 5.5 V. This load switch provides power domain isolation, helping to extend battery operation. The device contains a low on-resistance, N-channel MOSFET that supports more than 3 A of continuous current and minimizes power loss. In addition, RDSONis constant, independent of the VIN voltage. The low 25 μA quiescent current and ultralow shutdown current make the ADP196 ideal for battery-powered portable equipment. The built-in level shifter for enable logic makes the ADP196 compatible with many processors and GPIO controllers.Overtemperature protection circuitry is activated if the junction temperature exceeds 125°C, thereby protecting the ADP196 and downstream circuits from potential damage. Overcurrent pro- tection is provided in the form of constant current limiting.The ADP196-01 incorporates an internal quick output discharge circuit to discharge the output capacitance when the ADP196-01 output is disabled.The ADP196 in the WLCSP package occupies minimal printed circuit board (PCB) area with a footprint of less than 1.5 mm2and a height of 0.60 mm.The ADP196 is available in an ultrasmall, 1.0 mm × 1.5 mm, 0.5 mm pitch, 6-ball WLCSP and a 2.0 mm × 2.0 mm × 0.55 mm, 0.65 mm pitch, 6-lead LFCSP.APPLICATIONSMobile phonesDigital cameras and audio devicesPortable and battery-powered equipmentIn-Rush Control of Optical Network ModulesSFP, SFP+, XFP, CFP
