ADP195 Series

Logic Controlled, High-Side Power Switch with Reverse Current Blocking

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Logic Controlled, High-Side Power Switch with Reverse Current Blocking

Part	Output Type	Interface	Features	Package Name	Package Width	Package Length	Number of Outputs	Rds On (Typ)	Fault Protection	Voltage - Load (Max)	Voltage - Load (Min)	Package / Case	Voltage - Supply (Vdd/Vcc)	Voltage - Supply (Vcc/Vdd)	Mounting Type	Current - Output (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Switch Type	Output Configuration	Input Type	Output Ratio	Input Ratio	Supplied Contents	Type	Embedded	Contents	Function	Utilized IC / Part
Analog Devices Inc./Maxim Integrated ADP195ACBZ-R7	P-Channel	On/Off	Slew Rate Controlled	4-WLCSP	1.03 mm	0.95 mm	1	50 mOhm	Reverse Current	3.6 V	1.1 V	4-UFBGA WLCSP	Not Required	Not Required	Surface Mount	1.1 A	125 °C	-40 °C	General Purpose	High Side	Non-Inverting	1	1
Analog Devices Inc./Maxim Integrated ADP195ACPZ-R7	P-Channel	On/Off	Slew Rate Controlled	6-LFCSP-UD	2 mm	2 mm	1	50 mOhm	Reverse Current	3.6 V	1.1 V	6-UDFN Exposed Pad CSP	Not Required	Not Required	Surface Mount	1.1 A	125 °C	-40 °C	General Purpose	High Side	Non-Inverting	1	1

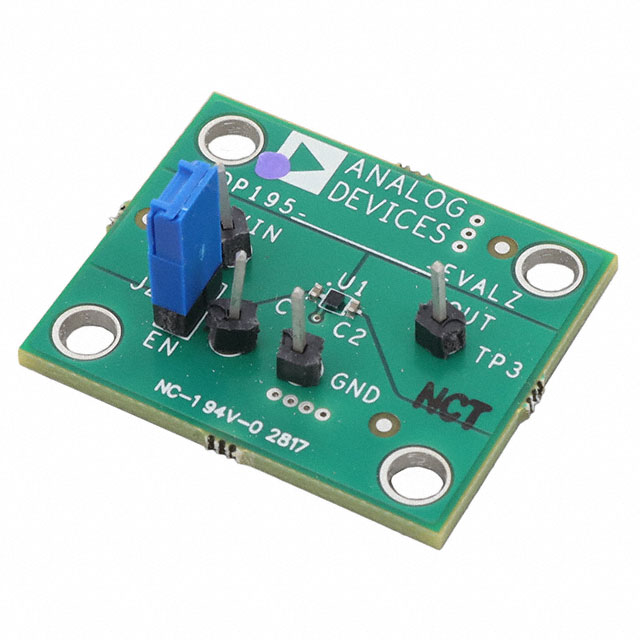

Analog Devices Inc./Maxim Integrated ADP195-EVALZ																								Board(s)	Power Management	No	Board	High Side Driver (Internal FET)	ADP195

Catalog

Logic Controlled, High-Side Power Switch with Reverse Current Blocking

Description

The ADP195 is a high-side load switch designed for operation between 1.1 V to 3.6 V and protected against reverse current flow from output to input. This load switch provides power domain isolation helping extended power domain isolation. The device contains a low on-resistance, P-channel MOSFET that supports over 500 mA of continuous current and minimizes power loss. The low 1 μA of quiescent current and ultralow shutdown current make the ADP195 ideal for battery-operated portable equipment. The built-in level shifter for enable logic makes the ADP195 compatible with many processors and GPIO controllers.In addition to operating performance, the ADP195 occupies minimal printed circuit board (PCB) space with an area of less than 1.0 mm2and a height of 0.60 mm.It is available in an ultrasmall 1 mm × 1 mm, 4-ball, 0.5 mm pitch WLCSP. A 6-lead 2 mm × 2 mm × 0.55 mm, 0.65 mm pitch LFCSP is also available.APPLICATIONSMobile phonesDigital cameras and audio devicesGPS devicesPersonal media playersPortable and battery-powered equipment
