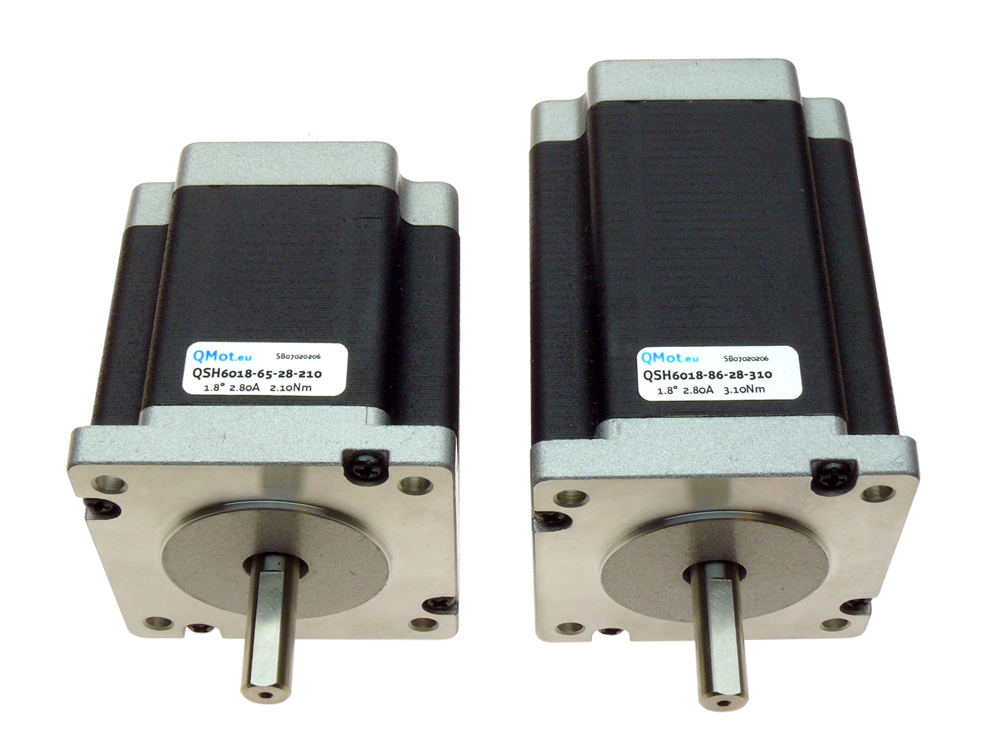

NEMA24 (60mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.Variants include a small size optical incremental encoder kit. It comes with a resolution of 10000 lines (40000 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.

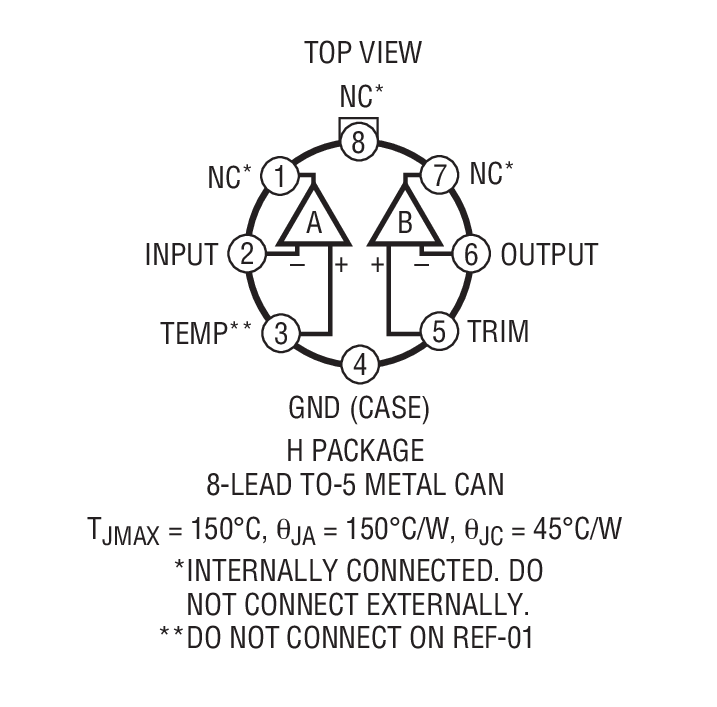

The REF01 /REF02/REF03series of precision voltage references provide a stable 10.0 V, 5.0 V, or 2.5 V output with minimal change in response to variations in supply voltage, ambient temperature or load conditions. The devices are available in 8-lead SOIC, PDIP, CERDIP, and TO-99 packages, as well as 20-terminal LCC packages (883 only), furthering the usability of the devices in both standard and high stress applications.With an external buffer and a simple resistor network, the TEMP terminal can be used for temperature sensing and approximation. A TRIM terminal is also provided on the device for fine adjustment of the output voltage.The small footprint, wide supply range, and application versatility make the REF0x series of references ideal for general-purpose and space-constrained applications.Newer designs should use theADR01/ADR02/ADR03/ADR06series of references, which offer higher accuracy and temperature stability over a wider operating temperature range, while maintaining full pin-for-pin compatibility with the REF01 / REF02 / REF03 series. This data sheet applies to commercial-grade products only. Contact sales or visit analog.com for military-grade (883) data sheets.APPLICATIONSPrecision data systemsHigh resolution convertersIndustrial process control systemsPrecision instrumentsMilitary and aerospace applications

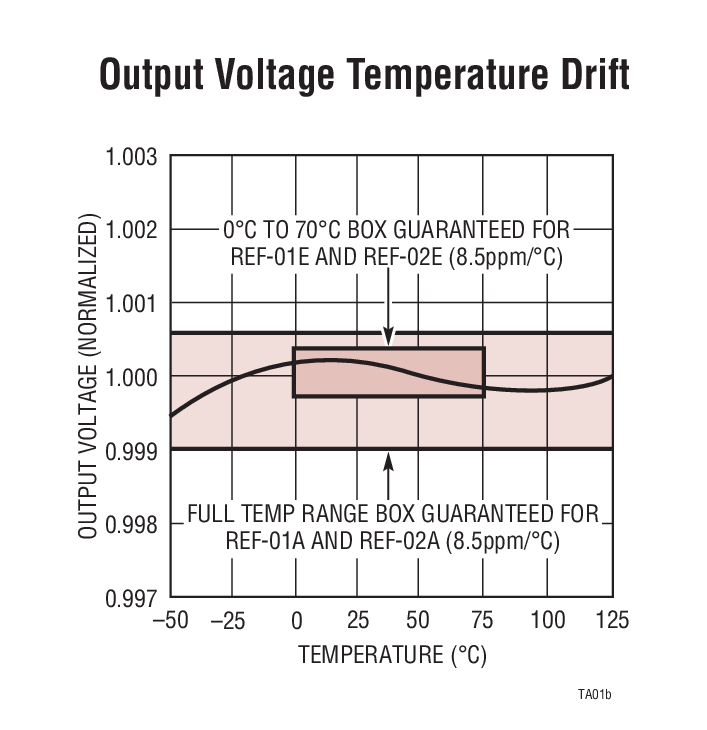

The REF-01/REF-02 are precision 10V and 5V bandgap references which provide stable output voltages over a wide range of operating conditions. Output voltage is accurate to ±0.3% with a low 5ppm/°C typical temperature coefficient. The REF-01 and REF-02 are excellent choices for applications where low drift, moderate accuracy, low power consumption and low cost are considerations.The REF-02 includes a temperature output pin which provides a linear voltage proportional to absolute temperature.For lower drift and higher accuracy references, please see the LT1019 and LT1021 data sheets.ApplicationsA/D and D/A ConvertersPrecision RegulatorsConstant Current SourcesV/F ConvertersBridge Excitation

The REF-01/REF-02 are precision 10V and 5V bandgap references which provide stable output voltages over a wide range of operating conditions. Output voltage is accurate to ±0.3% with a low 5ppm/°C typical temperature coefficient. The REF-01 and REF-02 are excellent choices for applications where low drift, moderate accuracy, low power consumption and low cost are considerations.The REF-02 includes a temperature output pin which provides a linear voltage proportional to absolute temperature.For lower drift and higher accuracy references, please see the LT1019 and LT1021 data sheets.ApplicationsA/D and D/A ConvertersPrecision RegulatorsConstant Current SourcesV/F ConvertersBridge Excitation
