QSH6018 Series

NEMA 24 stepper motor 1.1Nm, 2.8A

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

NEMA 24 stepper motor 1.1Nm, 2.8A

Part	Approval Agency	Rotor Inertia	Termination Style	Coil Resistance	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Accuracy	Voltage - Rated	Step Angle	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Type	Steps per Revolution	NEMA Frame Size	Features	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Weight	Weight	Weight [custom]	Weight [custom]

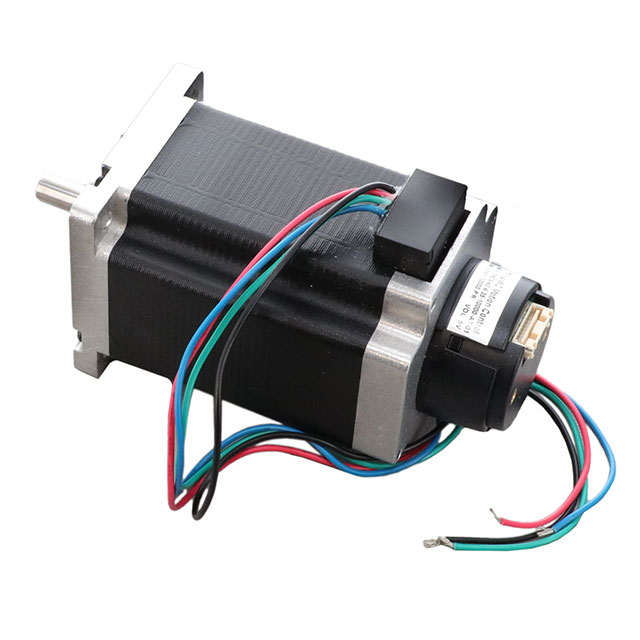

Analog Devices Inc./Maxim Integrated QSH6018-86-28-310-10K	CE	840 gcm²	Wire Leads	1.5 Ohms	24 mm	0.945 "	439 oz-in	3100 mNm	2.362 in	60 mm	60 mm	2.362 in	5 %	4.17 VDC	1.8 °	1.856 in	47.14 mm	Hybrid	200	24	Flatted Shaft	0.315 in	8 mm	2.8 A	-20 ░C	50 °C	Bipolar

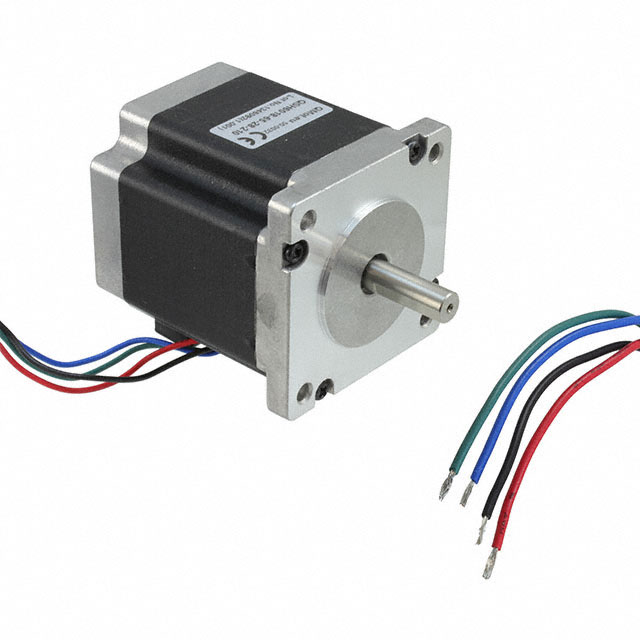

Analog Devices Inc./Maxim Integrated QSH6018-65-28-210	CE	570 gcm˛	Wire Leads	1.2 Ohms	24 mm	0.945 "	297.38 oz-in	2100 mNm	2.362 in	60 mm	60 mm	2.362 in	5 %	3.36 VDC	1.8 °	1.856 in	47.14 mm	Hybrid	200	24	Flatted Shaft	0.315 in	8 mm	2.8 A	-20 ░C	50 °C	Bipolar	2.6 lbs	1.2 kg

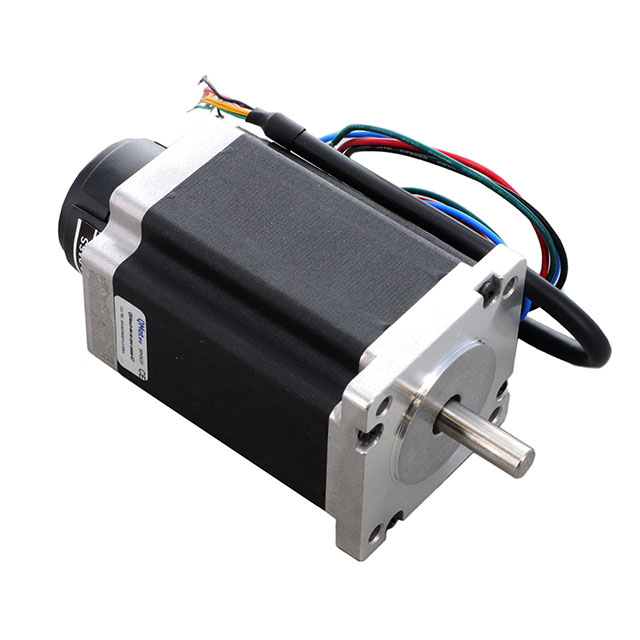

Analog Devices Inc./Maxim Integrated QSH6018-86-90-300-10K	CE	840 gcm²	Wire Leads	0.15 Ohms	24 mm	0.945 "	424.93 oz-in	3000 mNm	2.362 in	60 mm	60 mm	2.362 in	5 %	2.1 V	1.8 °	1.856 in	47.14 mm	Hybrid	200	24	Flatted Shaft	0.315 in	8 mm	9 A			Bipolar

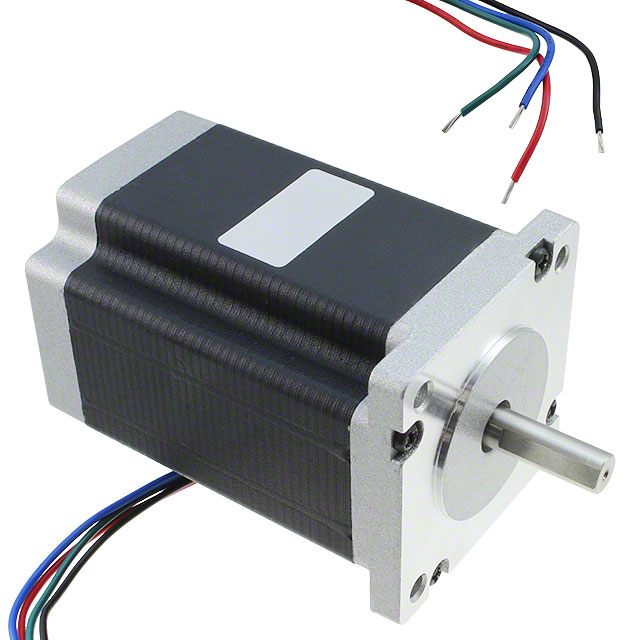

Analog Devices Inc./Maxim Integrated QSH6018-86-28-310	CE	840 gcm²	Wire Leads	1.5 Ohms	24 mm	0.945 "	438.99 oz-in	3100 mNm	2.362 in	60 mm	60 mm	2.362 in	5 %	4.17 VDC	1.8 °	1.856 in	47.14 mm	Hybrid	200	24	Flatted Shaft	0.315 in	8 mm	2.8 A	-20 ░C	50 °C	Bipolar	3.1 lbs	1.4 kg

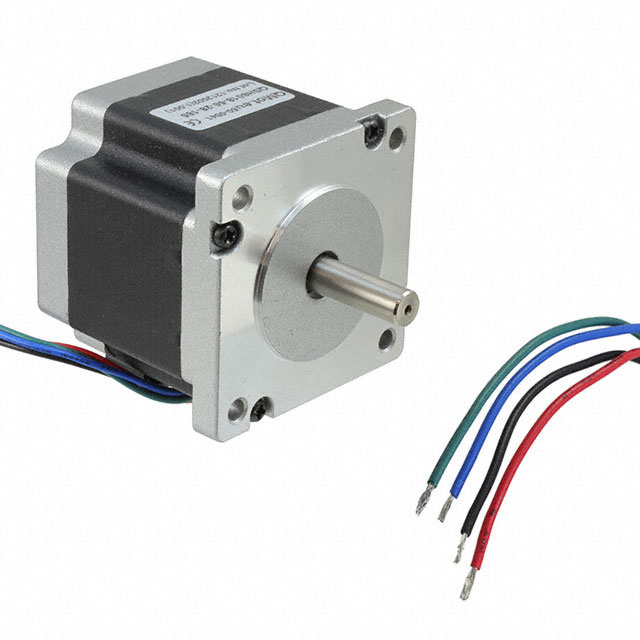

Analog Devices Inc./Maxim Integrated QSH6018-56-28-165	CE	400 gcm˛	Wire Leads	900 mOhms	24 mm	0.945 "	233.66 oz-in	1650 mNm	2.362 in	60 mm	60 mm	2.362 in	5 %	2.52 VDC	1.8 °	1.856 in	47.14 mm	Hybrid	200	24	Flatted Shaft	0.315 in	8 mm	2.8 A	-20 ░C	50 °C	Bipolar	1.7 lbs	771.1 g

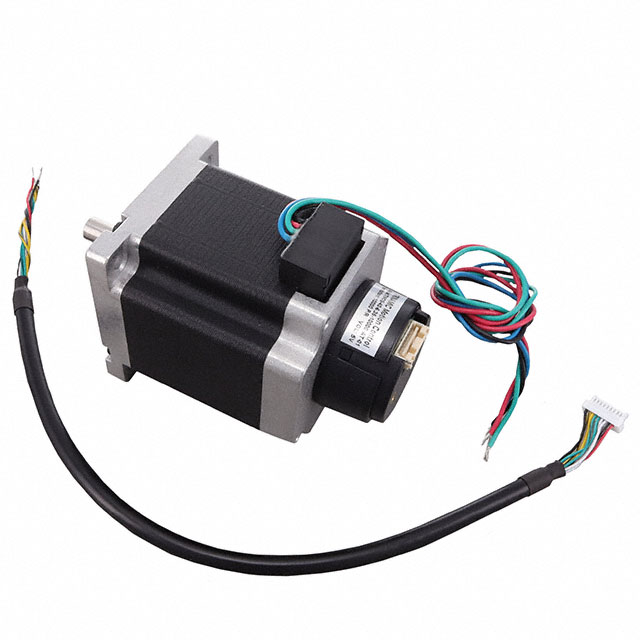

Analog Devices Inc./Maxim Integrated QSH6018-65-28-210-10K	CE	570 gcm˛	Wire Leads	1.2 Ohms	24 mm	0.945 "	297.4 oz-in	2100 mNm	2.362 in	60 mm	60 mm	2.362 in	5 %	3.36 VDC	1.8 °	1.856 in	47.14 mm	Hybrid	200	24	Flatted Shaft	0.315 in	8 mm	2.8 A	-20 ░C	50 °C	Bipolar

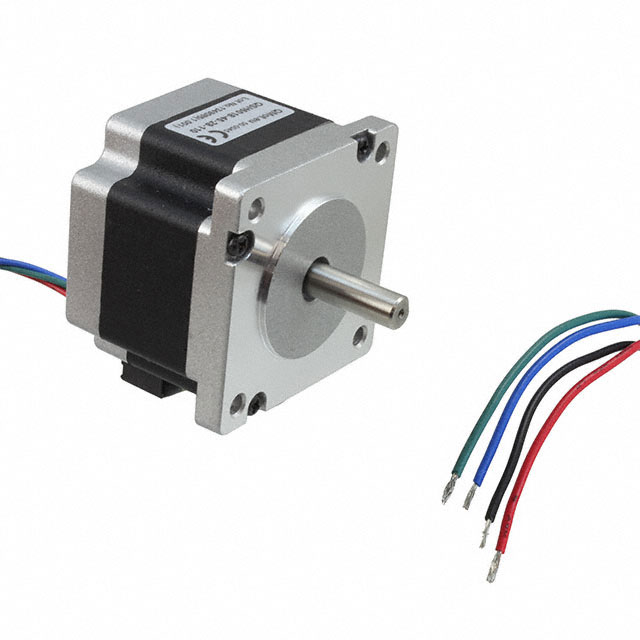

Analog Devices Inc./Maxim Integrated QSH6018-45-28-110	CE	275 gcm˛	Wire Leads	0.7 Ohms	24 mm	0.945 "	155.77 oz-in	1100 mNm	2.362 in	60 mm	60 mm	2.362 in	5 %	2.1 V	1.8 °	1.856 in	47.14 mm	Hybrid	200	24	Flatted Shaft	0.315 in	8 mm	2.8 A	-20 ░C	50 °C	Bipolar			1.3 lbs	589.7 g

Catalog

NEMA 24 stepper motor 1.1Nm, 2.8A

Description

NEMA24 (60mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.Variants include a small size optical incremental encoder kit. It comes with a resolution of 10000 lines (40000 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
