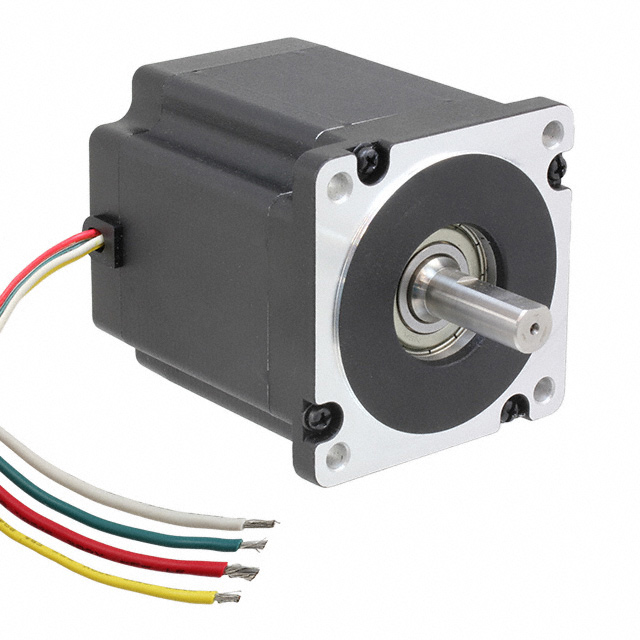

QSH8618 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
STEP MOTOR HYBRID BIPOLAR 2.56V
| Part | Rotor Inertia | Approval Agency | Weight [custom] | Weight [custom] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Current Rating (Amps) | Termination Style | Coil Resistance | Features | Step Angle | Steps per Revolution | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Operating Temperature [Min] | Operating Temperature [Max] | NEMA Frame Size | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Accuracy | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Coil Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 2700 gcm² | CE | 2.8 kg | 6.2 lbs | 12.7 mm | 0.5 in | 5.5 Amps | Wire Leads | 0.45 Ohms | Flatted Shaft | 1.8 ° | 200 | 33.27 mm | 1.31 in | 7000 mNm | 991.28 oz-in | -20 ░C | 50 °C | 34 | 2.56 VDC | 3.38 in 85.85 mm | 3.38 in 85.85 mm | 5 % | 69.6 mm | 2.74 in | Bipolar | Hybrid |
