| Integrated Circuits (ICs) | 2 | Active | The MAX96716F converts dual GMSL2 serial inputs to MIPI CSI-2. It also transmits and receives control channel data, enabling transmission of forward-path video and bidirectional control data. The GMSL2 link operates at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse direction.The GMSL™ inputs operate independently, allowing video with different timing and resolution to be received on each input.Video data from both inputs can be aggregated for output on a single CSI-2 port or replicated on a second port for redundant processing.The device and connected serializer are programmed through I2C or UART.Operation is specified over the automotive temperature range of -40°C to +105°C and the device is AEC-Q100 qualified.Data may be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specification. Contact the factory for the GMSL2 channel specification.Table 1. Typical Maximum Cable Length vs. Attenuation3.2mm Ø 50Ω Coax, Foam Dielectric2.7mm Ø 50Ω Coax, Solid Dielectric100Ω Shielded-Twisted Pair, AWG26Attenuation at 3GHz (Typ, Room Temp)0.9dB/m1.6dB/m1.8dB/mAttenuation at 3GHz (Max, Aged, +105°C)1.1dB/m2.0dB/m2.2dB/mGMSL Fwd/Rev Data RateTypical Maximum Cable Length at +105°C3Gbps/187.5Mbps20m10m11mAPPLICATIONSAdvanced Driver Assistance Systems (ADAS)Satellite LiDAR and RADAR Systems4MP 40fps Forward-Vision Camera (FVC) SystemsSurround-View Systems (SVS)Driver-Monitor Systems (DMS)Rear-View Camera (RVC)Systems with Multiple Synchronized Cameras |
| Serializers, Deserializers | 4 | Active | The MAX96717 GMSL™serializer receives video on an MIPI CSI-2 interface and outputs it on a GMSL2 serial link transceiver. Simultaneously, it sends and receives bidirectional control channel data across the same GMSL2 link. GMSL2 data can be transported over Coaxial or Shielded-Twisted Pair (STP) cables. It operates at a fixed rate of 3Gbps or 6Gbps in the forward direction, and 187.5Mbps in the reverse direction. The device is programmed through a local I2C/UART interface or across the link from a matching deserializer. The MAX96717 includes two I2C/UART pass-through channels, flexible GPIO, SPI tunnel, a built-in ADC, temperature sensor, and an extensive set of diagnostics for functional safety. Operation is specified over the automotive temperature range of -40°C to +105°C and the device is AEC-Q100 Grade 2 qualified.Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specification. Table 1 in the data sheet provides guidance to typical maximum lengths of commonly used automotive cables. Contact the factory for the GMSL2 channel specification.ApplicationsAdvanced Driver Assistance Systems (ADAS)8Mp 40fps Forward-Vision Camera (FVC) SystemsSurround View Systems (SVS)Driver Monitor Systems (DMS)Rear-View Camera (RVC)Systems with Multiple Synchronized Cameras |

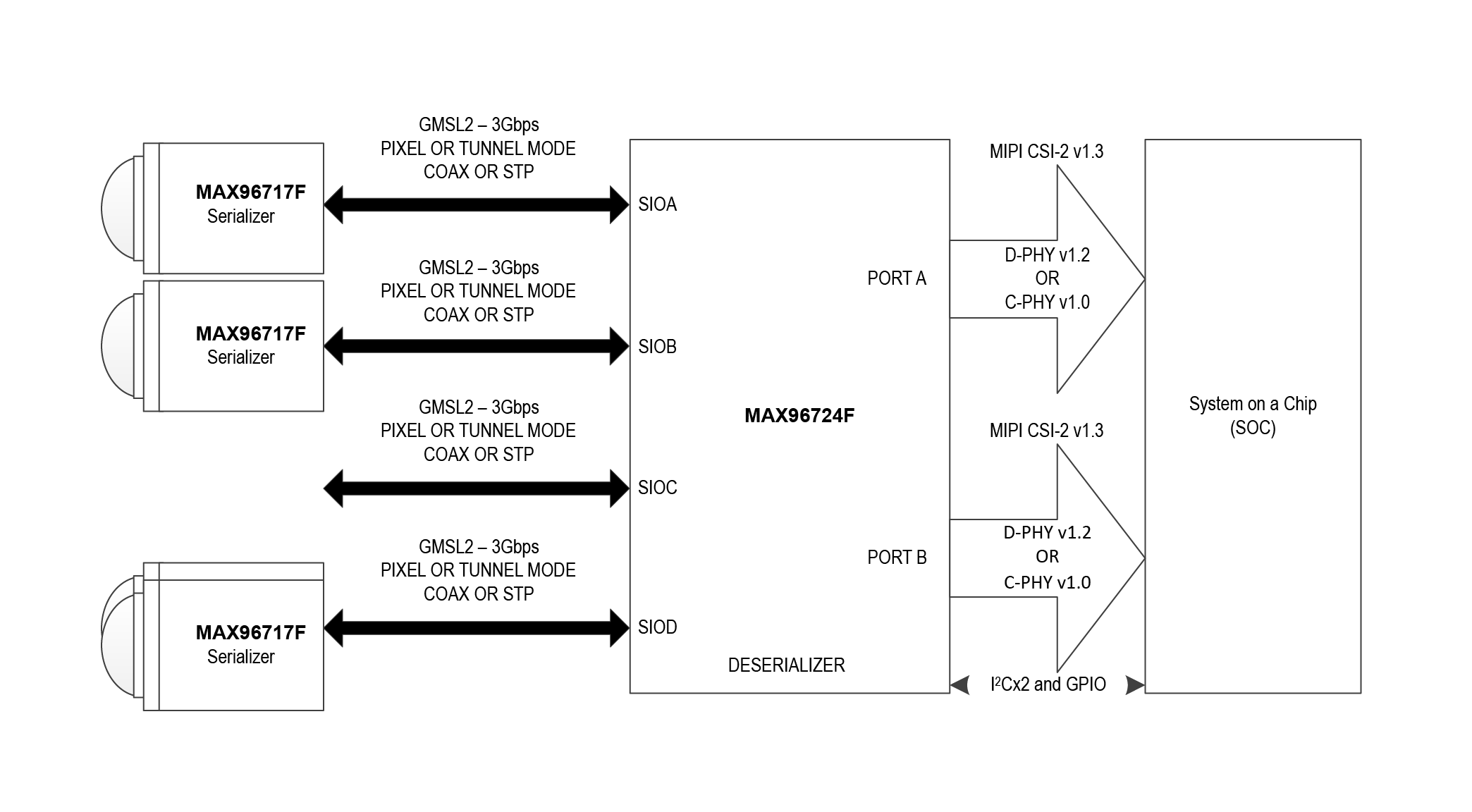

| Serializers, Deserializers | 4 | Active | The MAX96717F GMSL™serializer receives video on a MIPI CSI-2 interface and outputs it on a GMSL2 serial link transceiver. Simultaneously, it sends and receives bidirectional control channel data across the same GMSL2 link. GMSL2 data can be transported over Coaxial or Shielded-Twisted Pair (STP) cables. It operates at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse direction. The device is programmed through a local I2C/UART interface or across the link from a matching deserializer. The MAX96717F includes two I2C/UART pass-through channels, flexible GPIO, SPI tunnel, a built-in ADC, temperature sensor, and an extensive set of diagnostics for functional safety. Operation is specified over the automotive temperature range of -40°C to +105°C. The device is AEC-Q100 Grade 2 qualified.Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specification. Table 1 in the data sheet provides guidance to typical maximum lengths of commonly used automotive cables. Contact the factory for the GMSL2 channel specification.Table 1. Typical Maximum Cable Length vs. Attenuation3.2mm Ø 50Ω Coax, Foam Dielectric2.7mm Ø 50Ω Coax, Solid Dielectric100Ω Shielded Twisted Pair, AWG26Attenuation at 3GHz (Typ, Room Temp)0.9dB/m1.6dB/m1.8dB/mAttenuation at 3GHz (Max, Aged, +105°C)1.1dB/m2.0dB/m2.2dB/mGMSL Fwd/Rev Data RateTypical Maximum Cable Length at +105°C (m)3Gbps/187.5Mbps201011ApplicationsAdvanced Driver Assistance Systems (ADAS)LiDAR SystemsRADAR Systems4Mp 40fps Forward-Vision Camera (FVC) SystemsSurround View Systems (SVS)Driver Monitor Systems (DMS)Rear-View Camera (RVC)Systems with Multiple Synchronized Cameras |

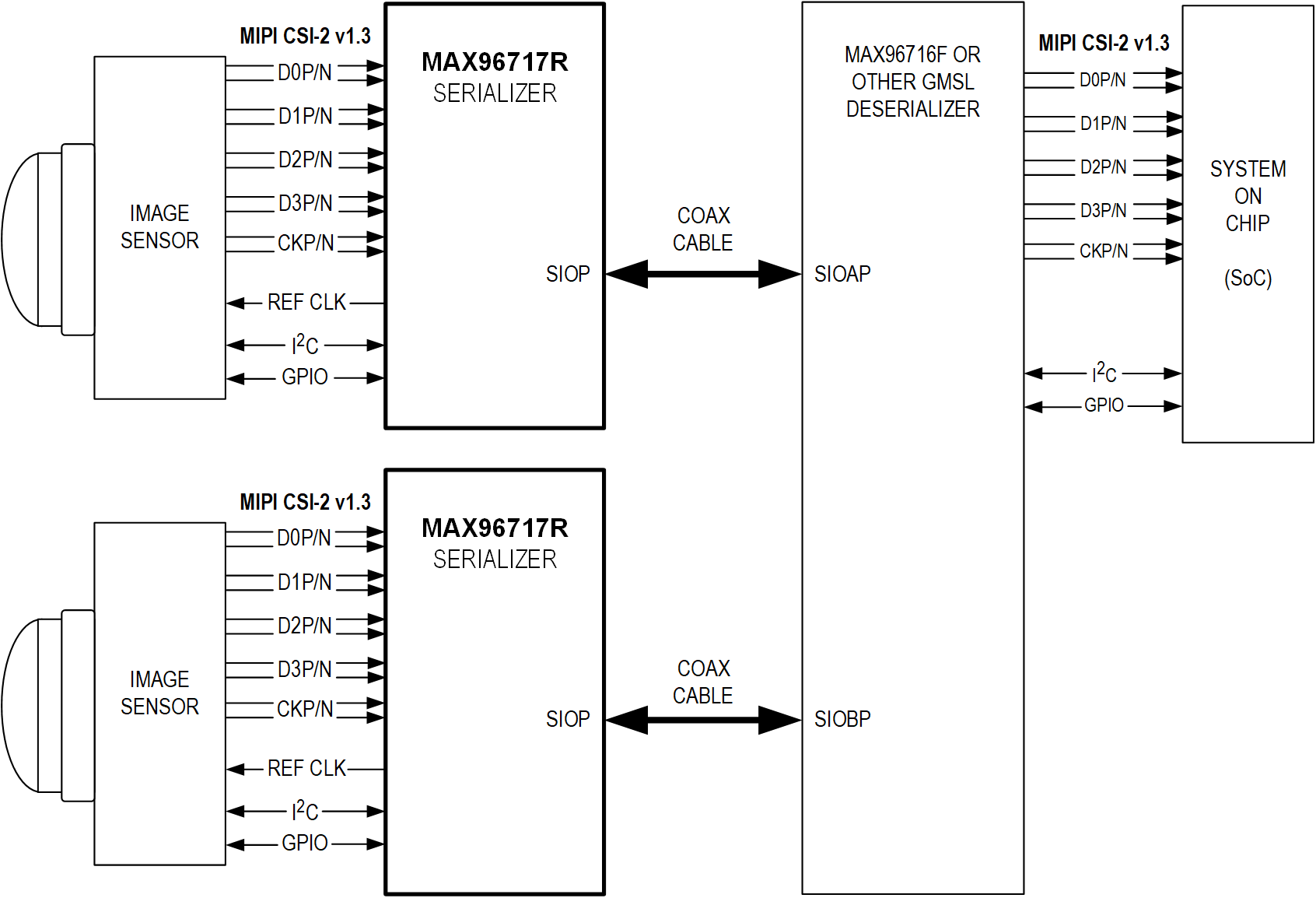

| Serializers, Deserializers | 2 | Active | The MAX96717R GMSL™serializer receives video on a 4-lane MIPI CSI-2 interface and outputs it on a GMSL2 serial link transceiver for transport over a coaxial cable. Simultaneously, it sends and receives bidirectional controlchannel data across the same GMSL2 link. The GMSL2link operates at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse direction. The device is programmed through a local I2C interface or acrossthe link from a matching deserializer. The MAX96717Rfeatures flexible GPIO tunnels and register-programmedGPIO. Operation is specified over the automotive temperature range of -40°C to +105°C. The device is AEC-Q100grade 2 qualified.Data can be transported over low-cost 50Ω coax cables that meet the GMSL2 channel specification. Table 1 in the data sheet provides guidance to typical maximum lengths of commonly used automotive cables. Contact the factory for the GMSL2 Channel Specification.APPLICATIONSAdvanced Driver Assistance Systems (ADAS)Surround View Systems (SVS)Driver Monitor Systems (DMS)Rear View Camera (RVC)Systems with Multiple Synchronized Cameras |
| Video Processing | 2 | Obsolete | |

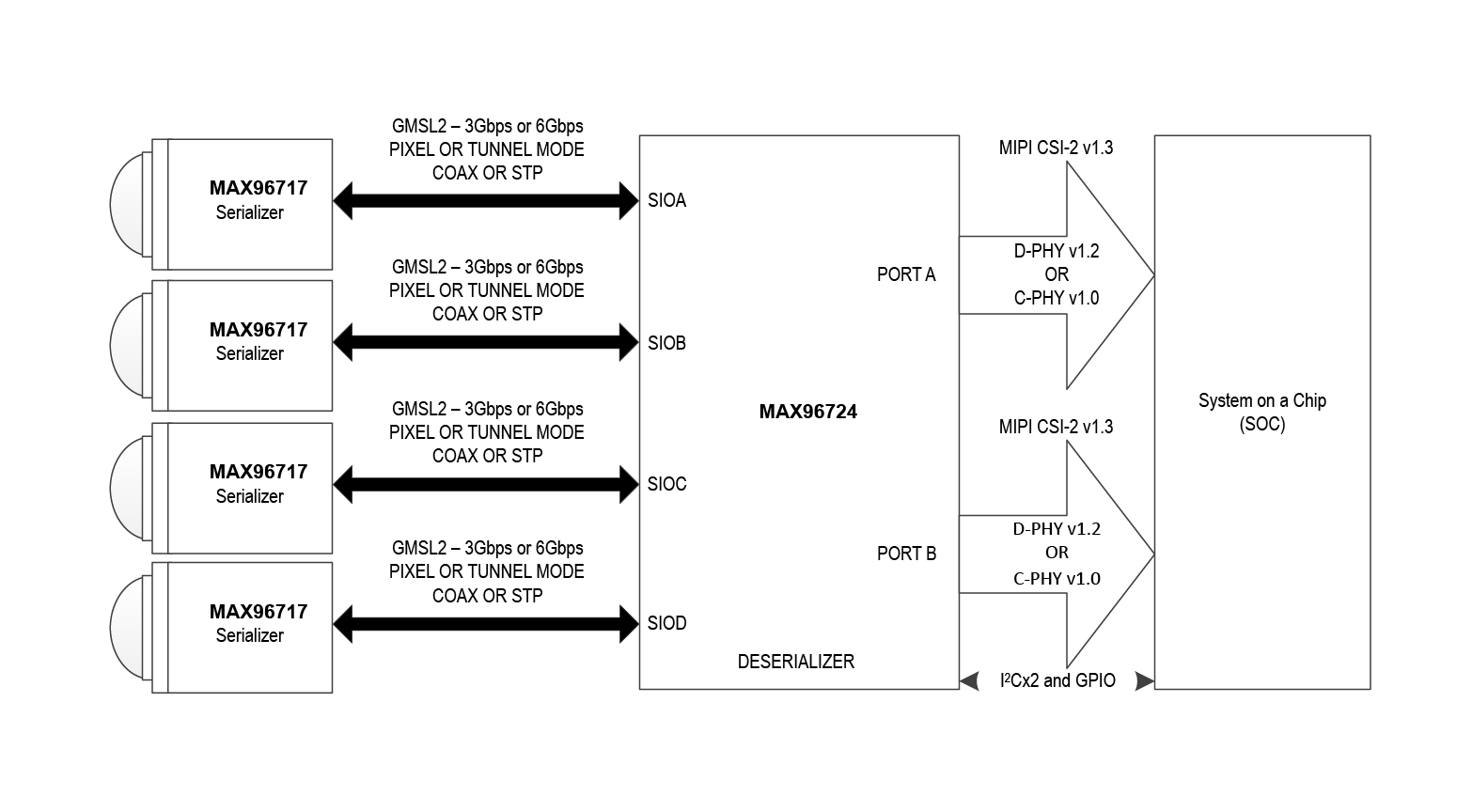

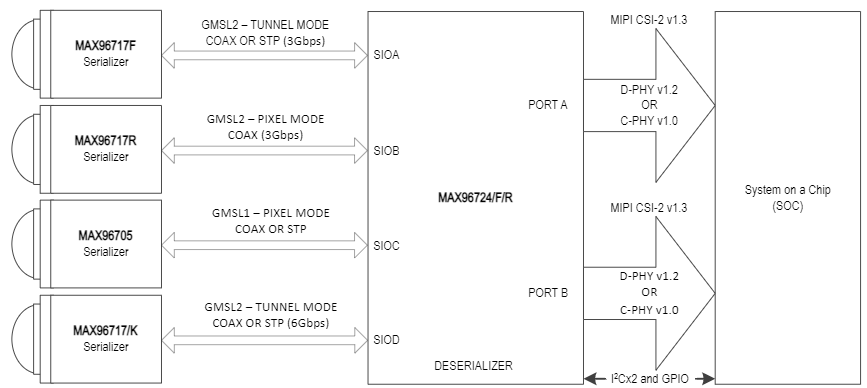

MAX96724Quad Tunneling GMSL2/1 to CSI-2 Deserializer | Serializers, Deserializers | 2 | Active | The MAX96724/F/R deserializer converts four GMSL™2/1 inputs to 1, 2, or 4 MIPI D-PHY or C-PHY outputs. The device allows simultaneous transmit bidirectional transmissions over 50Ω coax or 100Ω STP cables that meet the GMSL channel specification. Contact the factory for the GMSL supporting collateral.Up to four remotely located sensors can be supported using industry-standard coax or STP interconnects. Each GMSL2 serial link operates at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction. The MAX96724/F/R supports both aggregation and replication of video data, enabling streams from multiple remotely located sensors to be combined and routed to one or more of the available CSI-2 outputs.Table 1. Typical Maximum Cable Length3.2mm Ø 50Ω Coax, Foam Dielectric2.7mm Ø 50Ω Coax, Solid Dielectric100Ω Shielded Twisted Pair, AWG26Attenuation at 3GHz (Typ, Room Temp)0.9dB/m1.6dB/m1.8dB/mAttenuation at 3GHz (Max, Aged, +105°C)1.1dB/m2.0dB/m2.2dB/mGMSL Fwd/Rev Data RateTypical Maximum Cable Length at +105°C (m)3Gbps/187.5Mbps2010116Gbps/187.5Mbps1598APPLICATIONSHigh-Resolution Camera SystemsAdvanced Driver Assistance Systems (ADAS) |
MAX96724FQuad Tunneling GMSL2/1 to CSI-2 Deserializer | Interface | 4 | Active | The MAX96724/F/R deserializer converts four GMSL™2/1 inputs to 1, 2, or 4 MIPI D-PHY or C-PHY outputs. The device allows simultaneous transmit bidirectional transmissions over 50Ω coax or 100Ω STP cables that meet the GMSL channel specification. Contact the factory for the GMSL supporting collateral.Up to four remotely located sensors can be supported using industry-standard coax or STP interconnects. Each GMSL2 serial link operates at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction. The MAX96724/F/R supports both aggregation and replication of video data, enabling streams from multiple remotely located sensors to be combined and routed to one or more of the available CSI-2 outputs.Table 1. Typical Maximum Cable Length3.2mm Ø 50Ω Coax, Foam Dielectric2.7mm Ø 50Ω Coax, Solid Dielectric100Ω Shielded Twisted Pair, AWG26Attenuation at 3GHz (Typ, Room Temp)0.9dB/m1.6dB/m1.8dB/mAttenuation at 3GHz (Max, Aged, +105°C)1.1dB/m2.0dB/m2.2dB/mGMSL Fwd/Rev Data RateTypical Maximum Cable Length at +105°C (m)3Gbps/187.5Mbps2010116Gbps/187.5Mbps1598APPLICATIONSHigh-Resolution Camera SystemsAdvanced Driver Assistance Systems (ADAS) |
MAX96724RQuad Tunneling GMSL2/1 to CSI-2 Deserializer | Serializers, Deserializers | 2 | Active | The MAX96724/F/R deserializer converts four GMSL™2/1 inputs to 1, 2, or 4 MIPI D-PHY or C-PHY outputs. The device allows simultaneous transmit bidirectional transmissions over 50Ω coax or 100Ω STP cables that meet the GMSL channel specification. Contact the factory for the GMSL supporting collateral.Up to four remotely located sensors can be supported using industry-standard coax or STP interconnects. Each GMSL2 serial link operates at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction. The MAX96724/F/R supports both aggregation and replication of video data, enabling streams from multiple remotely located sensors to be combined and routed to one or more of the available CSI-2 outputs.Table 1. Typical Maximum Cable Length3.2mm Ø 50Ω Coax, Foam Dielectric2.7mm Ø 50Ω Coax, Solid Dielectric100Ω Shielded Twisted Pair, AWG26Attenuation at 3GHz (Typ, Room Temp)0.9dB/m1.6dB/m1.8dB/mAttenuation at 3GHz (Max, Aged, +105°C)1.1dB/m2.0dB/m2.2dB/mGMSL Fwd/Rev Data RateTypical Maximum Cable Length at +105°C (m)3Gbps/187.5Mbps2010116Gbps/187.5Mbps1598APPLICATIONSHigh-Resolution Camera SystemsAdvanced Driver Assistance Systems (ADAS) |
