Analog Devices Inc./Maxim Integrated

The MAX96708 is a compact deserializer especially suited for automotive camera applications. Features include adaptive equalization and an output crosspoint switch. An embedded control channel operates at 9.6kbps to 1Mbps in UART, I2C, and mixed UART/I2C modes, allowing programming of serializer, deserializer (SerDes), and camera registers, independent of video timing.The deserializer can track data from a spread-spectrum serial input. The serial input meets ISO 10605 and IEC 61000-4-2 ESD standards. The core supply range is 1.7V to 1.9V and the I/O supply range is 1.7V to 3.6V. The device is available in a 32-pin (5mm × 5mm) TQFN package with 0.5mm lead pitch and operates over -40°C to +115°C temperature range.Design Solution: GMSL SerDes Enables ADAS ›ApplicationsAutomotive Camera Applications

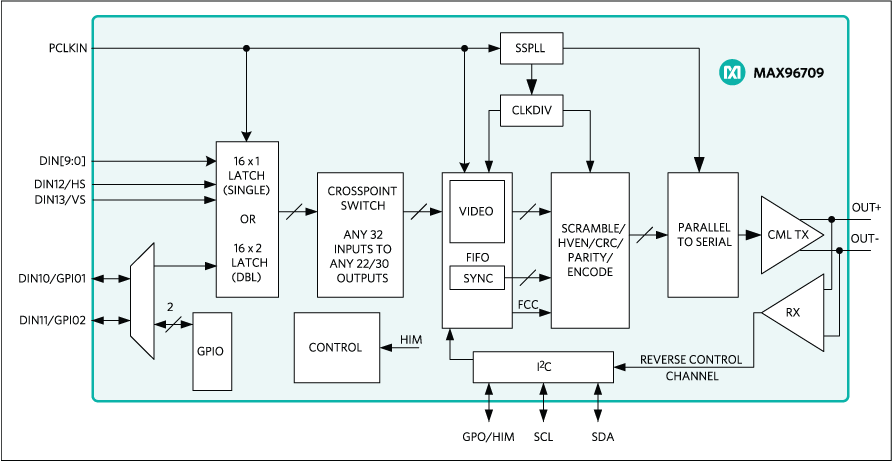

The MAX96709 is a compact serializer in a 4mm × 4mm TQFN package especially suited for automotive camera applications.The embedded control channel operates at 9.6kbps to 1Mbps in I2C mode, allowing programming of serializer, deserializer, and camera registers independent of video timing.For driving longer cables, the IC has programmable pre/deemphasis. Programmable spread spectrum is available on the serial output. The serial output meets ISO 10605 and IEC 61000-4-2 ESD standards. The supply range is 1.7V to 1.9V.The MAX96709 is available in a 24-pin 0.5mm lead pitch, and operates over the -40°C to +115°C temperature range.Design Solution: GMSL SerDes Enables ADAS ›ApplicationsAutomotive Camera Applications

The MAX96711 is a compact serializer with features especially suited for automotive camera applications. In high-bandwidth mode, the parallel-clock maximum is 116MHz for 12-bit linear or combined HDR data types. Line-fault circuitry detects open/short faults on the link cable.The embedded control channel operates at 9.6kbps to 1Mbps in UART, I2C, and mixed UART/I2C modes, allowing programming of serializer, deserializer, and camera registers independent of video timing.For driving longer cables, the IC has programmable pre/deemphasis. Programmable spread spectrum is available on the serial output. The serial output meets ISO 10605 and IEC 61000-4-2 ESD standards. The core supply range is 1.7V to 1.9V, and the I/O supply range is 1.7V to 3.6V.The MAX96711 is available in a 32-pin (5mm × 5mm) TQFN package with 0.5mm lead pitch, and operates over the -40°C to +115°C temperature range.Design Solution: GMSL SerDes Enables ADAS ›ApplicationsAutomotive Camera Applications

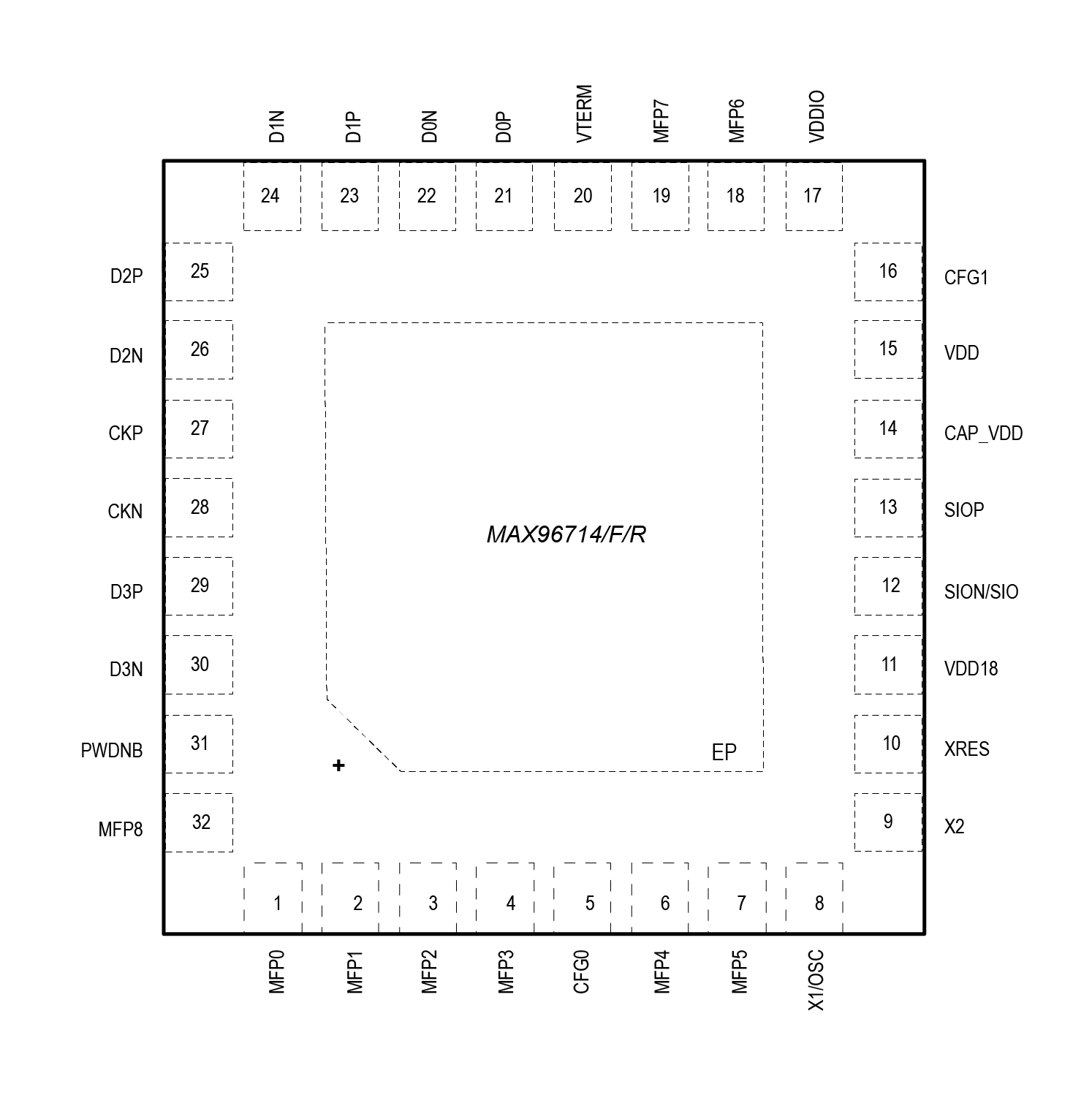

The MAX96714/F/R deserializers convert a GMSL™2/1 input to MIPI CSI-2 output. The devices allow a simultaneously transmit bidirectional control channel while forward video transmissions are in progress. The MAX96714/F/R operate at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction.Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specifications.ApplicationsAdvanced Driver Assistance Systems (ADAS)Forward Vision Camera Systems (FVC)Rear View Camera (RVC)Driver-Monitor Systems (DMS)

The MAX96714/F/R deserializers convert a GMSL™2/1 input to MIPI CSI-2 output. The devices allow a simultaneously transmit bidirectional control channel while forward video transmissions are in progress. The MAX96714/F/R operate at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction.Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specifications.ApplicationsAdvanced Driver Assistance Systems (ADAS)Forward Vision Camera Systems (FVC)Rear View Camera (RVC)Driver-Monitor Systems (DMS)

The MAX96716A converts dual GMSL2 serial inputs to MIPI CSI-2. It also transmits and receives control-channel data, enabling transmission of forward-path video and bidirectional control data. The GMSL2 link operates at a fixed rate of 6Gbps or 3Gbps in the forward direction, and 187.5Mbps in the reverse direction.The GMSL™ inputs operate independently, allowing video with different timing and resolution to be received on each input.Video data from both inputs can be aggregated for output on a single CSI-2 port or replicated on a second port for redundant processing.The device and connected serializer are programmed through I2C or UART.Operation is specified over the automotive temperature range of -40°C to +105°C and the device is AEC-Q100 qualified.Data may be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specification. Contact the factory for the GMSL2 channel specification.Table 1. Typical Maximum Cable Length vs. Attenuation3.2mm Ø 50Ω Coax, Foam Dielectric2.7mm Ø 50Ω Coax, Solid Dielectric100Ω Shielded-Twisted Pair, AWG26Attenuation at 3GHz (Typ, Room Temp)0.9dB/m1.6dB/m1.8dB/mAttenuation at 3GHz (Max, Aged, +105°C)1.1dB/m2.0dB/m2.2dB/mGMSL Fwd/Rev Data RateTypical Maximum Cable Length at +105°C3Gbps/187.5Mbps20m10m11m6Gbps/187.5Mbps15m9m8mAPPLICATIONSADAS (2MP+/4MP 60fps) Camera SystemsSatellite LiDAR and RADAR Systems8MP 40fps Forward-Vision Camera (FVC) SystemsSurround-View Systems (SVS)Driver-Monitor Systems (DMS)Systems with Multiple Synchronized Cameras
