MAX6613Low-Voltage Analog Temperature Sensor in an SC70 Package | Temperature Sensors | 5 | Active | The MAX6613 is a low-power precision analog output temperature sensor in a tiny 5-pin SC70 package. The MAX6613 operates over a 1.8V to 5.5V supply voltage range, with a typical current consumption of only 7.5µA. It is particularly well suited for portable applications where minimizing battery cost and maximizing useful battery life are crucial.The MAX6613 provides an analog voltage output proportional to temperature. Accuracy is ±4.0°C (max) over a range of TA= 0°C to +50°C and ±4.4°C (max) from TA= -20°C to +80°C. Self-heating effects are negligible due to the low current consumption of the part.Unlike many analog temperature sensors, the MAX6613 is stable with any capacitive load from 0pF to 1000pF, providing broad flexibility in board-level design.The operating temperature range varies with the voltage supply. The MAX6613 can be used over a -55°C to +130°C range with a 2.5V to 5.5V supply voltage. For applications with a supply voltage of 1.8V, the MAX6613 can be used over a +25°C to +130°C temperature range.ApplicationsAppliancesBattery ManagementCellular PhonesDisk DrivesFax MachinesGPS EquipmentHVACMedical InstrumentsPrinters |
| Thermal Management | 2 | Active | |
| Thermal Management | 2 | Obsolete | |
| Translators, Level Shifters | 5 | Active | |
MAX6629-Bit/12-Bit Temperature Sensors with I²C-Compatible Serial Interface in a SOT23 | Sensor Evaluation Boards | 27 | Active | The MAX6625/MAX6626 combine a temperature sensor, a programmable overtemperature alarm, and an I²C-compatible serial interface into single compact packages. They convert their die temperatures into digital values using internal analog-to-digital converters (ADCs). The result of the conversion is held in a temperature register, readable at any time through the serial interface. A dedicated alarm output, OT, activates if the conversion result exceeds the value programmed in the high-temperature register. A programmable fault queue sets the number of faults that must occur before the alarm activates, preventing spurious alarms in noisy environments. OT has programmable output polarity and operating modes.The MAX6625/MAX6626 feature a shutdown mode that saves power by turning off everything but the power-on reset and the I²C-compatible interface. Four separate addresses can be configured with the ADD pin, allowing up to four MAX6625/MAX6626 devices to be placed on the same bus. The MAX6625P/MAX6626P OT outputs are open drain, and the MAX6625R/MAX6626R OT outputs include internal pullup resistors.The MAX6625 has a 9-bit internal ADC and can function as a replacement for the LM75 in most applications. The MAX6626 has a 12-bit internal ADC. Both devices come in the space-saving 6-pin SOT23 package, or the 6-pin TDFN package.ApplicationsFan ControlIndustrial EquipmentSystem Temperature ControlTemperature Alarms |

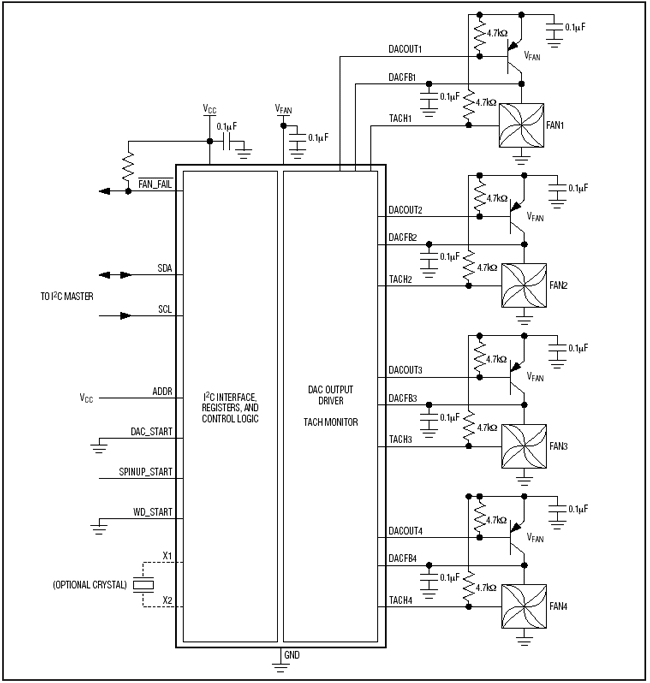

MAX6620Quad Linear Fan-Speed Controller | Integrated Circuits (ICs) | 3 | Active | The MAX6620 controls the speeds of up to four fans using four independent linear voltage outputs. The drive voltages for the fans are controlled directly over the I²C interface. Each output drives the base of an external bipolar transistor or the gate of a FET in high-side drive configuration. Voltage feedback at the fan's power-supply terminal is used to force the correct output voltage.The MAX6620 offers two methods for fan control. In RPM mode, the MAX6620 monitors four fan tachometer logic outputs for precise (±1%) control of fan RPM and detection of fan failure. In DAC mode, each fan is driven with a voltage resolution of 9 bits and the tachometer outputs of the fans are monitored for failure.The DAC_START input selects the fan power-supply voltage at startup to ensure appropriate fan drive when power is first applied. A watchdog feature turns the fans fully on to protect the system if there are no valid I²C communications within a preset timeout period.The MAX6620 operates from a 3.0V to 5.5V power supply with low 250µA supply current, and the I²C-compatible interface makes it ideal for fan control in a wide range of cooling applications. The MAX6620 is available in a 28-pin TQFN package and operates over the -40°C to +125°C automotive temperature range.ApplicationsCommunications EquipmentConsumer ProductsServersStorage Equipment |
| Integrated Circuits (ICs) | 2 | Active | |

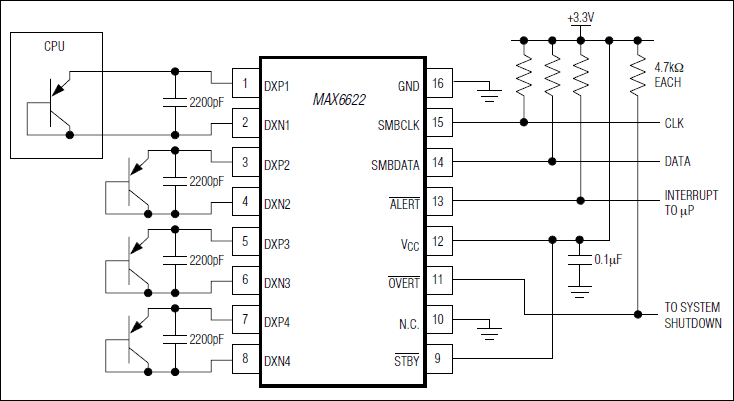

MAX66225-Channel Precision Temperature Monitor | Analog and Digital Output | 4 | Active | The MAX6622 precision multichannel temperature sensor monitors its own temperature and the temperatures of up to four external diode-connected transistors. All temperature channels have programmable alert thresholds. Channels 1 and 4 also have programmable overtemperature thresholds. When the measured temperature of a channel exceeds the respective threshold, a status bit is set in one of the status registers. Two open-drain outputs, active-low OVERT and active-low ALERT, assert corresponding to these bits in the status register.The 2-wire serial interface supports the standard system management bus (SMBus™) protocols: write byte, read byte, send byte, and receive byte for reading the temperature data and programming the alarm thresholds.The MAX6622 is specified for a -40°C to +125°C operating temperature range and is available in a 16-pin TSSOP package.ApplicationsDesktop ComputersNotebook ComputersServersWorkstations |
MAX66240DeepCover Secure Authenticator with ISO 15693, SHA-256, and 4Kb User EEPROM | Development Boards, Kits, Programmers | 7 | Active | DeepCover®embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.The DeepCover Secure Authenticator (MAX66240) is a transponder IC that combines an ISO/IEC 15693 and ISO 18000-3 Mode 1-compatible RF front-end, a FIPS 180-based SHA-256 engine, and 4096 bits of user EEPROM in a single chip. A bidirectional security model enforces two-way authentication between a host system and the MAX66240. Each device has its own guaranteed unique 64-bit ROM ID that is factory programmed into the chip. This ROM ID is used as a fundamental input parameter for cryptographic operations and serves as an electronic serial number within the application.ApplicationsAccess ControlAsset TrackingMedical Sensor Authentication and CalibrationPrinter Cartridge Configuration and MonitoringSystem Intellectual Property Protection |
| Development Boards, Kits, Programmers | 13 | Active | |
