Analog Devices Inc./Maxim Integrated

The MAX40108 is a low-power, high-precision operational amplifier (op amp) that operates with a power supply voltage as low as 0.9V.Available in a space-saving, 1.22mmx 0.92mm, 6-bump wafer-level package (WLP) with a 0.4mm bump pitch, it is designed for use in portable, consumer, medical, and industrial applications.The MAX40108 features rail-to-rail CMOS inputs and outputs, a 168kHz GBW consuming only 25.5µA (typ) supply current and 1µV (typ) zero-drift input offset voltage over time and temperature. The zero-drift feature reduces the high 1/f noise typically found in CMOS input operational amplifiers, making it useful for a wide variety of low-frequency measurement applications.The MAX40108 operates from a 0.9V to 3.6V power supply voltage and is specified over the -40°C to +125°C extended operating temperature range.ApplicationsFitness and Health (Smart Watch, Heart-Rate Monitor)Home Medical (Blood Glucose,Weight Scale, Blood Pressure, EKG)Industrial IOT (Pressure, Flow, Level, Temperature, Proximity)Wearable Devices

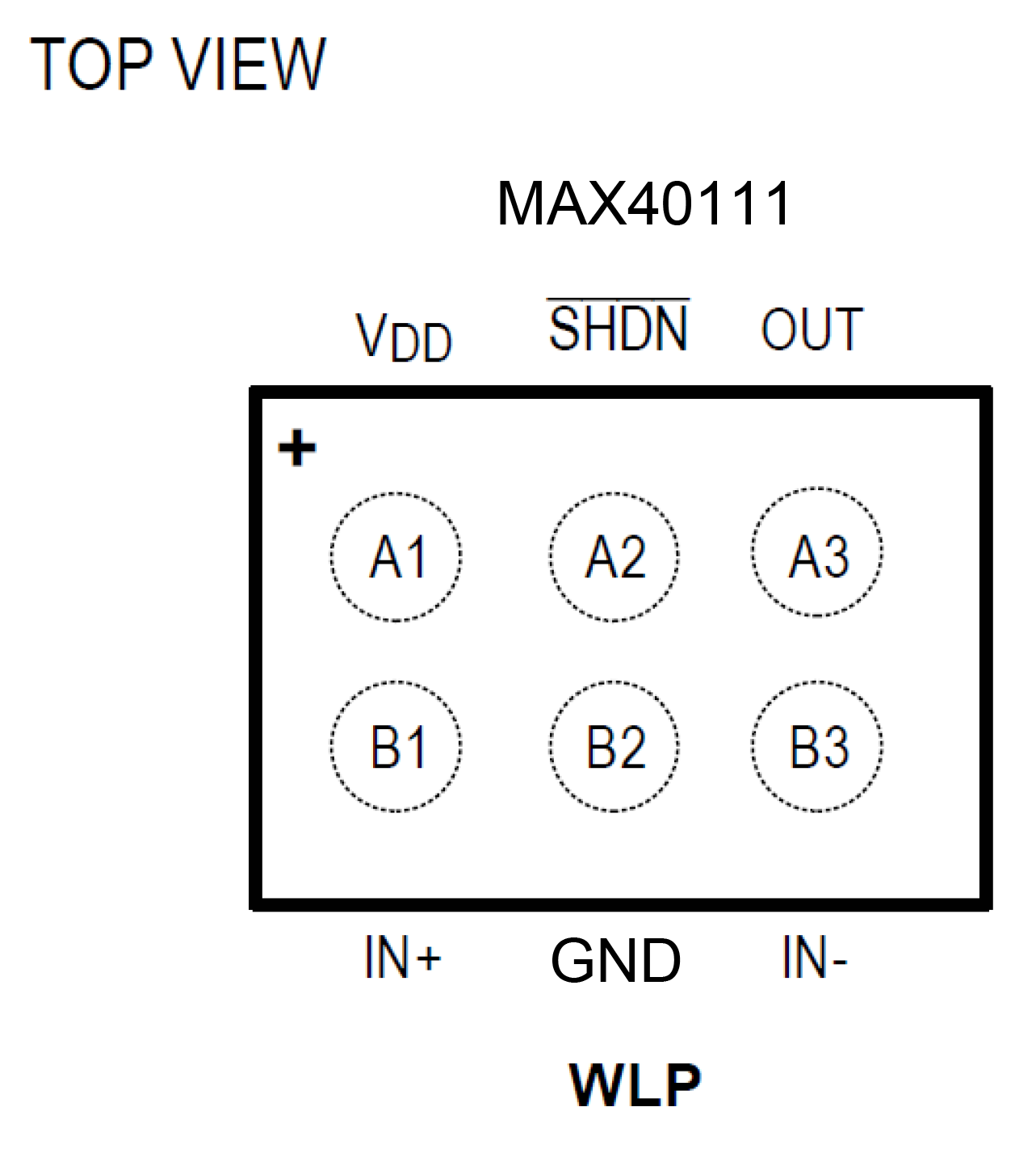

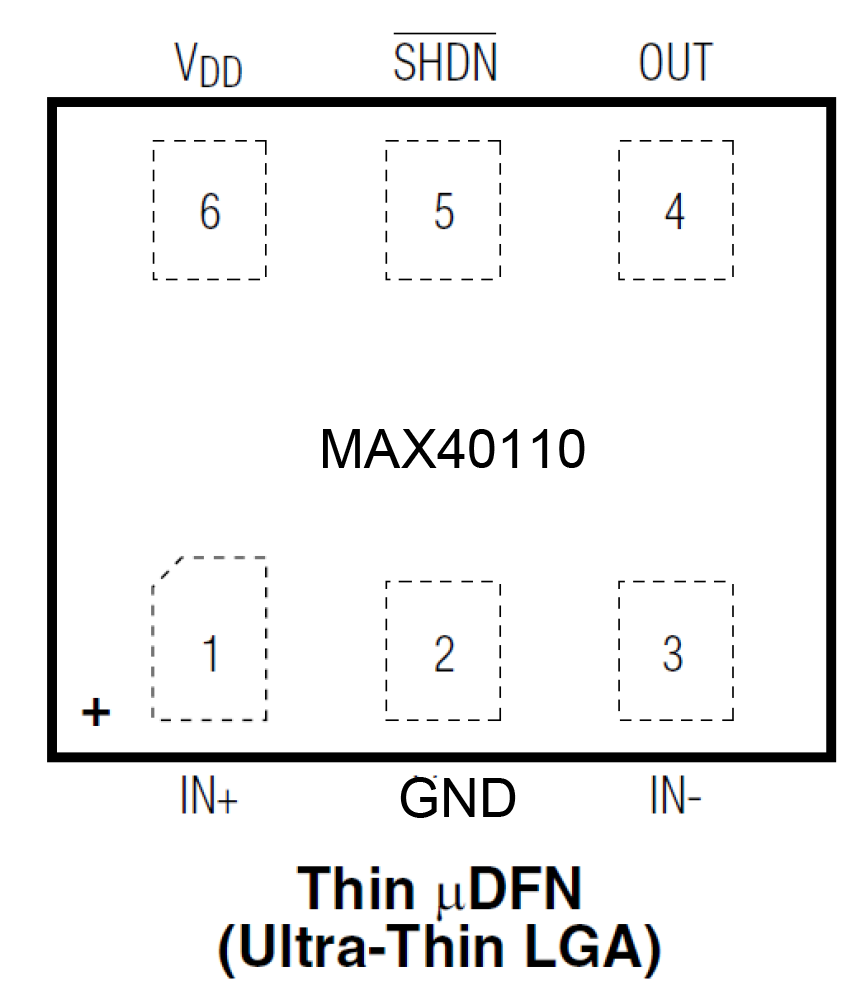

The MAX40110/MAX40111 offer a unique combination of high speed, precision, low noise, and low-voltage operation, making them ideally suited for a large number of signal processing functions including filtering and amplification of signals in portable and industrial equipment.The MAX40110/MAX40111s' rail-to-rail input/outputs and low noise guarantee maximum dynamic range in demanding applications such as 12- to 14-bit SAR ADC drivers. Unlike traditional rail-to-rail input structures, input crossover distortion is absent due to an optimized input stage with an ultra-quiet charge pump. The input offset voltage is as low as 30µV due to the auto-calibration performed on power-up. The devices also include a fast-power-on shutdown mode for further power savings.The MAX40110/MAX40111 operate from a supply range of 1.8V to 5.5V over the -40°C to +125°C extended operating temperature range and consume only 750μA (typ) supply current. The MAX40110 is offered in an ultra-thin 6-µDFN package, and the MAX40111 is available in a tiny 6-bump wafer-level-package (WLP) with a 0.4mm pitch.The MAX40110/MAX40111 are an extension of the MAX44259/60/61/63 and MAX44290 families with a reduced power up time of less than 1ms.ApplicationsWearable DevicesHome Medical (Blood Glucose, Weight Scale, Blood Pressure, EKG)Industrial IOT (Pressure, Flow, Level, Temperature, Proximity)Optical SensorsSAR ADC Driver

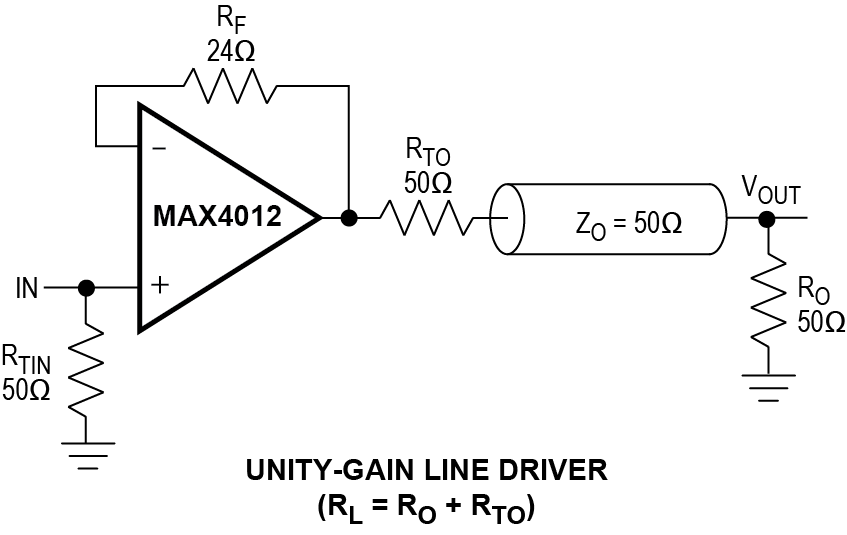

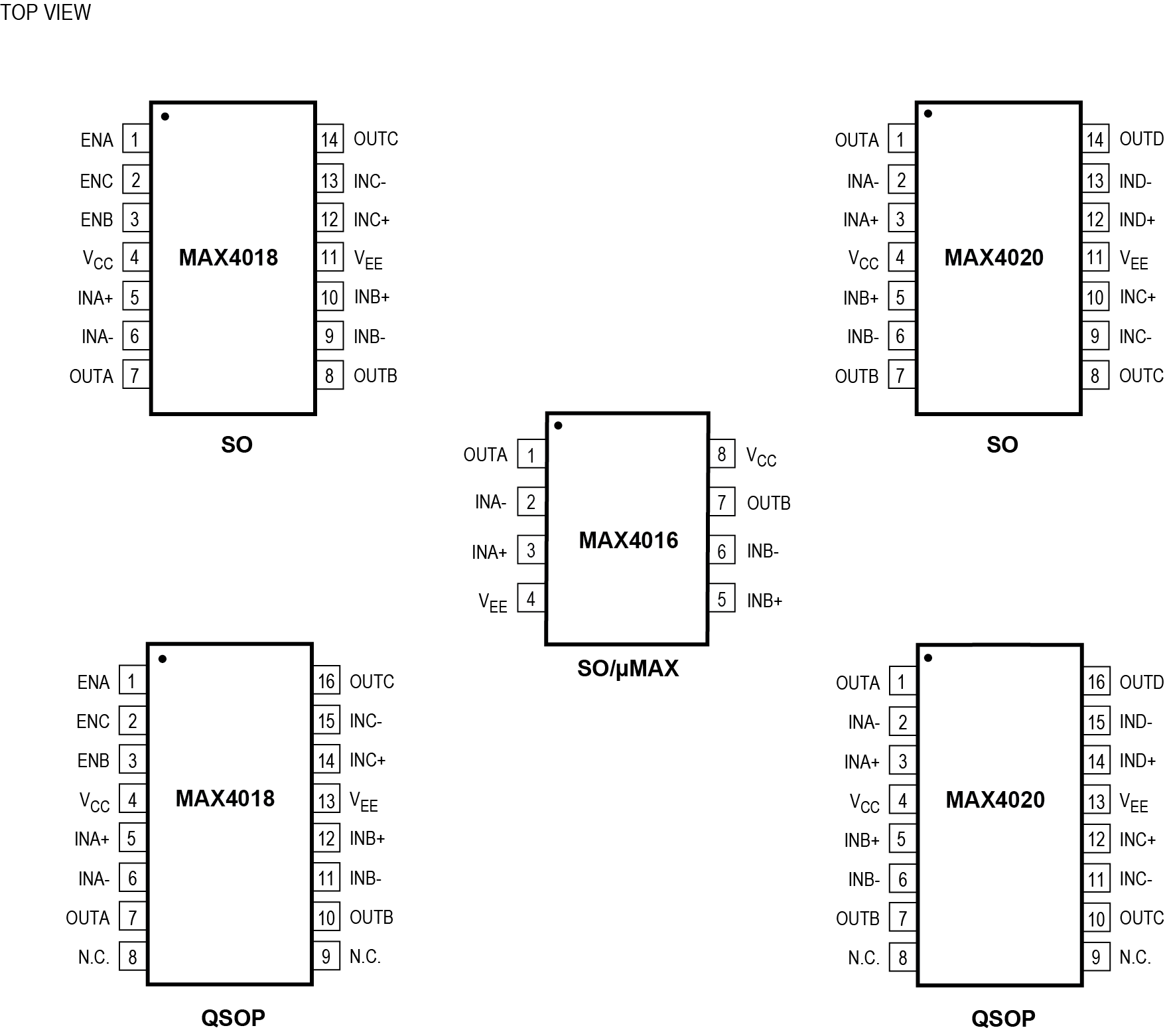

The MAX4012 single, MAX4016 dual, MAX4018 triple, and MAX4020 quad op amps are unity-gain-stable devices that combine high-speed performance with Rail-to-Rail outputs. The MAX4018 has a disable feature that reduces power-supply current to 400µA and places its outputs into a high-impedance state. These devices operate from a 3.3V to 10V single supply or from ±1.65V to ±5V dual supplies. The common-mode input voltage range extends beyond the negative power-supply rail (ground in single-supply applications).These devices require only 5.5mA of quiescent supply current while achieving a 200MHz -3dB bandwidth and a 600V/µs slew rate. These parts are an excellent solution in low-power/low-voltage systems that require wide bandwidth, such as video, communications, and instrumentation. In addition, when disabled, their high-output impedance makes them ideal for multiplexing applications.The MAX4012 comes in a miniature 5-pin SOT23 package, while the MAX4016 comes in 8-pin µMAX® and SO packages. The MAX4018/MAX4020 are available in a space-saving 16-pin QSOP, as well as a 14-pin SO.ApplicationsAnalog-to-Digital Converter InterfaceBattery-Powered InstrumentsCCD Imaging SystemsSet-Top BoxesSurveillance Video SystemsVideo Line DriverVideo Routing and Switching Systems

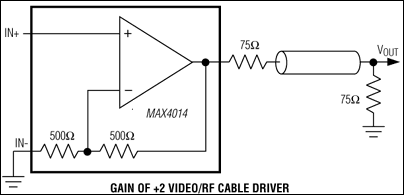

The MAX4014/MAX4017/MAX4019/MAX4022 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase errors. These single-supply devices operate from +3.15V to +11V, or from ±1.575V to ±5.5V dual supplies. The input voltage range extends 100mV beyond the negative supply rail and the outputs swing Rail-to-Rail.These devices require only 5.5mA of quiescent supply current while achieving a 200MHz -3dB bandwidth and a 600V/µs slew rate. In addition, the MAX4019 has a disable feature that reduces the supply current to 400µA. Input voltage noise for these parts is only 10nV/√Hz and input current noise is only 1.3pA/√Hz. This buffer family is ideal for low-power/low-voltage applications that require wide bandwidth, such as video, communications, and instrumentation systems. For space-sensitive applications, the MAX4014 comes in a tiny 5-pin SOT23 package.ApplicationsADC InterfacePortable Battery-Powered InstrumentsVideo Line Driver

The MAX4012 single, MAX4016 dual, MAX4018 triple, and MAX4020 quad op amps are unity-gain-stable devices that combine high-speed performance with Rail-to-Rail outputs. The MAX4018 has a disable feature that reduces power-supply current to 400µA and places its outputs into a high-impedance state. These devices operate from a 3.3V to 10V single supply or from ±1.65V to ±5V dual supplies. The common-mode input voltage range extends beyond the negative power-supply rail (ground in single-supply applications).These devices require only 5.5mA of quiescent supply current while achieving a 200MHz -3dB bandwidth and a 600V/µs slew rate. These parts are an excellent solution in low-power/low-voltage systems that require wide bandwidth, such as video, communications, and instrumentation. In addition, when disabled, their high-output impedance makes them ideal for multiplexing applications.The MAX4012 comes in a miniature 5-pin SOT23 package, while the MAX4016 comes in 8-pin µMAX® and SO packages. The MAX4018/MAX4020 are available in a space-saving 16-pin QSOP, as well as a 14-pin SO.ApplicationsAnalog-to-Digital Converter InterfaceBattery-Powered InstrumentsCCD Imaging SystemsSet-Top BoxesSurveillance Video SystemsVideo Line DriverVideo Routing and Switching Systems

The MAX4014/MAX4017/MAX4019/MAX4022 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase errors. These single-supply devices operate from +3.15V to +11V, or from ±1.575V to ±5.5V dual supplies. The input voltage range extends 100mV beyond the negative supply rail and the outputs swing Rail-to-Rail.These devices require only 5.5mA of quiescent supply current while achieving a 200MHz -3dB bandwidth and a 600V/µs slew rate. In addition, the MAX4019 has a disable feature that reduces the supply current to 400µA. Input voltage noise for these parts is only 10nV/√Hz and input current noise is only 1.3pA/√Hz. This buffer family is ideal for low-power/low-voltage applications that require wide bandwidth, such as video, communications, and instrumentation systems. For space-sensitive applications, the MAX4014 comes in a tiny 5-pin SOT23 package.ApplicationsADC InterfacePortable Battery-Powered InstrumentsVideo Line Driver
