Analog Devices Inc./Maxim Integrated

The MAX40263 is a dual-channel operational amplifier with two channels that can be disabled separately with two individual pins.The MAX40263 offers a unique combination of high-speed, precision, and low-voltage operation, making it ideally suited for a large number of signal-processing functions such as filtering and amplification of signals in portable and industrial equipment.The MAX40263's rail-to-rail input/outputs and low noise guarantee maximum dynamic range in demanding applications such as 12- to 14-bit SAR ADC drivers. Unlike traditional rail-to-rail input structures, input crossover distortion is absent due to an optimized input stage with an ultra-quiet charge pump. The input offset voltage is as low as 50μV due to the autocalibration performed during power-up. The device also includes a fast-power-on shutdown mode for further power savings.The MAX40263 operates from a wide supply range of 1.8V to 5.5V over the -40°C to +125°C temperature range and consumes only 750µA (typ) supply current per channel. It is available in a tiny, 10-pin QFN package.The MAX40263 is an extension of the MAX44259/60/61/63 and MAX40110/11 families with individual shutdown pins for separate channels.ApplicationsNotebooks3G/4G HandsetsPortable Medical InstrumentsBattery-Operated DevicesAnalog-to-Digital Converter BuffersTransimpedance AmplifiersGeneral-Purpose Signal Processing

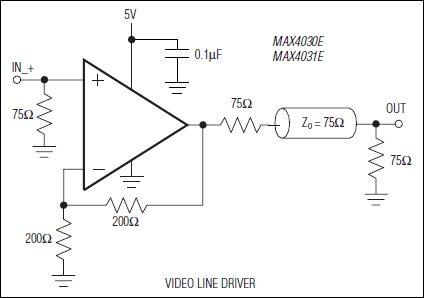

The MAX4030E/MAX4031E unity-gain stable op amps combine high-speed performance, rail-to-rail outputs, and ±15kV ESD protection. Targeted for applications where an input or an output is exposed to the outside world, such as video and communications, these devices are compliant with International ESD Standards: ±15kV IEC 1000-4-2 Air-Gap Discharge, ±8kV IEC 1000-4-2 Contact Discharge, and the ±15kV Human Body Model.The MAX4030E/MAX4031E operate from a single 5V supply and consume only 12mA of quiescent supply current per amplifier while achieving a 144MHz -3dB bandwidth, 20MHz 0.1dB gain flatness, and a 115V/µs slew rate. The MAX4031E provides individual shutdown control for each of the amplifiers.The dual MAX4030E is available in 8-pin µMAX and SO packages, and the triple MAX4031E is available in 14-pin TSSOP and SO packages. All devices are specified over the -40°C to +85°C extended temperature range.ApplicationsCamcordersDigital Still CamerasEnhanced Television (ETV)High-Definition Television (HDTV)NotebooksPortable DVD PlayersProjectorsSecurity Video SystemsSet-Top BoxesStandard Definition Television (SDTV)

The MAX4030E/MAX4031E unity-gain stable op amps combine high-speed performance, rail-to-rail outputs, and ±15kV ESD protection. Targeted for applications where an input or an output is exposed to the outside world, such as video and communications, these devices are compliant with International ESD Standards: ±15kV IEC 1000-4-2 Air-Gap Discharge, ±8kV IEC 1000-4-2 Contact Discharge, and the ±15kV Human Body Model.The MAX4030E/MAX4031E operate from a single 5V supply and consume only 12mA of quiescent supply current per amplifier while achieving a 144MHz -3dB bandwidth, 20MHz 0.1dB gain flatness, and a 115V/µs slew rate. The MAX4031E provides individual shutdown control for each of the amplifiers.The dual MAX4030E is available in 8-pin µMAX and SO packages, and the triple MAX4031E is available in 14-pin TSSOP and SO packages. All devices are specified over the -40°C to +85°C extended temperature range.ApplicationsCamcordersDigital Still CamerasEnhanced Television (ETV)High-Definition Television (HDTV)NotebooksPortable DVD PlayersProjectorsSecurity Video SystemsSet-Top BoxesStandard Definition Television (SDTV)
