DARWIN is a new breed of low-power microcontrollers built to thrive in the rapidly evolving Internet of Things (IoT). They are smart, with the biggest memories in their class and a massively scalable memory architecture. They run forever, thanks to wearable-grade power technology. They are durable enough to withstand the most advanced cyberattacks. DARWIN microcontrollers are designed to run any application imaginable—in places where you would not dream of sending other microcontrollers.Generation UB microcontrollers are designed to handle the increasingly complex applications demanded by today's advanced battery-powered devices and wirelessly connected devices, while providing robust hardware security and Bluetooth®5 Low Energy (Bluetooth LE) radio connectivity.The MAX32665/MAX32666 UB class microcontrollers are advanced systems-on-chips featuring an Arm®Cortex®-M4 with FPU CPU for efficient computation of complex functions and algorithms with integrated power management. They also include the newest generation Bluetooth 5 LE radio with high throughput (2Mbps) and ADI's best-in-class hardware security suite trust protection unit (TPU). The devices offer large on-board memory with 1MB flash and 560KB SRAM. Split flash banks of 512KB each support seamless over-the-air upgrades, adding an additional degree of reliability. Memory scalability of data (SRAM) and code (flash) space is supported by two SPI execute-in-place (SPIX) interfaces.Multiple high-speed interfaces are supported including HS-USB, secure digital interface (SD, SDIO, MMC, SDHC, and microSD™), SPI, UART, and I2C serial interfaces, and an audio subsystem supporting PDM, PCM, I2S, and TDM interfaces. An 8-input, 10-bit ADC is available to monitor analog inputs from external sensors and meters. The devices are available in 109-bump WLP (0.35mm pitch) and 121-bump CTBGA (0.65mm pitch).ApplicationsConnected HomeGaming DevicesHearablesIndustrial SensorsPayment/Fitness/Medical WearablesTelemedicine

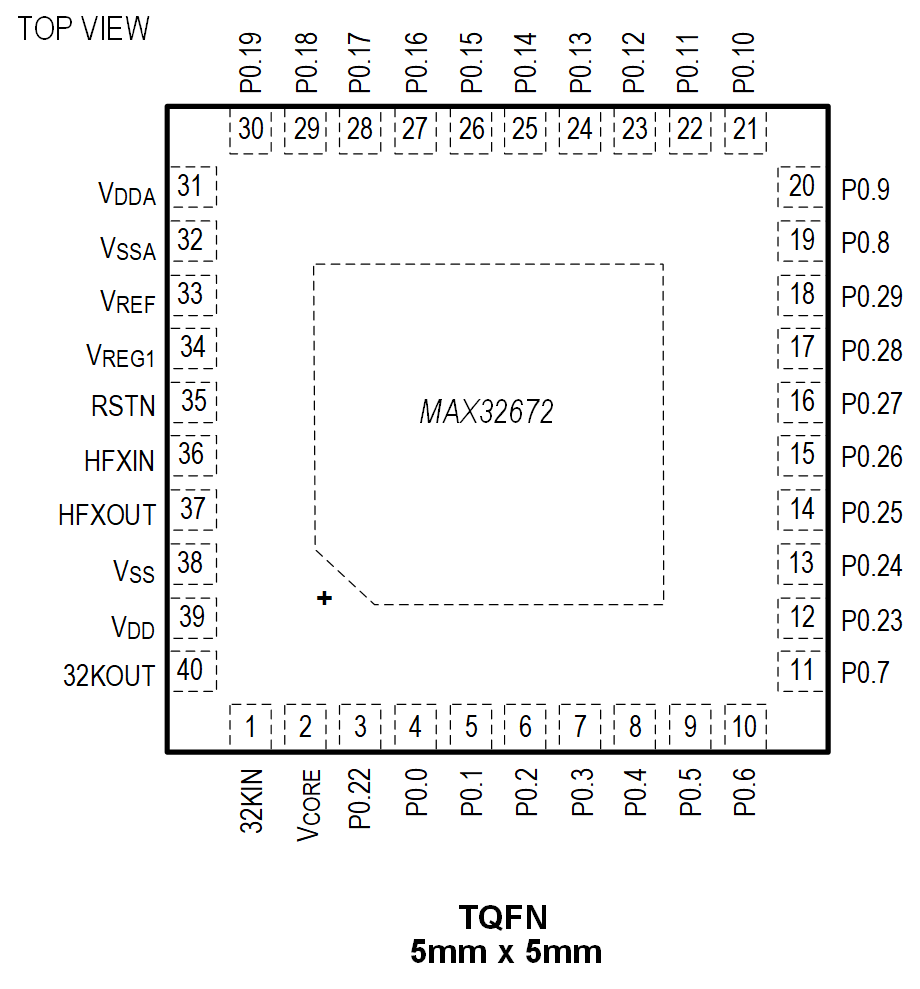

In the DARWIN family, the MAX32672 is an ultra-low-power, cost-effective, highly integrated, and highly reliable 32-bit microcontroller enabling designs with complex sensor processing without compromising battery life. It combines a flexible and versatile power management unit with the powerful Arm®Cortex®-M4 processor with a floating-point unit (FPU). The MAX32672 also offers legacy designs an easy and cost-optimal upgrade path from 8- or16-bit microcontrollers.The device integrates 1MB of flash and 200KB of SRAM to accommodate application and sensor code. Error correction coding (ECC) is implemented on the entire flash, RAM, and cache to ensure extremely reliable code execution even in the harshest of environments. Brownout detection ensures proper operation during power-down and power-up events and unexpected supply transients. The flash is organized into two equal-size physical banks to allow execute-while-write and facilitate "live upgrades."Multiple high-speed peripherals such as 3.4MHz I2C, 50MHz SPI, and UART are included to maximize communication bandwidth. In addition, a low-power UART (LPUART) is available for operation in the lowest power sleep modes to facilitate wake-up activity without any loss of data. A total of six timers with I/O capability are provided, including two low-power timers to enable pulse counting, capture/compare, and pulse-width modulation (PWM) generation, even in the lowest power sleep modes. An incremental/quadrature encoder interface with multiple diagnostics is included specifically for motor control applications. A 1Msps, 12-channel, 12-bit successive approximation register (SAR) ADC is integrated for the digitization of analog sensor signals or other analog measurements. Two low-power comparators, available in all low-power modes, allow energy-efficient monitoring and wake-up on external analog signals. An Elliptic Curve Digital Signature Algorithm (ECDSA)-based cryptographic secure bootloader is available in ROM. The device is available in a 40-pin TQFN-EP, 56-pin TQFN, and a 64-pin eWLB.ApplicationsBattery-Powered Medical DevicesMotion/Motor Control, Industrial SensorsOptical Communication Modules, Secure Radio Modem Controller

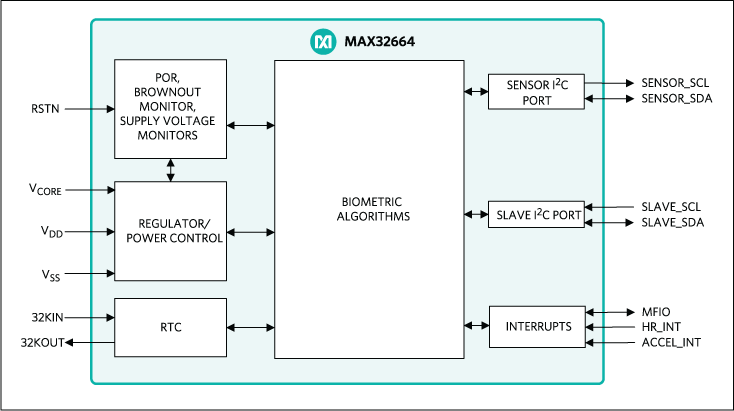

The MAX32674C is an algorithm/sensor hub with embedded software and world-class algorithms for the fitness and medical wearables market meant to interface directly with Analog Devices' optical sensors. The MAX32674C processes raw data and outputs biometric measurements when configured as an algorithm hub. When configured as a sensor hub, the MAX32674C seamlessly enables customer-desired sensor functionality, including driver communication with Analog Devices optical sensor solutions and delivering raw or calculated data to the outside world. The MAX32674C optimizes system power consumption by sleeping when idle.Analog Devices provides software algorithms developed by data scientists and machine learning experts for a complete solution—taking raw ADC data and turning it into usable data such as heart rate and SpO2. The device is delivered unprogrammed. The host microcontroller interfaces to an internal bootloader through an I2C slave interface for initial programming or in-field upgrades.The MAX32674C supports the MAX86176 for wrist-based algorithm hub and sensor hub applications. The sensor hub uses the master mode SPI interface to communicate with the sensors.The wearable algorithms in the MAX32674C support a directly connected accelerometer when used as a sensor hub. It also supports an indirect connection where the accelerometer is instead connected to the host microcontroller. This architecture provides robust detection and compensation of motion artifacts in captured samples.The device is packaged in a tiny form factor: 2.50mm x 1.75mm, 0.4mm pitch, 24-pin WLP.ApplicationsWearable FitnessHearablesWearable MedicalPortable MedicalMobile Devices

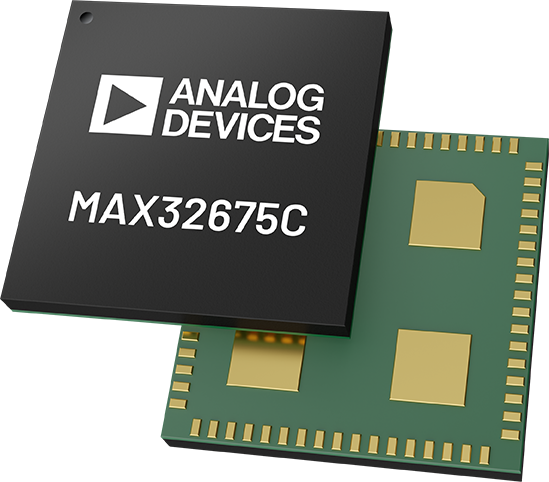

The MAX32675C is a highly integrated, mixed-signal, ultra-low-power microcontroller for industrial applications and is especially suitable for 4-20mA loop-powered sensors and transmitters. It is based on an ultra-low-power Arm®Cortex®- M4 with floating point unit (FPU) and includes 384KB (376KB user) flash and 160KB of SRAM. Error correction coding (ECC), capable of single-error correction, double-error detection (SEC-DED), is implemented over the entire flash, SRAM, and cache to ensure ultra-reliable code execution for demanding applications.An analog front-end (AFE) with an integrated, low-power HART modem enables the bidirectional transfer of digital data over a current loop with industrial sensors for configuration and diagnostics. The AFE also provides two 12-channel delta-sigma (Δ-Σ) ADCs with features and specifications optimized for precision sensor measurement. Each Δ-Σ ADC can digitize external analog signals as well as system temperature. A PGA with gains of 1x to128x precedes each ADC. ADC outputs can be optionally converted on the fly from integer to single-precision floating-point format. A 12-bit DAC is also included.The device also provides robust security features, including an AES engine and persistent key storage.APPLICATIONS4-20mA Industrial Sensors and TransmittersIndustrial Pressure, Temperature, Flow, and LevelSensors/TransmittersMedical Pressure, Temperature, and Flow Sensors

The MAX32680 microcontroller (MCU) is an advanced system-on-chip (SoC), featuring an Arm®Cortex®-M4F CPU for efficient computation of complex functions and algorithms that is qualified to operate at a temperature range of -40°C to +85°C. The SoC integrates power regulation and management with a single-inductor multiple-output (SIMO) buck regulator system. Onboard is the latest generation Bluetooth®5.2 Low Energy (LE) radio, supporting LE Audio, angle of arrival (AoA), and angle of departure (AoD) for direction finding, long-range (coded) modes, and high-throughput modes.The device offers large onboard memory with 512KB flash and 128KB SRAM, with optional error correction coding (ECC) on one 32KB SRAM bank. This 32KB bank can be optionally retained in BACKUP mode. An 8KB user one-time programmable (OTP) area is available, and 8 bytes are retained, even during power-down.An analog front-end (AFE) provides two 12-channel delta-sigma (Δ-Σ) analog-to-digital converters (ADC) with features and specifications optimized for precision sensor measurement. Each Δ-Σ ADC can digitize external analog signals as well as system temperature. An optional programmable gain amplifier (PGA) with gains of 1x to 128x precedes each ADC. ADC outputs can be optionally converted on the fly from integer to single-precision floating-point format. A 12-bit digital-to-analog converter (DAC) is also included. The device also provides robust security features such as an advanced encryption standard (AES) engine, true random number generator (TRNG), and secure boot.The device is available in an 88L LGA (10mm x 10mm, 0.4mm pitch) package.ApplicationsIndustrial Pressure, Temperature. Level and Flow Sensors/TransmittersMedical Pressure and Temperature Sensors
