Analog Devices Inc./Maxim Integrated

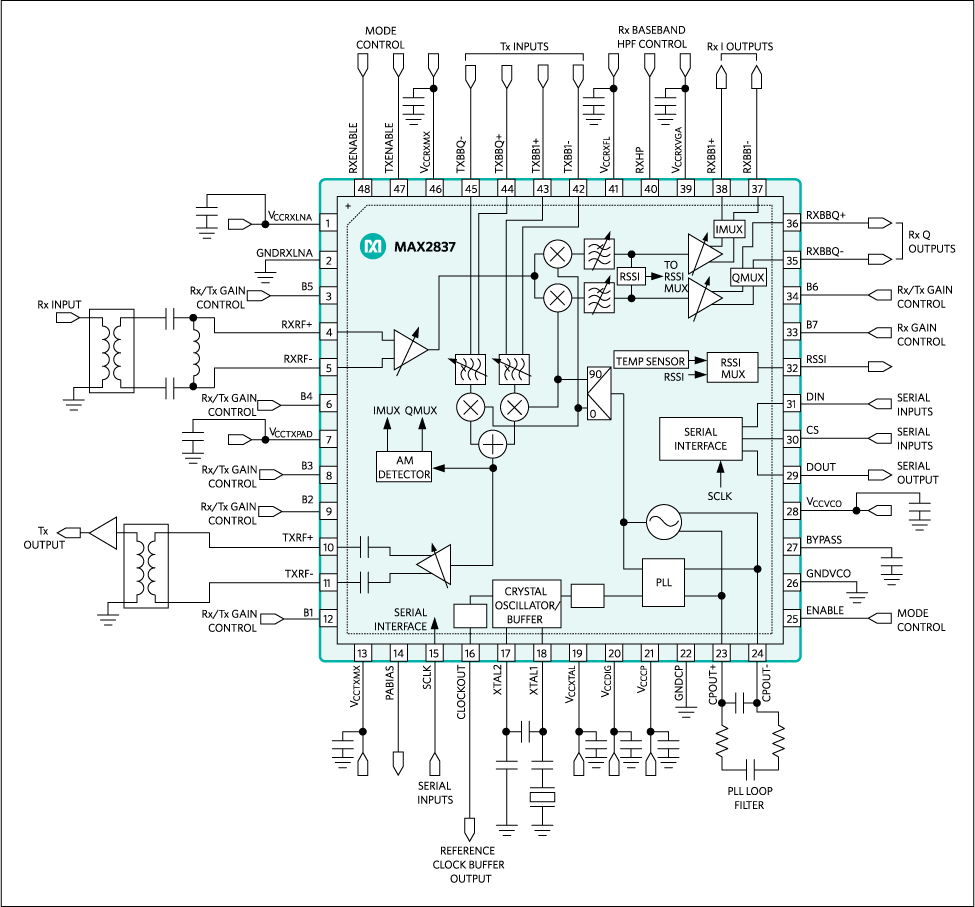

The MAX2837 direct-conversion zero-IF RF transceiver is designed specifically for 2.3GHz to 2.7GHz wireless broadband systems. The MAX2837 completely integrates all circuitry required to implement the RF transceiver function, providing RF-to-baseband receive path; and baseband-to-RF transmit path, VCO, frequency synthesizer, crystal oscillator, and baseband/control interface. The device includes a fast-settling sigma-delta RF synthesizer with smaller than 20Hz frequency steps and a crystal oscillator, which allows the use of a low-cost crystal in place of a TCXO. The transceiver IC also integrates circuits for on-chip DC offset cancellation, I/Q error, and carrier-leakage detection circuits. Only an RF bandpass filter (BPF), crystal, RF switch, PA, and a small number of passive components are needed to form a complete wireless broadband RF radio solution.The MAX2837 completely eliminates the need for an external SAW filter by implementing on-chip monolithic filters for both the receiver and transmitter. The baseband filters along with the Rx and Tx signal paths are optimized to meet stringent noise figure and linearity specifications. The device supports up to 2048 FFT OFDM and implements programmable channel filters for 1.75MHz to 28MHz RF channel bandwidths. The transceiver requires only 2µs Tx-Rx switching time, which includes frequency transient settling. The IC is available in a small, 48-pin thin QFN package measuring only 6mm x 6mm x 0.8mm.Applications802.16-2004 Fixed WiMAX®Korea WiBro and 802.16e Mobile WiMAXDual Mode™ WiMAX/802.11b/g WiFiProprietary Wireless Broadband Systems4G/LTE Systems

The MAX2850 is a single-chip, 4-channel RF transmitter IC designed for 5GHz wireless HDMI applications. The IC includes all circuitry required to implement the complete 4-channel MIMO RF transmitter function and crystal oscillator, providing a fully integrated transmit path, VCO, frequency synthesis, and baseband/control interface. It includes a fast-settling, sigma-delta RF fractional synthesizer with 76Hz frequency programming step size. The IC also integrates on-chip I/Q amplitude and phase-error calibration circuits. Dynamic on/off control of four external PAs is implemented with programmable precision voltages. A 4-to-1 analog mux routes external PA power-detect voltages to the RSSI pin.On-chip monolithic filters are included for transmitter I/Q baseband signal reconstruction to support both 20MHz and 40MHz RF channels. The baseband filtering and Tx signal paths are optimized to meet stringent WHDI requirements. The upconverter local oscillator is coherent among all the transmitter channels.The reverse-link control channel uses an on-chip 5GHz OFDM receiver. It shares the RF synthesizer and LO generation circuit with the MIMO transmitters. The receiver includes both an in-channel RSSI and an RF RSSI.The MIMO transmitter chip is housed in a small, 68-pin thin QFN leadless plastic package with exposed pad.Applications5GHz Beam Steering Transmitter5GHz FDD Backhaul and WiMax™5GHz MIMO Transmitter Up to Four Spatial Streams5GHz Wireless HDMI (WHDI)

The MAX2851 is a single-chip, 5-channel RF receiver IC designed for 5GHz wireless HDMI™ applications. The IC includes all circuitry required to implement the complete 5-channel MIMO RF receiver function and crystal oscillator, providing a fully integrated receive path, VCO, frequency synthesis, and baseband/control interface. It includes a fast-settling sigma-delta RF fractional synthesizer with 76Hz frequency programming step size. The IC also integrates on-chip I/Q amplitude and phase-error calibration circuits. The receiver includes both an in-channel RSSI and also an RF RSSI.On-chip monolithic filters are included for receiver I/Q baseband signal channel selection, for supporting both 20MHz and 40MHz RF channels. The baseband filtering and Rx signal paths are optimized to meet stringent WHDI requirements. The downconverter local oscillator is coherent among all the receiver channels.The reverse-link control channel uses an on-chip 5GHz OFDM transmitter. It shares the RF synthesizer and LO generation circuit with the MIMO receivers. Dynamic on/off control of the external PA is implemented with programmable precision voltage. An analog mux routes external PA power-detect voltage to the RSSI pin.The MIMO receiver chip is housed in a small 68-pin TQFN leadless plastic package with exposed paddle.Applications5GHz Beam Steering Receiver5GHz FDD Backhaul and WiMax™5GHz MIMO Receiver Up to Five Spatial Streams5GHz Wireless HDMI (WHDI™)
