Analog Devices Inc./Maxim Integrated

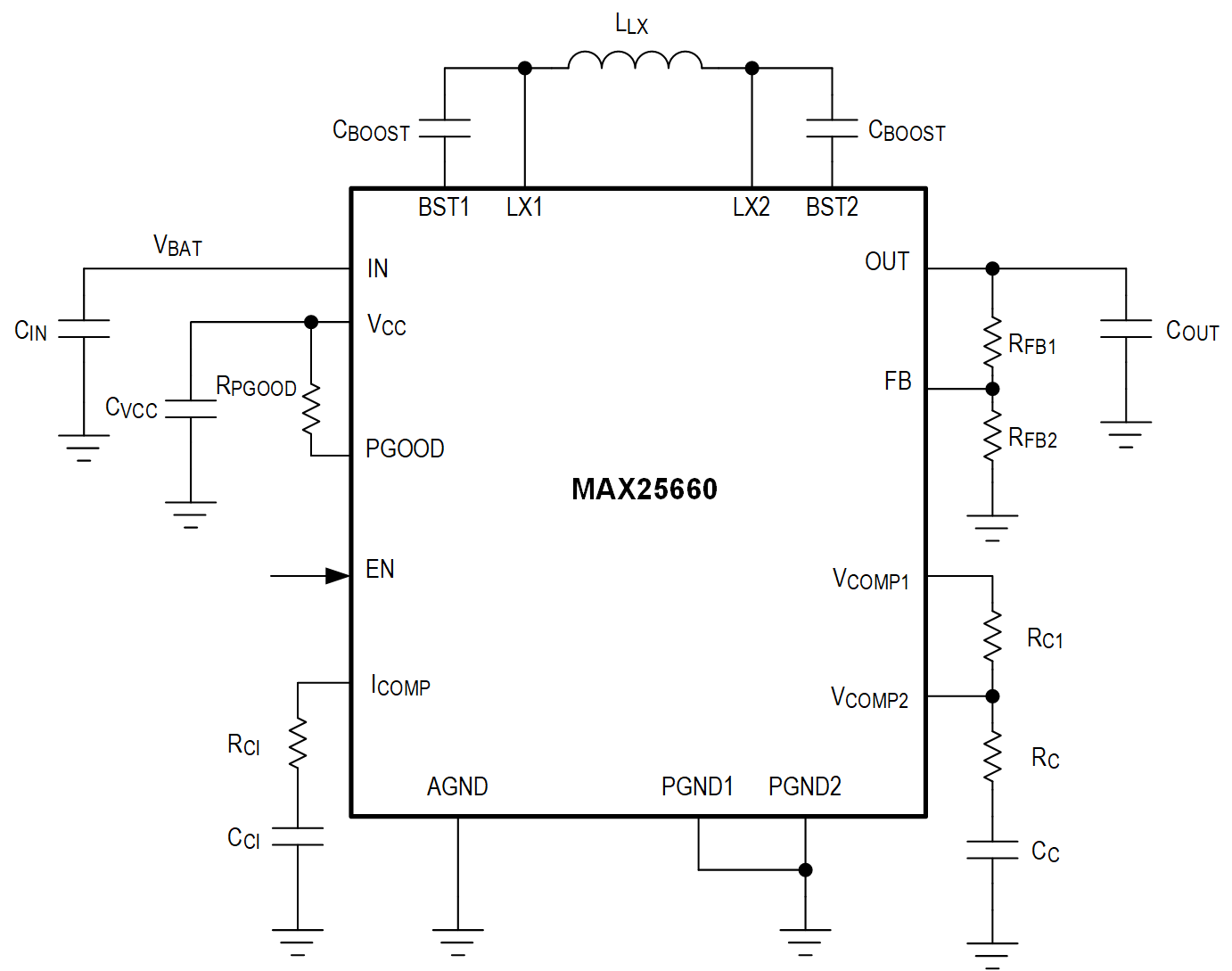

The MAX25660 is a small, synchronous, buck-boost converter with integrated H-bridge switches. This IC provides a fixed-output regulation voltage and an externally adjustable output voltage in the 2.75V to 10V range with an input voltage above, below, or equal to the output regulation voltage. The MAX25660AFFA has a 9A (typ) input current limit, while the MAX25660AFFB has a 10.8A (typ) input current limit. Both versions can support continuous load currents up to 6A, which depends on the input-to-output voltage ratio and operating frequency. It also has a wide input voltage range of 3.6V to 36V. The MAX25660 features automatic loop bandwidth adjustment that automatically changes the loop bandwidth, which depends on the operating mode. This allows for a very fast transient response time when in Buck mode, which reduces audible noise caused by large changes in the load.The MAX25660 has two switching frequency options: 2.1MHz and 400kHz. The 2.1MHz high switching frequency allows for small external components and reduced output ripple, and guarantees no AM band interference, while the 400kHz switching frequency offers better efficiency and relieves the power consumption concern. The IC also includes spreadspectrum frequency modulation to minimize EMI interference.The MAX25660 features a power-good (PGOOD) indicator, undervoltage lockout, overvoltage protection, cycle-by-cycle current limit, and thermal shutdown. The ICs are available in a small, 4.25mm x 4.25mm x 0.75mm, 22-pin FC2QFN package.APPLICATIONSDisplay ApplicationsTail-Light and Front-Light ApplicationsPoint-of-Load Power Supplies

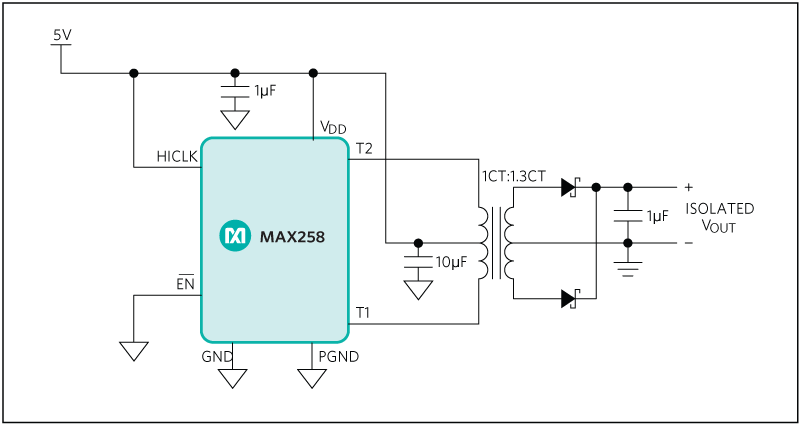

The MAX258 is a 500mA, push-pull transformer driver designed to provide a simple solution for isolated power supplies. The IC has an internal oscillator and operates from a single +3.0V to +5.5V supply. The transformer’s secondary-to-primary winding ratio defines the output voltage, allowing selection of virtually any isolated output voltage with galvanic isolation.The device features an integrated oscillator driving a pair of n-channel power switches. Internal circuitry guarantees a fixed 50% duty cycle to prevent DC current flow through the transformer.The IC operates with up to 500mA of continuous current and features undervoltage lockout and thermal shutdown.The IC includes a low-current shutdown mode to reduce the overall supply current to less than 5µA (max) when the driver is disabled.The MAX258 is available in a small 8-pin (2mm x 3mm) TDFN package and is specified over the -40°C to +125°C temperature range.ApplicationsIsolated Analog Front-EndIsolated Fieldbus InterfaceMedical EquipmentPower Meter Data Interface

The MAX260/MAX261/MAX262 CMOS dual second-order universal switched-capacitor active filters allow microprocessor control of precise filter functions. No external components are required for a variety of bandpass, lowpass, highpass, notch, and allpass configurations. Each device contains two second-order filter sections that place center frequency, Q, and filter operating mode under programmed control.An input clock, along with a 6-bit f0program input, determine the filter's center or corner frequency without affecting other filter parameters. The filter Q is also programmed independently. Separate clock inputs for each filter section operate with either a crystal, RC network, or external clock generator.The MAX260 has offset and DC specifications superior to the MAX261 and MAX262 and a center frequency (f0) range of 7.5kHz. The MAX261 handles center frequencies to 57kHz, while the MAX262 extends the center frequency range to 140kHz by employing lower clock-to-f0ratios. All devices are available in 24-pin DIP and small outline packages in commercial, extended, and military temperature ranges.ApplicationsµP-Tuned FiltersAdaptive FiltersAnti-Aliasing FiltersDigital Signal Processing (DSP)Phase-Locked Loops (PLLs)Signal Analysis

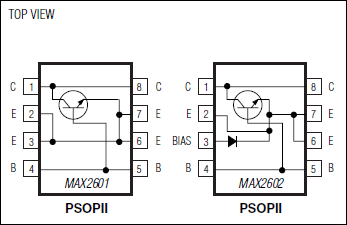

The MAX2601/MAX2602 are RF power transistors optimized for use in portable cellular and wireless equipment that operates from three NiCd/NiMH cells or one Li-Ion cell. These transistors deliver 1W of RF power from a 3.6V supply with efficiency of 58% when biased for constant-envelope applications (e.g., FM or FSK). For NADC (IS-54) operation, they deliver 29dBm with -28dBc ACPR from a 4.8V supply.The MAX2601 is a high-performance silicon bipolar RF power transistor. The MAX2602 includes a high-performance silicon bipolar RF power transistor, and a biasing diode that matches the thermal and process characteristics of the power transistor. This diode is used to create a bias network that accurately controls the power transistor’s collector current as the temperature changes.The MAX2601/MAX2602 can be used as the final stage in a discrete or module power amplifier. Silicon bipolar technology eliminates the need for voltage inverters and sequencing circuitry, as required by GaAsFET power amplifiers. Furthermore, a drain switch is not required to turn off the MAX2601/MAX2602. This increases operating time in two ways: it allows lower system end-of-life battery voltage, and it eliminates the wasted power from a drain-switch device.The MAX2601/MAX2602 are available in thermally enhanced, 8-pin SO packages, which are screened to the extended temperature range (-40°C to +85°C).Applications915MHz ISM TransmittersAMPS Cellular PhonesCDPD ModemsDigital Cellular PhonesLand Mobile RadiosMicrocellular GSM (Power Class 5)Narrow-Band PCS (NPCS)Two-Way Paging

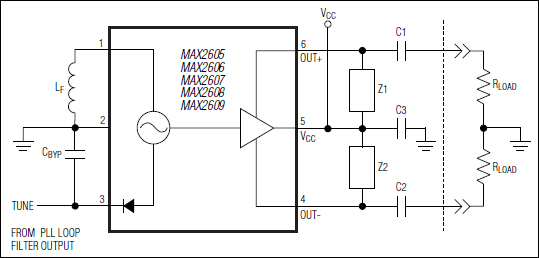

The MAX2605-MAX2609 are compact, high-performance intermediate-frequency (IF) voltage-controlled oscillators (VCOs) designed specifically for demanding portable wireless communication systems. They combine monolithic construction with low-noise, low-power operation in a tiny 6-pin SOT23 package.These low-noise VCOs feature an on-chip varactor and feedback capacitors that eliminate the need for external tuning elements, making the MAX2605-MAX2609 ideal for portable systems. Only an external inductor is required to set the oscillation frequency. In addition, an integrated differential output buffer is provided for driving a mixer or prescaler. The buffer output is capable of supplying up to -8dBm (differential) with a simple power match. It also provides isolation from load impedance variations.The MAX2605-MAX2609 operate from a single +2.7V to +5.5V supply and offer low current consumption. These IF oscillators can cover the 45MHz to 650MHz frequency range.Applications2.4GHz ISM Band902MHz to 928MHz ISM BandCellular and PCS Mobile PhonesGeneral-Purpose IF OscillatorsGPS ReceiversLand Mobile Radios

The MAX2605-MAX2609 are compact, high-performance intermediate-frequency (IF) voltage-controlled oscillators (VCOs) designed specifically for demanding portable wireless communication systems. They combine monolithic construction with low-noise, low-power operation in a tiny 6-pin SOT23 package.These low-noise VCOs feature an on-chip varactor and feedback capacitors that eliminate the need for external tuning elements, making the MAX2605-MAX2609 ideal for portable systems. Only an external inductor is required to set the oscillation frequency. In addition, an integrated differential output buffer is provided for driving a mixer or prescaler. The buffer output is capable of supplying up to -8dBm (differential) with a simple power match. It also provides isolation from load impedance variations.The MAX2605-MAX2609 operate from a single +2.7V to +5.5V supply and offer low current consumption. These IF oscillators can cover the 45MHz to 650MHz frequency range.Applications2.4GHz ISM Band902MHz to 928MHz ISM BandCellular and PCS Mobile PhonesGeneral-Purpose IF OscillatorsGPS ReceiversLand Mobile Radios
