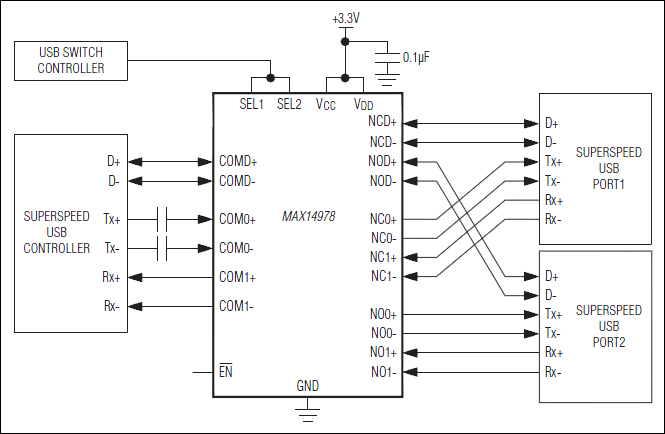

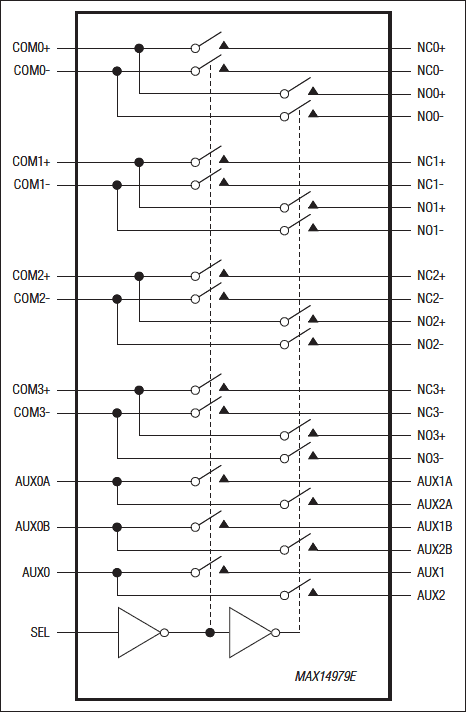

| Signal Buffers, Repeaters, Splitters | 2 | Obsolete | |
MAX14963.5- and 4.5-Digit, Single-Chip ADCs with LED Drivers | Data Acquisition | 3 | Active | The MAX1447/MAX1496/MAX1498 low-power, 3.5- and 4.5-digit, analog-to-digital converters (ADCs) with integrated light-emitting diode (LED) drivers operate from a single 2.7V to 5.25V power supply. They include an internal reference, a high-accuracy on-chip oscillator, and a multiplexed LED display driver. An internal charge pump generates the negative supply needed to power the integrated input buffers for single-supply operation. The ADC is configurable for either a ±2V or ±200mV input range and it outputs its conversion results to an LED. The MAX1496 is a 3.5-digit (±1999 count) device and the MAX1447/MAX1498 are 4.5-digit (±19,999 count) devices.The MAX1447/MAX1496/MAX1498 do not require external precision integrating capacitors, autozero capacitors, crystal oscillators, charge pumps, or other circuitry required with dual-slope ADCs (commonly used in panel meter circuits).These devices also feature on-chip buffers for the differential signal and reference input, allowing direct interface with high-impedance signal sources. In addition, they use continuous internal offset-calibration and offer >100dB rejection of 50Hz and 60Hz line noise. Other features include data hold and peak detection and overrange/underrange detection. The MAX1447 features on-demand enhanced offset calibration for improved offset performance.The MAX1447/MAX1498 are available in a 32-pin, 7mm x 7mm TQFP package and the MAX1496 is available in 28-pin SSOP and 28-pin PDIP packages. All devices in this family operate over the -40°C to +85°C extended temperature range.ApplicationsDigital MultimetersDigital Panel MetersDigital VoltmetersHandheld meters |
| Integrated Circuits (ICs) | 1 | Active | |
| Integrated Circuits (ICs) | 2 | Active | |
MAX14970Ruggedized 6Gbps SATA Redriver with High ESD and Extended Temperature Operation | Integrated Circuits (ICs) | 3 | Active | The MAX14970 dual-channel buffer with input equalization and preemphasis is ideal to redrive internal serial-ATA (SATA) 1i, 2i, and 3i signals as well as eSATA 1m and 2m signals. The device features high electrostatic discharge (ESD) ±8kV Human Body Model (HBM) protection. The device can be placed near a SATA connector on the motherboard to overcome board losses and guarantee SATA compliance. The device is SATA specification version 3.0 (gold standard) compliant and can also be pin-configured for SATA specification version 2.6 (gold standard) compliance.The device features hardware SATA-drive cable detection that automatically places the device into a standby mode that consumes less than 20μA (typ) standby current when no drive is connected. In addition, the device features an independent channel dynamic power-down mode where power consumption is reduced when no input signal is present. The device maintains output common-mode levels to meet internal SATA version 3.0 standards and prevent delays when coming out of low-power mode. The device preserves signal integrity at the receiver by reestablishing full output levels and reducing the total system jitter (TJ) by providing equalization. The device features channel-independent digital preemphasis controls to drive SATA outputs over longer trace lengths to meet internal SATA specifications. SATA out-of-band (OOB) signaling is supported using high-speed out-of-band signal detection on the inputs, and squelch on the corresponding outputs. Inputs and outputs are all internally 50Ω terminated and must be AC-coupled to the SATA controller IC and SATA device.The device operates from a single +3.3V (typ) supply, is available in a small, 4mm x 4mm TQFN package with flow-through traces for ease of layout, and is specified over the extended -40°C to +85°C operating temperature range.ApplicationsIndustrial ServerIndustrial/Embedded PCMedicalPortable IPC/HMISATA SSDs or HDDs |
| Integrated Circuits (ICs) | 2 | Active | |
| Analog Switches - Special Purpose | 3 | Active | |
| ADCs/DACs - Special Purpose | 2 | Active | |

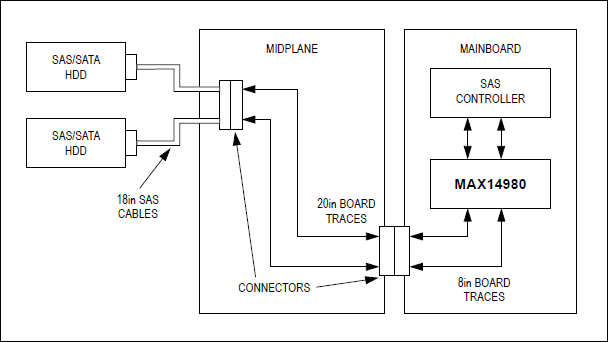

MAX14980Ruggedized Quad SAS/SATA Redriver/Equalizer with Extended Operating Temperature | Interface | 2 | LTB | The MAX14980 quad-channel redriver is designed to redrive two full lanes of SAS or SATA signals up to 6.0GT/s (gigatransfers per second) and operates from a single +3.3V supply.The MAX14980 features independent input equalization and output preemphasis. It enhances signal integrity at the receiver by equalizing the signal at the input and establishing preemphasis at the output of the device. SAS and SATA OOB (out-of-band) signaling is supported using high-speed amplitude detection on the inputs and squelch on the corresponding outputs. Inputs and outputs are all internally 50Ω terminated and must be AC-coupled to the SAS/SATA controller IC and SAS/SATA device.The MAX14980 is available in a small 42-pin, 3.5mm x 9mm, TQFN package with flow-through traces for ease of layout. This device is specified over the -40°C to +85°C extended operating temperature range.ApplicationsCarrier BoardsComputer on ModulesIndustrial/Embedded PCsMedical EquipmentRack Server Industrial PCsTest Equipment |
| Integrated Circuits (ICs) | 2 | Obsolete | |
