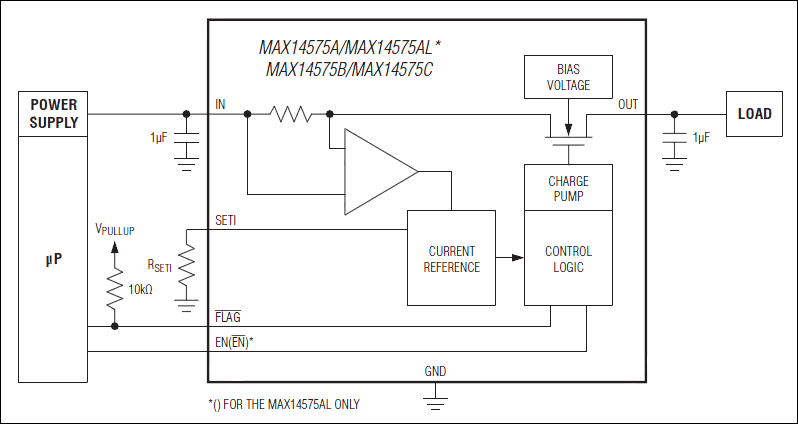

The MAX14575A/MAX14575AL/MAX14575B/MAX14575C programmable current-limit switches feature internal current limiting to prevent damage to host devices due to faulty load conditions. These current-limit switches feature a low 32mΩ (typ) on-resistance and operate from a +2.3V to +5.5V input-voltage range. The current limit is adjustable from 250mA to 2.5A, making these devices ideal for charging a large load capacitor, as well as for high-current load switching applications.Each device in the family handles an overcurrent event differently depending on the option selected. The MAX14575A/MAX14575AL feature an autoretry mode; the MAX14575A has active-high EN polarity, while the MAX14575AL has active-low EN polarity. The MAX14575B has latch-off mode, and the MAX14575C features a continuous current-limit mode. Additional safety features include thermal-shutdown protection to prevent overheating and reverse-current blocking to prevent current from being driven back into the source.The MAX14575A/MAX14575AL/MAX14575B/MAX14575C are available in a small 2mm x 2mm, 8-pin TDFN package and operate over the -40°C to +85°C extended temperature range.ApplicationsData Modem CardsPortable Media PlayersRF Power Amplifier in Cell PhonesSDXC Card Power-Supply ProtectionUSB PortsUTCA/ATCA Platforms

The MAX14575A/MAX14575AL/MAX14575B/MAX14575C programmable current-limit switches feature internal current limiting to prevent damage to host devices due to faulty load conditions. These current-limit switches feature a low 32mΩ (typ) on-resistance and operate from a +2.3V to +5.5V input-voltage range. The current limit is adjustable from 250mA to 2.5A, making these devices ideal for charging a large load capacitor, as well as for high-current load switching applications.Each device in the family handles an overcurrent event differently depending on the option selected. The MAX14575A/MAX14575AL feature an autoretry mode; the MAX14575A has active-high EN polarity, while the MAX14575AL has active-low EN polarity. The MAX14575B has latch-off mode, and the MAX14575C features a continuous current-limit mode. Additional safety features include thermal-shutdown protection to prevent overheating and reverse-current blocking to prevent current from being driven back into the source.The MAX14575A/MAX14575AL/MAX14575B/MAX14575C are available in a small 2mm x 2mm, 8-pin TDFN package and operate over the -40°C to +85°C extended temperature range.ApplicationsData Modem CardsPortable Media PlayersRF Power Amplifier in Cell PhonesSDXC Card Power-Supply ProtectionUSB PortsUTCA/ATCA Platforms

The MAX14575A/MAX14575AL/MAX14575B/MAX14575C programmable current-limit switches feature internal current limiting to prevent damage to host devices due to faulty load conditions. These current-limit switches feature a low 32mΩ (typ) on-resistance and operate from a +2.3V to +5.5V input-voltage range. The current limit is adjustable from 250mA to 2.5A, making these devices ideal for charging a large load capacitor, as well as for high-current load switching applications.Each device in the family handles an overcurrent event differently depending on the option selected. The MAX14575A/MAX14575AL feature an autoretry mode; the MAX14575A has active-high EN polarity, while the MAX14575AL has active-low EN polarity. The MAX14575B has latch-off mode, and the MAX14575C features a continuous current-limit mode. Additional safety features include thermal-shutdown protection to prevent overheating and reverse-current blocking to prevent current from being driven back into the source.The MAX14575A/MAX14575AL/MAX14575B/MAX14575C are available in a small 2mm x 2mm, 8-pin TDFN package and operate over the -40°C to +85°C extended temperature range.ApplicationsData Modem CardsPortable Media PlayersRF Power Amplifier in Cell PhonesSDXC Card Power-Supply ProtectionUSB PortsUTCA/ATCA Platforms

The MAX14578E/MAX14578AE are USB charger detectors compliant with USB Battery Charging Revision 1.1. The USB charger-detection circuitry detects USB standard downstream ports (SDPs), USB charging downstream ports (CDPs), or dedicated charger ports (DCPs), and controls an external lithium-ion (Li+) battery charger.The devices implement USB Battery Charging Revision 1.1-compliant detection logic including data contact detection, D+/D- short detection, and charging downstream port identification. The MAX14578AE features an enable (active-low EN) input and an LDO output.In addition, the internal USB switch is compliant to Hi-Speed USB, full-speed USB, and low-speed USB signals. The devices feature low on-resistance, low on-resistance flatness, and very low capacitance. The devices also feature high-ESD protection up to ±15kV Human Body Model on the CD+ and CD- pins.In addition, the MAX14578E/MAX14578AE feature Apple and Sony charger detection that allows identification of resistor-divider networks on D+/D-.The MAX14578E/MAX14578AE are available in 12-bump, 0.4mm pitch, 1.3mm x 1.68mm WLP and 16-pin TQFN packages and operate over the -40°C to +85°C extended temperature range.ApplicationsCell PhonesDSC and Camcordere-Book ReadersMedia PlayersMID (Mobile Internet Device)
