SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP™5901-WHM is the SmartMesh WirelessHART mote product in the Eterna®family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running Analog Devices' embedded SmartMesh WirelessHART networking software.The LTP5901-WHM includes an onboard chip antenna and comes with modular RF certifications. Also available are theLTC5800-WHMMote-on-Chip and theLTP5902-WHMmodule which includes an MMCX antenna connector.With Analog Devices' time-synchronized SmartMesh WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5901-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).Network FeaturesFeaturesBenefitTime Synchronized Channel Hopping Communications>99.999% network reliability in even the most challenging RF environments.Sub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to IEC62591 (WirelessHART).Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracy.Device FeaturesFeaturesBenefitIndustry-Leading Low Power Radio Technology4.5mA to Receive a Packet5.4mA to Transmit at 0dBm9.7mA to Transmit at 8dBmPre-engineered RFRF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.RF Modular CertificationsPre-certified in USA, Canada, EU, Japan, andmoreEnergy Harvesting SupportVery low power design enables motes to be powered by a wide variety of energy harvesters.ApplicationsLearn more about SmartMesh applications.

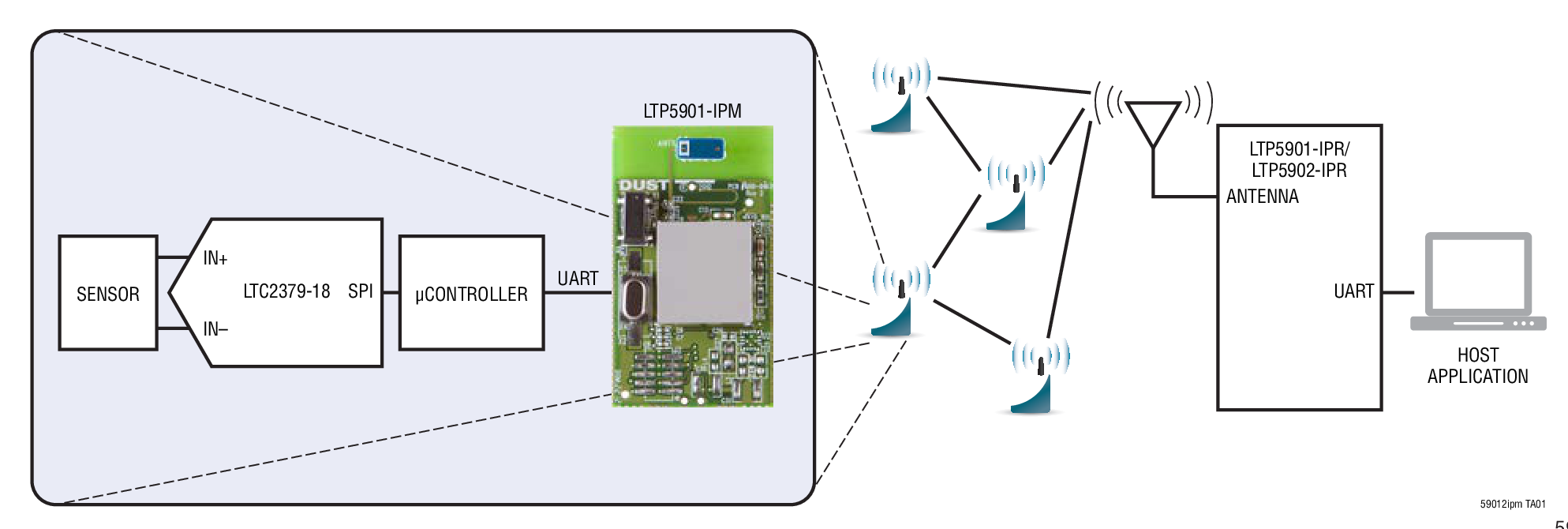

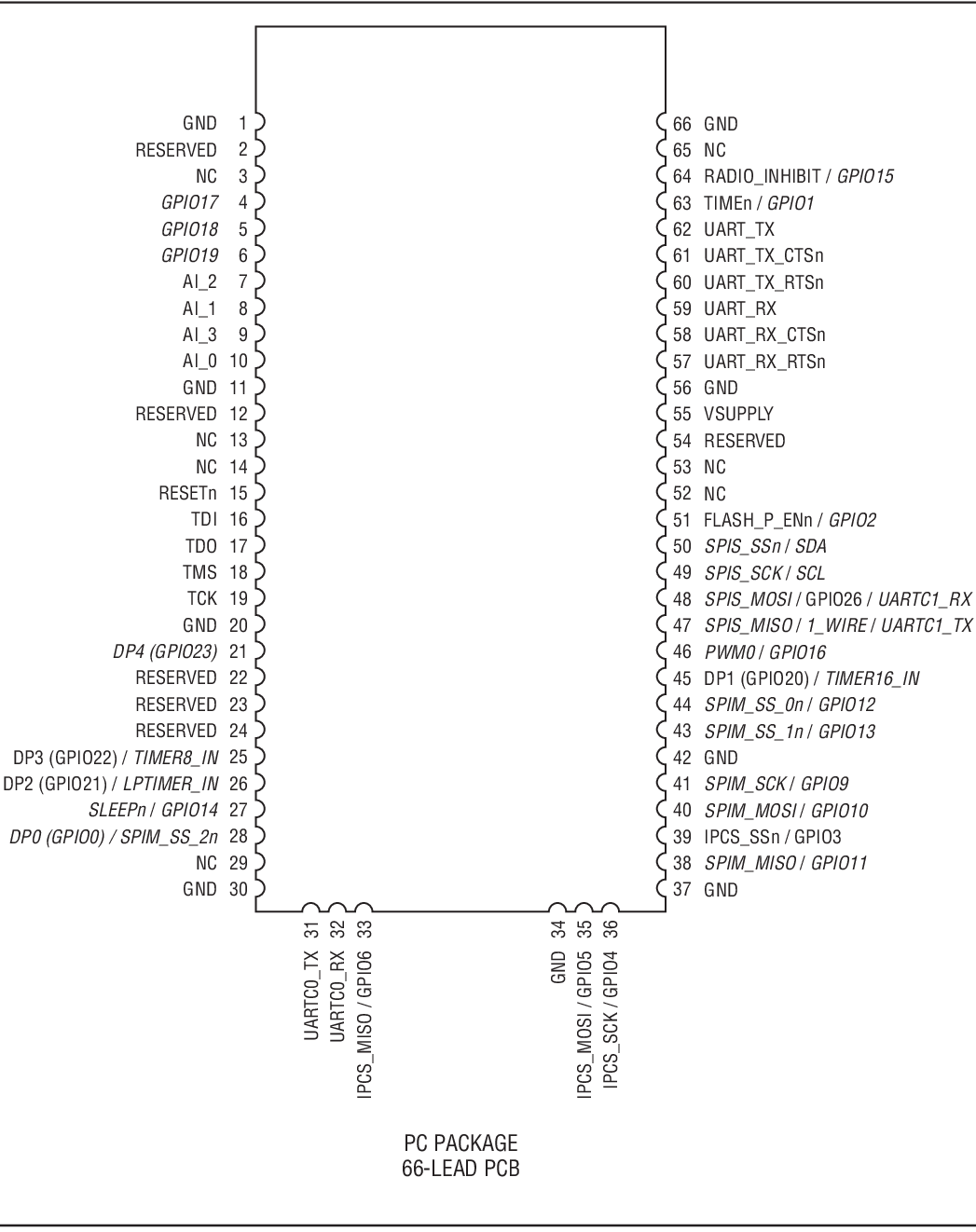

SmartMesh IPwireless sensor networks are self managing, low power internet protocol (IP) networks built from wireless nodes called motes. The LTP5901-IPM is printed circuit board assembly (PCBA) product with on-board chip antenna in the Eterna®family of IEEE 802.15.4e solutions, featuring a highly integrated, low power radio design as well as an ARM Cortex-M3 32-bit microprocessor running SmartMesh IP embedded networking software. The LTP5901-IPM, at 24mm × 42mm, is built for surface-mount assembly.With SmartMesh IP time-synchronized networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. SmartMesh IP is a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.The LTP5901-IPM’s behavior in a SmartMesh IP network is determined by the choice of SmartMesh IP network software loaded:Wireless Mote, EManager, or Access Point Mote in a SmartMesh IP network. The SmartMesh IP software provided with the LTP5901-IPM is fully tested and validated, and is readily configured via a software Application Programming Interface. Once you have purchased SmartMesh IP products, the SmartMesh IP stack binaries may be downloaded via your myAnalog account.The pin signaling behavior of the LTP5901IPC-IPMA hardware is determined by the software loaded and is described in detail in the following product datasheets:LTP5901-IPM=LTP5901IPC-IPMA hardware+SmartMesh IP MoteSoftware→LTP5901-IPM DatasheetLTP5901-IPR=LTP5901IPC-IPMA hardware+SmartMesh IP EManagerSoftware→LTP5901-IPR DatasheetLTP5901-IPA=LTP5901IPC-IPMA hardware+SmartMesh IP Access PointSoftware→LTP5901-IPA DatasheetNetwork FeaturesFeatureBenefit>99.999% Network ReliabilityAvoids communications dropouts common with other wireless networksNIST-certified AES-128 bit EncryptionData protected by end-to-end encryption, message integrity checking and device authenticationScalableUses time-slotted channel-hopping protocol to avoid in-network collisions to maximize scale while minimizing power and latency-hungry transmission retries due to congestionBidirectional CommunicationsIdeal for both monitoring and control applicationsUp to 10 messages/second/nodeTime-slotted communications avoids contention. This data rate includes built-in margin for packet retries.Device FeaturesFeatureBenefitIndustry-Leading Low Power Radio Technology• 4.5mA to Receive a Packet• 5.4mA to Transmit at 0dBm• 9.7mA to Transmit at 8dBmPre-engineered RFRF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.RF Modular CertificationsPre-certified inUSA, Canada, EU, Australia/New Zealand, India, Japan, Korea, TaiwanEnergy Harvesting SupportVery low power design enables motes to be powered by a wide variety of energy harvesters. Clickhereto see a demonstration circuit of a SmartMesh IP mote powered by indoor light.Integrated Temperature SensorPrecise temperature sensor is integrated directly into the mote.ApplicationsSmartMesh IP is ideally suited for wireless Industrial Internet of Things (IoT) applications.Learn more about SmartMesh applications.

SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP™5901-WHM is the SmartMesh WirelessHART mote product in the Eterna®family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running Analog Devices' embedded SmartMesh WirelessHART networking software.The LTP5901-WHM includes an onboard chip antenna and comes with modular RF certifications. Also available are theLTC5800-WHMMote-on-Chip and theLTP5902-WHMmodule which includes an MMCX antenna connector.With Analog Devices' time-synchronized SmartMesh WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5901-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).Network FeaturesFeaturesBenefitTime Synchronized Channel Hopping Communications>99.999% network reliability in even the most challenging RF environments.Sub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to IEC62591 (WirelessHART).Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracy.Device FeaturesFeaturesBenefitIndustry-Leading Low Power Radio Technology4.5mA to Receive a Packet5.4mA to Transmit at 0dBm9.7mA to Transmit at 8dBmPre-engineered RFRF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.RF Modular CertificationsPre-certified in USA, Canada, EU, Japan, andmoreEnergy Harvesting SupportVery low power design enables motes to be powered by a wide variety of energy harvesters.ApplicationsLearn more about SmartMesh applications.

SmartMesh IPwireless sensor networks are self managing, low power internet protocol (IP) networks built from wireless nodes called motes.The LTP5902-IPM is printed circuit board assembly (PCBA) product with on-board chip antenna in the Eterna®family of IEEE 802.15.4e solutions, featuring a highly integrated, low power radio design as well as an ARM Cortex-M3 32-bit microprocessor running SmartMesh IP embedded networking software. The LTP5902-IPM, at 37mm × 24mm, is built for surface-mount assembly.With SmartMesh IP time-synchronized networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. SmartMesh IP is a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.The LTP5902-IPM’s behavior in a SmartMesh IP network is determined by the choice of SmartMesh IP network software loaded:Wireless Mote, EManager, Access Point Mote in a SmartMesh IP network. The SmartMesh IP software provided with the LTP5902-IPM is fully tested and validated, and is readily configured via a software Application Programming Interface. Once you have purchased SmartMesh IP products, the SmartMesh IP stack binaries may be downloaded via your myAnalog account.The pin signaling behavior of the LTP5902IPC-IPMA hardware is determined by the software loaded and is described in detail in the following product datasheets:LTP5902-IPM=LTP5902IPC-IPMA hardware+SmartMesh IP MoteSoftware→LTP5902-IPM DatasheetLTP5902-IPR=LTP5902IPC-IPMA hardware+SmartMesh IP EManagerSoftware→LTP5902-IPR DatasheetLTP5902-IPA=LTP5902IPC-IPMA hardware+SmartMesh IP Access PointSoftware→LTP5902-IPA DatasheetNetwork FeaturesFeatureBenefit>99.999% Network ReliabilityAvoids communications dropouts common with other wireless networksNIST-certified AES-128 bit EncryptionData protected by end-to-end encryption, message integrity checking and device authenticationScalableUses time-slotted channel-hopping protocol to avoid in-network collisions to maximize scale while minimizing power and latency-hungry transmission retries due to congestionBidirectional CommunicationsIdeal for both monitoring and control applicationsUp to 10 messages/second/nodeTime-slotted communications avoids contention. This data rate includes built-in margin for packet retries.Device FeaturesFeatureBenefitIndustry-Leading Low Power Radio Technology• 4.5mA to Receive a Packet• 5.4mA to Transmit at 0dBm• 9.7mA to Transmit at 8dBmPre-engineered RFRF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.RF Modular CertificationsPre-certified inUSA, Canada, EU, Australia/New Zealand, India, Japan, Korea, TaiwanEnergy Harvesting SupportVery low power design enables motes to be powered by a wide variety of energy harvesters. Clickhereto see a demonstration circuit of a SmartMesh IP mote powered by indoor light.Integrated Temperature SensorPrecise temperature sensor is integrated directly into the mote.ApplicationsSmartMesh IP is ideally suited for wireless Industrial Internet of Things (IoT) applications.To learn more about SmartMesh applications, click here.

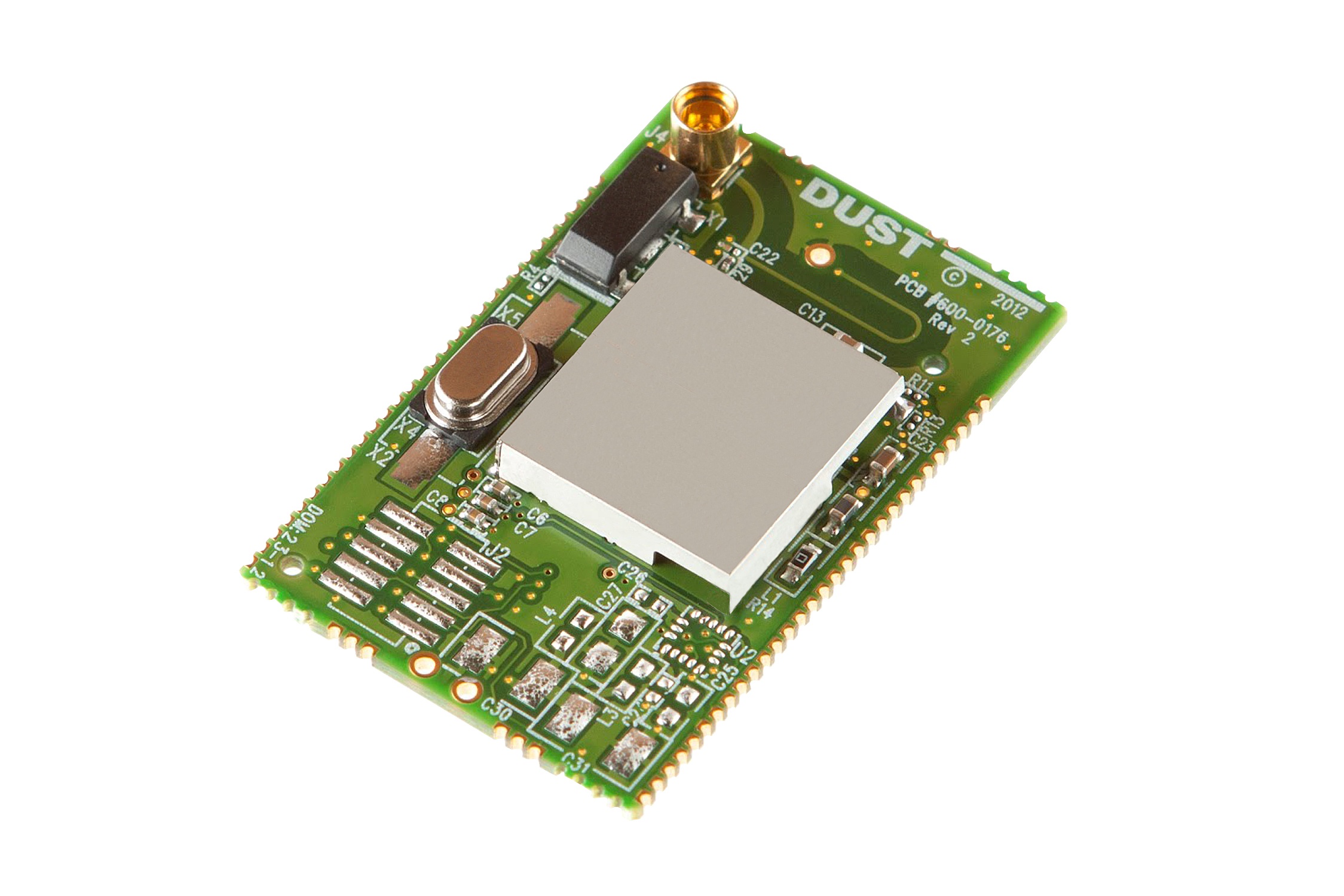

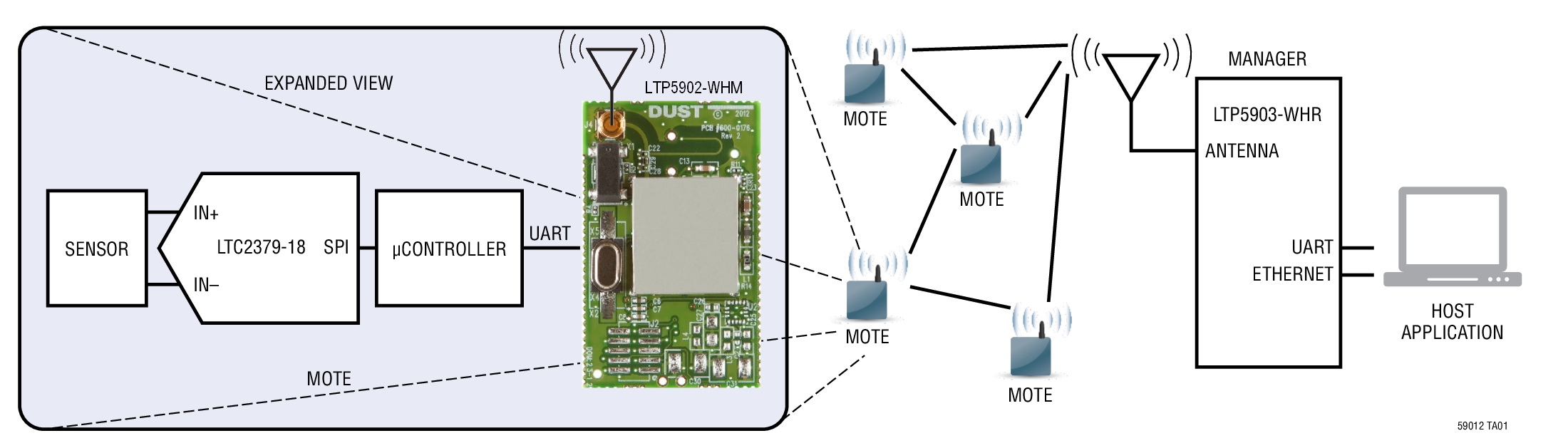

SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP5902-WHM is the SmartMesh WirelessHART mote product in the Eterna®family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running Analog Devices' embedded SmartMesh WirelessHART networking software. The LTP5902-WHM includes an MMCX antenna connector and comes with modular RF certifications. Also available are the LTC5800-WHM Mote-on-Chip and the LTP5901-WHM module which includes an onboard chip antenna.With Analog Devices' time-synchronized SmartMesh WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5901-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).SmartMesh WirelessHART motes deliver a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.Network FeaturesFeaturesBenefitTime Synchronized, Channel Hopping Communications>99.999% network reliability in even the most challenging RF environmentsSub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to international standard IEC 62591 (WirelessHART)Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracyDevice FeaturesFeaturesBenefitIndustry-Leading Low Power Radio Technology4.5mA to Receive a Packet5.4mA to Transmit at 0dBm9.7mA to Transmit at 8dBmPre-engineered RFRF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.RF Modular CertificationsPre-certified in USA, Canada, EU, Japan, and moreEnergy Harvesting SupportVery low power design enables motes to be powered by a wide variety of energy harvestersApplicationsLearn more about SmartMesh applications.

SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. Based on the WirelessHART (IEC62591) standard, the LTP5903-WHR runs SmartMesh WirelessHART network management software to monitor and manage network performance and provide a data ingress/egress point via a UART interface. It provides the core networking functionality, enabling the network to achieve unsurpassed levels of resilience, reliability, and scalability with advanced network management and comprehensive security features.The LTP5903-WHR is designed for use in line-powered gateways and controllers, such as WirelessHART Gateways, and enables customers to integrate a standards-based wireless sensor network that provides scalable bidirectional communications.The embedded network manager offers a comprehensive software application programming interface (API) to deliver rich and flexible functionality without complex coding. This API also provides full visibility and control over network configuration, security administration, network status, and performance statistics. The network-ready embedded manager enables industrial automation vendors to integrate advanced wireless sensor networking intelligence into monitoring and control solutions with low risk and rapid time-to-market.Network FeaturesFeaturesBenefitTime Synchronized Channel Hopping Communications>99.999% network reliability in even the most challenging RF environments.Sub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to IEC62591 (WirelessHART).Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracy.Manager FeaturesFeaturesBenefitAdvanced Network ManagementDynamically optimizes mesh connectivity based on the changing RF environment.Scalable Network ManagementManages Networks of Up to 250 Nodes (LTP5903-WHRB) or Up to 500 Nodes (LTP5903-WHRC).Load Balancing and OptimizationAdds more bandwidth for the busiest motes while maintaining normal traffic flow for the rest of network.

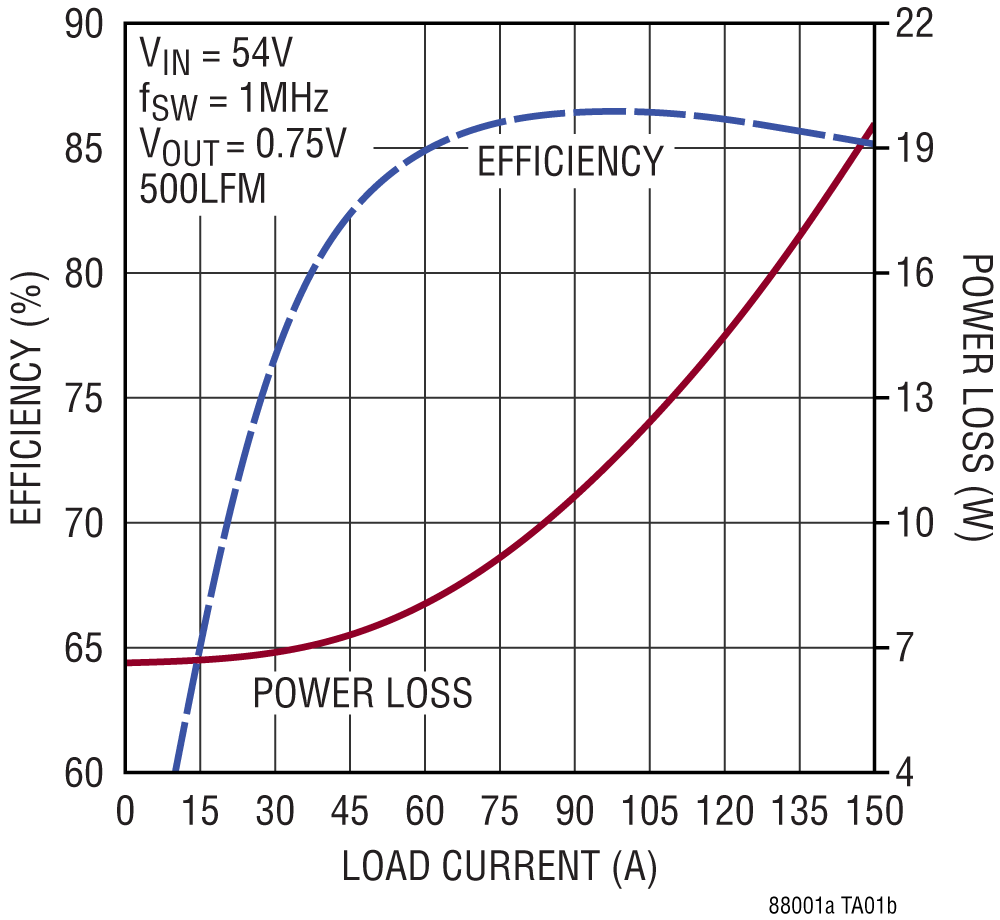

The LTP8800-1A is a 150A step-down μModule regulator that provides microprocessor core voltage from 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTP8800-1A is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density. The LTP8800-1A preserves high efficiency at high conversion ratios by utilizing a resonant switching architecture that eliminates high voltage switching losses.The LTP8800-1A is available in a 22mm × 24mm × 6.7mm surface-mounted open frame package.ApplicationsHigh Current Distributed Power SystemsServers, Network, and Storage EquipmentIntelligent Energy Efficient Power Regulation

The LTP™8800-2 is a 135A step-down μModule®(micromodule) regulator that provides microprocessor core voltage from a 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus, an open standard I2C-based digital interface protocol.The LTP8800-2 comprises a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density.The LTP8800-2 preserves high efficiency at high conversion ratios by utilizing a quasi-resonant architecture that reduces high voltage switching losses.The LTP8800-2 is available in a 22mm × 24mm × 6.7mm surface-mounted open frame package.ApplicationsHigh Current Distributed Power SystemsServers, Network, and Storage EquipmentIntelligent Energy Efficient Power Regulation
