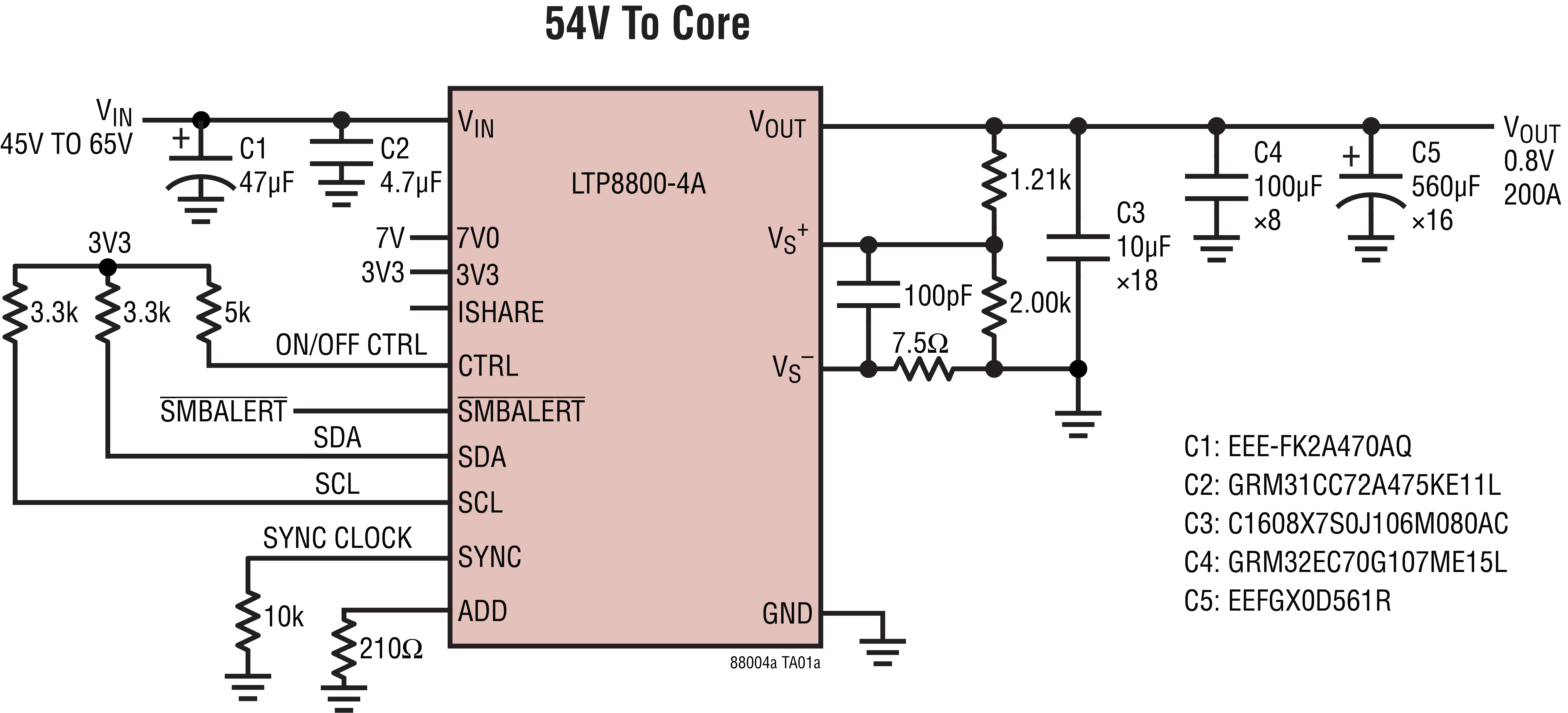

The LTP™8800-4A is a 200A step-down μModule®regulator that provides microprocessor core voltage from 54V power distribution architecture. LTP8800-4A features remote configurability and telemetry monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTP8800-4A is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. LTP8800-4A high level of integration minimizes component count and design time and maximizes flexibility and power density. The LTP8800-4A preserves high efficiency at high conversion ratios by utilizing a resonant switching architecture that eliminates high voltage switching losses. The LTP8800-4A is available in a 22mm × 24mm × 22mm surface mounted open frame package.ApplicationsHigh Current Distributed Power SystemsServers, Network, and Storage EquipmentIntelligent Energy Efficient Power Regulation

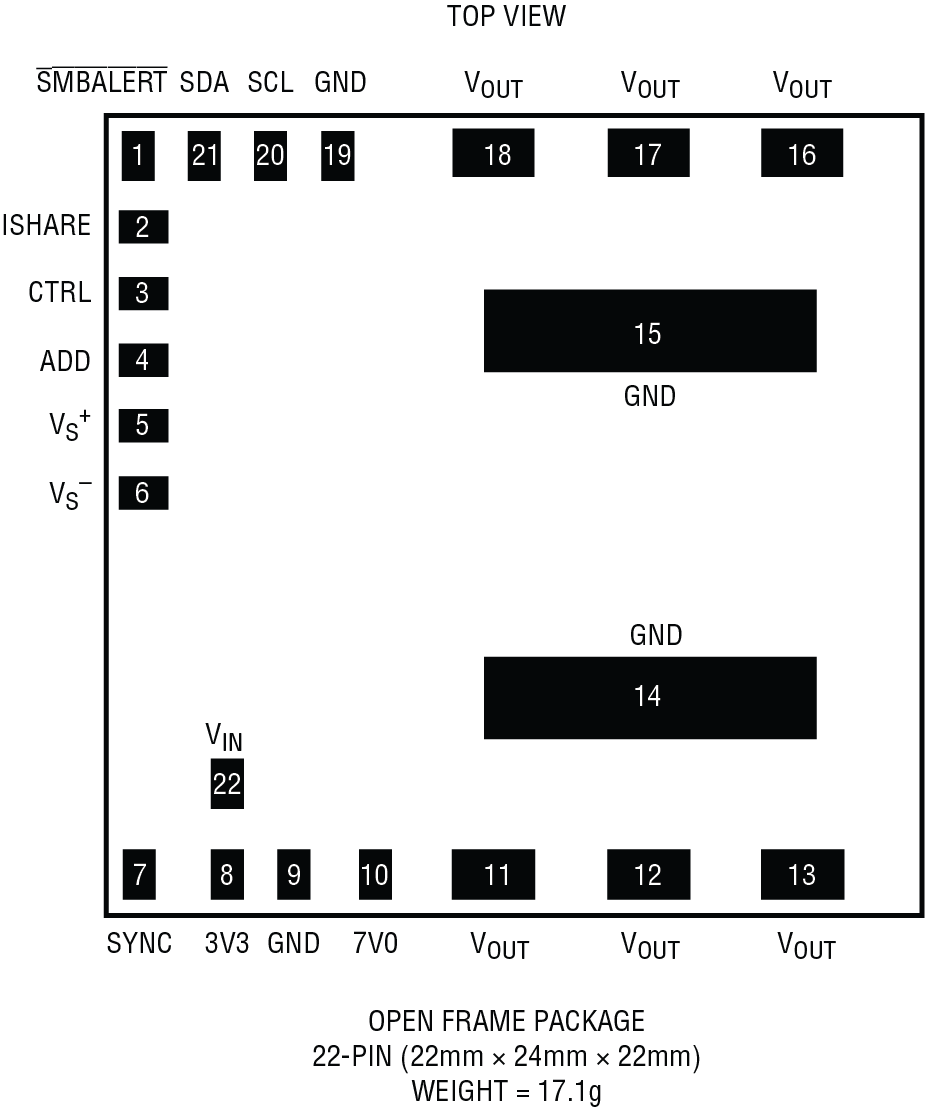

The LTP®8802A-1B is a 140A step-down μModule®(micromodule) regulator that provides microprocessor core voltage from a 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus, an open standard I2C-based digital interface protocol.The LTP8802A-1B is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density.The LTP8802A-1B preserves high efficiency at high conversion ratios by utilizing a quasi-resonant architecture that reduces high voltage switching losses. The LTP8802A-1B is available in a 22mm × 24mm × 22mm surface-mounted open frame package.APPLICATIONSHigh Current Distributed Power SystemsServers, Network, and Storage EquipmentIntelligent Energy Efficient Power Regulation

The LTP8803-1A is a 160A step-down μModule®regulator that provides microprocessor core voltage from 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol.The LTP8803-1A is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density.The LTP8803-1A preserves high efficiency at high conversion ratios by utilizing a resonant switching architecture that eliminates high voltage switching losses.The LTP8803-1A is available in a 22mm × 24mm × 22mm surface-mounted open frame package.ApplicationsHigh Current Distributed Power SystemsServers, Network, and Storage EquipmentIntelligent Energy Efficient Power Regulation

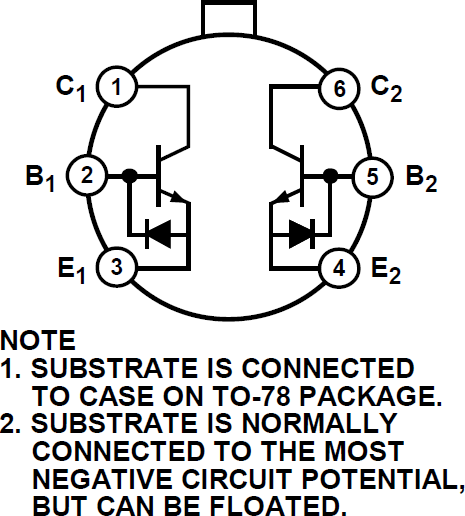

The MAT12 is a dual, NPN-matched transistor pair that is specifically designed to meet the requirements of ultralow noise audio systems.With its extremely low input base spreading resistance (rbb' is typically 28 Ω) and high current gain (hFEtypically exceeds 600 at IC= 1 mA), the MAT12 can achieve outstanding signal-to-noise ratios. The high current gain results in superior performance compared to systems incorporating commercially available monolithic amplifiers.Excellent matching of the current gain (ΔhFE) to about 0.5% and low VOSof less than 10 µV typical make the MAT12 ideal for symmetrically balanced designs, which reduce high-order amplifier harmonic distortion.Stability of the matching parameters is guaranteed by protection diodes across the base emitter junction. These diodes prevent degradation of beta and matching characteristics due to reverse biasing of the base emitter junction.The MAT12 is also an ideal choice for accurate and reliable current biasing and mirroring circuits. Furthermore, because the accuracy of a current mirror degrades exponentially with mismatches of VBEbetween transistor pairs, the low VOSof the MAT12 does not need offset trimming in most circuit applications.The MAT12 is a good replacement for the MAT02, and its performance and characteristics are guaranteed over the extended temperature range of −40°C to +85°C
