LTM4678 Series

Catalog

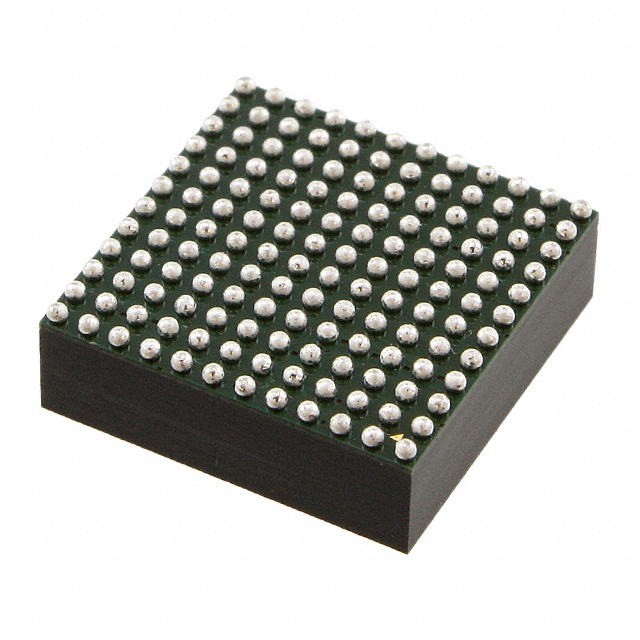

DC/DC POL CONVERTER, ADJUSTABLE, BUCK, 4.5 TO 16 V IN, 0.5 TO 3.4V/25A OUT, BGA-144

Part	Voltage - Input (Max) [Max]	Package / Case	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage - Input (Min) [Min]	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Outputs	Mounting Type	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max)	Utilized IC / Part	Voltage - Output	Contents	Current - Output	Outputs and Type	Regulator Topology	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose
Analog Devices Inc./Maxim Integrated LTM4678IY#PBF	16 V	144-BBGA Module	ITE (Commercial)	0.23 "	6.3 mm	0.63 in	0.63 "	16 mm	16 mm	OCP OTP OVP UVLO	5.75 V	0.5 V	3.3 V	125 °C	-40 C	144-BGA (16x16)	2	Surface Mount	Non-Isolated PoL Module Digital	3.3 V	0.5 V	25 A
Analog Devices Inc./Maxim Integrated DC2552A																							LTM4678	1 V 1.8 V	Board(s)	25 A	2 Non-Isolated Outputs	Buck	500 kHz	4.5 V	16 V	DC/DC Step Down
Analog Devices Inc./Maxim Integrated LTM4678IY	16 V	144-BBGA Module	ITE (Commercial)	0.23 "	6.3 mm	0.63 in	0.63 "	16 mm	16 mm	OCP OTP OVP UVLO	5.75 V	0.5 V	3.3 V	125 °C	-40 C	144-BGA (16x16)	2	Surface Mount	Non-Isolated PoL Module Digital	3.3 V	0.5 V	25 A
Analog Devices Inc./Maxim Integrated LTM4678EY#PBF	16 V	144-BBGA Module	ITE (Commercial)	0.23 "	6.3 mm	0.63 in	0.63 "	16 mm	16 mm	OCP OTP OVP UVLO	5.75 V	0.5 V	3.3 V	125 °C	-40 C	144-BGA (16x16)	2	Surface Mount	Non-Isolated PoL Module Digital	3.3 V	0.5 V	25 A
