The LTM2895 is a high speed isolated μModule®(micromodule) SPI interface with DAC control signals designed to isolate LTC’s family of general purpose DACs and to isolate general purpose SPI interfaces. The LTM2895 works with DACs and general purpose devices that have a mode (0, 0) SPI interface.The interface enables fast data throughput, which makes the LTM2895 ideally suited for a wide variety of applications. The high speed SPI-compatible serial port supports 1.71V to 5.5V logic supplies. The LTM2895 is targeted at generic SPI and digital-to-analog converter applications.The isolation barrier tolerates large voltage ground variations between the logic interface and the isolated side of the LTM2895. Uninterrupted communication is maintained during voltage transients greater than 50kV/μs.ApplicationsRemote Interface ControlIndustrial Process Control and AutomationTest and Measurement EquipmentBreaking Ground Loops

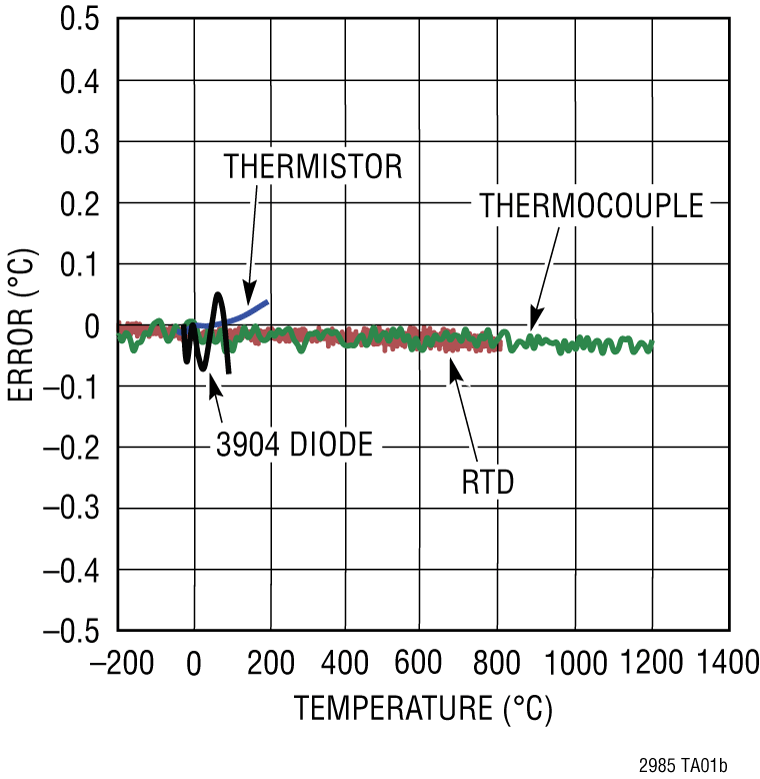

The LTM2985 measures a wide variety of temperature sensors and digitally outputs the result, in °C or °F, with 0.1°C accuracy and 0.001°C resolution. The LTM2985 can measure the temperature of virtually all standard (Type B, E, J, K, N, S, R, T) or custom thermocouples, automatically compensate for cold junction temperatures and linearize the results. The device can also measure temperature with standard 2-, 3- or 4-wire RTDs, thermistors and diodes. The LTM2985 includes excitation current sources and fault detection circuitry appropriate for each type of temperature sensor.The LTM2985 is an isolated 10-channel temperature mea-surement system software compatible with the LTC2986-1. It provides 5kV isolated power and SPI interface to the precision temperature-to-bits converter. The LTM2985 also includes a user-programmable EEPROM for custom sensor data.APPLICATIONSDirect Thermocouple MeasurementsDirect RTD MeasurementsDirect Thermistor MeasurementsCustom Sensor Applications

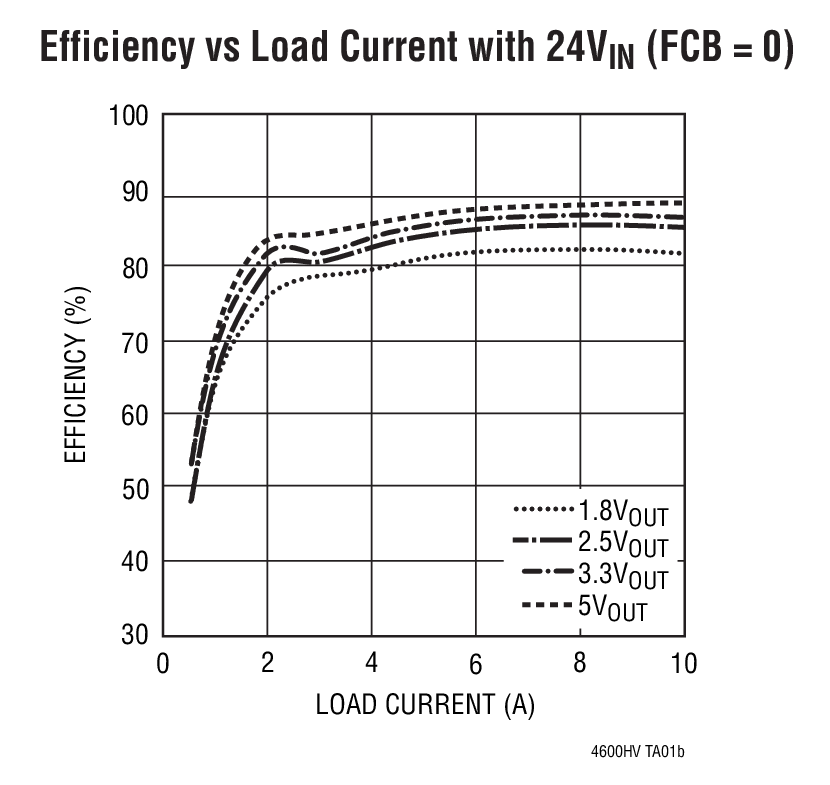

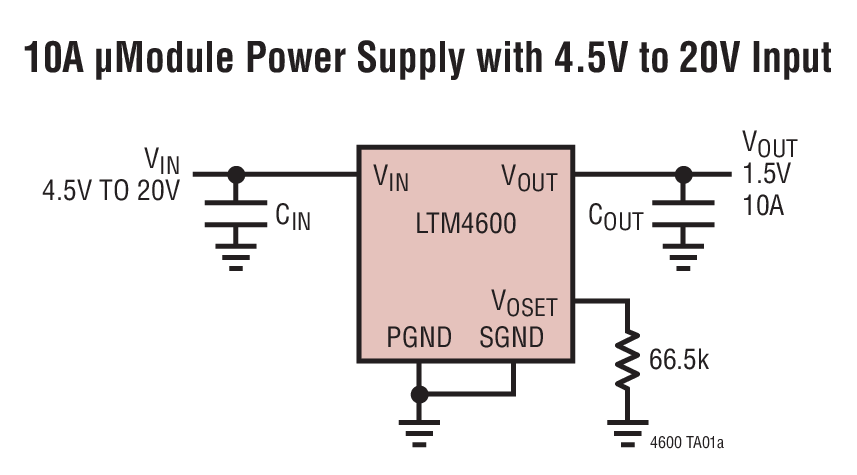

The LTM4600HV is a complete 10A, DC/DC step down power supply with up to 28V input operation. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 28V, the LTM4600HV supports an output voltage range of 0.6V to 5V, set by a single resistor. This high efficiency design delivers 10A continuous current (12A peak), needing no heat sinks or airflow to meet power specifications. Only bulk input and output capacitors are needed to finish the design.The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. High switching frequency and an adaptive on-time current mode architecture enables a very fast transient response to line and load changes without sacrificing stability. Fault protection features include integrated overvoltage and short circuit protection with a defeatable shutdown timer. A built-in soft-start timer is adjustable with a small capacitor.The LTM4600HV is packaged in a compact (15mm × 15mm) and low profile (2.82mm) over-molded Land Grid Array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM4600HV is RoHS compliant.ApplicationsTelecom and Networking EquipmentMilitary and Avionics SystemsIndustrial EquipmentPoint of Load RegulationServers

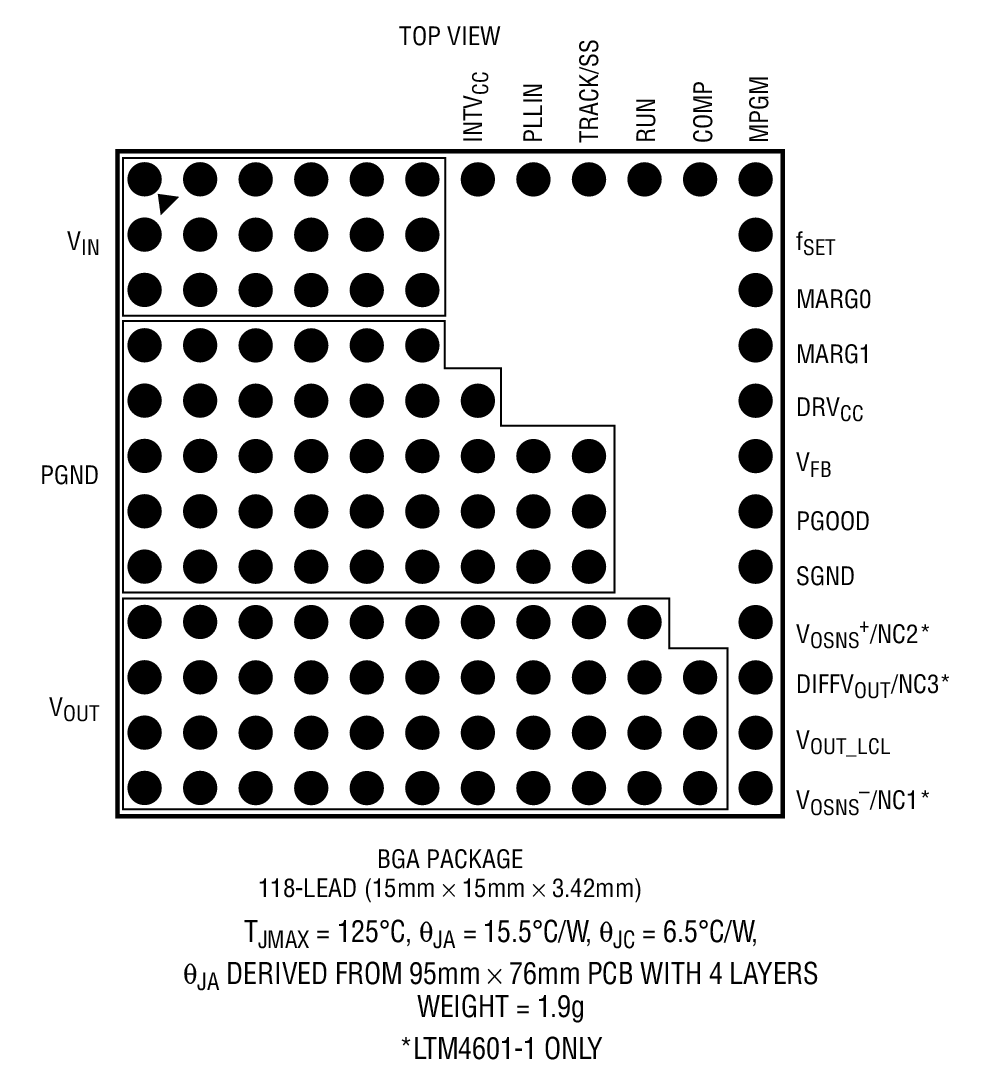

The LTM4601 is a complete 12A step-down switch mode DC/DC power supply with on-board switching controller, MOSFETs, inductor and all support components. The μModule®regulator is housed in small surface mount 15mm × 15mm × 2.82mm LGA and 15mm × 15mm × 3.42mm BGA packages. Operating over an input voltage range of 4.5V to 20V, the LTM4601 supports an output voltage range of 0.6V to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current (14A peak). Only bulk input and output capacitors are needed to complete the design.The low profile and light weight package easily mounts in unused space on the back side of PC boards for high density point of load regulation. The μModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase®operation for high load currents.A high switching frequency and adaptive on-time current mode architecture deliver a very fast transient response to line and load changes without sacrificing stability. An on-board differential remote sense amplifier can be used to accurately regulate an output voltage independent of load current. The on-board remote sense amplifier is not available in the LTM4601-1.LTM4601LTM4601ALTM4601HVLTM4601AHVVINMax20V20V28V28VOn-Board Remote SenseLTM4601 YesLTM4601-1 NoLTM4601A YesLTM4601A-1 NoYesYesBack Side Pads118135 (for stronger solder joint stability)118135 (for stronger solder joint stability)ApplicationsTelecom and Networking EquipmentServersIndustrial EquipmentPoint of Load Regulation

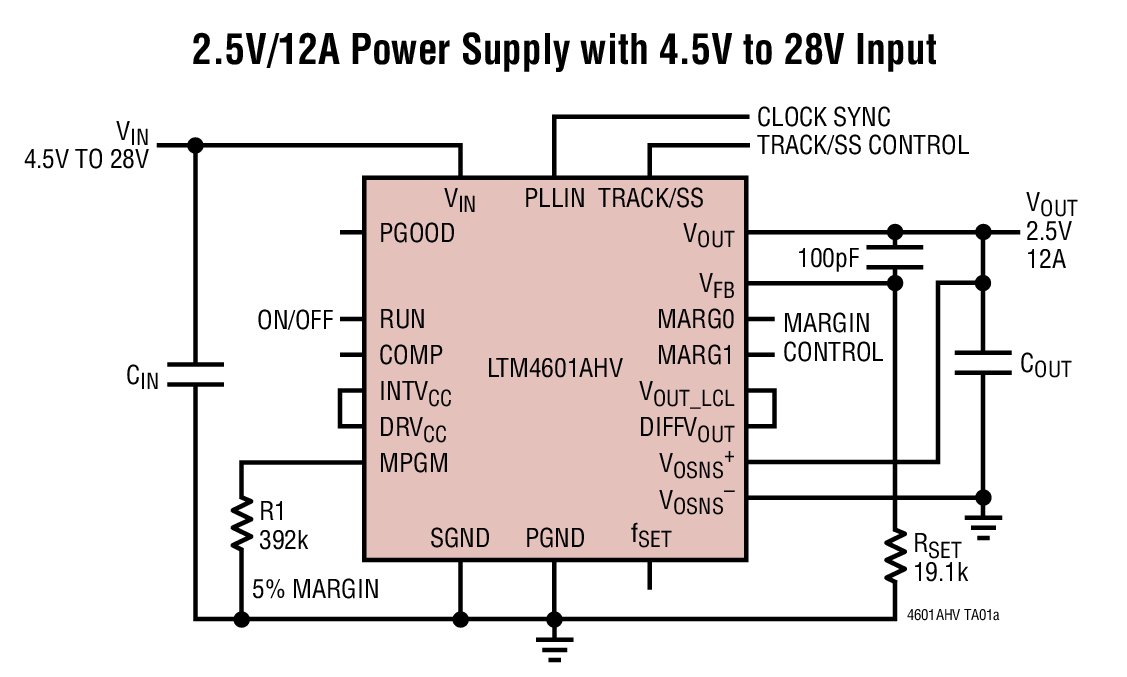

The LTM4601AHV is a complete 12A step-down switch mode DC/DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The μModule regulator is housed in a small surface mount 15mm × 15mm × 2.82mm LGA or 15mm × 15mm × 3.42mm BGA package. The LTM4601AHV LGA and BGA packages are designed with redundant mounting pads to enhance solder-joint strength for extended temperature cycling endurance. Operating over an input voltage range of 4.5V to 28V, the LTM4601AHV supports an output voltage range of 0.6V to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current (14A peak). Only bulk input and output capacitors are needed to complete the design.The low profile and light weight package easily mounts in unused space on the back side of PC boards for high density point of load regulation. The μModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase®operation for high load currents.An onboard differential remote sense amplifier can be used to accurately regulate an output voltage independent of load current. The LTM4601AHV is available with SnPb or RoHS compliant terminal finish.LTM4601LTM4601ALTM4601HVLTM4601AHVVin Max20V20V28V28VOn Board Remote SenseLTM4601 YesLTM4601-1 NoLTM4601A YesLTM4601A-1 NoYesYesBack Side Pads118135 (for stronger solder joint stability)118135 (for stronger solder joint stability)ApplicationsTelecom, Industrial and Networking EquipmentMilitary and Avionics Systems

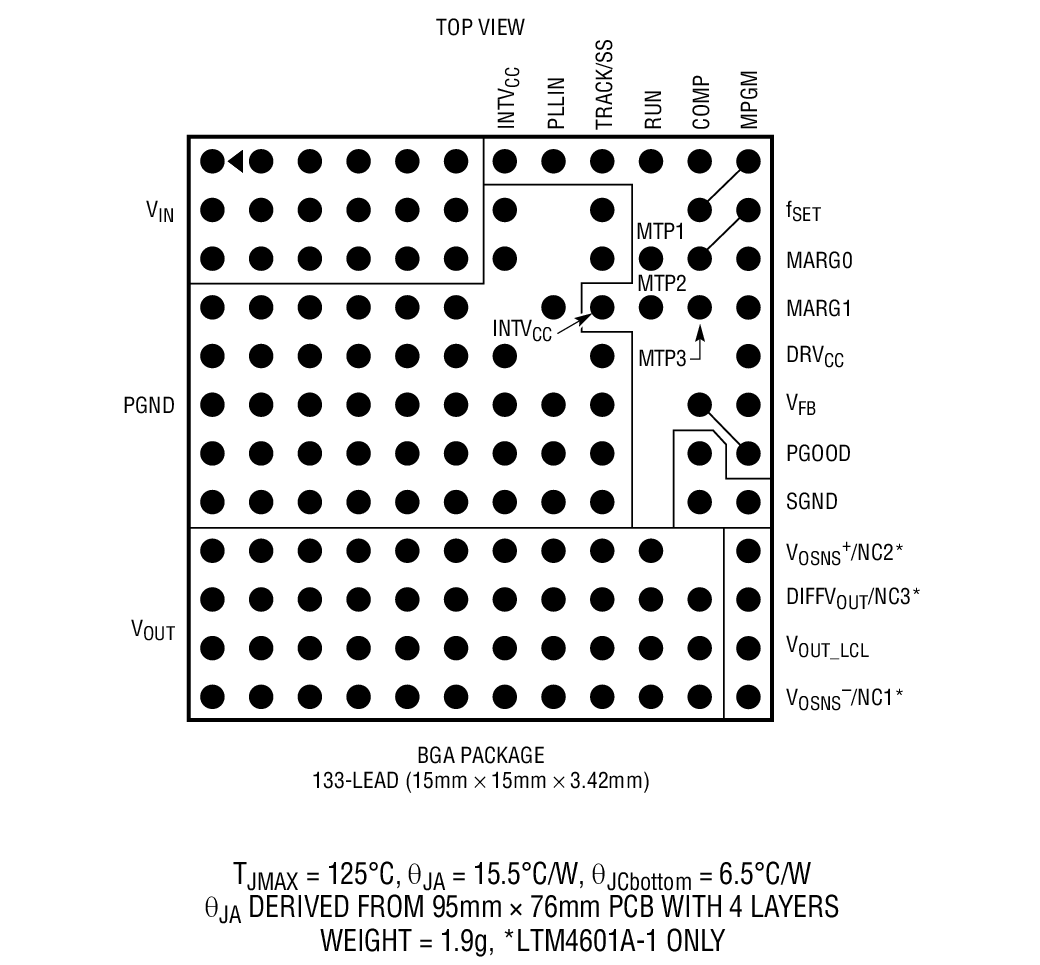

The LTM4601A is a complete 12A step-down switch mode DC/DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The μModule®regulator is housed in a small surface mount 15mm × 15mm × 2.82mm LGA or 15mm × 15mm × 3.42mm BGA package. The LTM4601A LGA and BGA packages are designed with redundant mounting pads to enhance solder-joint strength for extended temperature cycling endurance. Operating over an input voltage range of 4.5V to 20V, the LTM4601A supports an output voltage range of 0.6V to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current (14A peak). Only bulk input and output capacitors are needed to complete the design.The low profile and light weight package easily mounts on the back side of PC boards. The μModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase®operation for high load currents.An onboard differential remote sense amplifier can be used to accurately regulate an output voltage independent of load current. The onboard remote sense amplifier is not available in the LTM4601A-1.LTM4601LTM4601ALTM4601HVLTM4601AHVVin Max20V20V28V28VOn Board Remote SenseLTM4601 YesLTM4601A YesYesYesOn Board Remote SenseLTM4601-1 NoLTM4601A-1 NoYesYesBack Side Pads118135 (for stronger solder joint stability)118135 (for stronger solder joint stability)ApplicationsTelecom and Networking EquipmentServers20V

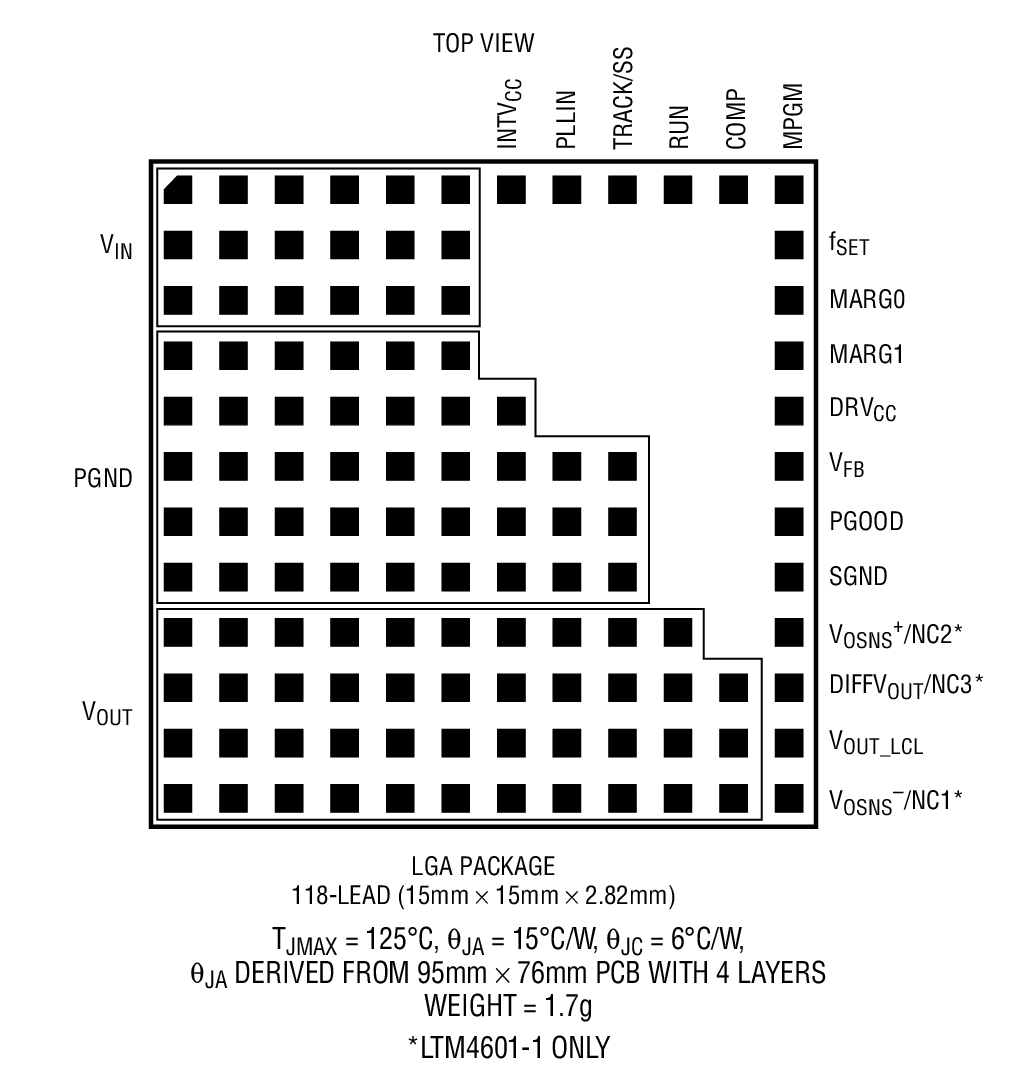

The LTM4601 is a complete 12A step-down switch mode DC/DC power supply with on-board switching controller, MOSFETs, inductor and all support components. The μModule®regulator is housed in small surface mount 15mm × 15mm × 2.82mm LGA and 15mm × 15mm × 3.42mm BGA packages. Operating over an input voltage range of 4.5V to 20V, the LTM4601 supports an output voltage range of 0.6V to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current (14A peak). Only bulk input and output capacitors are needed to complete the design.The low profile and light weight package easily mounts in unused space on the back side of PC boards for high density point of load regulation. The μModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase®operation for high load currents.A high switching frequency and adaptive on-time current mode architecture deliver a very fast transient response to line and load changes without sacrificing stability. An on-board differential remote sense amplifier can be used to accurately regulate an output voltage independent of load current. The on-board remote sense amplifier is not available in the LTM4601-1.LTM4601LTM4601ALTM4601HVLTM4601AHVVINMax20V20V28V28VOn-Board Remote SenseLTM4601 YesLTM4601-1 NoLTM4601A YesLTM4601A-1 NoYesYesBack Side Pads118135 (for stronger solder joint stability)118135 (for stronger solder joint stability)ApplicationsTelecom and Networking EquipmentServersIndustrial EquipmentPoint of Load Regulation
