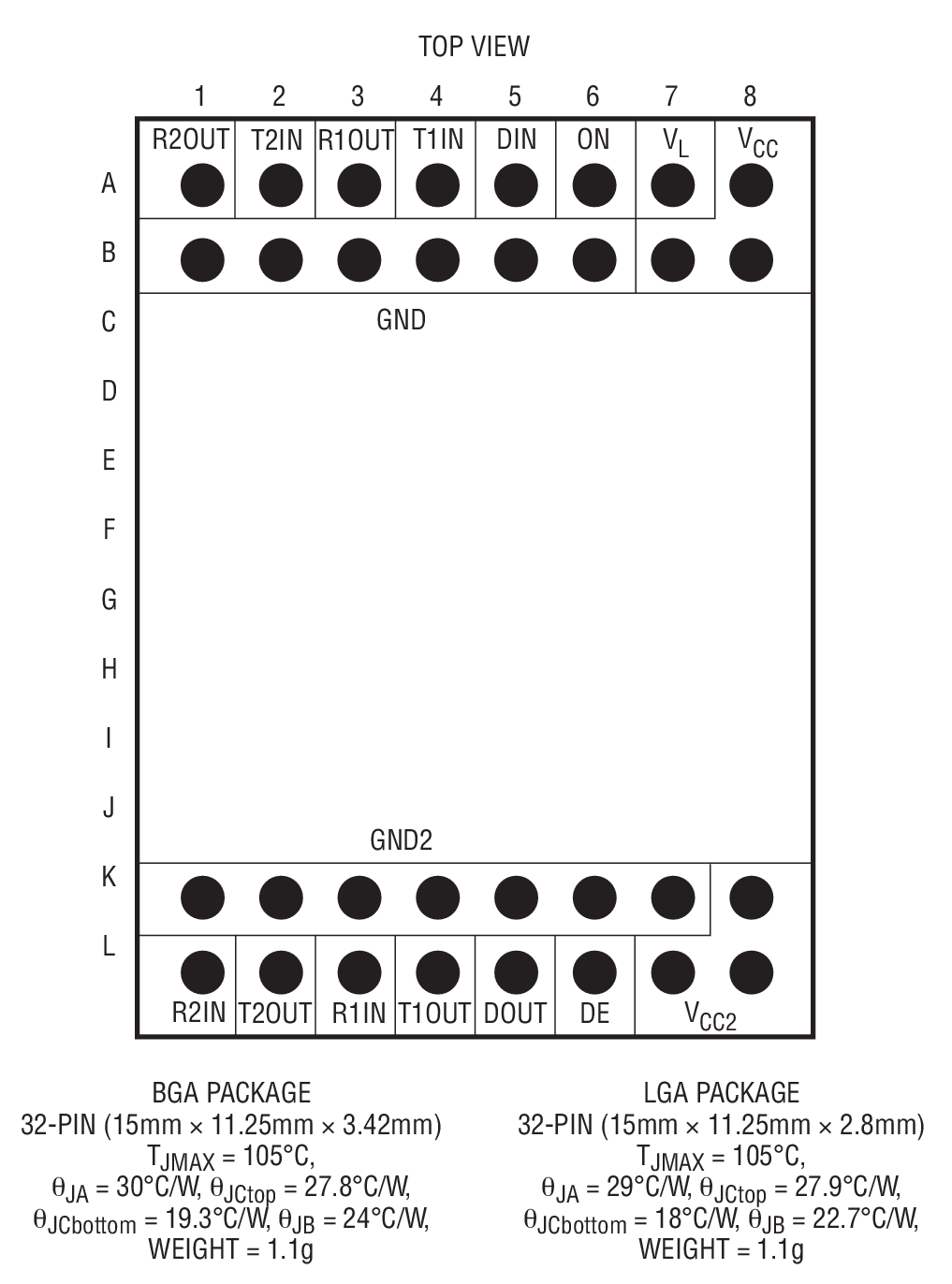

The LTM2882 is a complete galvanically isolated dual RS232 μModule®(micromodule) transceiver. No external components are required. A single 3.3V or 5V supply powers both sides of the interface through an integrated, isolated DC/DC converter. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.Coupled inductors and an isolation power transformer provide 2500VRMSof isolation between the line transceiver and the logic interface. This device is ideal for systems with different grounds, allowing for large common mode voltages. Uninterrupted communication is guaranteed for common mode transients greater than 30kV/μs.This part is compatible with the TIA/EIA-232-F standard. Driver outputs are protected from overload and can be shorted to ground or up to ±15V without damage. An auxiliary isolated digital channel is available. This channel allows configuration for half-duplex operation by controlling the DE pin.Enhanced ESD protection allows this part to withstand up to ±10kV (human body model) on the transceiver interface pins to isolated supplies and across the isolation barrier to logic supplies without latch-up or damage.ApplicationsIsolated RS232 InterfaceIndustrial CommunicationTest and Measurement EquipmentBreaking RS232 Ground Loops

The LTM2884 is a complete galvanically isolated USB 2.0 compatible μModule®(micromodule) transceiver. An upstream supply powers both sides of the interface through an integrated, isolated DC/DC converter.The LTM2884 is ideal for isolation in host, hub, bus splitter or peripheral device applications. It is compatible with USB 2.0 full speed (12Mbps) and low speed (1.5Mbps) operation. Automatic speed selection configures integrated pull-up resistors on the upstream port to match those sensed on the downstream device.The isolator μModule technology uses coupled inductors and an isolated power transformer to provide isolation between the upstream and downstream USB interface. This device is ideal for systems requiring isolated ground returns or large common mode voltage variations. Uninterrupted communication is guaranteed for common mode transients greater than 30kV/μs.Enhanced ESD protection allows this part to withstand up to ±15kV (human body model) on the USB transceiver interface pins to local supplies and ±15kV through the isolation barrier to supplies without latch-up or damage.ApplicationsIsolated USB InterfacesHost, Hub, or Device IsolationIndustrial/Medical Data Acquisition

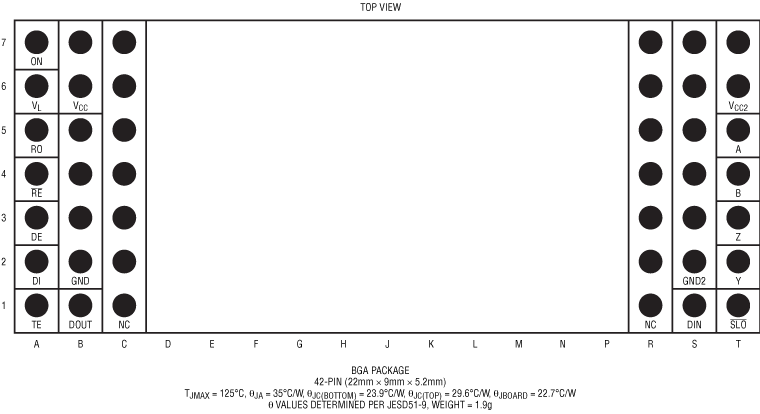

The LTM2885 is a complete galvanically isolated full-duplex RS485/RS422 μModule®(micromodule) transceiver. No external components are required. A single supply powers both sides of the interface through an integrated, isolated, low noise, efficient 5V output DC/DC converter.Coupled inductors and an isolation power transformer provide 6500VRMSof isolation between the line transceiver and the logic interface. This device is ideal for systems where the ground loop is broken allowing for large common mode voltage variation. Uninterrupted communication is guaranteed for common mode transients up to 50kV/μs.Maximum data rates are 20Mbps or 250kbps in slew limited mode. Transmit data, DI, and receive data, RO, are implemented with event driven low jitter processing. The receiver has a one-eighth unit load supporting up to 256 nodes per bus. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.Enhanced ESD protection allows this part to withstand up to ±15kV (human body model) on the transceiver interface pins to isolated supplies and ±25kV through the isolation barrier to logic supplies without latch-up or damage.APPLICATIONSIsolated RS485/RS422 InterfaceIndustrial NetworksBreaking RS485 Ground LoopsIsolated PROFIBUS-DP Networks

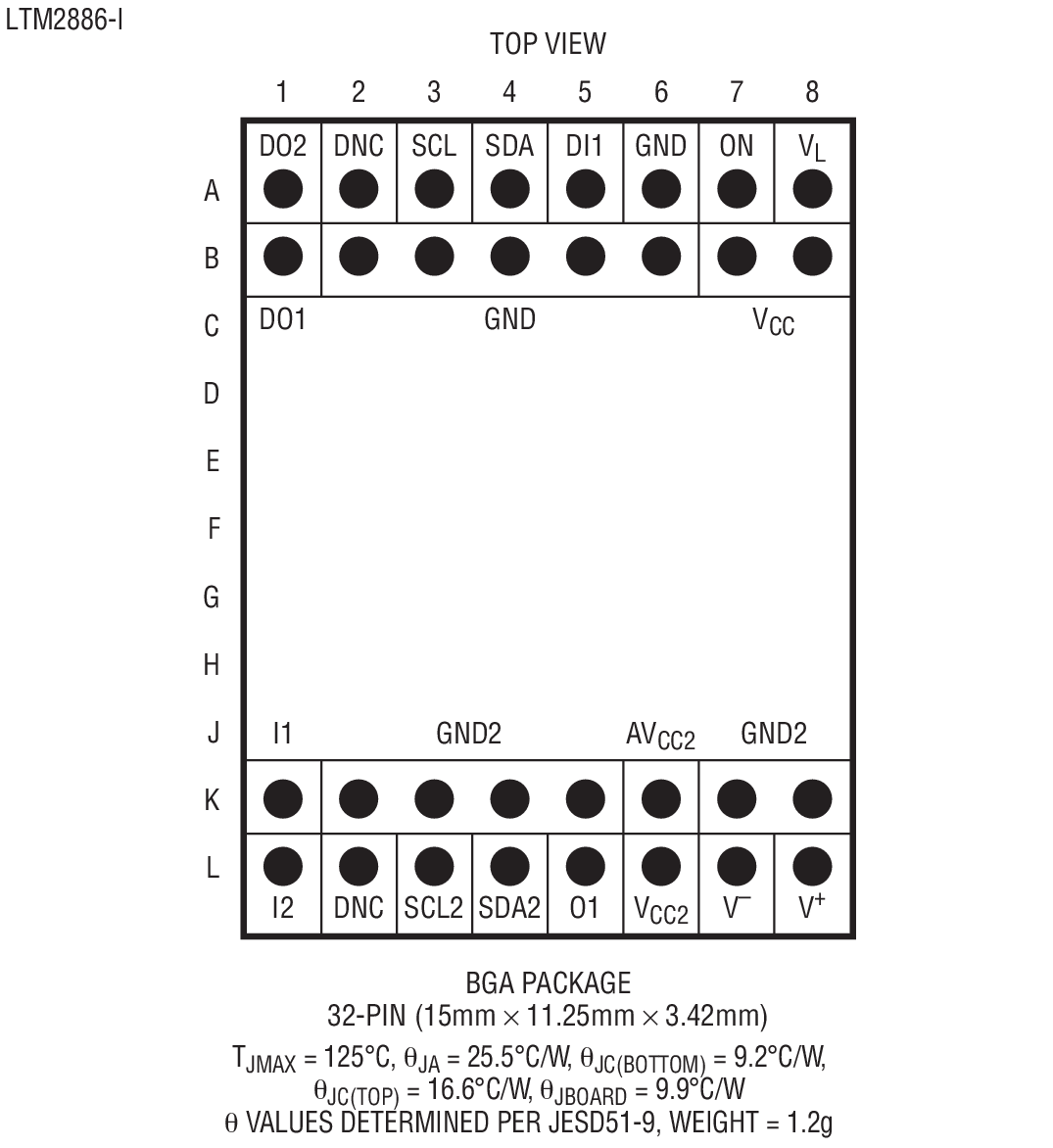

The LTM2886 is a complete galvanic digital μModule®(micromodule) isolator. No external components are required. A single 3.3V or 5V supply powers both sides of the interface through an integrated, isolated DC/DC converter. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.Available options are compliant with SPI and I2C (master mode only) specifications.The isolated side includes fixed ±5V and 5V adjustable power supplies, each capable of providing more than 100mA of load current. The 5V adjustable supply may be programmed via an external voltage divider.Coupled inductors and an isolation power transformer provide 2500VRMSof isolation between the input and output logic interface. This device is ideal for systems where the ground loop is broken, allowing for a large common mode voltage range. Communication is uninterrupted for common mode transients greater than 30kV/μs.APPLICATIONSIsolated SPI or I2C InterfacesIndustrial SystemsTest and Measurement EquipmentBreaking Ground Loops

The LTM2892 is a complete galvanic digital μModule®(micromodule) isolator. No external components are required. Individual 3V to 5.5V supplies power each side of the digital isolator. Separate logic supply pins allow easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.Module options are available with compatibility to SPI (LTM2892-S) and I2C (LTM2892-I), master mode only, specifications.Coupled inductors provide 3500VRMSof isolation between the input and output logic interface. This device is ideal for systems where the ground loop is broken, allowing uninterrupted communication through large common mode transients faster than 50kV/μs.ApplicationsIsolated SPI or I2C InterfacesIndustrial SystemsTest and Measurement EquipmentBreaking Ground Loops

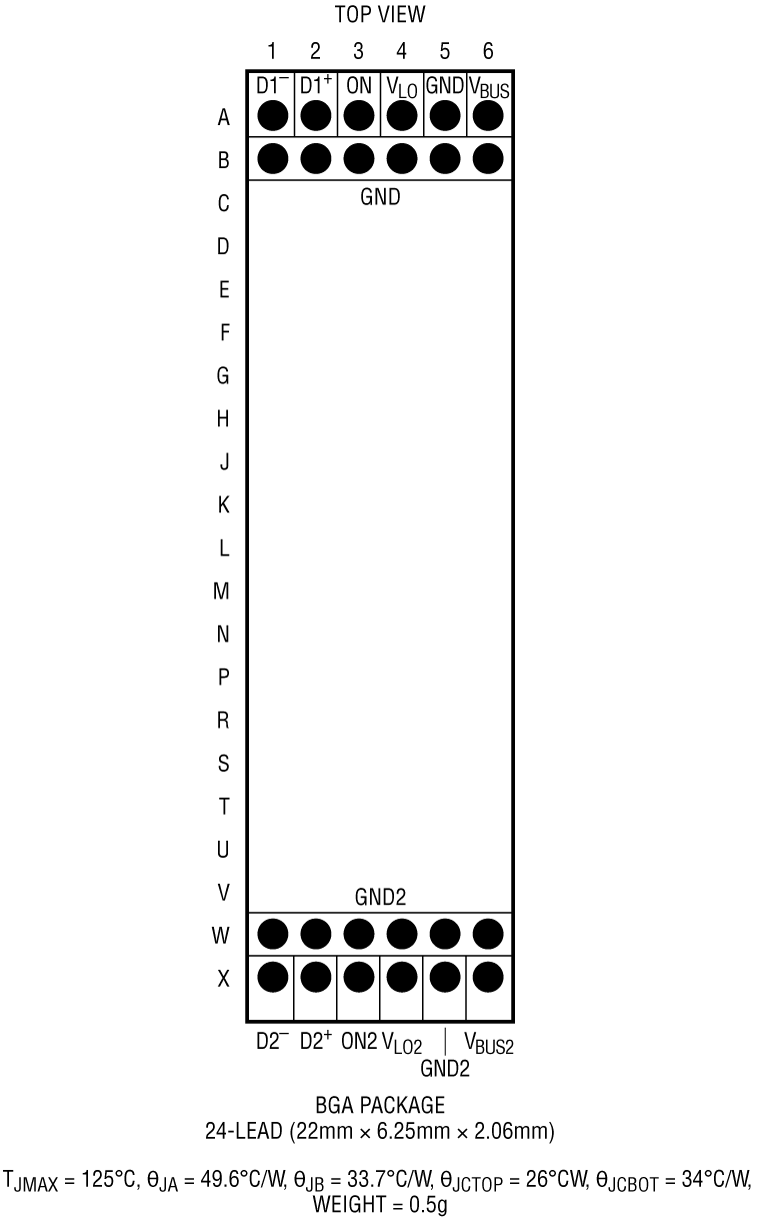

The LTM2894 is a complete galvanically-isolated USB 2.0 compatible μModule®(micromodule) transceiver.The LTM2894 is ideal for isolation in host, hub, bus splitter or peripheral device applications. It is compatible with USB 2.0 full speed (12Mbps) and low speed (1.5Mbps) operation. Automatic speed selection configures integrated pull-up resistors on the upstream port to match those sensed on the downstream device.The isolator μModule technology uses coupled inductors to provide 7500VRMSof isolation and 17.4mm of creepage between the upstream and downstream USB interface. This device is ideal for systems requiring isolated ground returns or large common mode voltage variations. Uninterrupted communication is guaranteed for common mode transients greater than 50kV/μs.Enhanced ESD protection allows this part to withstand up to ±20kV (human body model) on the USB transceiver interface pins to local supplies and ±20kV through the isolation barrier to supplies without latch-up or damage.ApplicationsIsolated USB InterfacesHost, Hub, or Device IsolationIndustrial/Medical Data Acquisition
