LTM2893 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

100MHZ ISOLATED ADC SERIAL INTERFACE

Part	Type	Technology	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Data Rate	Package / Case	Propagation Delay tpLH / tpHL (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Channel Type	Rise / Fall Time (Typ)	Voltage - Isolation	Voltage - Supply [Max]	Voltage - Supply [Min]	Common Mode Transient Immunity (Min) [Min]	Number of Channels [custom]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]

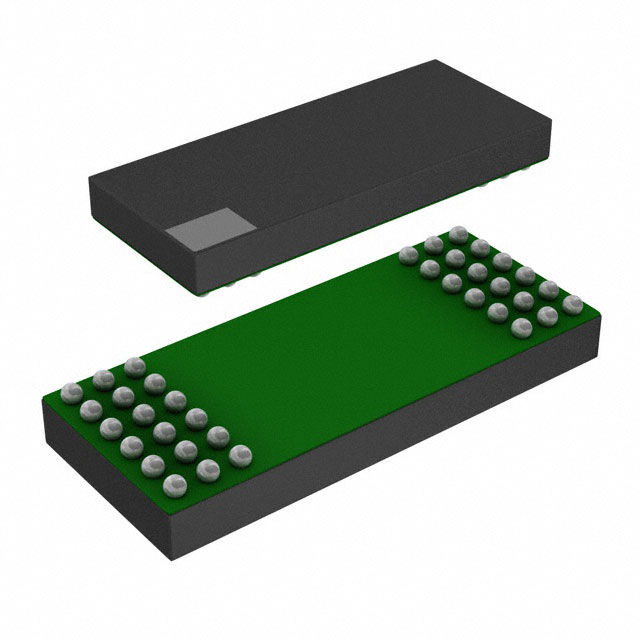

Analog Devices Inc./Maxim Integrated LTM2893IY#PBF	SPI	Magnetic Coupling	6	6	100 Mbps	36-BGA	150 ns	Surface Mount	85 °C	-40 C	9	Bidirectional Unidirectional	10 ns	6000 Vrms	5.5 V	3 V	50 kV/çs
Analog Devices Inc./Maxim Integrated LTM2893HY#PBF	SPI	Magnetic Coupling	6	6	100 Mbps	36-BGA	150 ns	Surface Mount	125 °C	-40 C	9	Bidirectional Unidirectional	10 ns	6000 Vrms	5.5 V	3 V	50 kV/çs
Analog Devices Inc./Maxim Integrated LTM2893CY#PBF	SPI	Magnetic Coupling	6	6	100 Mbps	36-BGA	150 ns	Surface Mount	70 °C	0 °C	9	Bidirectional Unidirectional	10 ns	6000 Vrms	5.5 V	3 V	50 kV/çs
Analog Devices Inc./Maxim Integrated LTM2893IY-1#PBF	SPI	Magnetic Coupling			100 Mbps	36-BGA	150 ns	Surface Mount	85 °C	-40 C		Bidirectional Unidirectional	10 ns	6000 Vrms	5.5 V	3 V	50 kV/çs	10	6	7
Analog Devices Inc./Maxim Integrated LTM2893HY-1#PBF	SPI	Magnetic Coupling			100 Mbps	36-BGA	150 ns	Surface Mount	125 °C	-40 C		Bidirectional Unidirectional	10 ns	6000 Vrms	5.5 V	3 V	50 kV/çs	10	6	7
Analog Devices Inc./Maxim Integrated LTM2893CY-1#PBF	SPI	Magnetic Coupling			100 Mbps	36-BGA	150 ns	Surface Mount	70 °C	0 °C		Bidirectional Unidirectional	10 ns	6000 Vrms	5.5 V	3 V	50 kV/çs	10	6	7
