The LTC6252/LTC6253/LTC6254 are single/dual/quad low power, high speed unity gain stable rail-to-rail input/output operational amplifiers. On only 3.5mA of supply current they feature a 720MHz gain-bandwidth product, 280V/μs slew rate and a low 2.75nV/√Hzof input-referred noise. The combination of high bandwidth, high slew rate, low power consumption and low broadband noise makes the LTC6252 family unique among rail-to-rail input/output op amps with similar supply currents. They are ideal for lower supply voltage high speed signal conditioning systems.The LTC6252 family maintains high efficiency performance from supply voltage levels of 2.5V to 5.25V and is fully specified at supplies of 2.7V and 5.0V.For applications that require power-down, the LTC6252 and the LTC6253 in MS10 offer a shutdown pin which disables the amplifier and reduces current consumption to 42μA.The LTC6252 family can be used as a plug-in replacement for many commercially available op amps to reduce power or to improve input/output range and performance.ApplicationsLow Voltage, High Frequency Signal ProcessingDriving A/D ConvertersRail-to-Rail Buffer AmplifiersActive FiltersBattery Powered Equipment

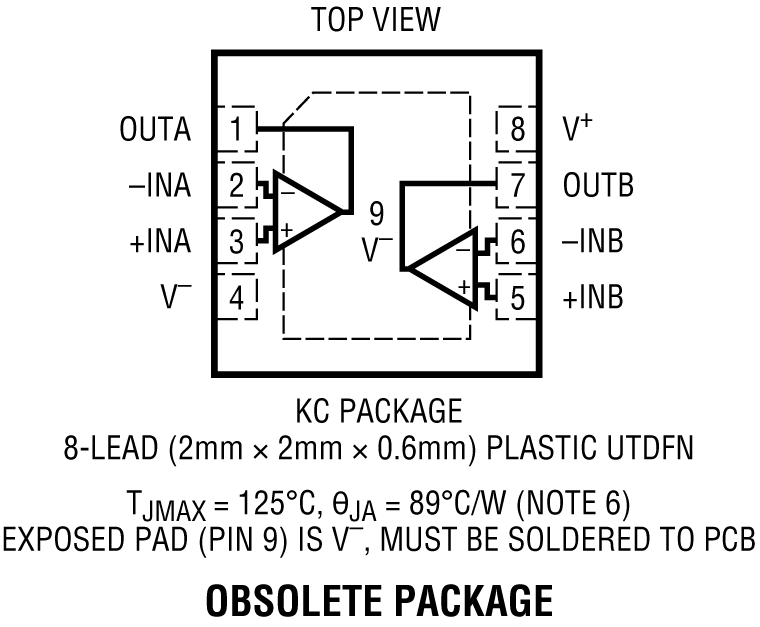

The LTC6255/LTC6256/LTC6257are single/dual/quad operational amplifiers with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. They are unity gain stable with or without capacitive loads. They feature 6.5MHz gain-bandwidth product, 1.8V/μs slew rate while consuming only 65μA of supply current per amplifier operating on supply voltages ranging from 1.8V to 5.25V. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6255 family unique among rail-to-rail input/output op amps with similar supply current. These operational amplifiers are ideal for low power and low noise applications.For applications that require power-down, the LTC6255 and LTC6256 in S6 and MS10 packages offer shutdown which reduces the current consumption to 7μA maximum.The LTC6255 family can be used as plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.ApplicationsMicropower Active FiltersPortable InstrumentationBattery or Solar Powered SystemsAutomotive Electronics

TheLTC6255/LTC6256/LTC6257 are single/dual/quad operational amplifiers with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. They are unity gain stable with or without capacitive loads. They feature 6.5MHz gain-bandwidth product, 1.8V/μs slew rate while consuming only 65μA of supply current per amplifier operating on supply voltages ranging from 1.8V to 5.25V. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6255 family unique among rail-to-rail input/output op amps with similar supply current. These operational amplifiers are ideal for low power and low noise applications.For applications that require power-down, the LTC6255 and LTC6256 in S6 and MS10 packages offer shutdown which reduces the current consumption to 7μA maximum.The LTC6255 family can be used as plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.ApplicationsMicropower Active FiltersPortable InstrumentationBattery or Solar Powered SystemsAutomotive Electronics

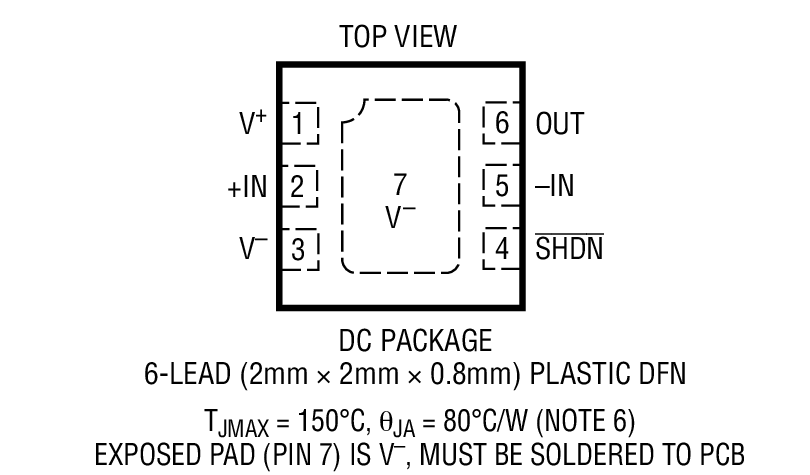

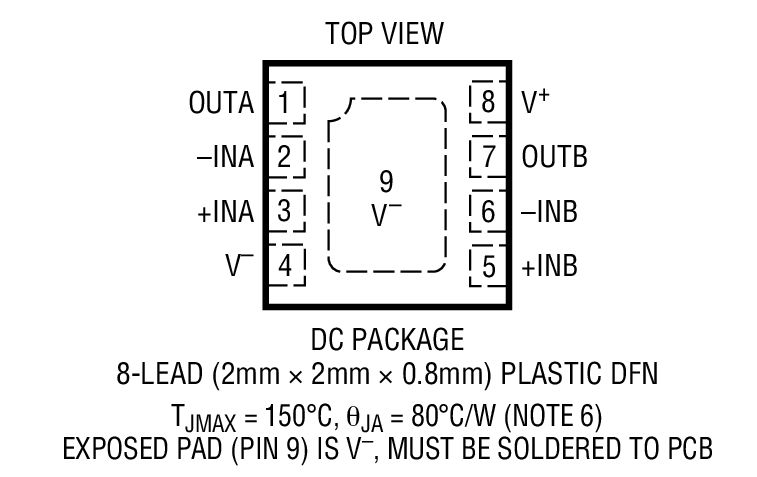

The LTC6258/LTC6259/LTC6260 are single/dual/quad operational amplifiers with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. They are unity gain stable with or without capacitive loads. They feature 1.3MHz gain-bandwidth product, 0.24V/μs slew rate while consuming only 20μA of supply current per amplifier operating on supply voltages ranging from 1.8V to 5.25V. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6258 family unique among rail-to-rail input/output op amps with similar supply current. These operational amplifiers are ideal for power efficient applications.For applications that require power-down, the LTC6258 in 2mm × 2mm DFN and LTC6259 MS10 packages respectively offer shutdown which reduces the current consumption to 7μA maximum.The LTC6258 family can be used as plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.ApplicationsMicropower Active FiltersPortable InstrumentationBattery or Solar Powered SystemsAutomotive Electronics

The LTC6258/LTC6259/LTC6260 are single/dual/quad operational amplifiers with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. They are unity gain stable with or without capacitive loads. They feature 1.3MHz gain-bandwidth product, 0.24V/μs slew rate while consuming only 20μA of supply current per amplifier operating on supply voltages ranging from 1.8V to 5.25V. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6258 family unique among rail-to-rail input/output op amps with similar supply current. These operational amplifiers are ideal for power efficient applications.For applications that require power-down, the LTC6258 in 2mm × 2mm DFN and LTC6259 MS10 packages respectively offer shutdown which reduces the current consumption to 7μA maximum.The LTC6258 family can be used as plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.ApplicationsMicropower Active FiltersPortable InstrumentationBattery or Solar Powered SystemsAutomotive Electronics

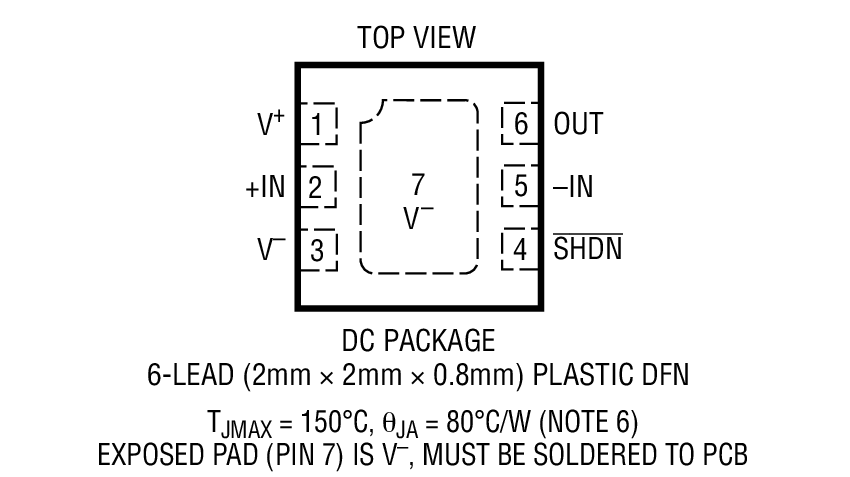

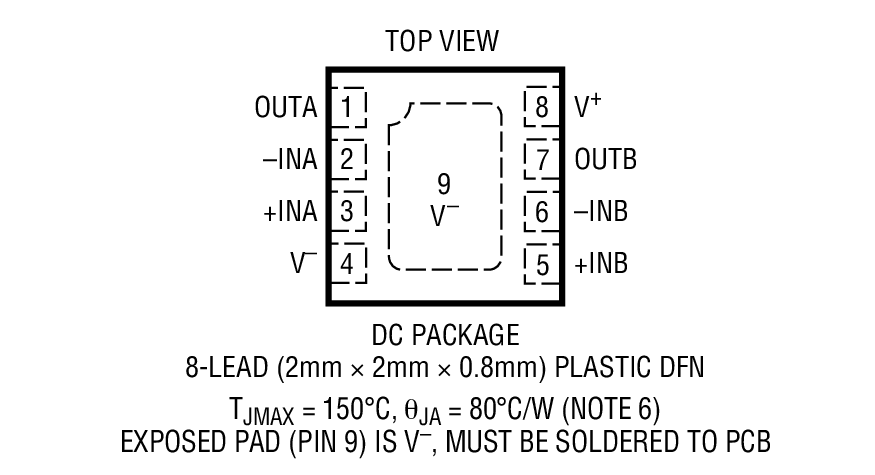

The LTC6261/LTC6262/LTC6263 are single/dual/quad operational amplifiers with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. They are unity gain stable with capacitive loads up to 1nF. They feature 30MHz gain-bandwidth product, 7V/μs slew rate while consuming only 240μA of supply current per amplifier operating on supply voltages ranging from 1.8V to 5.25V. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6261 family unique among rail-to-rail input/output op amps with similar supply current. These operational amplifiers are ideal for low power and low noise applications.For applications that require power-down, the LTC6261 in 2mm × 2mm DFN and LTC6262 in MSOP-10 offer shutdown which reduces the current consumption to 10μA maximum.The LTC6261 family can be used as plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.ApplicationsMicropower Active FiltersPortable InstrumentationBattery or Solar Powered SystemsAutomotive Electronics
