ADP166 Series

Very Low Quiescent Current, 150mA, LDO Regulator

Catalog

Very Low Quiescent Current, 150mA, LDO Regulator

Part	Utilized IC / Part	Current - Output	Channels per IC	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Regulator Type	Voltage - Output	Board Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Number of Regulators	Supplier Device Package	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Output Configuration	Current - Quiescent (Iq)	Protection Features	Voltage - Output (Min/Fixed)	PSRR [Min]	PSRR [Max]	Output Type	Voltage - Output (Min/Fixed) [Min]
Analog Devices ADP166CB-EVALZ	ADP166	150 mA	1 - Single	2.2 V	5.5 V	Board(s)	Positive Adjustable	1.8 V	Fully Populated
Analog Devices ADP166ACPZN-3.0-R7		150 mA								Enable	125 °C	-40 °C	1.81 mOhm	0.225 V	6.2 µA	1	6-LFCSP-UD (2x2)	Surface Mount	6-UDFN Exposed Pad CSP	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices ADP166AUJZ-1.2-R7		150 mA								Enable	125 °C	-40 °C	1.81 mOhm		6.2 µA	1		Surface Mount	SOT-23-5 Thin TSOT-23-5	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.2 V	62 dB	72 dB
Analog Devices ADP166AUJZ-3.0-R7		150 mA								Enable	125 °C	-40 °C	1.81 mOhm	0.225 V	6.2 µA	1		Surface Mount	SOT-23-5 Thin TSOT-23-5	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices ADP166ACBZ-3.0-R7		150 mA								Enable	125 °C	-40 °C	1.81 mOhm	0.225 V	6.2 µA	1	4-WLCSP (0.96x0.96)	Surface Mount	4-WFBGA WLCSP	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices ADP166ACPZN-R7		150 mA								Enable	125 °C	-40 °C		0.225 V	6.2 µA	1	6-LFCSP-UD (2x2)	Surface Mount	6-UDFN Exposed Pad CSP	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 V	50 dB	72 dB	Adjustable
Analog Devices ADP166ACBZ-1.8-R7		150 mA								Enable	125 °C	-40 °C	1.81 mOhm		6.2 µA	1	4-WLCSP (0.96x0.96)	Surface Mount	4-WFBGA WLCSP	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.8 V
Analog Devices ADP166AUJZ-R7		150 mA								Enable	125 °C	-40 °C		0.225 V	6.2 µA	1		Surface Mount	SOT-23-5 Thin TSOT-23-5	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 V	50 dB	72 dB	Adjustable

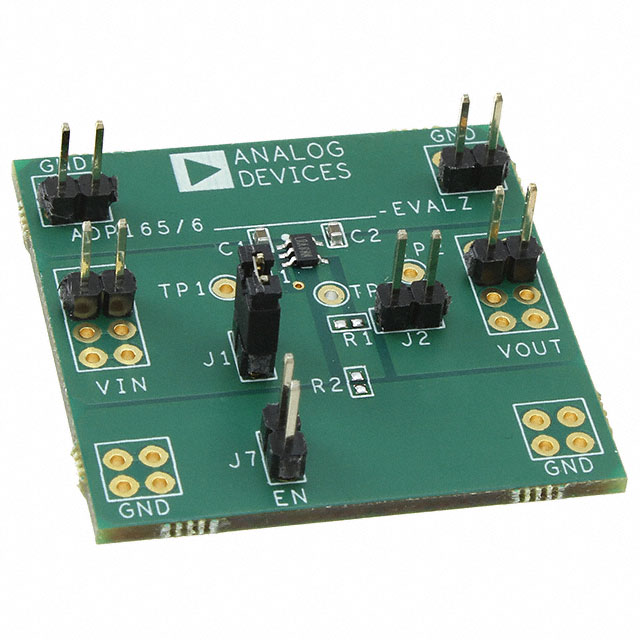

Analog Devices ADP166UJ-EVALZ	ADP166	150 mA	1 - Single	2.2 V	5.5 V	Board(s)	Positive Adjustable	3.3 V	Fully Populated
Analog Devices ADP166ACPZN-2.3-R7		150 mA								Enable	125 °C	-40 °C	1.81 mOhm	0.225 V	6.2 µA	1	6-LFCSP-UD (2x2)	Surface Mount	6-UDFN Exposed Pad CSP	5.5 V	Positive	2.4 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)					2.3 V

Catalog

Very Low Quiescent Current, 150mA, LDO Regulator

Key Features

• Very low quiescent currentIQ= 590 nA with 0 µA loadIQ= 890 nA with 1 µA load

• Maintains very low quiescent current in dropout (pass through mode):IQ_DROP= 720 nA with 0 µA loadIQ_DROP= 1200 nA with 1 µA load

• Stable with 1 µF ± 30% ceramic input and output capacitors

• Maximum load current: ILOAD_MAX: 150 mA

• Input voltage range: 2.2 V to 5.5 V

• Low shutdown current: 50 nA typical

• Low dropout voltage: 120 mV at 150 mA load

• Initial output voltage accuracy: ±1%

• Accuracy over line, load, and temperature: ±3.5%

• 7 fixed output voltage options: 1.2 V to 3.3 V

• Adjustable output option can be set from 1.2 V to 4.2 V

• See data sheet for additional features

Description

TheADP165/ ADP166 are very low quiescent current, low dropout, linear regulator that operate from 2.2 V to 5.5 V and provides up to 150 mA of output current. The low 120 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range.The ADP165 / ADP166 are specifically designed for stable operation with a tiny 1 µF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.The ADP165 / ADP166 are available in seven fixed output voltage options, ranging from 1.2 V to 3.3 V, and an adjustable output option. The ADP165 also include a switched resistor to discharge the output automatically when the LDO is disabled. The ADP166 is identical to the ADP165, but does not include the output discharge function.Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP165 / ADP166 are available in a tiny 5-lead TSOT, a 6-lead LFCSP and a 4-ball, 0.5 mm pitch WLCSP package for the smallest footprint solution to meet a variety of portable power applications.APPLICATIONSPortable and battery-powered equipmentPost dc-to-dc regulationPortable medical devicesWireless sensor network (WSN) devices
