AD5323 Series

2.5 V to 5.5 V, 230 µA, Dual Rail-to-Rail Voltage Output 12-Bit DAC

Catalog

2.5 V to 5.5 V, 230 µA, Dual Rail-to-Rail Voltage Output 12-Bit DAC

Part	Output Type	Supplier Device Package	Data Interface	Architecture	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Settling Time	INL/DNL (LSB)	Number of Bits	Package / Case [x]	Package / Case	Package / Case [y]	Mounting Type	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Reference Type	Number of DAC's	Supplied Contents	Utilized IC / Part	DAC Type
Analog Devices AD5323ARUZ	Voltage - Buffered	16-TSSOP	DSP SPI	String DAC	2.5 V	5.5 V	-40 °C	105 ░C	10 µs	0.2 LSB 2 LSB	12 bits	0.173 in	16-TSSOP	4.4 mm	Surface Mount	5.5 V	2.5 V	External
Analog Devices AD5323BRUZ-REEL7	Voltage - Buffered	16-TSSOP	DSP SPI	String DAC	2.5 V	5.5 V	-40 °C	105 ░C	10 µs	0.2 LSB 2 LSB	12 bits	0.173 in	16-TSSOP	4.4 mm	Surface Mount	5.5 V	2.5 V	External
Analog Devices AD5323ARUZ-REEL7	Voltage - Buffered	16-TSSOP	DSP SPI	String DAC	2.5 V	5.5 V	-40 °C	105 ░C	10 µs	0.2 LSB 2 LSB	12 bits	0.173 in	16-TSSOP	4.4 mm	Surface Mount	5.5 V	2.5 V	External
Analog Devices AD5323BRUZ-REEL	Voltage - Buffered	16-TSSOP	DSP SPI	String DAC	2.5 V	5.5 V	-40 °C	105 ░C	10 µs	0.2 LSB 2 LSB	12 bits	0.173 in	16-TSSOP	4.4 mm	Surface Mount	5.5 V	2.5 V	External
Analog Devices AD5323ARU		16-TSSOP										0.173 in	16-TSSOP	4.4 mm	Surface Mount
Analog Devices AD5323BRUZ	Voltage - Buffered	16-TSSOP	DSP SPI	String DAC	2.5 V	5.5 V	-40 °C	105 ░C	10 µs	0.2 LSB 2 LSB	12 bits	0.173 in	16-TSSOP	4.4 mm	Surface Mount	5.5 V	2.5 V	External

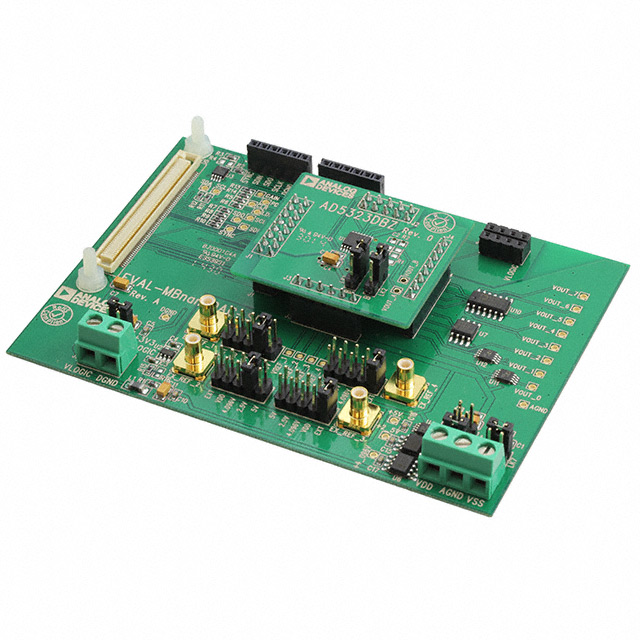

Analog Devices EVAL-AD5323DBZ			Serial SPI						8 µs		12 bits								2	Board(s)	AD5323	Voltage

Catalog

2.5 V to 5.5 V, 230 µA, Dual Rail-to-Rail Voltage Output 12-Bit DAC

Key Features

• AD5313: 2 buffered 10-bit DACs in 1 packageA version: ±4 LSB INLB version: ±2 LSB INL

• AD5323: 2 buffered 12-bit DACs in 1 packageA version: ±16 LSB INLB version: ±8 LSB INL

• 16-lead TSSOP package

• Power-down to 200 nA @ 5 V, 50 nA @ 3 V

• Micropower operation: 300 μA at 5 V (including reference current)

• 2.5 V to 5.5 V power supply

• Double-buffered input logic

• Guaranteed monotonic by design over all codes

• Buffered/unbuffered reference input options

• Output range: 0 V to VREFor 0 V to 2 VREF

• Power-on-reset to 0 V

Description

TheAD5303/AD5313/ AD5323 are dual 8-/10-/12-bit buffered voltage output DACs in a 16-lead TSSOP package that operate from a single 2.5 V to 5.5 V supply, consuming 230 μA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/μs. The AD5313 / AD5323 utilize a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standardsThe references for the two DACs are derived from two reference pins (one per DAC). These reference inputs may be configured as buffered or unbuffered inputs. The parts incorporate a power-on reset circuit, which ensures that the DAC outputs power up to 0 V and remain there until a valid write to the device takes place. There is also an asynchronous active low CLR pin that clears both DACs to 0 V. The outputs of both DACs may be updated simultaneously using the asynchronous LDAC input. The parts contain a power-down feature that reduces the current consumption of the devices to 200 nA at 5 V (50 nA at 3 V) and provides software-selectable output loads while in power-down mode. The parts may also be used in daisy-chaining applications using the SDO pin.The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is 1.5 mW at 5 V and 0.7 mW at 3 V, reducing to 1 μW in power-down mode.APPLICATIONSPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage and current sourcesProgrammable attenuators
